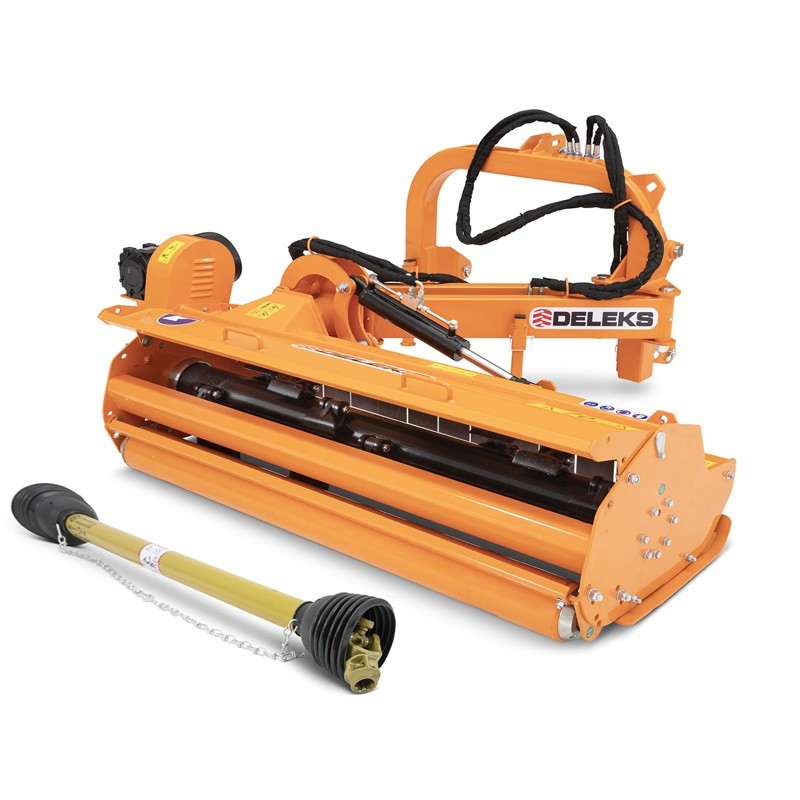

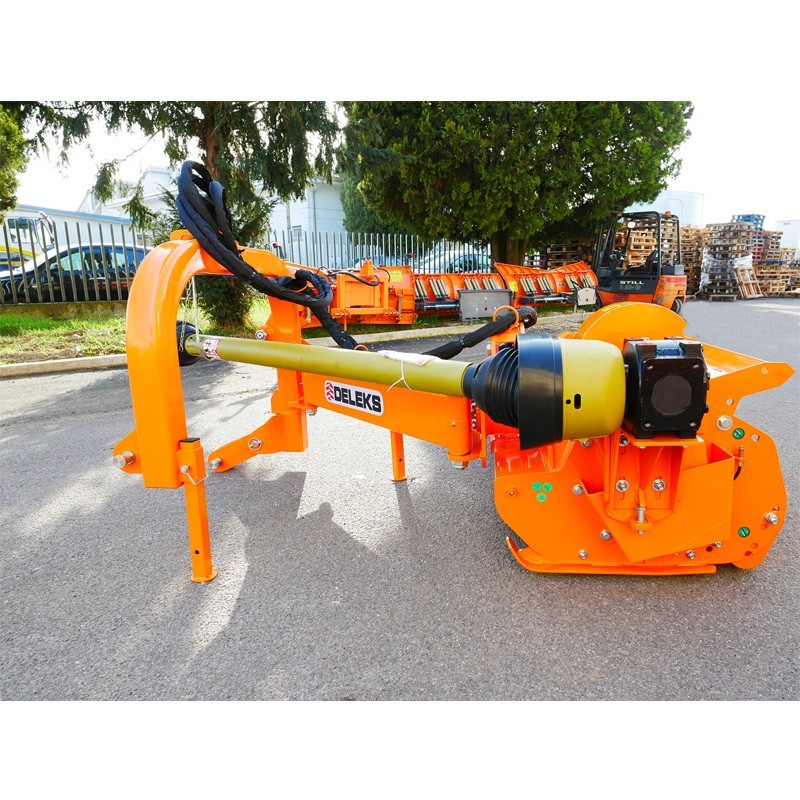

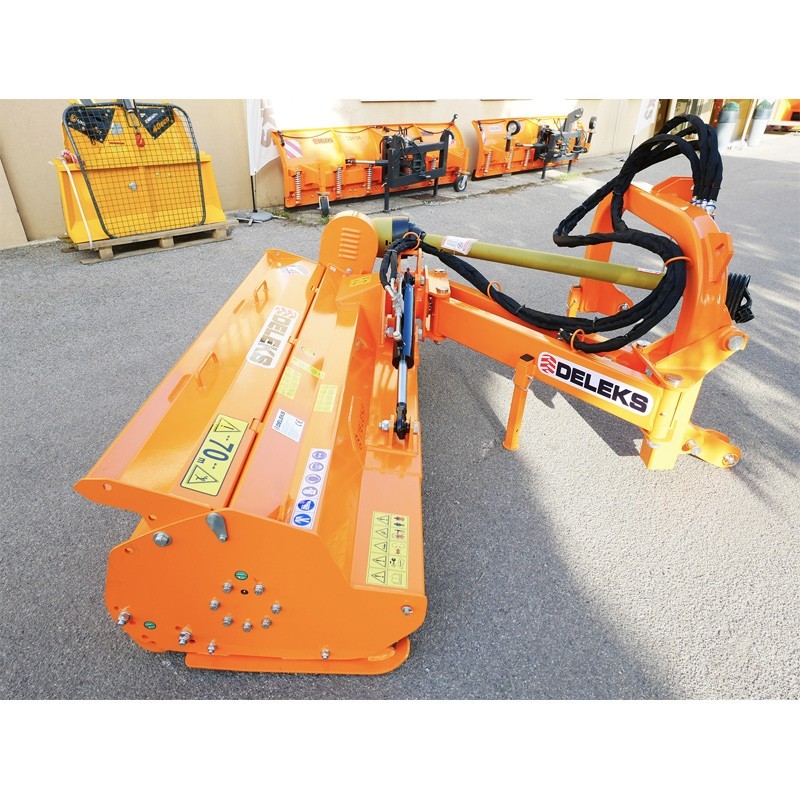

The Arm brushcutter Deleks ALCE-200 is specially designed for tractors with a power output of 70-110HP. This brushcutter model is used for lawns, gardens and vineyards.

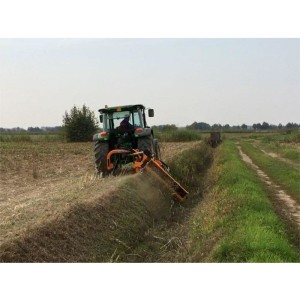

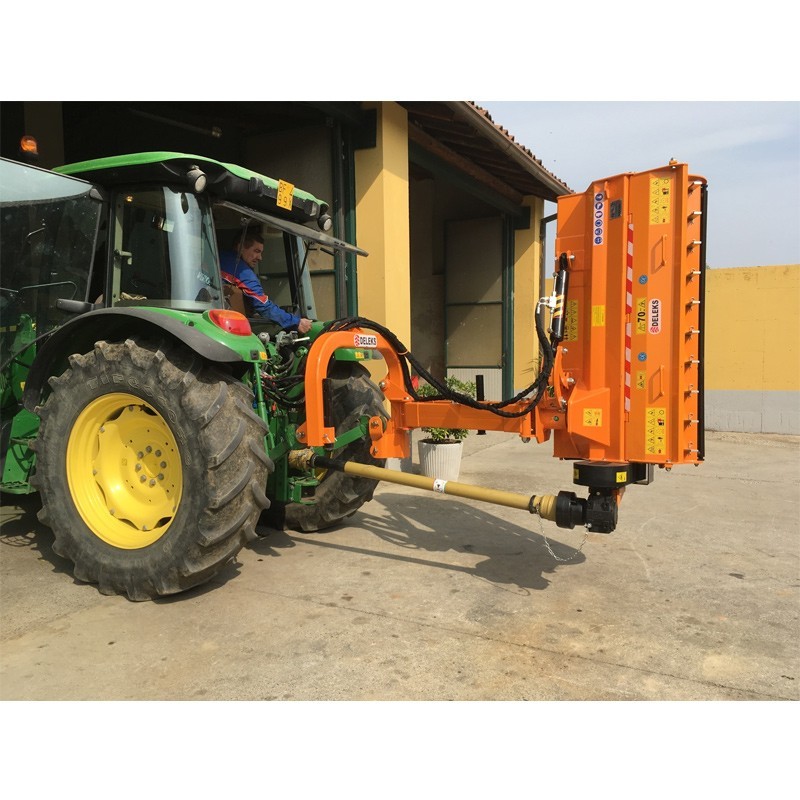

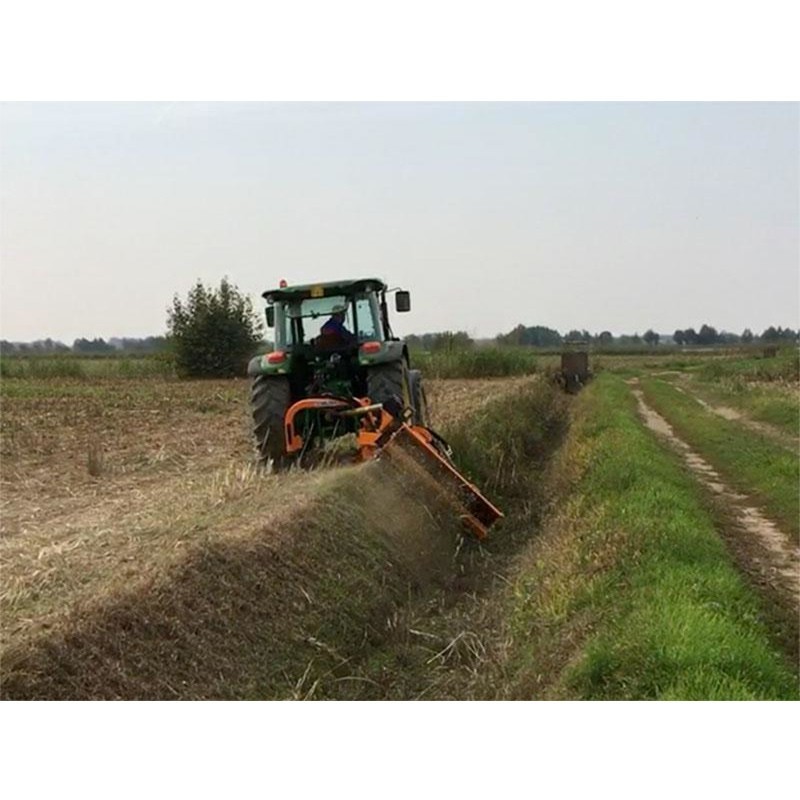

The model Deleks ALCE-200 is designed for cutting grass and brambles up to 4 cm in diameter. It is ideal for roadside verges. It can also be used for cutting bushes as it tilts about 90 degrees upwards and 60 degrees downwards

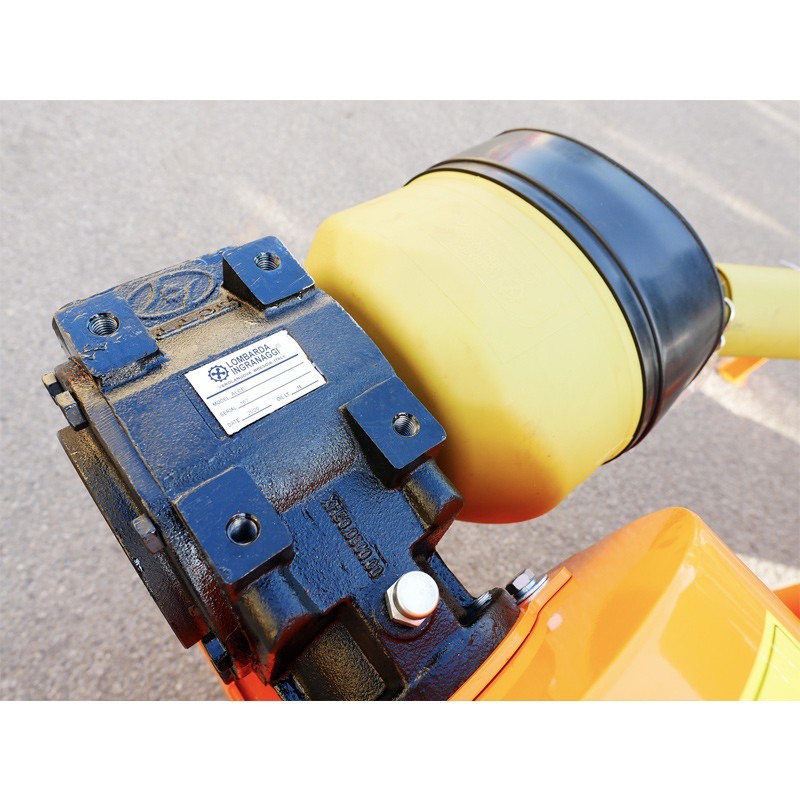

This Crusher Deleks also has a cAT 2 universal 3-point linkage. As for its features we can highlight its good transmission box Lombarda Ingranaggi made in Italy with free wheel.

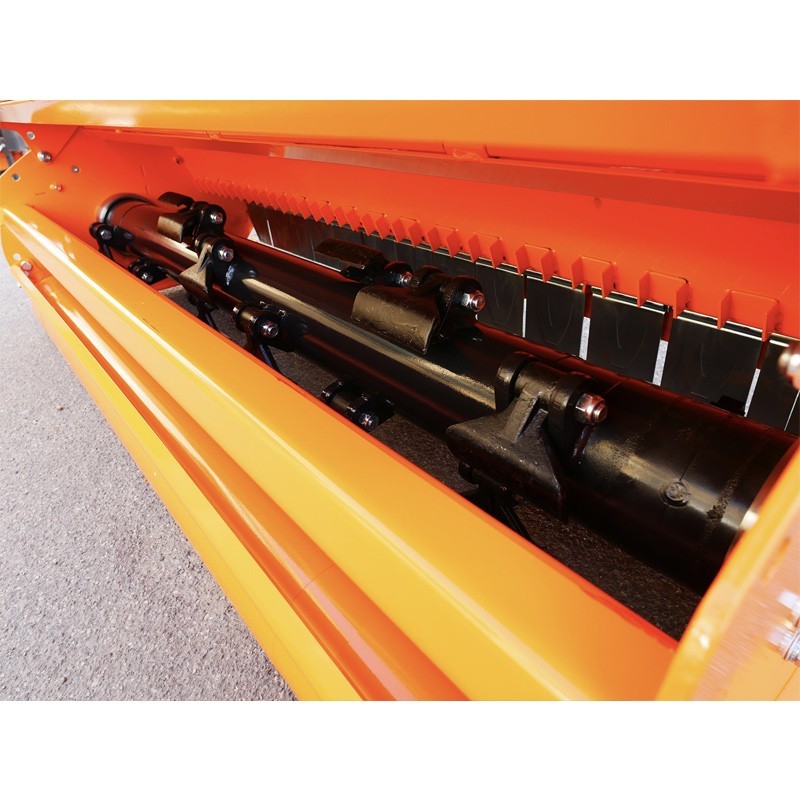

The Brushcutter ALCE-200 comes with cE gimbal included, it also includes an electronically balanced rotor. The implement can be used on tractors with low power in gardens and orchards. It has a weight of 640 kg.
This model of Arm brushcutter Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the working width of 1995mm and the total width 2390 mm. We can also highlight the adjustable cutting height from 35 up to 95mm and the total height 115mm.
Working width | 1995 mm |
Overall width | 2390 mm |
Cutting height min/max | 35 - 95 mm |
Weight | 690 kg |
Total height | 1150 mm |
Tractor power | 70 - 110 HP |
3-point hitch | Cat. 2 (ø 25.0-28.0 mm) |
Position of the gearbox | External |
Hood height | 470 mm |
Distance between the lower points | 840 - 970 mm |
Number of hammers | 18 |
Max. cutting diameter | 40-50 mm |
Total length | 1750 mm (closed) |
Ground to gearbox spacing | 650 mm |
Plate thickness | 5 mm + reinforcements |
Thickness of sheet metal on the sides | 8 mm |
Skid thickness | 8 mm |
Transmission type | V-belts |
Transmission: Gearbox | Lombarda Ingranaggi Srl |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: rotor speed | 2134 rpm |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: diameter of upper pulley | 220 mm |
Transmission: lower pulley diameter | 165 mm |
Transmission: number of Koreas | 4 |
Transmission: dimensions of the Koreas | 17x1300 |
Rotor: diameter | 152 mm |
Rotor: bearing type and dimension | 40x90 |
Rotor: balancing | Electronic |
Rotor: blade thickness | 8 mm |
Hammers: weight | 1100 g |
Hammers: hole dia | 16 mm |
Hammers: base width | 140 mm |
Hammers: head width | 40 mm |
Hammers: diagonal | 97 mm |
Roll: diameter | 152 mm |
Roll: sheet thickness | 6 mm |
Roll: bearing type and dimension | 90x40 mm - GB276-6308 |
Displacement and dimensions | View photos |

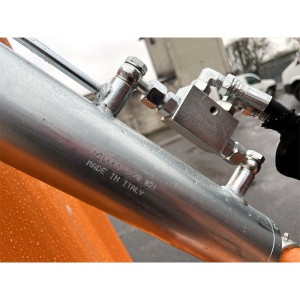

ø Hydraulic Cylinder A | 80-35 mm |
ø Hydraulic Cylinder B | 60-30 mm |
Oil pressure min/max | 120 - 150 bar |
Optiomal oil flow | 18 - 22 l/min |
Hydraulic hoses | WP 400 Bar, 1/2" Agri Standard |

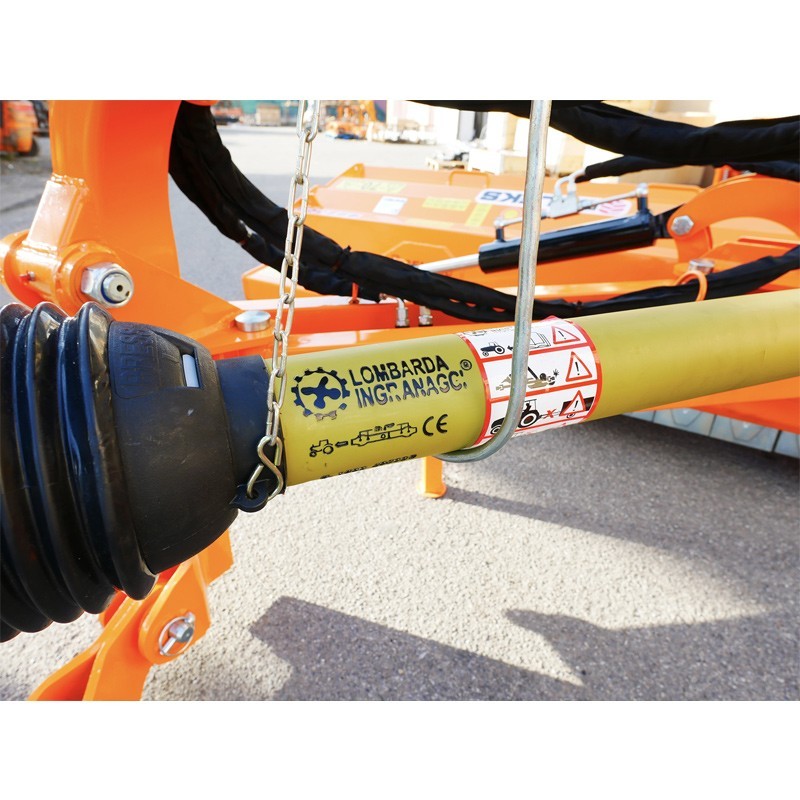

Cardan | CE 5x1800 mm |
Hood length | 770 mm |
Packaging dimensions | 2400*1000*1000 mm |
IMPORTANT NOTICE |
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.

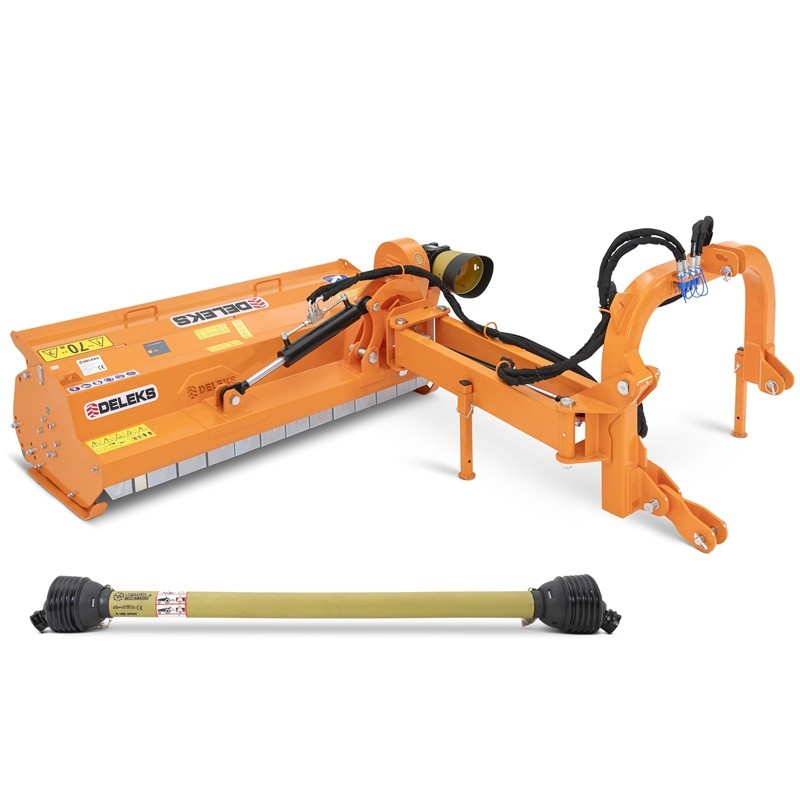

CARDAN SHAFT INCLUDED
