Support for two disks with EuroCentauro control unit Andalusia
- Control unit with multiplier
- 2 double-acting solenoid valves
- Oil tank
- Disc diameter 630 mm
€5,987.36 VAT incl.
CARDAN SHAFT INCLUDED
Assembly and set-up INCLUDED |

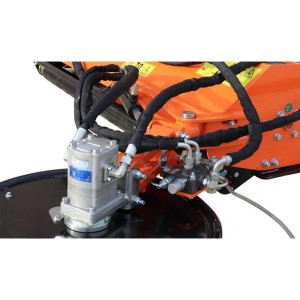

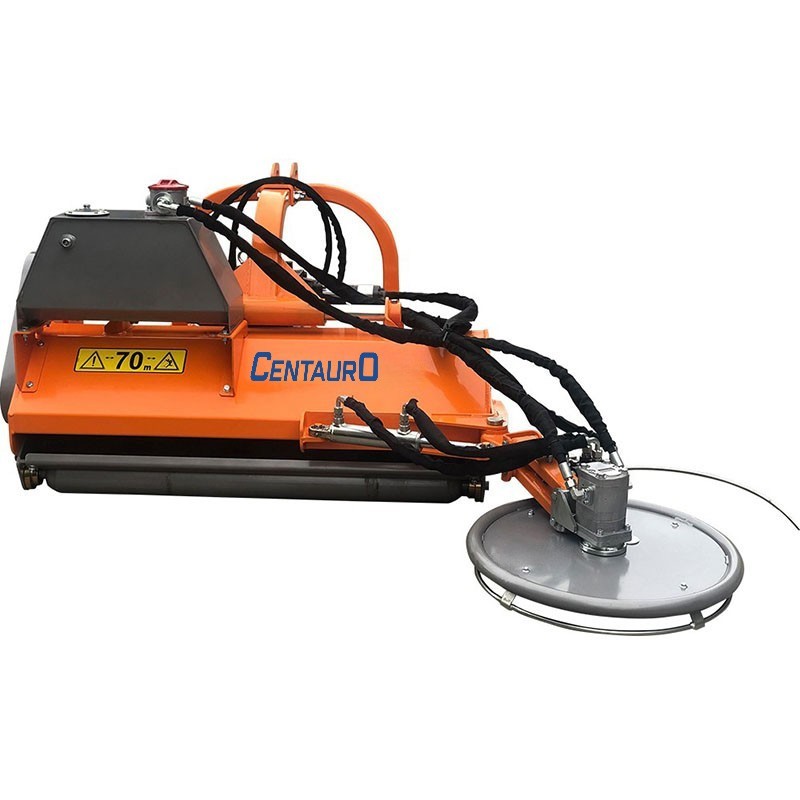

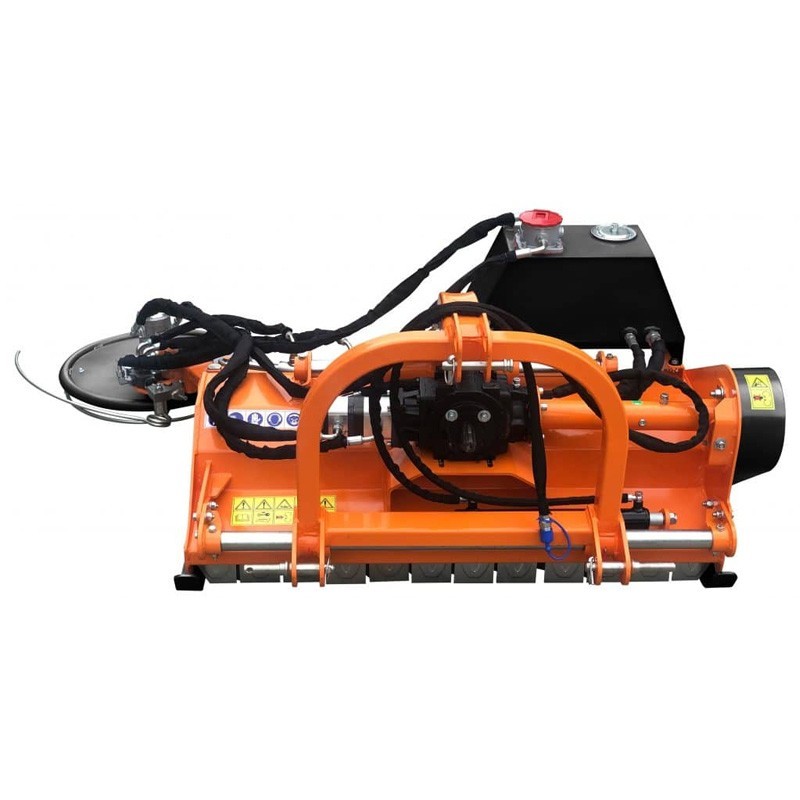

The EuroCentauro Huelva P hammer shredder is the ideal solution for clearing and maintenance of agricultural land that requires precision and control in cutting. With models Huelva 125 P, Huelva 155 P and Huelva 175 P, this walk-behind mulcher features a hydraulic displacement system and a 630 mm side disc with hydraulic motor, allowing it to cut grass and fine prunings up to 5 cm thick in an efficient and controlled manner.
Each model offers working widths from 1250 mm to 1750 mm and requires powers from 20 to 90 HP, adapting to different types of tractors. The heavy-duty 108 mm diameter rotor and the 20 to 28 hammer configuration ensure uniform shredding, ideal for intensive maintenance tasks. The three quality belts ensure a long-lasting and stable transmission, while the feeler gauge allows the right height to be maintained on the ground.
With a weight ranging from 324 kg to 374 kg and an offset of 175 mm to 200 mm, the EuroCentauro Huelva P Shredder is robust and easy to maneuver in difficult terrain. Its compact dimensions allow for efficient attachment, making this mulcher a versatile and reliable tool for those seeking precise clearing and maximum adaptability in agricultural maintenance.
Model | Huelva 125 P | Huelva 155 P | Huelva 175 P |
Working width (mm) | 1250 | 1550 | 1750 |
Weight (kg) | 324 | 354 | 374 |
Belts | 3 | 3 | 3 |
Hammers | 20 | 24 | 28 |
Rotor diameter | 108 | 108 | 108 |
Power requirement (Hp) | 20-40 | 30-70 | 40-90 |
PTO (rpm) | 540 | 540 | 540 |
Dimensions (cm) | 50 x 137 x 16,5 | 50 x 167 x 16,5 | 50 x 187 x 16,5 |
Displacement (mm) | 175 | 200 | 200 |
IMPORTANT NOTICES |
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless there is a pending examination. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
DRIVESHAFT INCLUDED
