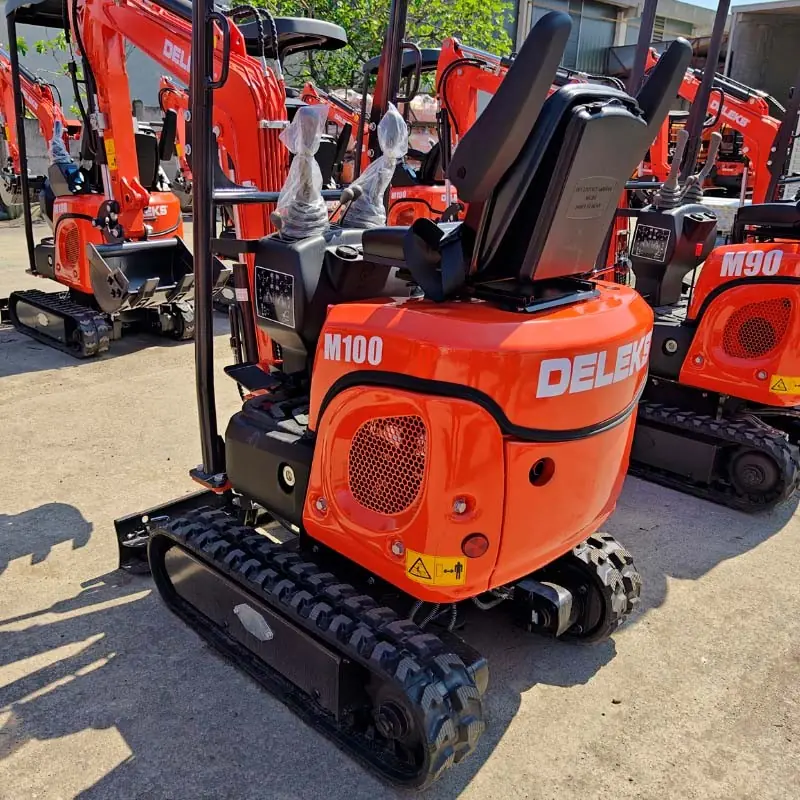

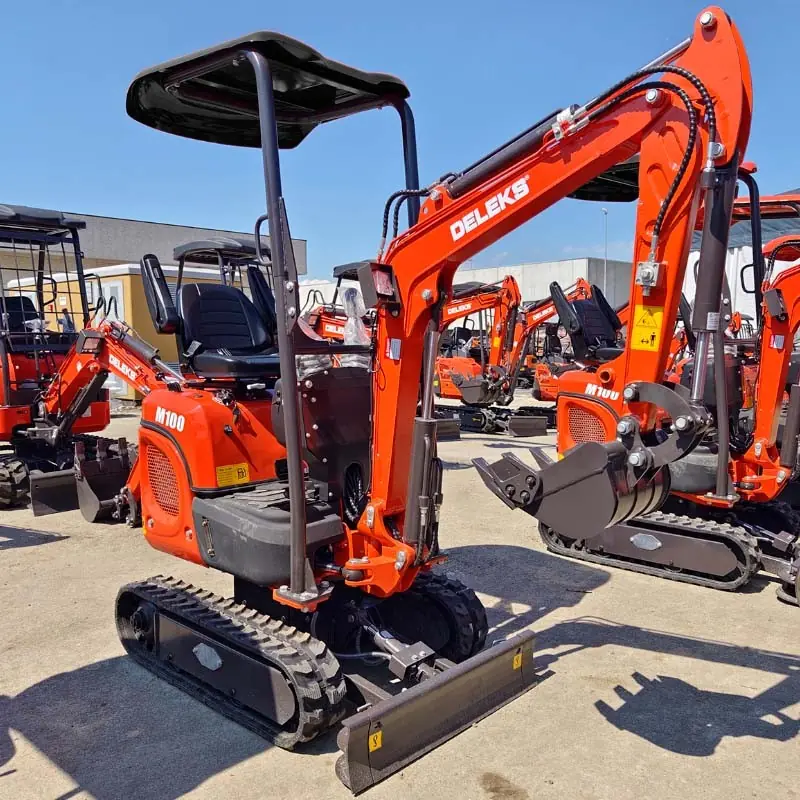

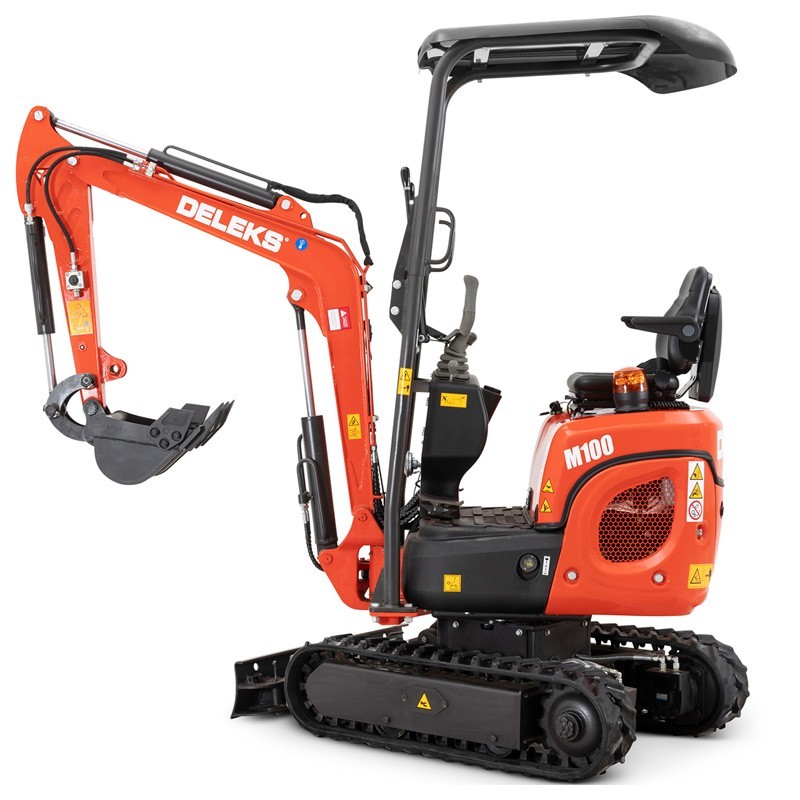

Mini excavator Deleks M100 Kubota D722 engine 10.2 Kw

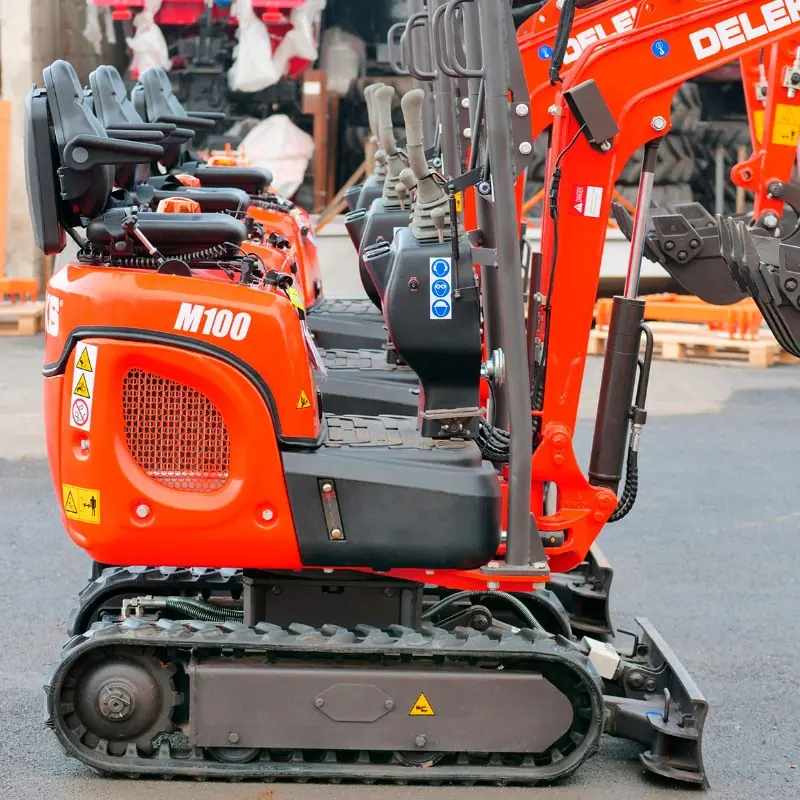

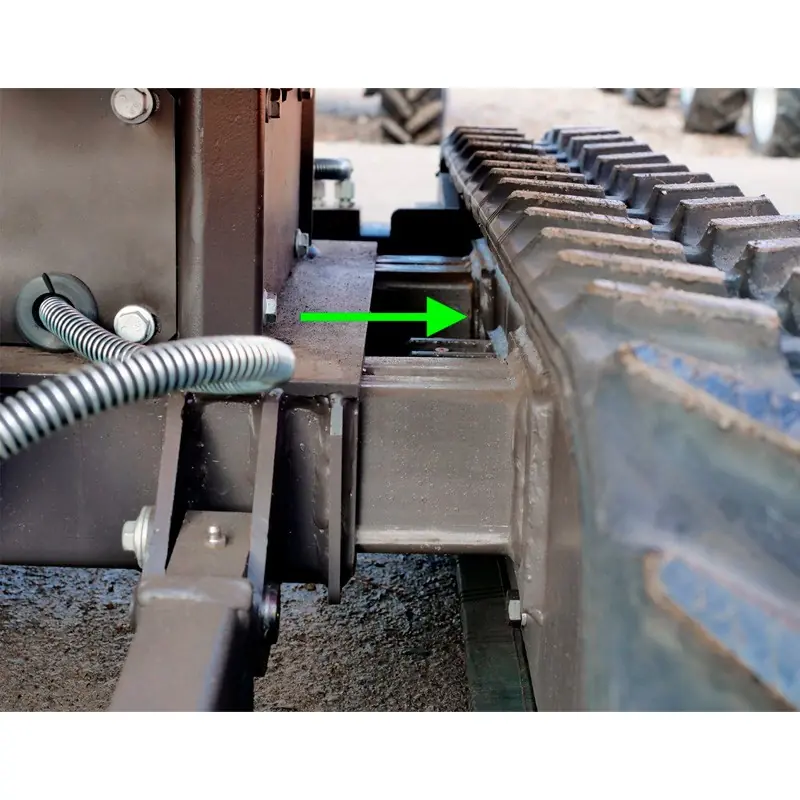

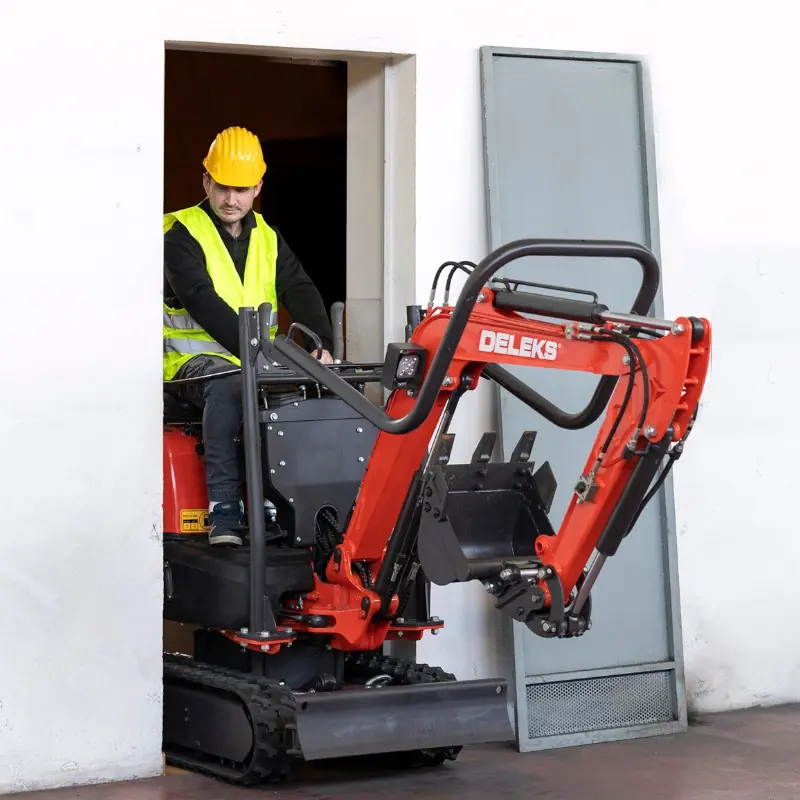

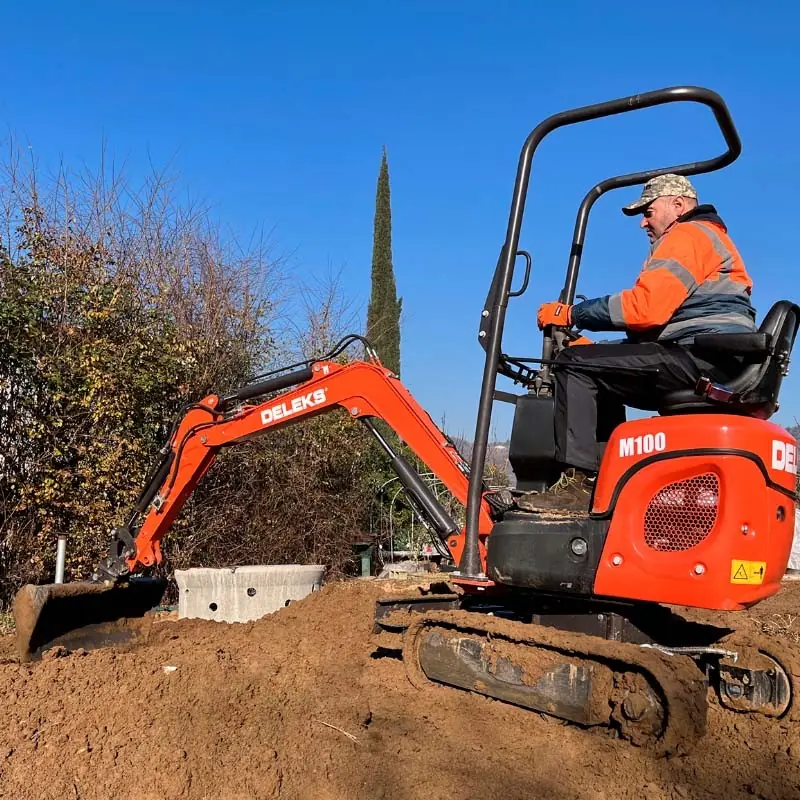

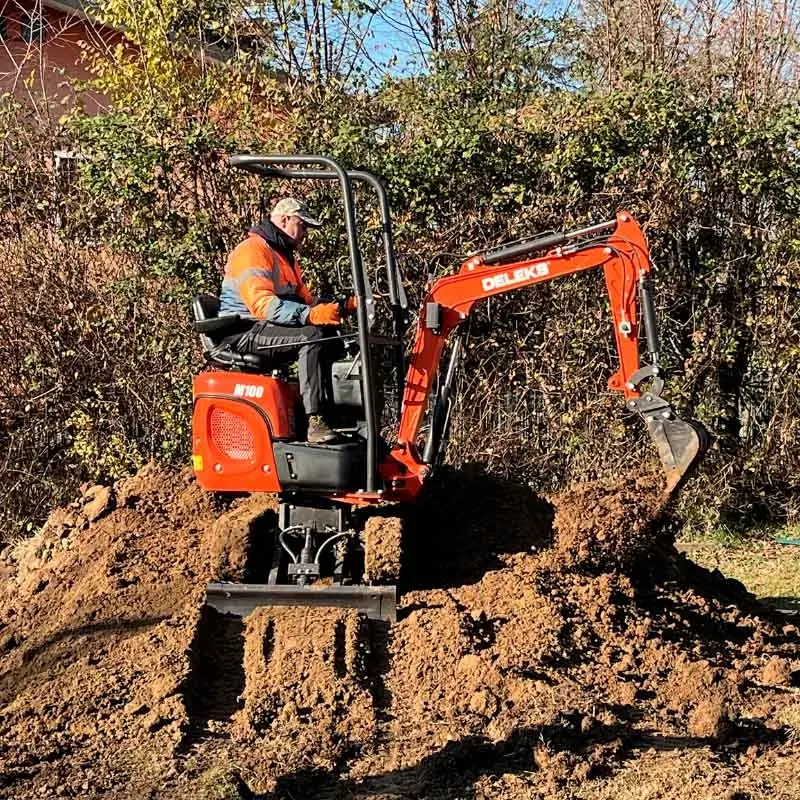

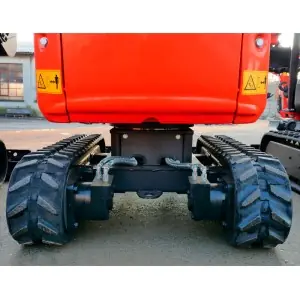

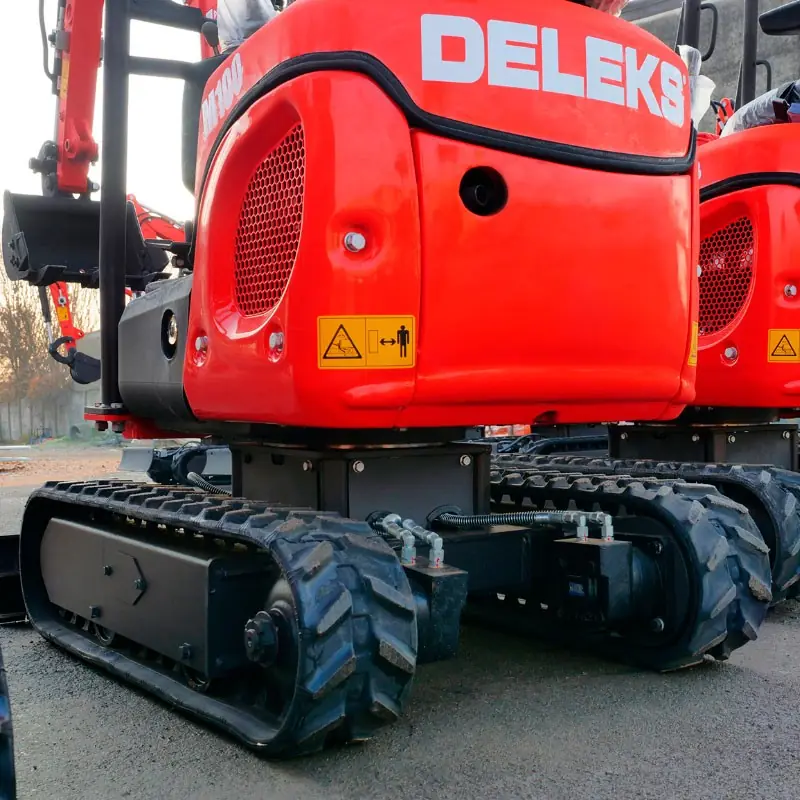

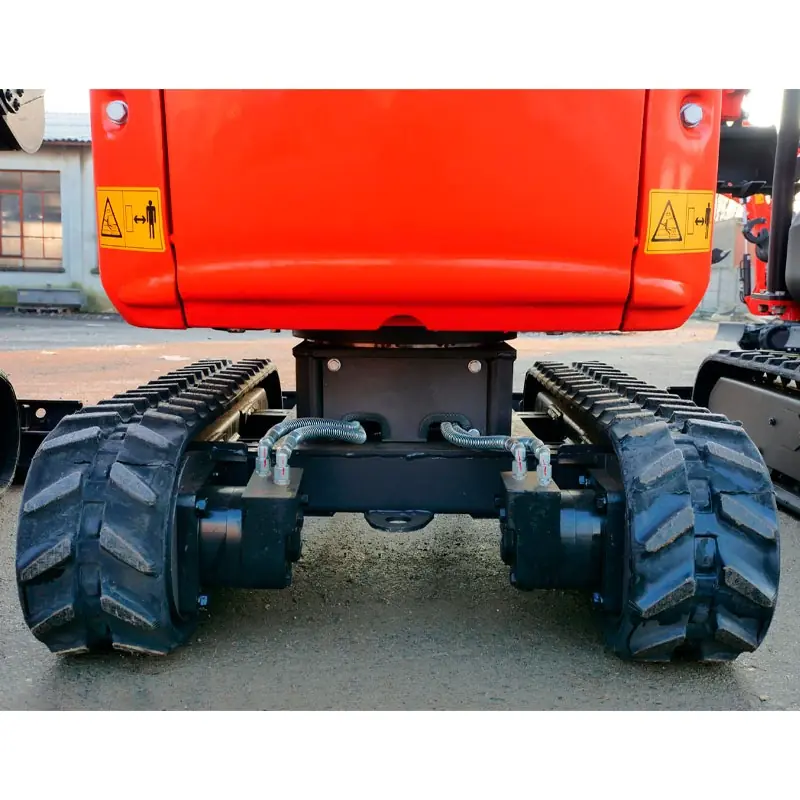

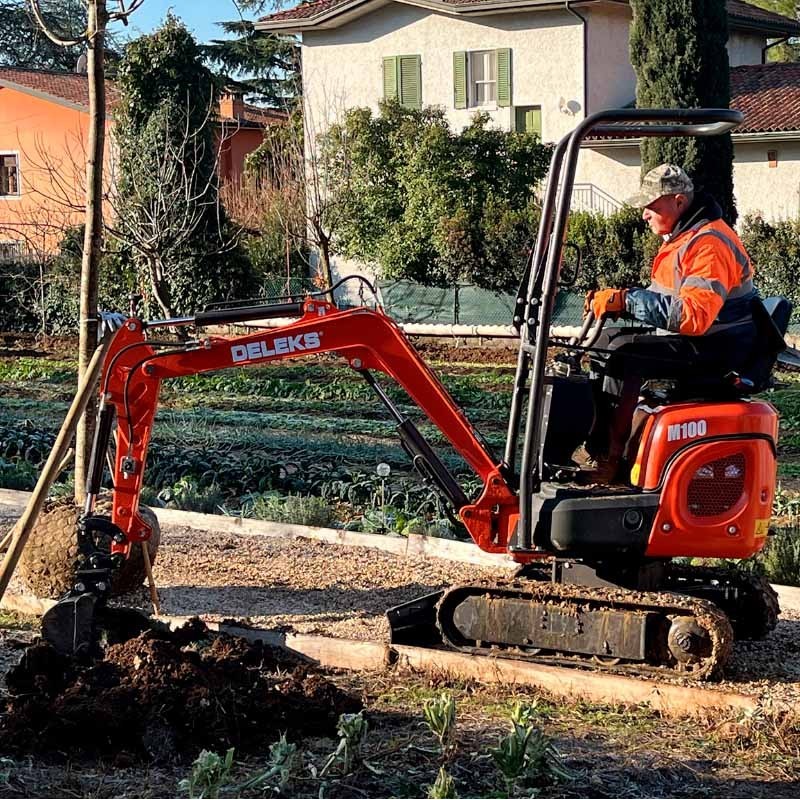

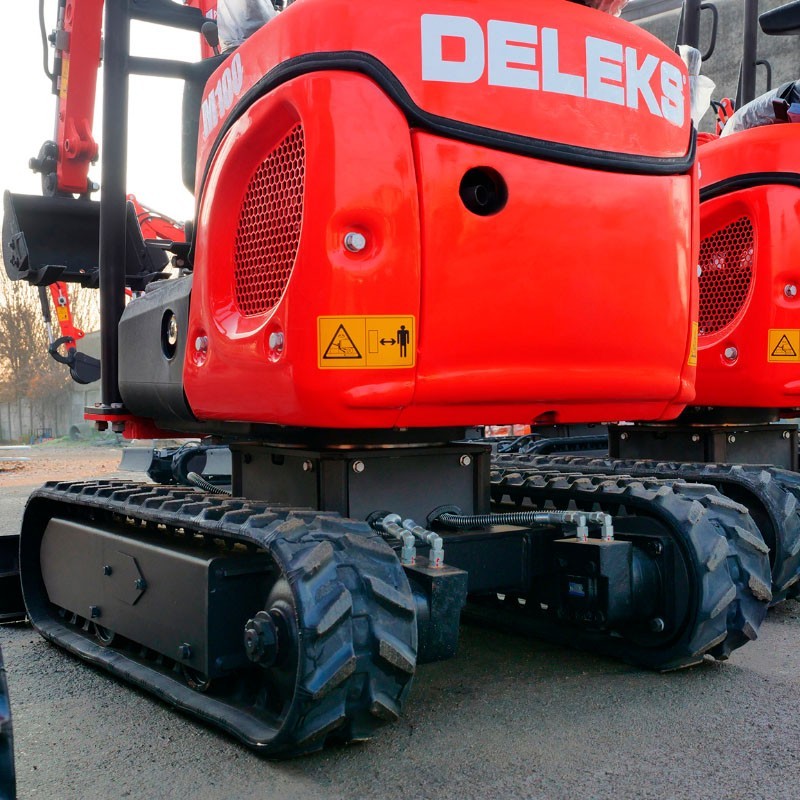

The Mini excavator Deleks M100 Kubota D722 engine 10.2 Kw is a versatile machine with an undercarriage width of 800 mm, allowing access to narrow spaces and working indoors. Its hydraulically adjustable undercarriage widens up to 954 mm, providing greater stability when using hydraulic hammers.

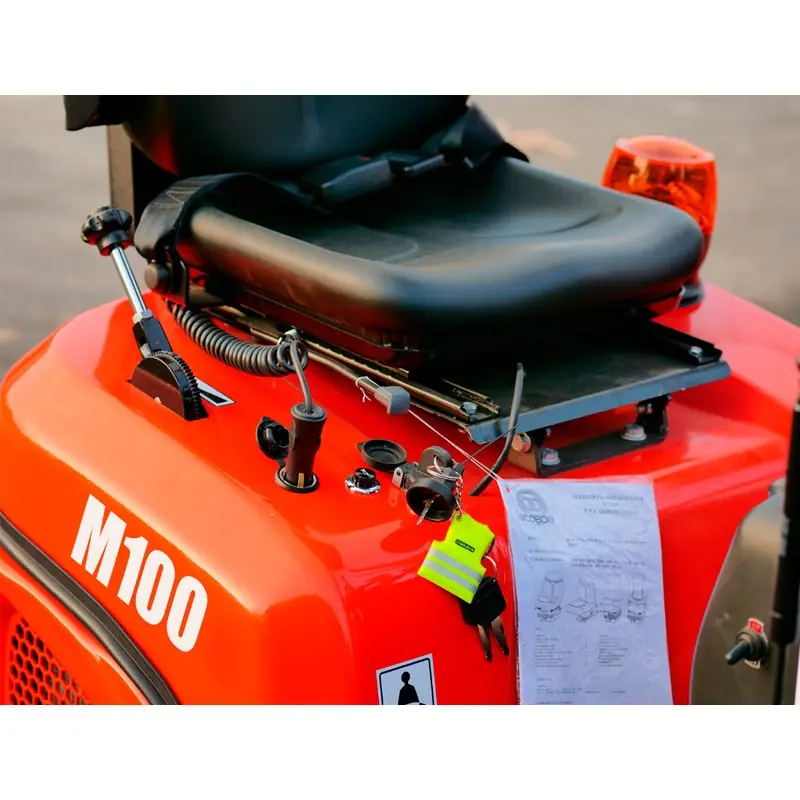

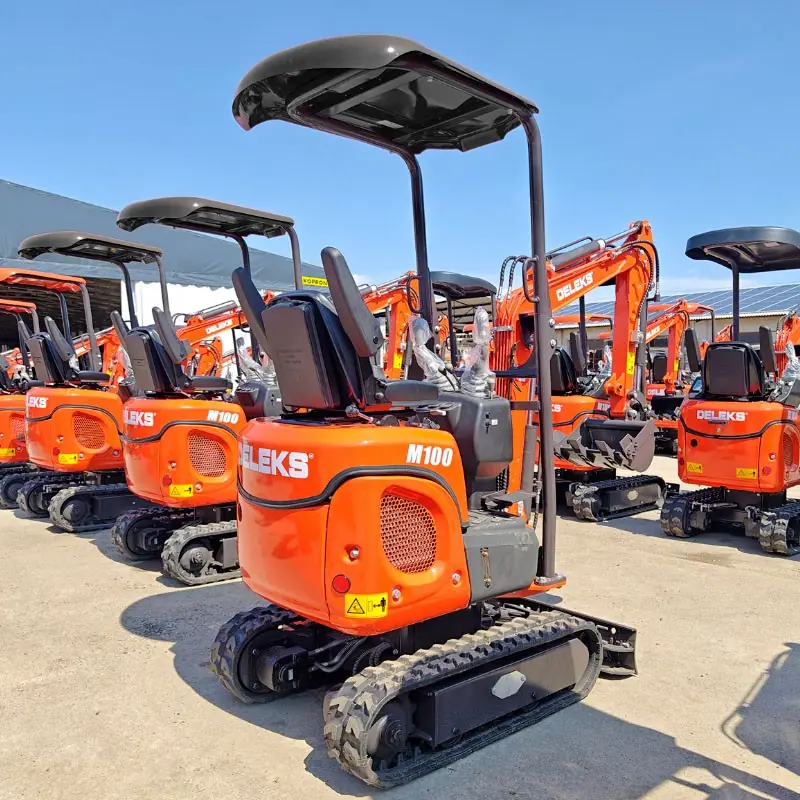

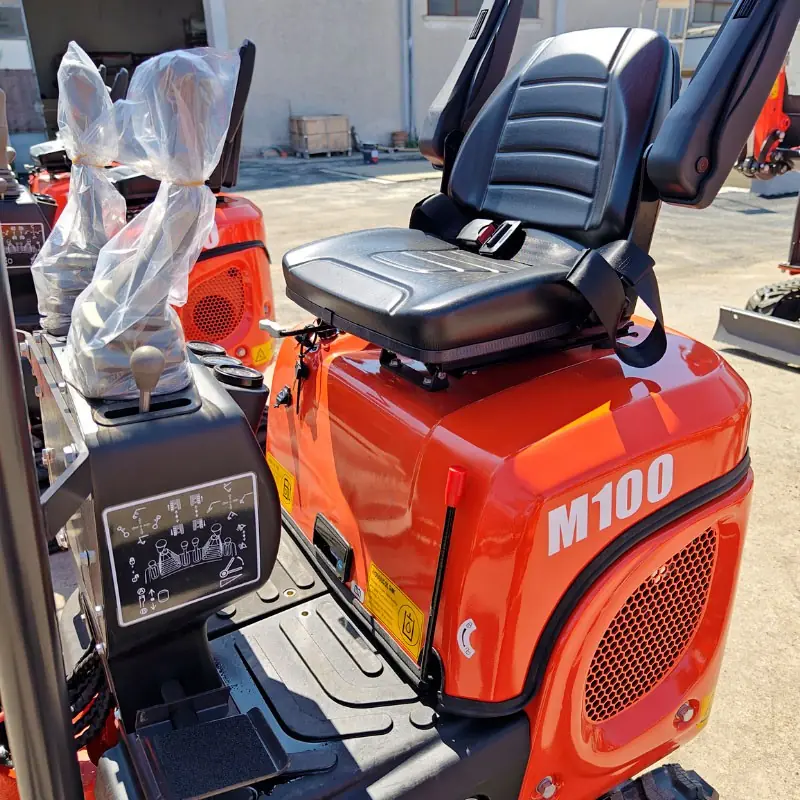

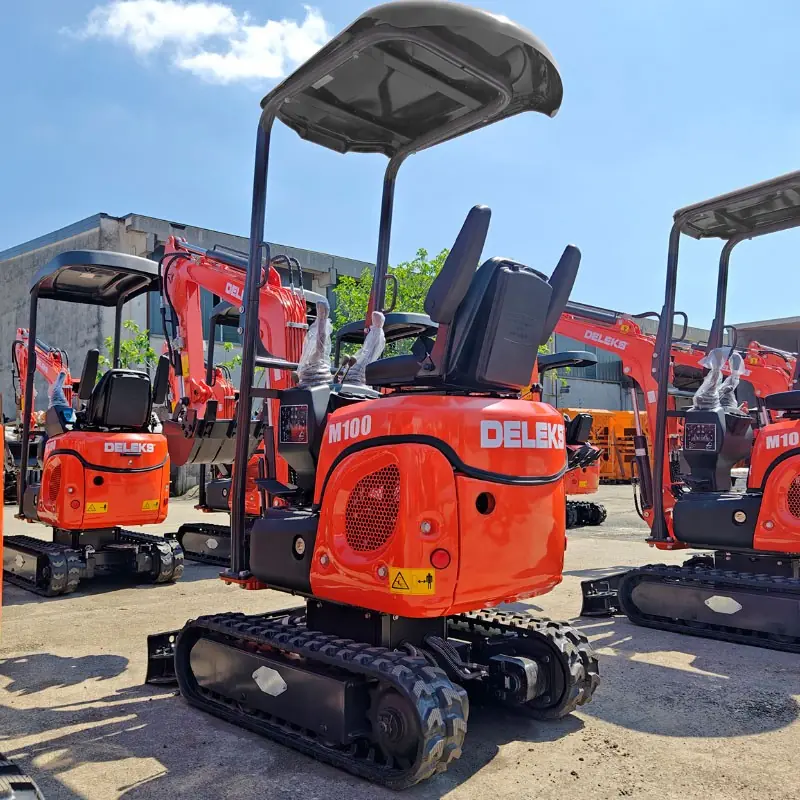

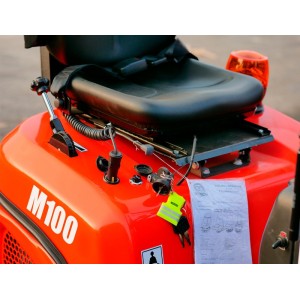

Operator safety is ensured by a safety belt with reel, safety lever and cast iron counterweight that protects the rear part. In addition, it is equipped with rOPS rollover protection, foldable for transport and access in interior construction sites.

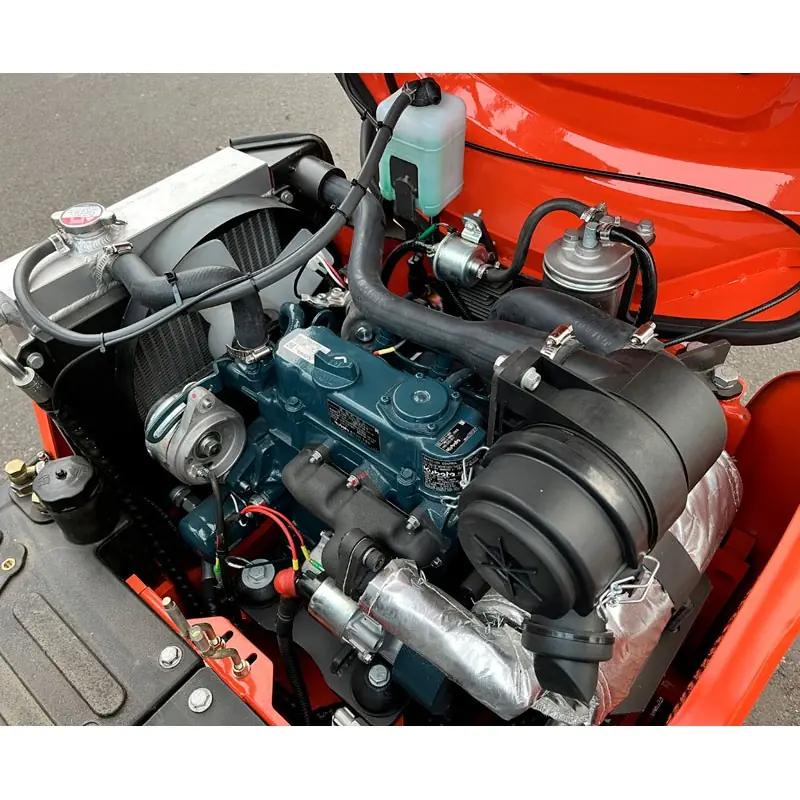

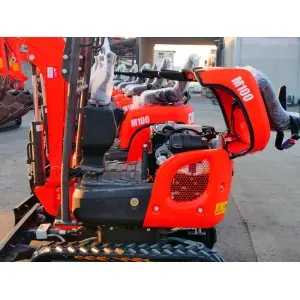

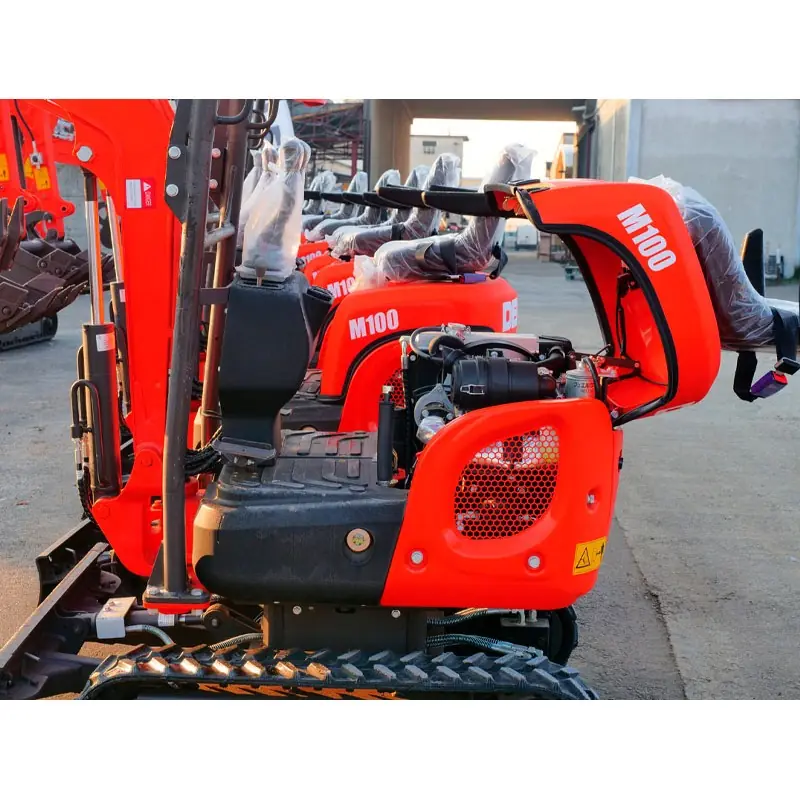

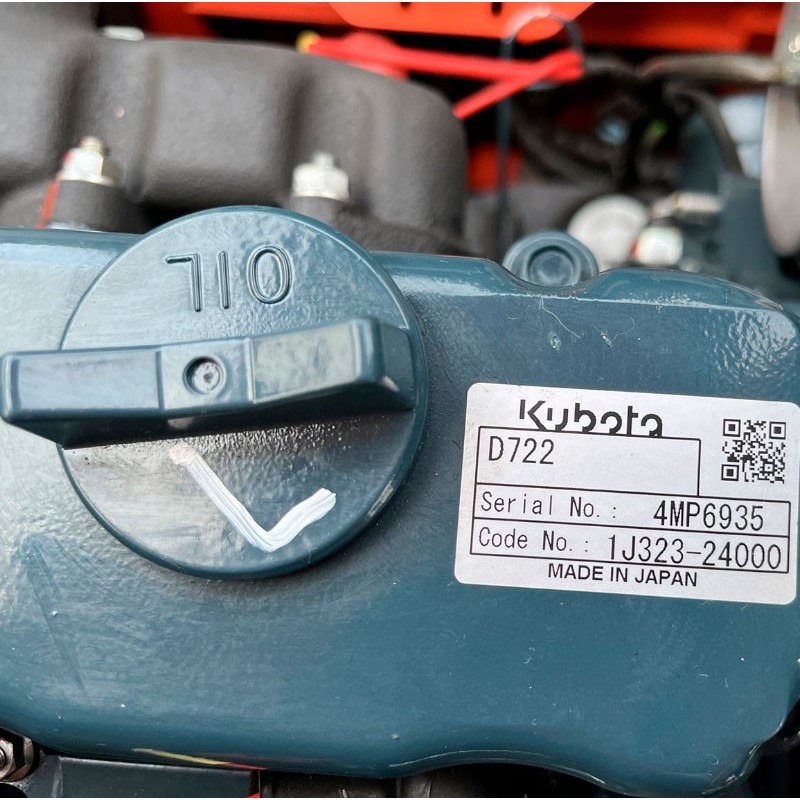

The kubota D722 engine, known for its optimal combustion, reduces gas emissions, noise and vibrations. Quick access to engine components facilitates maintenance.

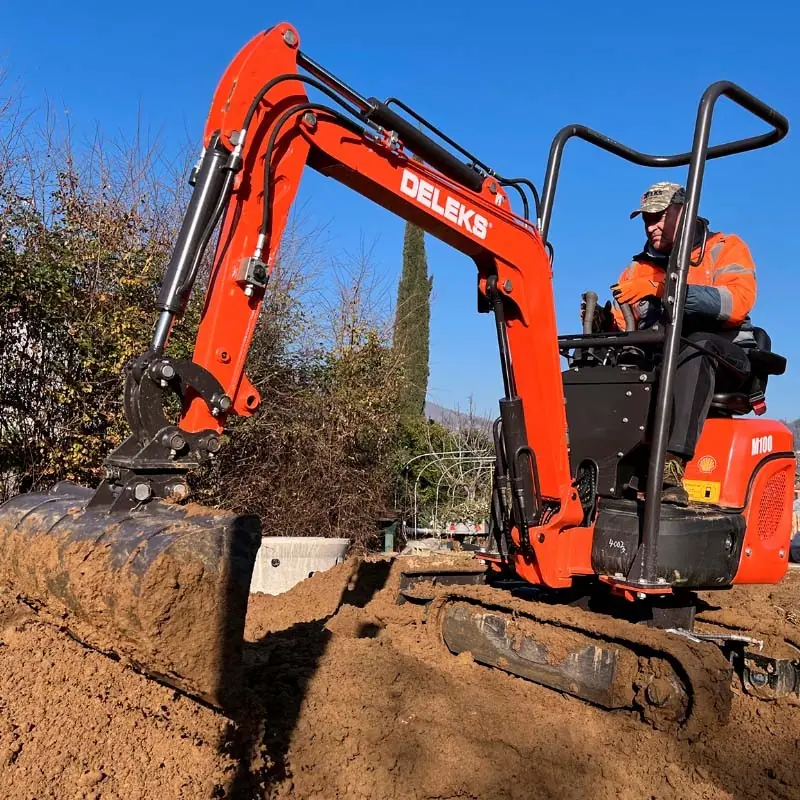

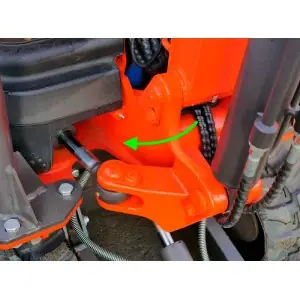

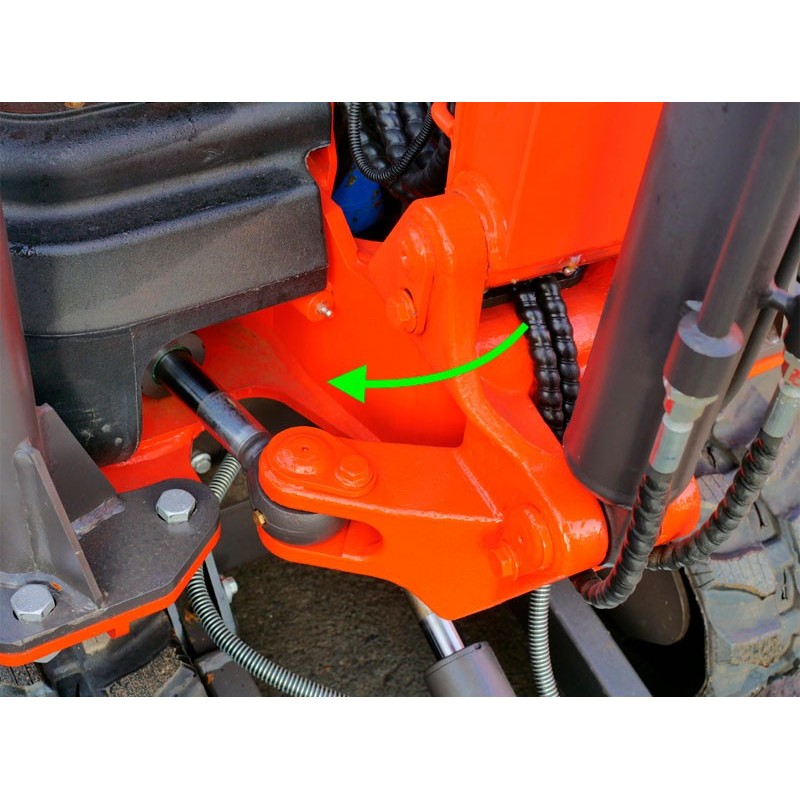

Its extendable blade with a simple projection system and the articulated flare joints for different jobs, the ability to quickly adapt to different Deleks M100 is ideal for work in confined spaces, offering productivity and performance.
Technical specifications
| Engine |
Diesel Kubota D722, 3 cylinders |
| Power rating |
10.2 kW at 2500 rpm |
| Maximum torque |
42.9 Nm at 2000 rpm |
| Operating weight |
1050 kg |
| Bucket digging force |
9.7 kN |
| Arm digging force |
4.5 kN |
| Bucket capacity |
0,02 m³ |

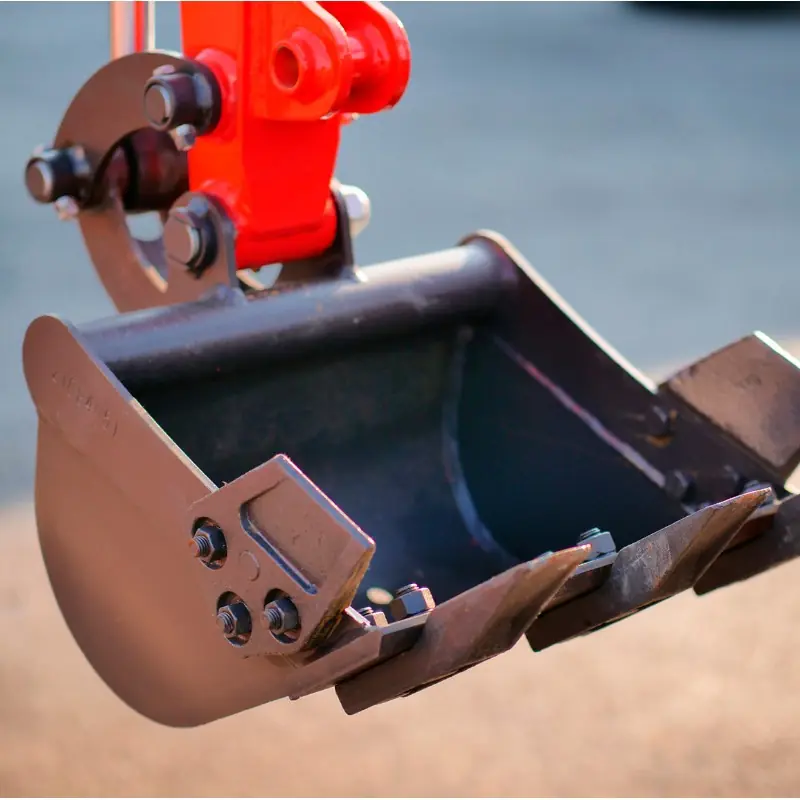

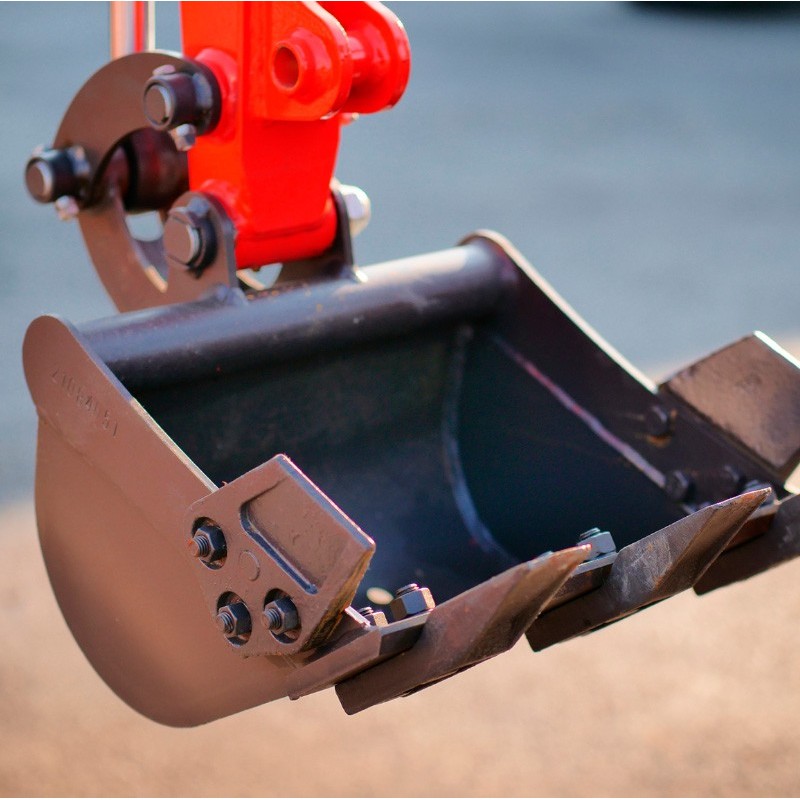

| Ladle included |
40 cm |
| Hydraulic system |
Gear pump, pressure 16 MPa |
| Flow rate |
16.25 L/min |
| Hydraulic oil tank |
16 L |
| Rotational speed |
11 rpm |
| Maximum lift capacity |
30° |
| Diesel fuel tank |
11 L |
| Electrical system |
12 V |
| Electrical power |
5 W |
Main dimensions
| a. Distance between axles |
914 mm |
| b. Track length |
1234 mm |
| c. Ground clearance of upper chassis |
453 mm |
| d. Counterweight turning radius |
660 mm |
| e. Chassis width |
950/800 mm |
| f. Track width |
180 mm |
| g. Track height |
320 mm |
| h. Machine length |
2850 mm |
| i. Seat-to-floor height |
1525 mm |
| j. Total height |
2211 mm |
| k. Arm swing (left) |
363 mm |
| l. Arm swing (right) |
325 mm |
|
 |
Operating dimensions
| A. Maximum radius of excavation in the ground |
3039 mm |
| B. Maximum excavation radius |
3136 mm |
| C. Maximum excavation depth |
1700 mm |
| D. Maximum excavation height |
2646 mm |
| E. Maximum discharge height |
1876 mm |
| F. Maximum vertical excavation depth |
1380 mm |
| G. Minimum turning radius |
1510 mm |
| H. Maximum bulldozer blade lift height |
141 mm |
| I. Maximum depth of the bulldozer blade |
200 mm |
|
 |
Certifications - Directives applied
2006/42/EC (Machinery Directive)
2014/30/EU (Electromagnetic Compatibility Directive)
2000/14/EC, 2005/88/EC (Noise Directive for machinery operated outdoors)
Harmonized standards (on the Machinery Directive)
EN 474-1:2006+A6:2019
EN 474-5:2006+A3:2013
Certification body: ECO S.p.a. - Faenza (RA) Italy
FOPS Level I ISO 3449:2008
TOPS: EN 13531:2001+A1:2008
Certification body: Italcert S.r.l. - Milan, Italy
Technical file
Published by Macchinesicure S.r.l
Mechanical Engineering & Oleodynamics - Cesena (FC)
| IMPORTANT NOTICE |
|
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except pending examination. |
|
| For the correct shipment of this product, the customer will be required to a forklift will be required or similar for the download of this product as well as the address must be accessible for a 24t truck. |
