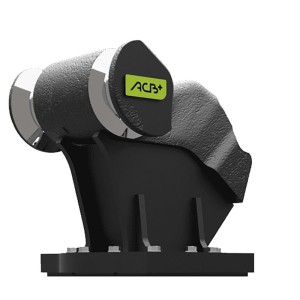

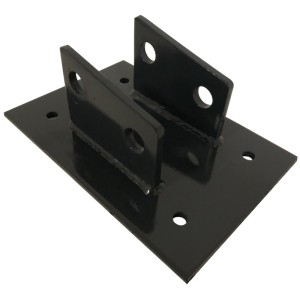

ACB+ M0 (Morin) hitch for DELEKS mini excavator
- ACB+ M0 (Morin) hitch for DELEKS mini-excavator
€855.80 VAT incl.
Deleks products take about 15 to 25 days. |

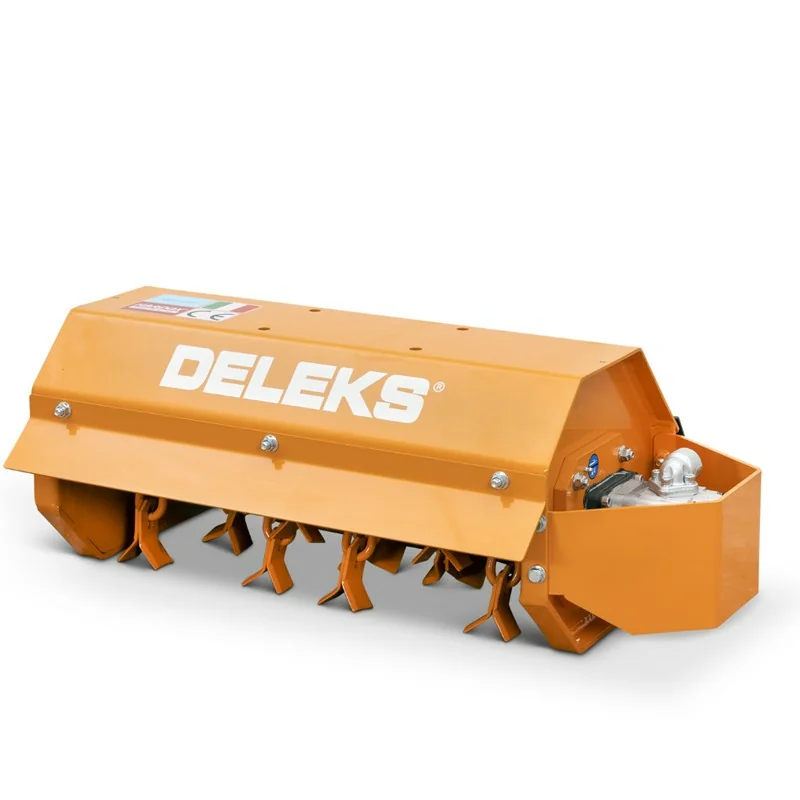

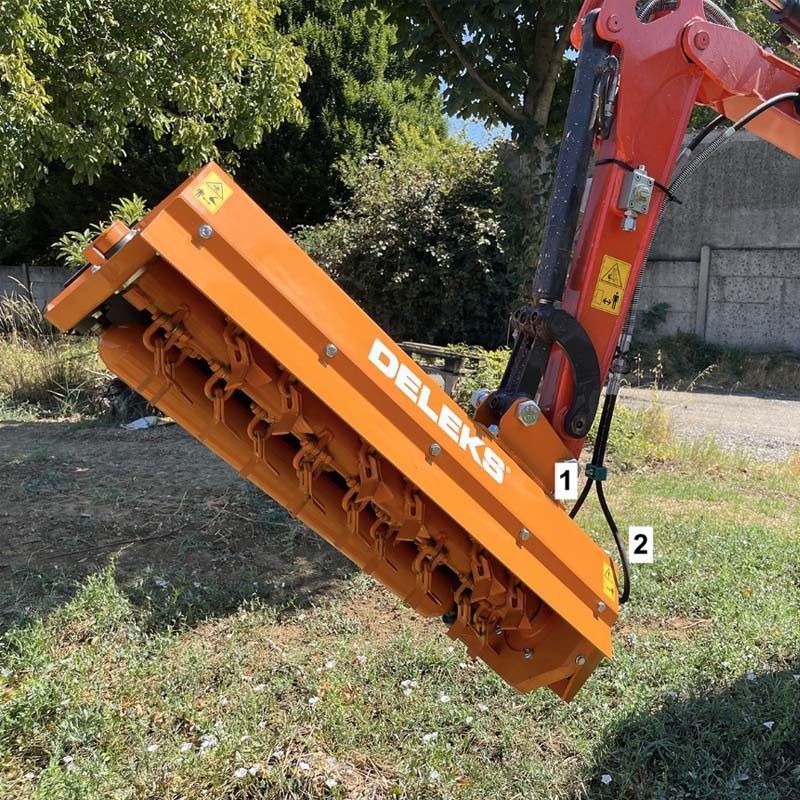

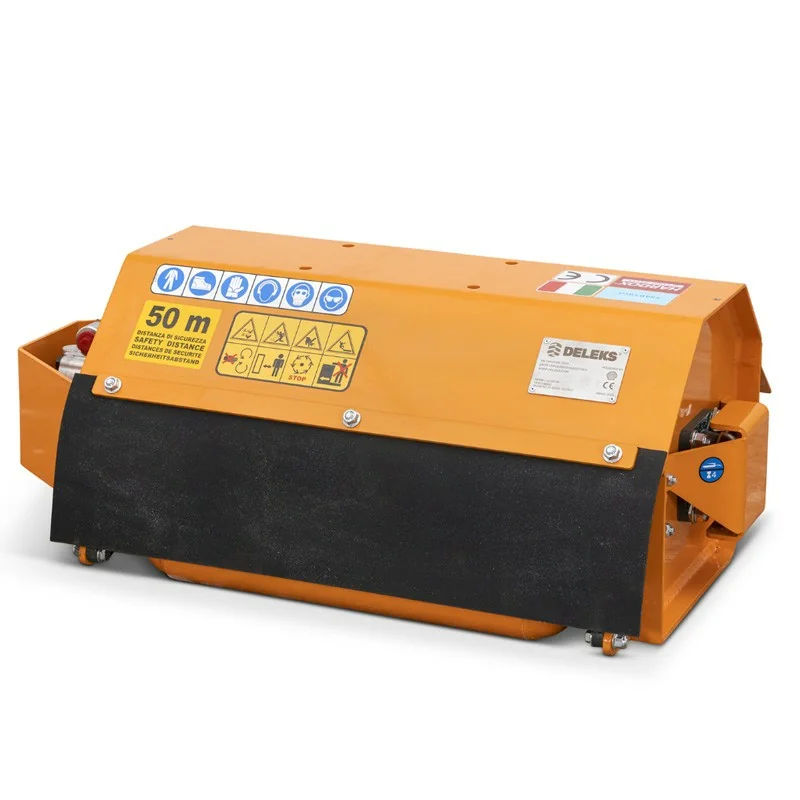

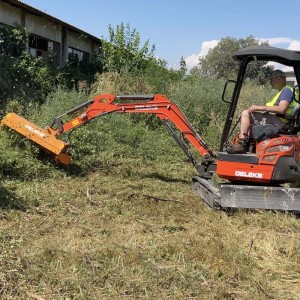

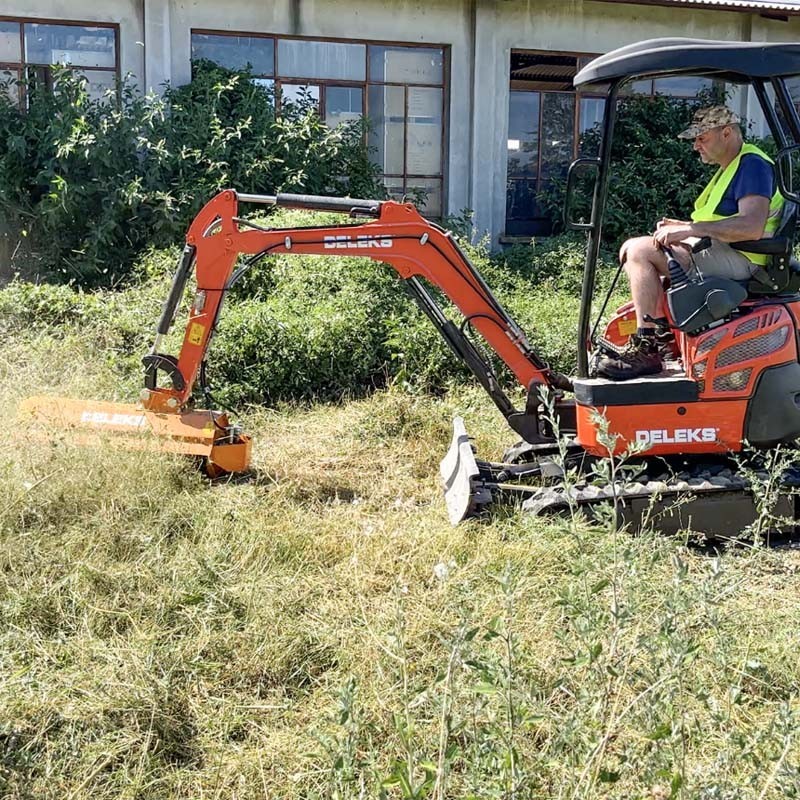

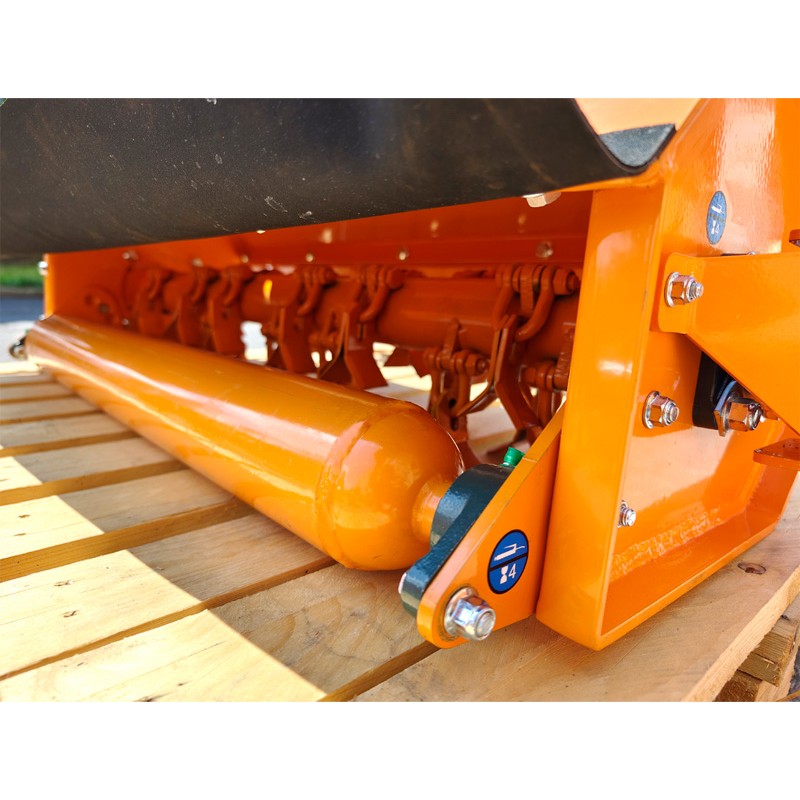

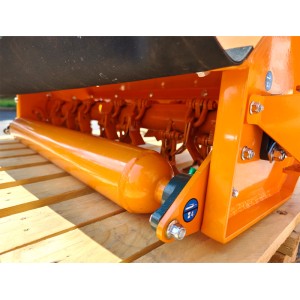

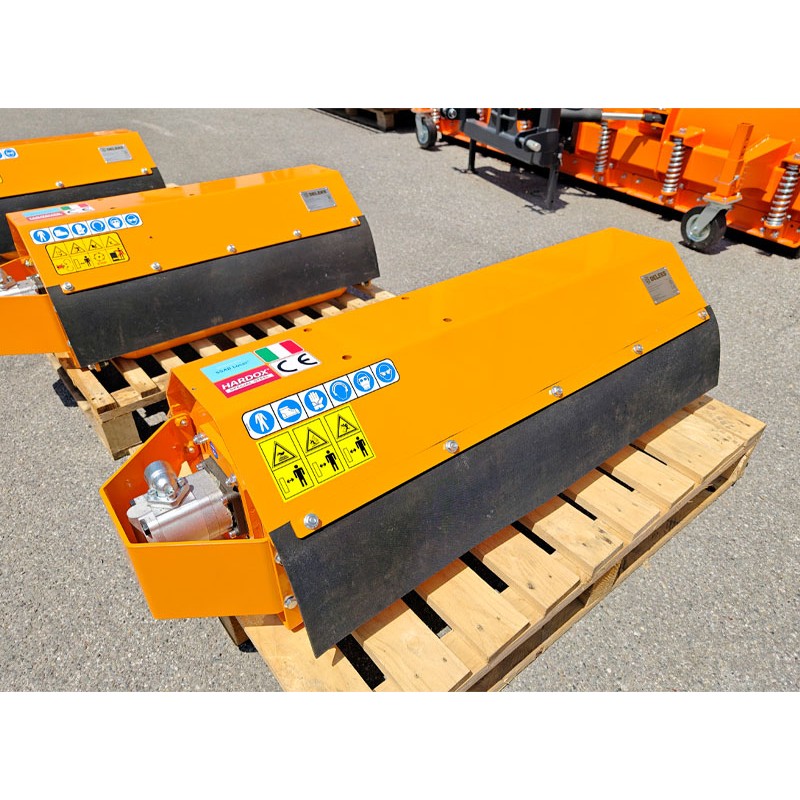

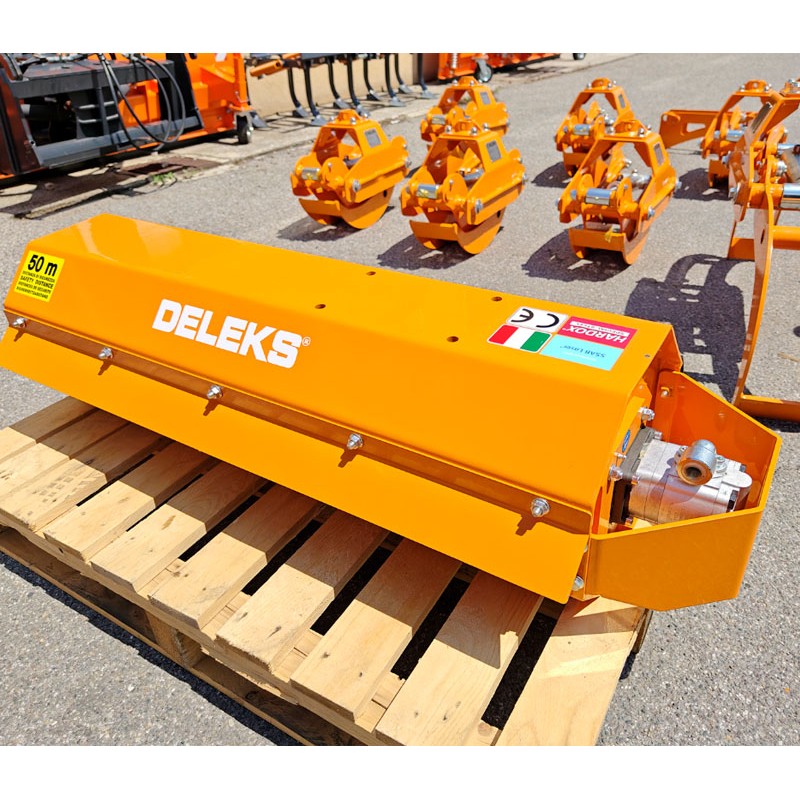

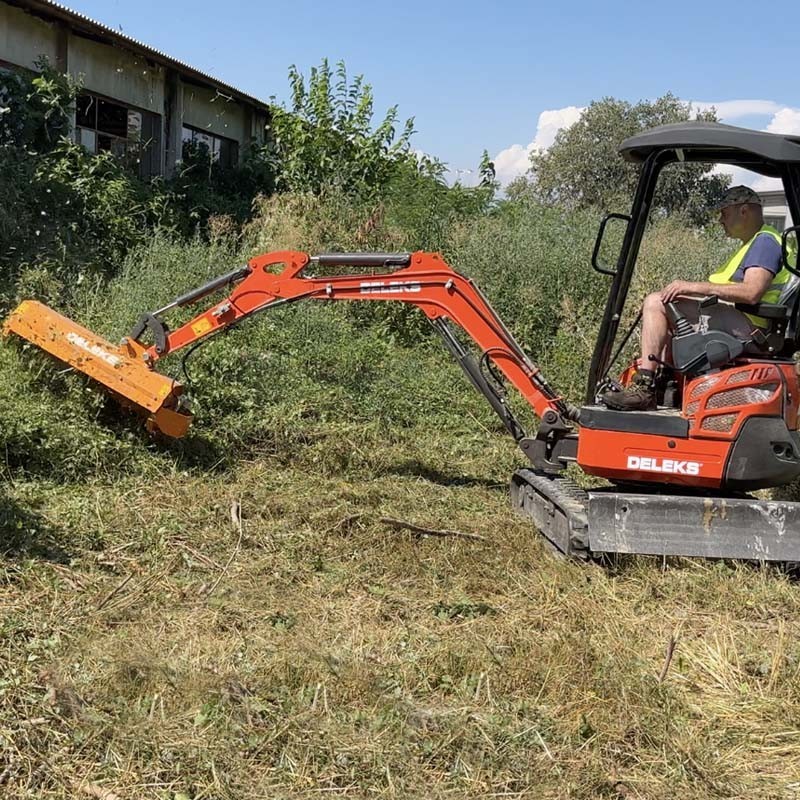

The ARS-80 brushcutter head is the choice for those looking for more coverage per pass without losing work finesse. With 80 cm wide blades, it cleans brambles, bushes and ditches at a good pace and leaves a uniform finish on slopes, banks and margins. Italian manufacture with 2 years warranty and compatibility with mini excavators from 1 to 2 tons of common brands.

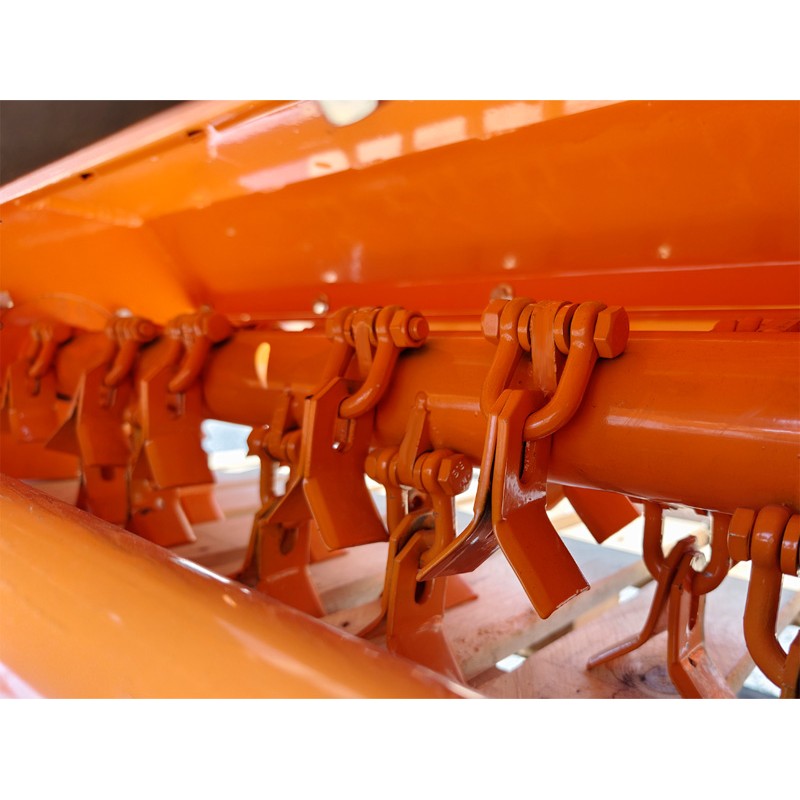

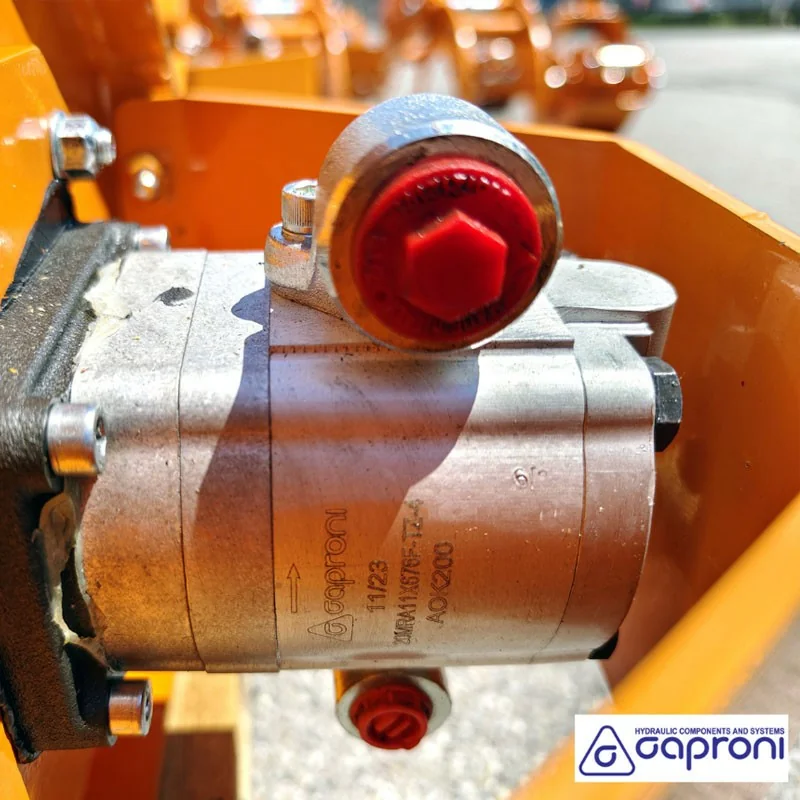

Its Swedish SSAB steel casing and electronically balanced 8 mm THYSSENKRUPP S355 tube rotor ensure rotational stability and long life. The HARDOX blade supports resist impacts and the Caproni mono-directional hydraulic motor works with only two hoses, integrates relief valve, reinforced retainer and support bearing to protect the transmission.
It can be supplied with standard coupling or custom built to drawing. For optimum performance it is recommended to dedicate 20 to 22 liters per minute to the hydraulic service of the tool.
Dimensions and capacities | |
Working width | 800.0 mm |
Overall width | 1100.0 mm |
Cutting height min/max | 20.0 - 80.0 mm |
Weight | 87,0 kg |
Hood height | 340,0 mm |
Max. cutting diameter | 20.0 mm |
Sheet thickness | 5.0 mm |
Hood length | 520.0 mm |
Packing dimensions | 1100.0 × 600.0 × 500.0 mm |
Rotor | |
Rotor speed (transmission) | 1500 r/min |
Rotor diameter | 76.0 mm |
Bearings and dimensions | SKF 6207 + SKF UCF206 |
Balancing | Electronic |
Blade thickness | 8,0 mm |

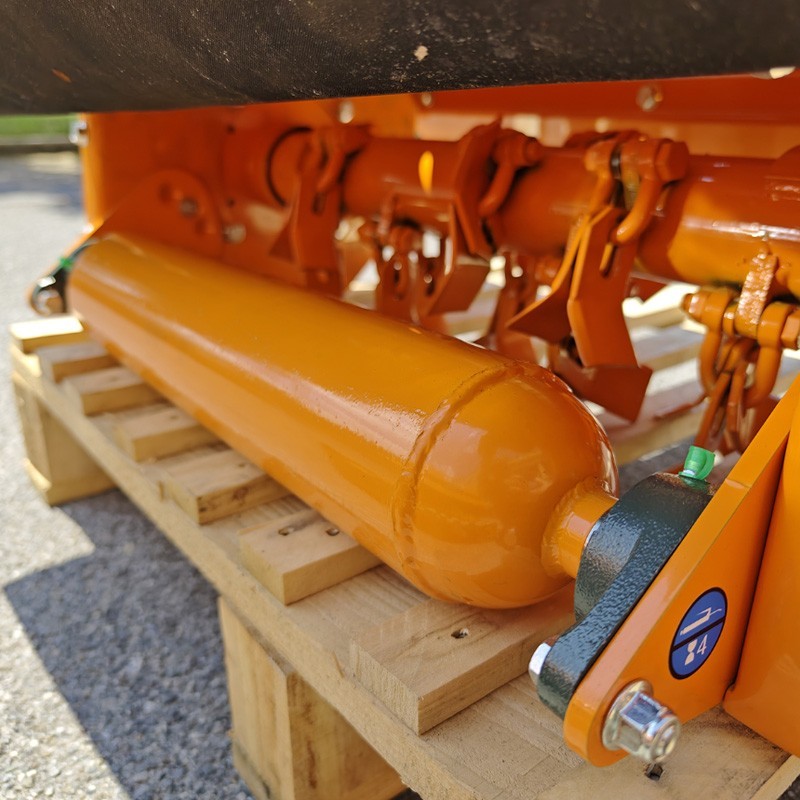

Roll | |
Roll diameter | 102.0 mm |
Roll sheet thickness | 5.0 mm |
Roll Bearings | UCFL205 |
Hydraulics | |
Min./max. oil pressure | 5 - 8 bar |
Optimal oil flow | 20 - 22 L/min |
Max. pressure | 200 bar |
Blades and knives | |
No. of blades | 40 |
Blade weight | 130,0 g |
Blade hole Ø | 13.0 mm |
Knives, base width | 50.0 mm |
Knives, diagonal | 85.0 mm |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
