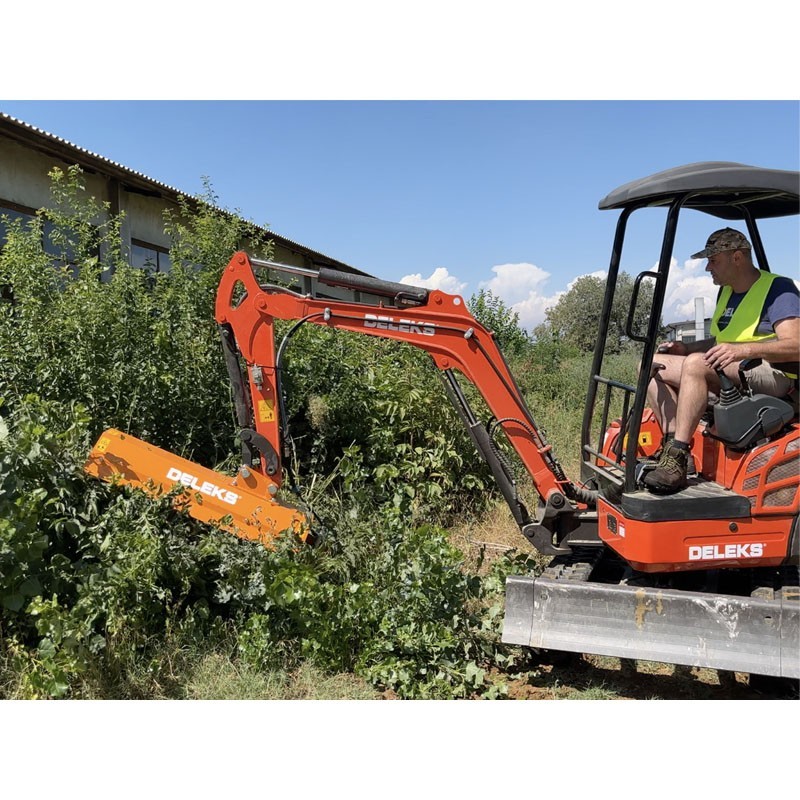

Brush cutter head 80 cm mini excavator DELEKS 0.8-1.8 ton
Rating:
(0)
- Brushcutter head 60cm blades, for DELEKS mini-excavators
| Deleks products take about 15 to 25 days. |
close

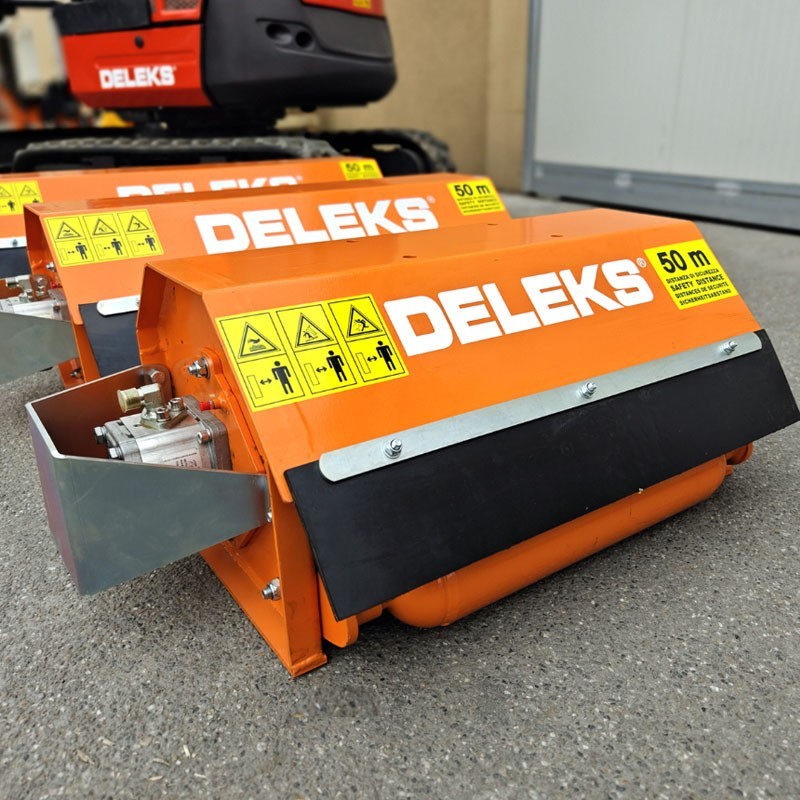

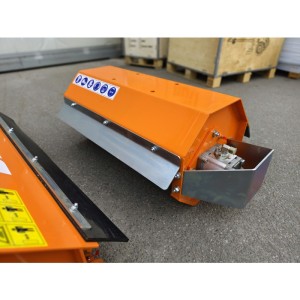

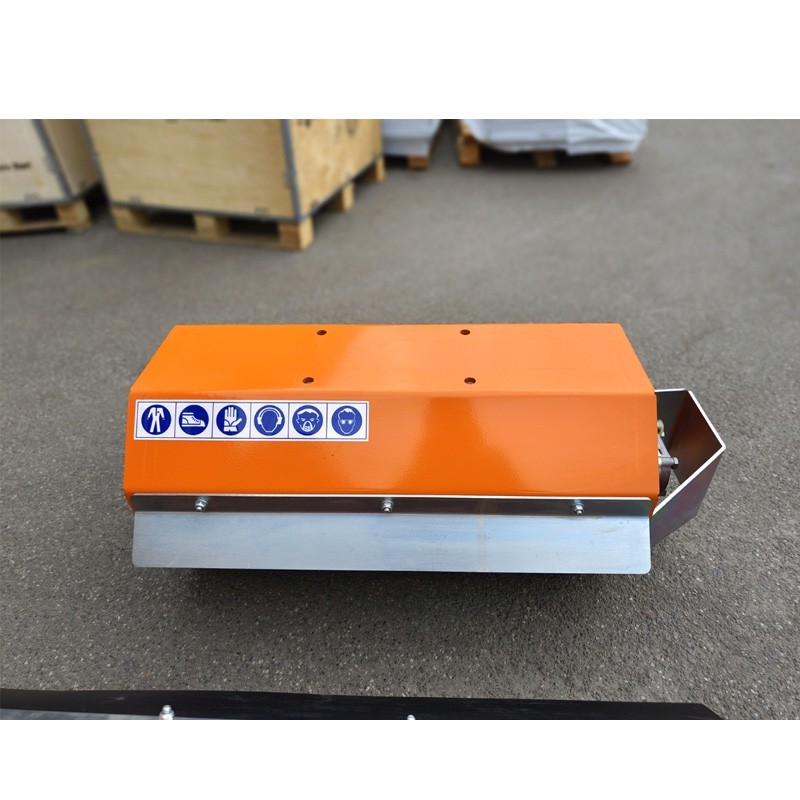

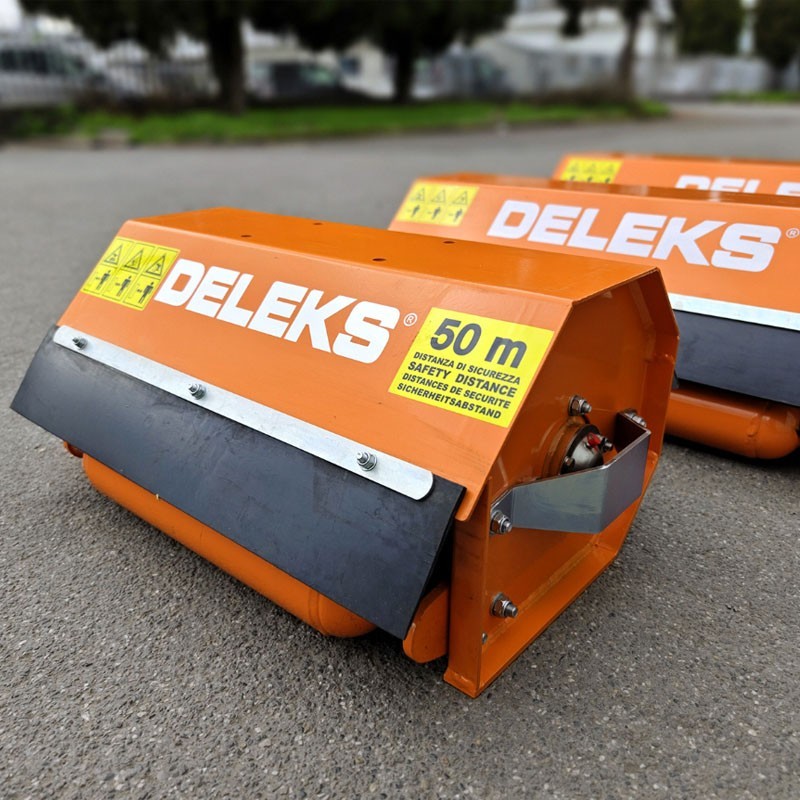

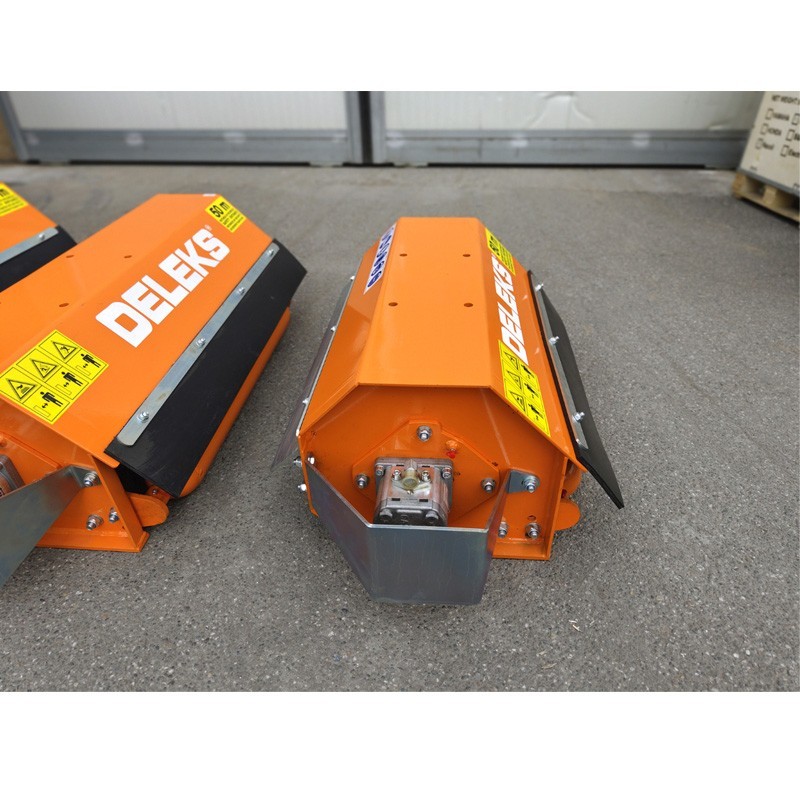

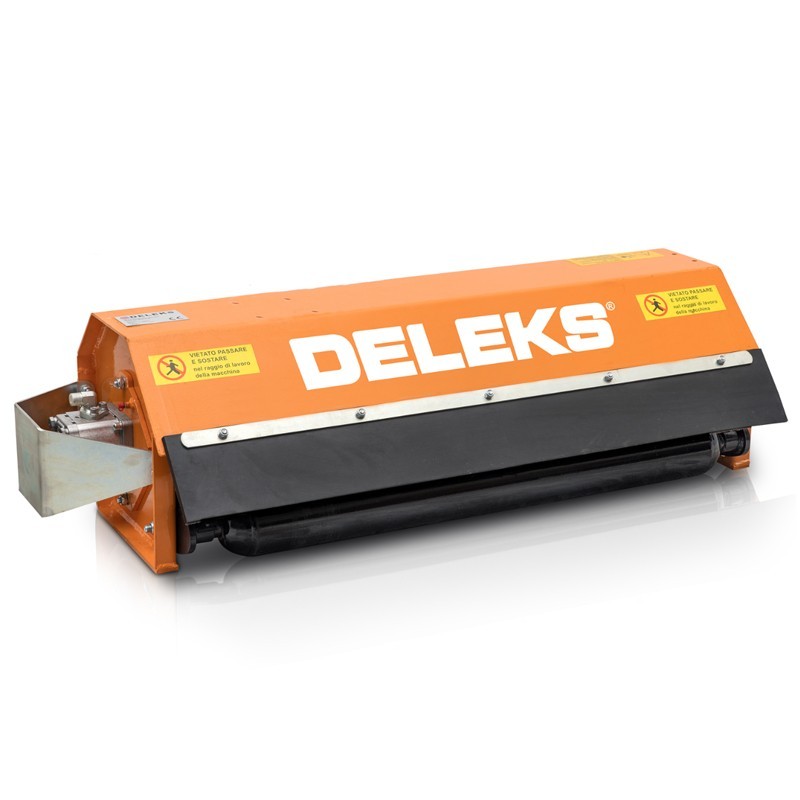

Brush cutter head 80 cm mini excavator DELEKS 0.8-1.8 ton
€1,685.69

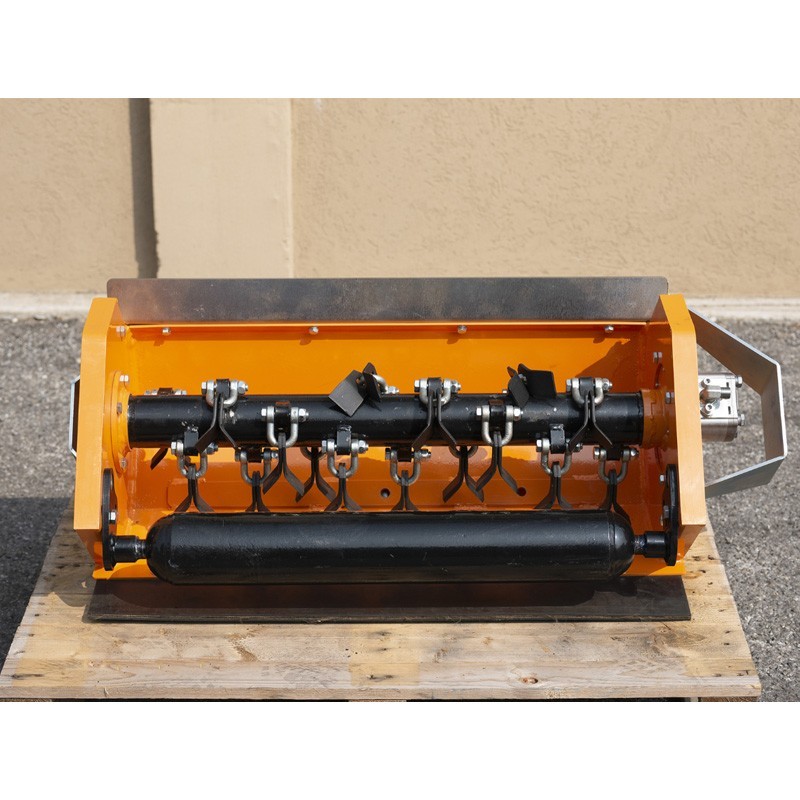

80cm brush cutter head with blades, for DELEKS mini excavator

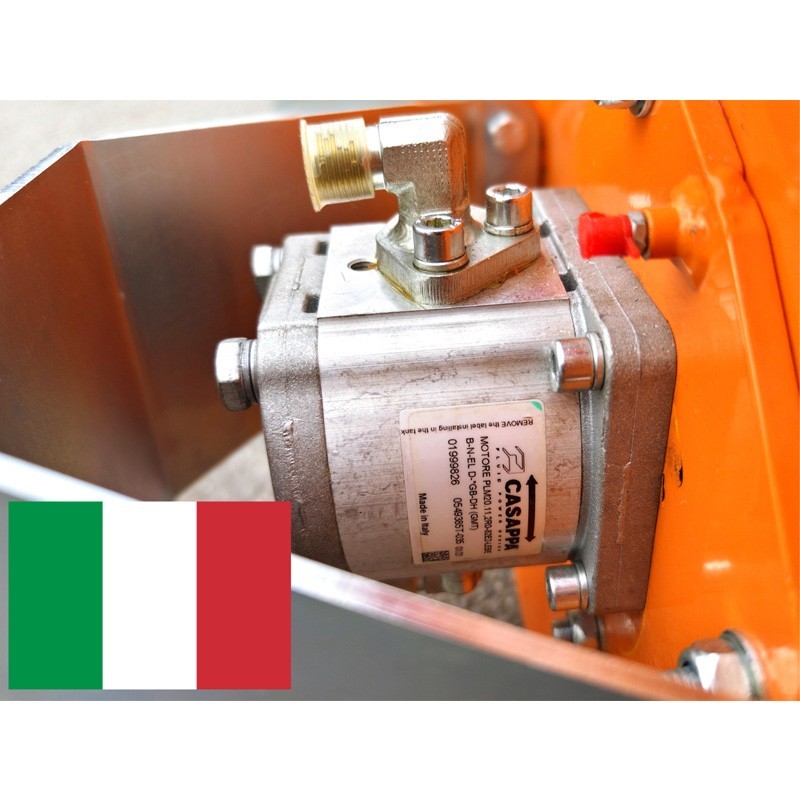

Shredder, 80cm blade mulcher for mini excavator - DELEKS® - For brambles, bushes, ditches. Hydraulic motor Made in Italy - 2-year warranty.

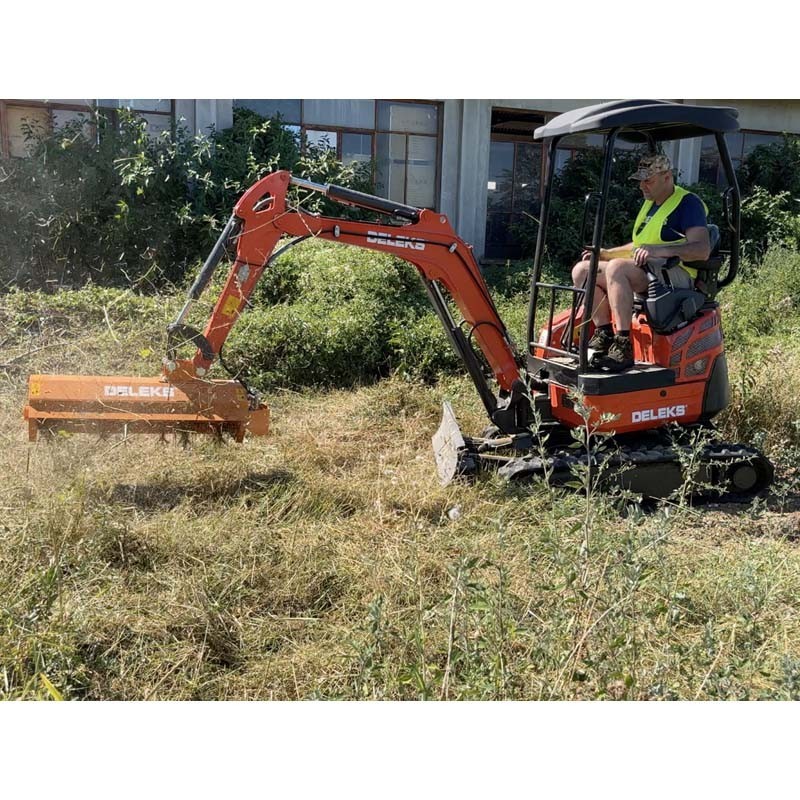

- Hydraulic brush cutter for mini excavator 0.8-1.8 tone. For brambles, bushes, ditches, banks, embankments, branches.
- Mini excavator brands: Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc.

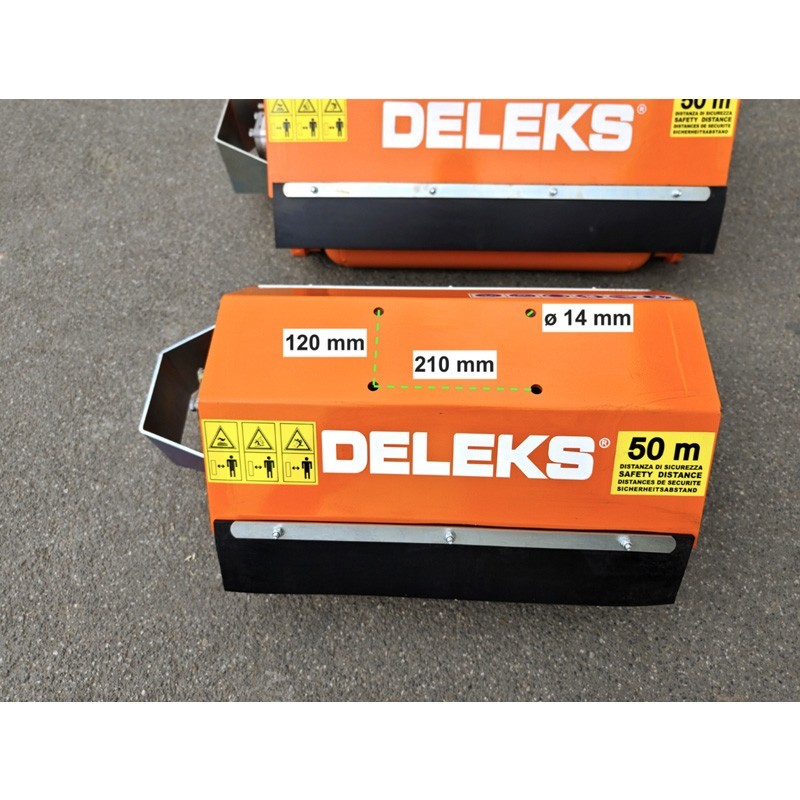

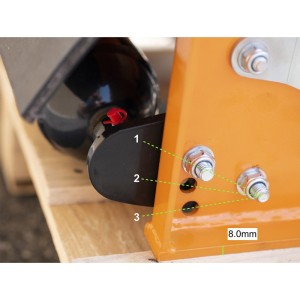

Hitch measurements: see images (alternatively, we can create a custom hitch based on a drawing, with additional production costs).
Machine operator requirements for operation:
a) it is preferable to have a double pump:
- 1 for the base of tracked
- 1 for the services (pump of at least 25/30 l/min)
b) The rotation of the blades is in both directions. (it is necessary to have the pedal with a double effect).
c) The pump needs a third pipe for drainage that discharges into the tank..
Documentation delivered with the machine:
Invoice or tax receipt
CE compliance
User manual
CE Certification and Risk Analysis conducted by E.C.O. Spa Faenza - Ravenna (Italy).
| Working width | 800.0 mm |
| Total width | 1020.0 mm |
| Minimum/maximum cutting height | 20.0 - 80.0 mm |
| Weight | 80.0 kg |
| Height of the hood | 330.0 mm |
| Maximum cutting diameter | 20.0 mm |
| Thickness of the sheet | 4.0 mm |
| Transmission: rotor speed | 1500 rpm (revolutions per minute) |
| Rotor: diameter | 78.0 mm |
| Rotor: type of bearings and dimension | GB276-6007 |
| Rotor: balancing | Electronic |
| Rotor: blade thickness | 10.0 mm |

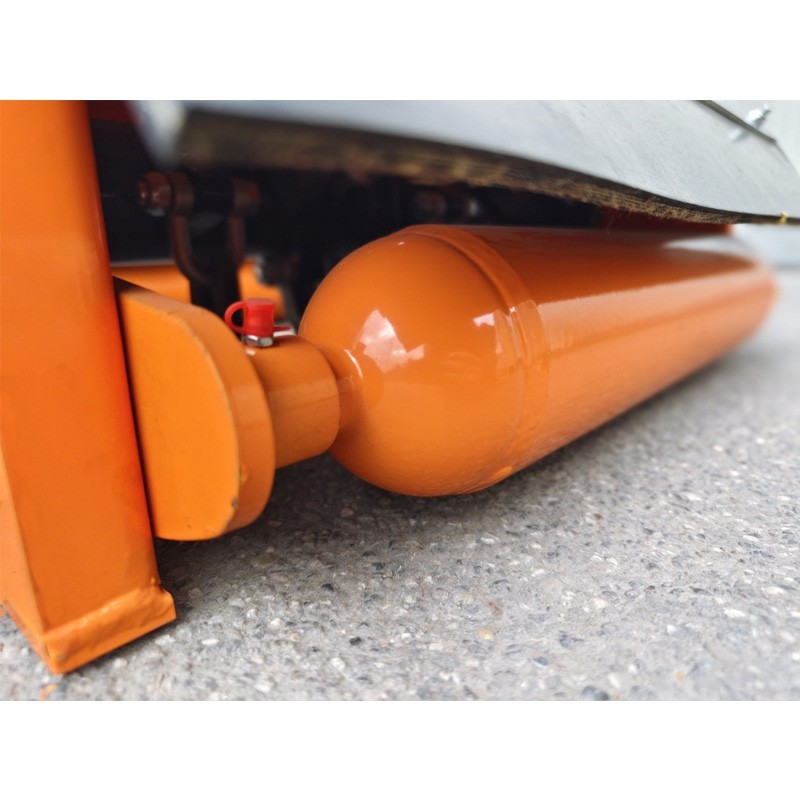

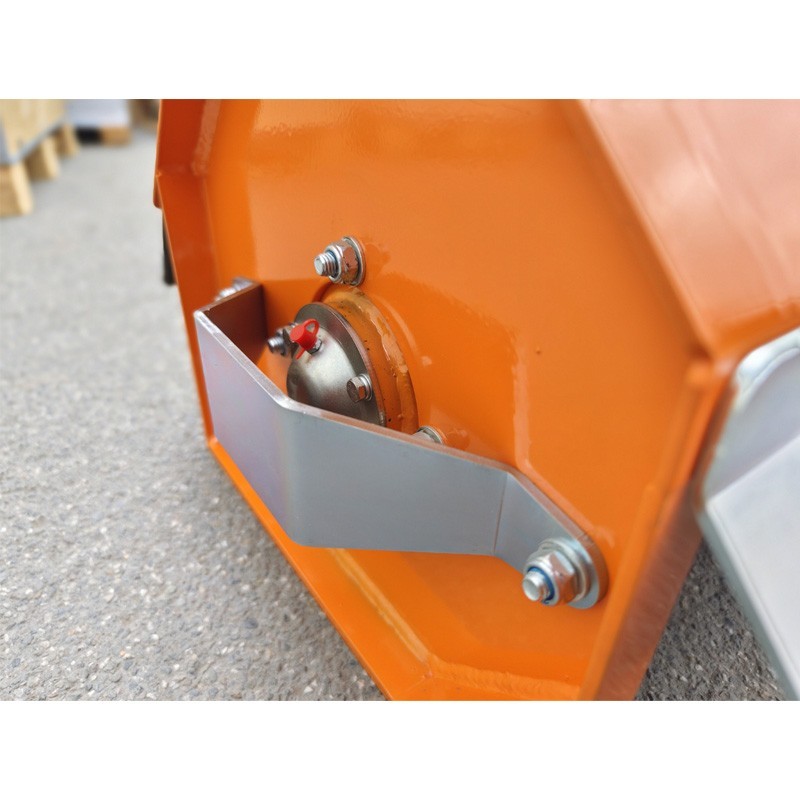

| Roll: diameter | 102.0 mm |
| Roll: sheet thickness | 4.0 mm |
| Roll: type of bearings and dimension | φ25 |
| Oil pressure min./max. | 120 - 150 bar |
| Optimal oil flow | 25 - 30 l/min |
| Length of the hood | 650.0 mm |

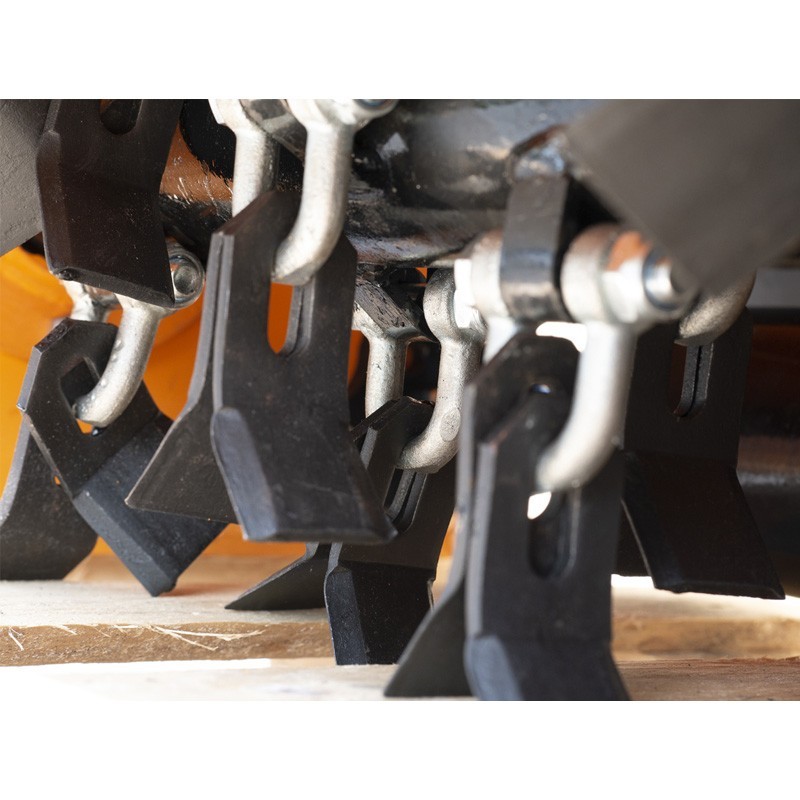

| Number of slats | 32 |
| Lamas: Weight | 130.0 g |
| Lamas: ø hole | 13.0 mm |
| Cucillos: base width | 50.0 mm |
| Cucillos: diagonal | 85.0 mm |
| Packaging dimension | 1020.0*600.0*500.0 mm |
