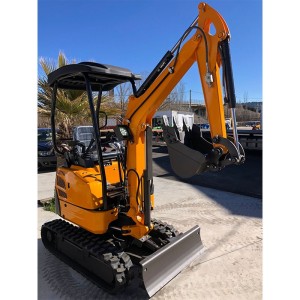

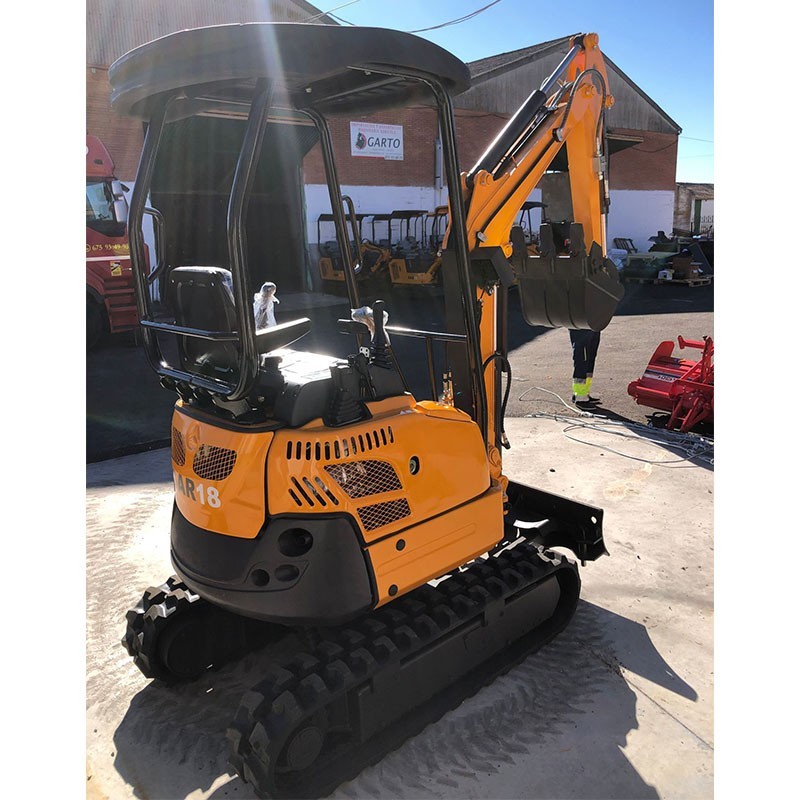

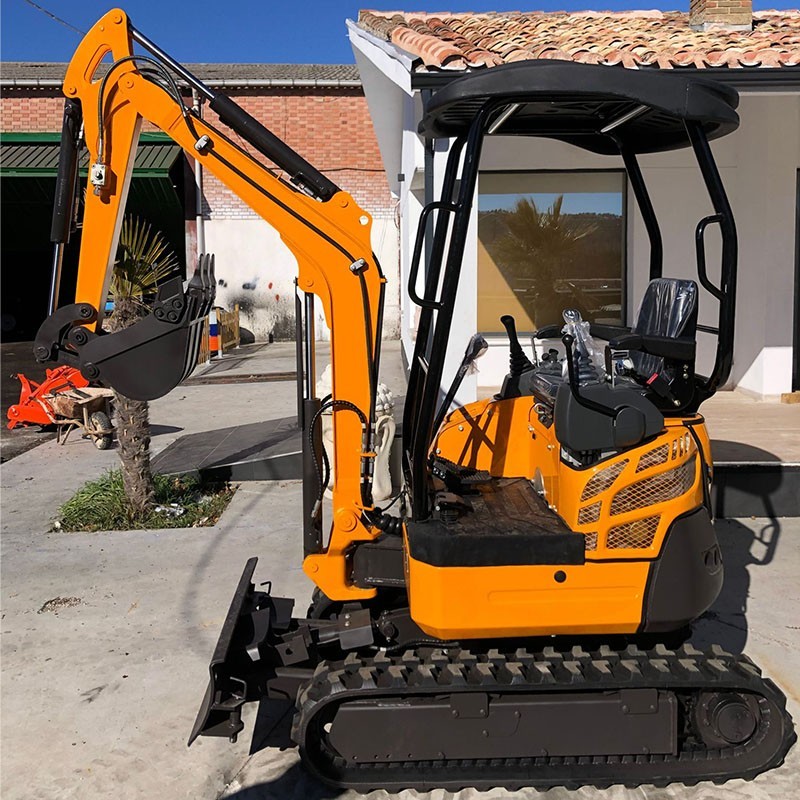

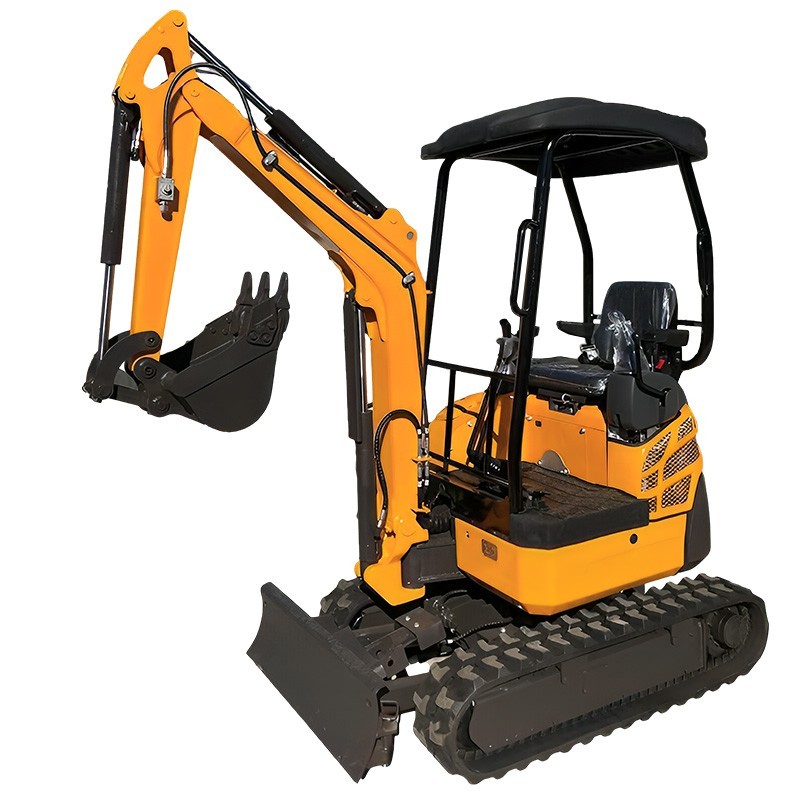

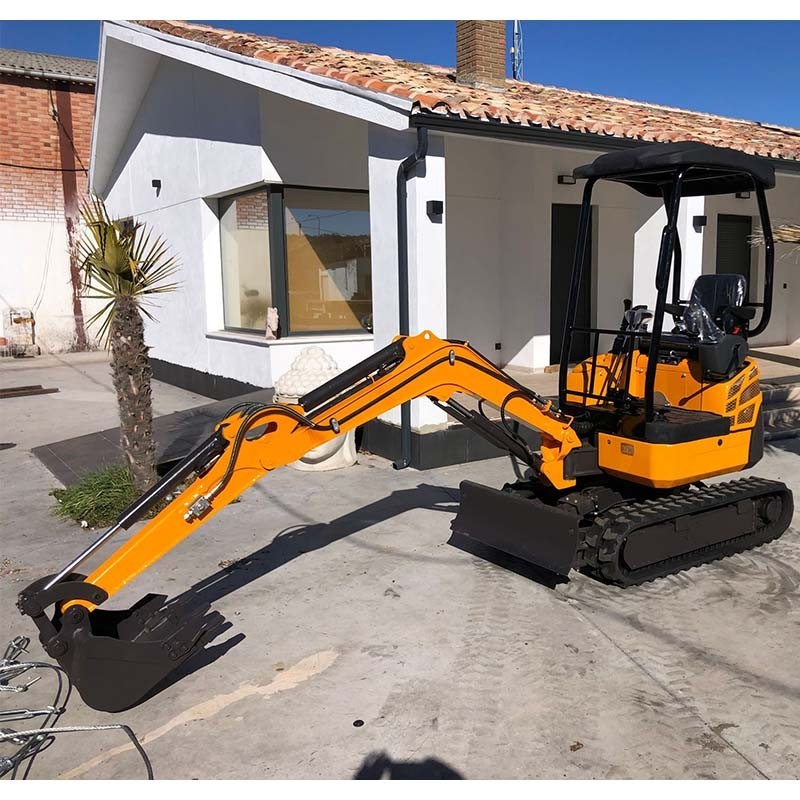

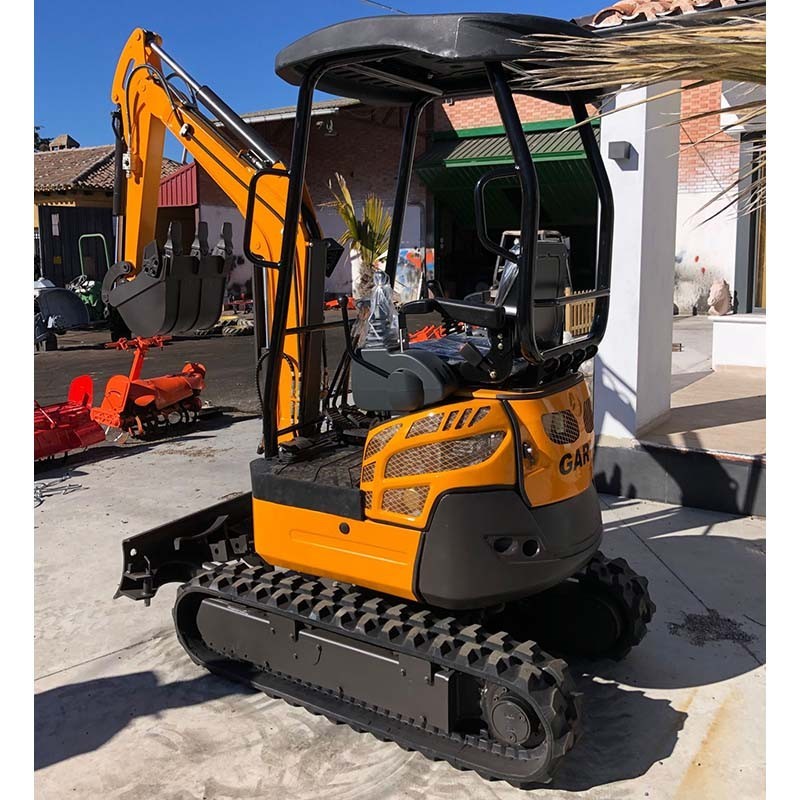

The diesel engine mini excavator Garto GR18 215 cm 1650 kg is a versatile and powerful machine designed for construction and excavation work. With a weight of 1650 kg and a chassis width of 1110 mm, it provides stability on various terrains.

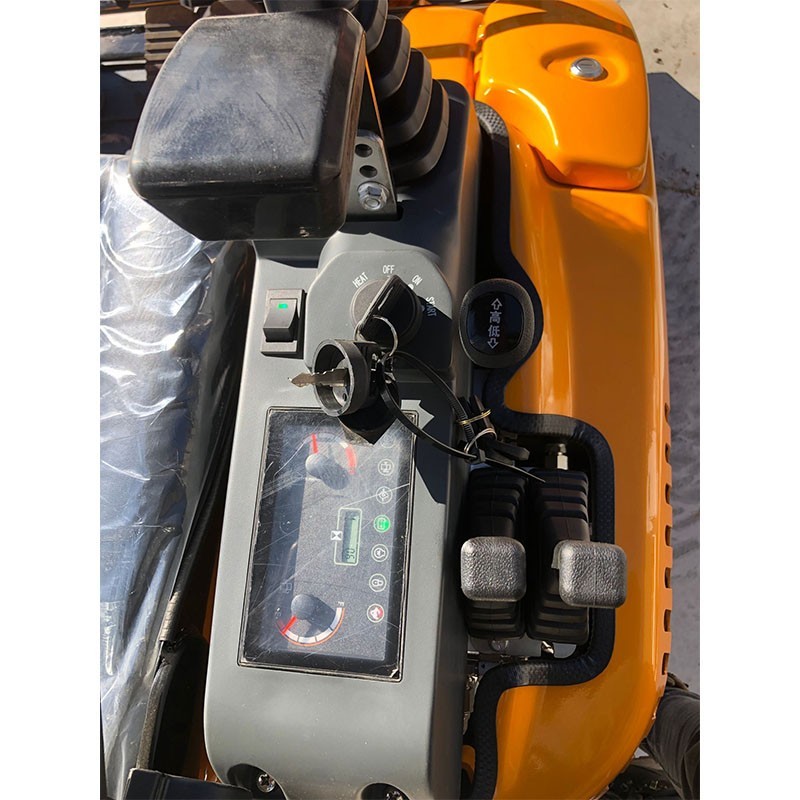

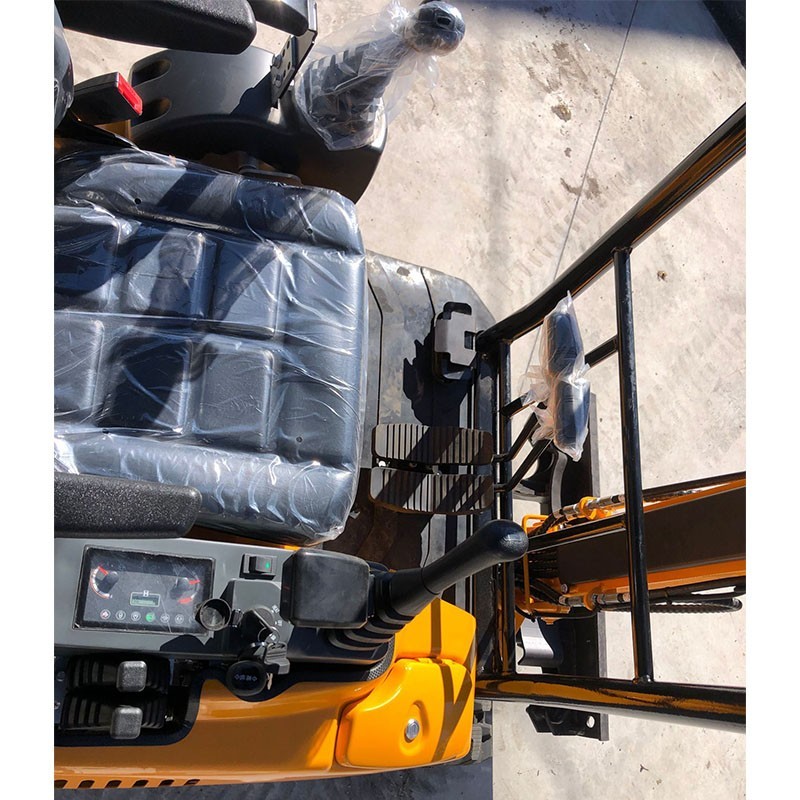

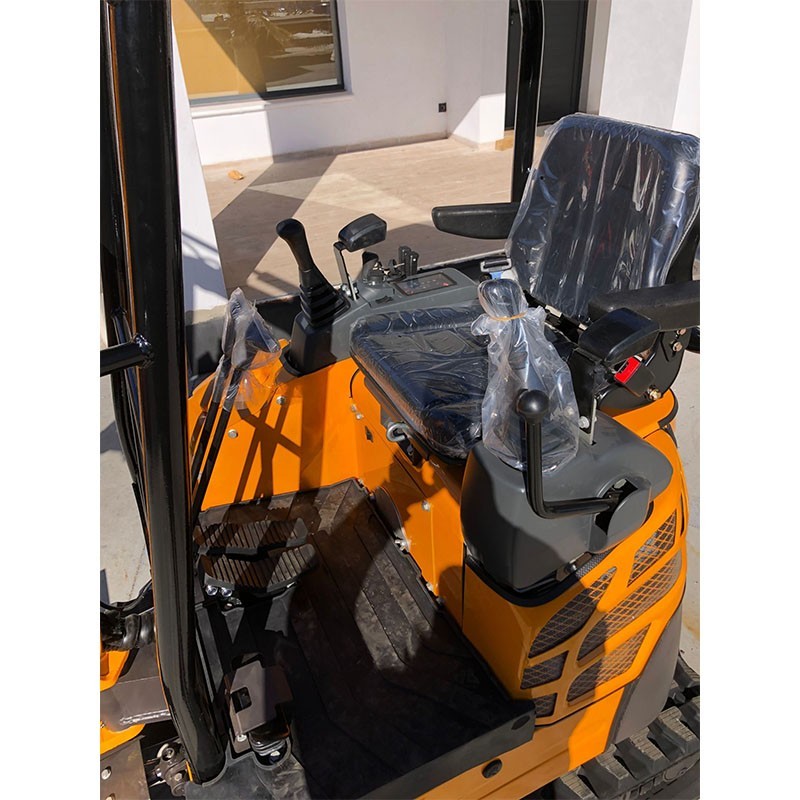

The GR18 offers joysticks for ease of use and maneuverability, giving the operator precise control during operations.

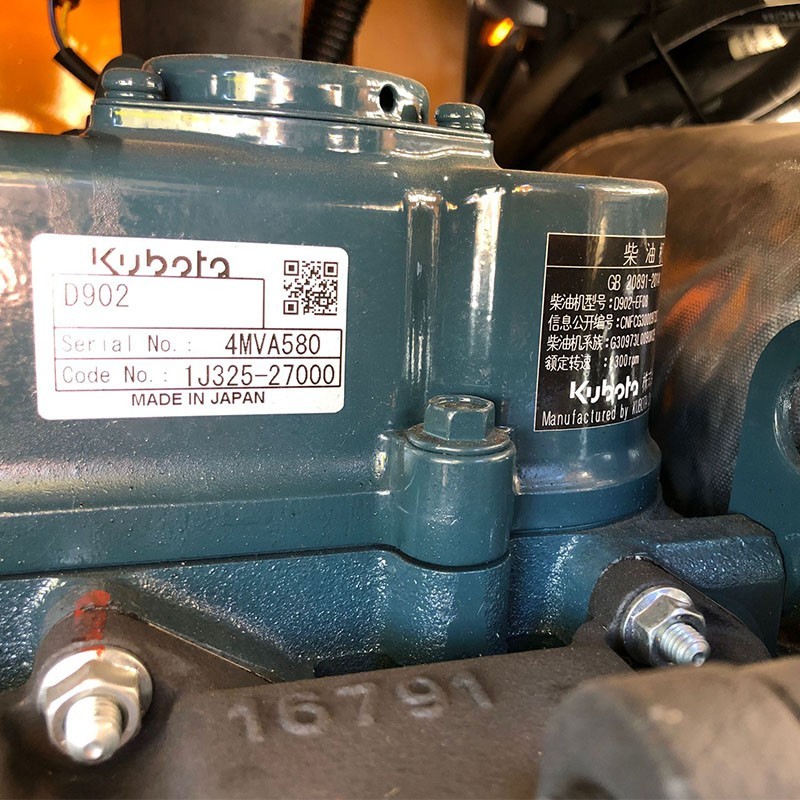

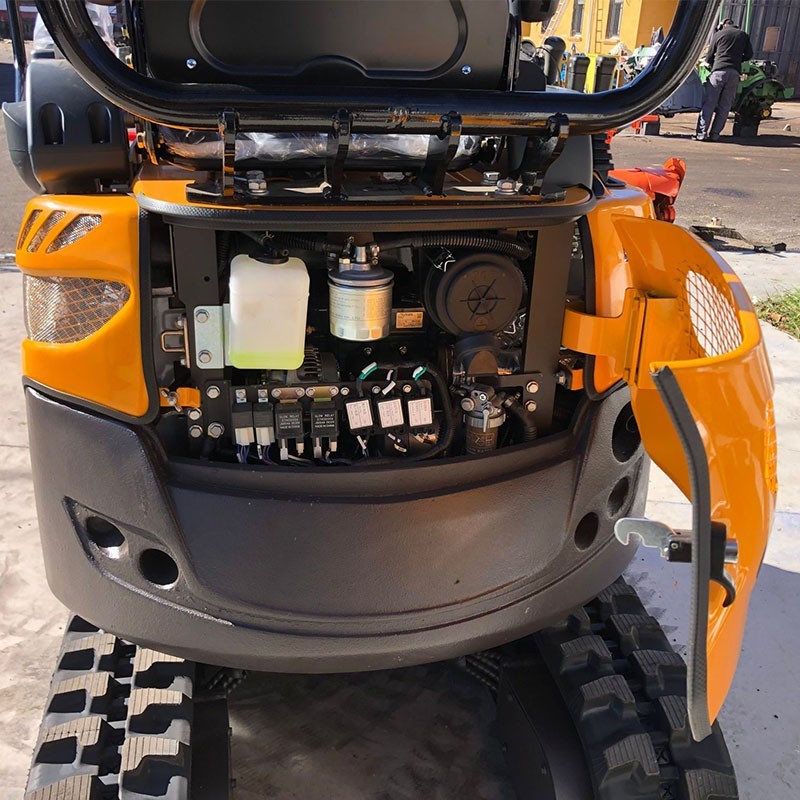

Equipped with a three-cylinder KUBOTA D 902 engine, it complies with EURO5 emission standards. Its maximum digging depth of 2150 mm makes it suitable for deeper projects.
It also features additional options, such as an offset boom foot and extendable tracks, adapting to various working needs.
With front leveling blade and auxiliary hydraulic output for the use of an auger, the Garto GR18 mini excavator is a complete and reliable tool for a variety of construction and excavation tasks. In short, it's a solid choice that combines power and versatility in a compact and efficient design.
| Model | GR16 |
| Track length | 1130 mm |
| Total length of tracks | 1450 mm |
| Platform height | 437 mm |
| Platform length | 790 mm |
| Chassis width | 1110 mm |
| Track width | 230 mm |
| Track height | 320 mm |
| Transport length | 3160 mm |
| Total height without roof | 1637 mm |
| Total height with roof | 2377 mm |
| Maximum digging length | 3470 mm |
| Maximum digging radius | 3560 mm |
| Maximum digging depth | 2150 mm |
| Maximum lift height | 3275 mm |
| Maximum dump height | 2310 mm |
| Maximum vertical digging depth | 1740 mm |
| Minimum turning radius | 1440 mm |
| Maximum blade height | 262 mm |
| Maximum blade depth | 192 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
- Accessories not included as standard
