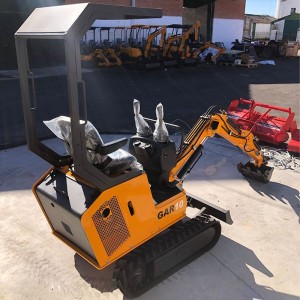

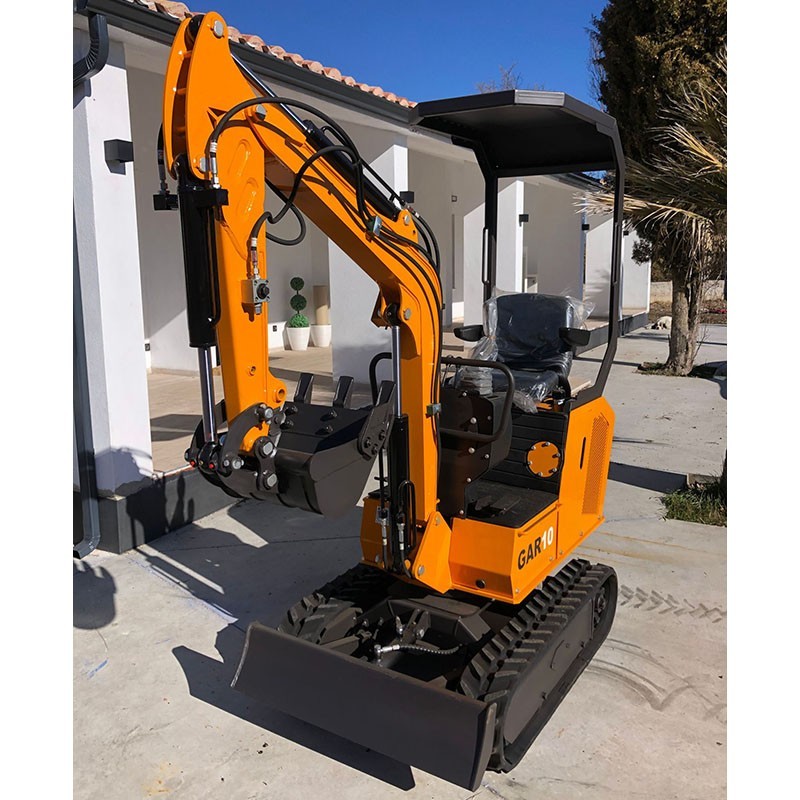

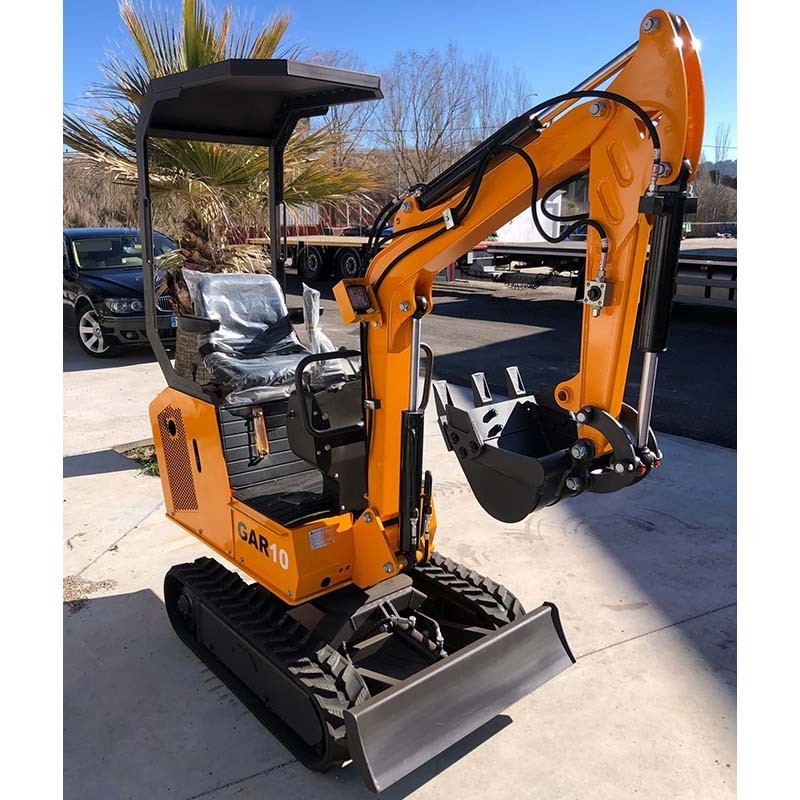

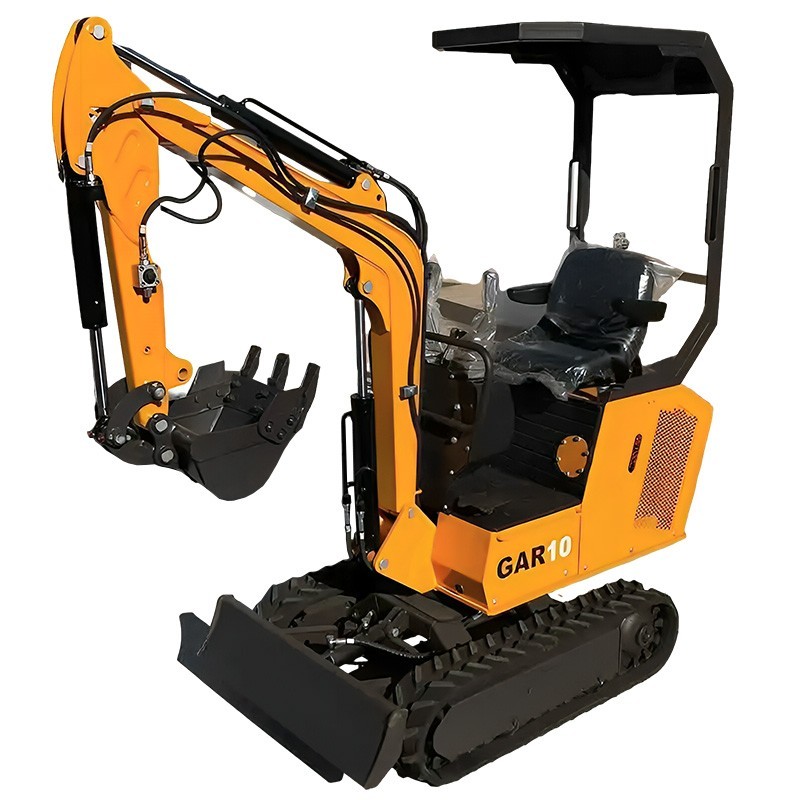

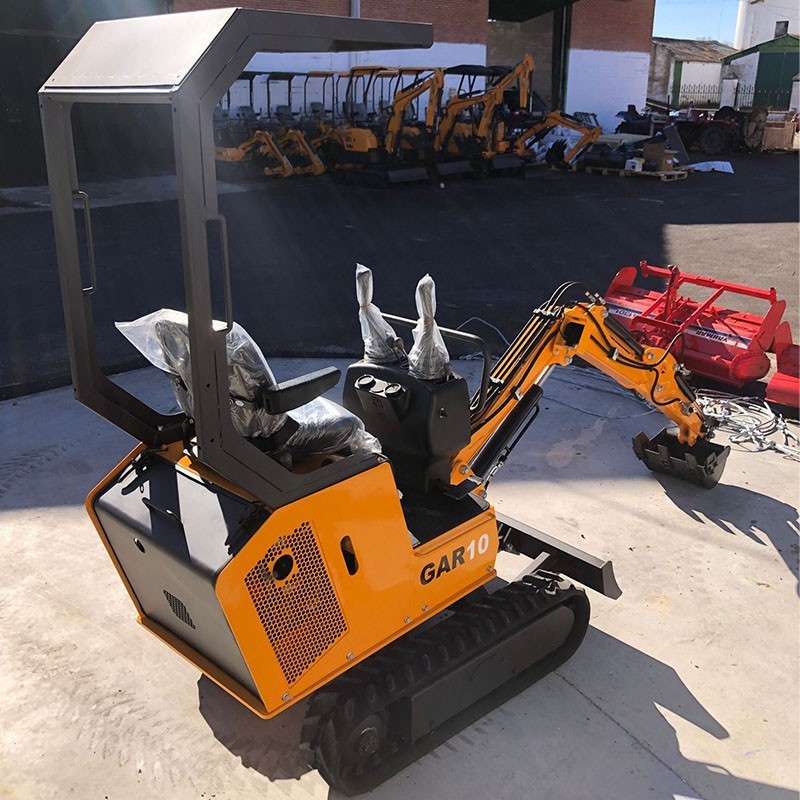

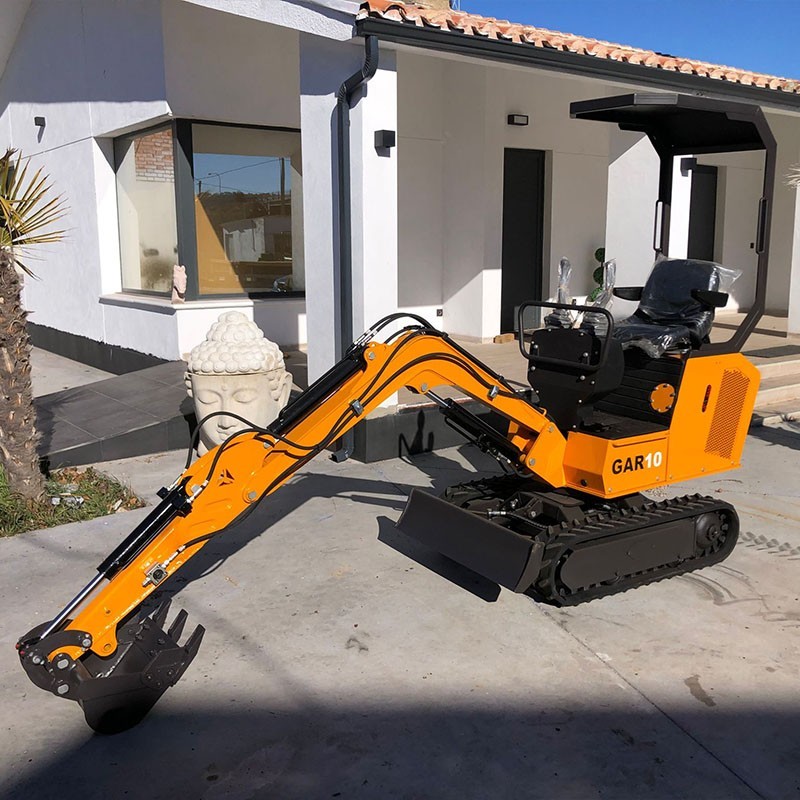

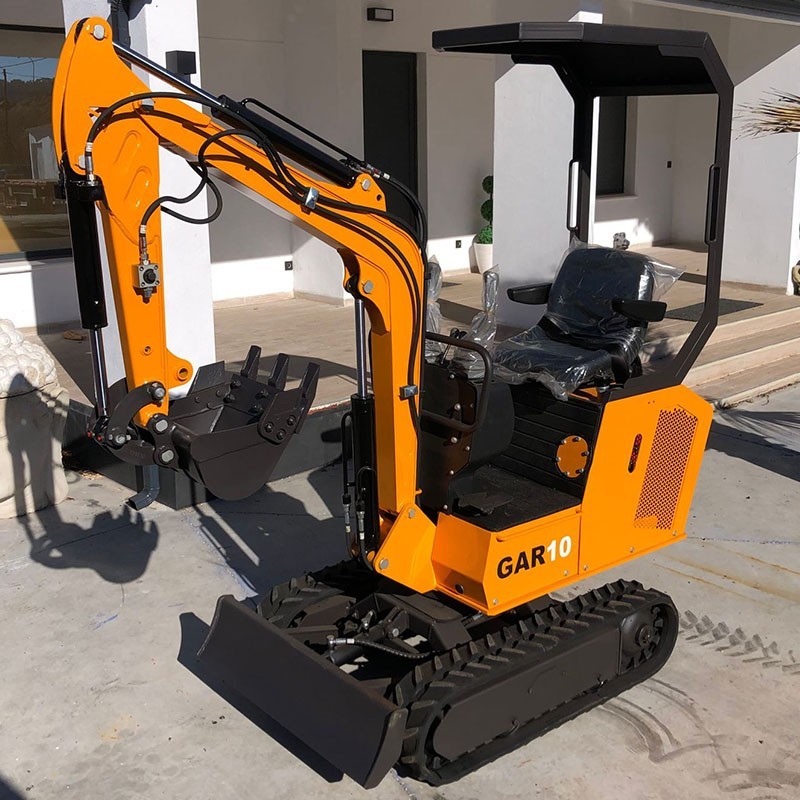

The mini excavator diesel engine Garto GR10 3136 mm is a compact and powerful construction tool with a single-cylinder air-cooled engine that simplifies maintenance.
With a weight of 880 kg and an overall width of 80 cm, this mini excavator is particularly agile and easy to maneuver in various situations.

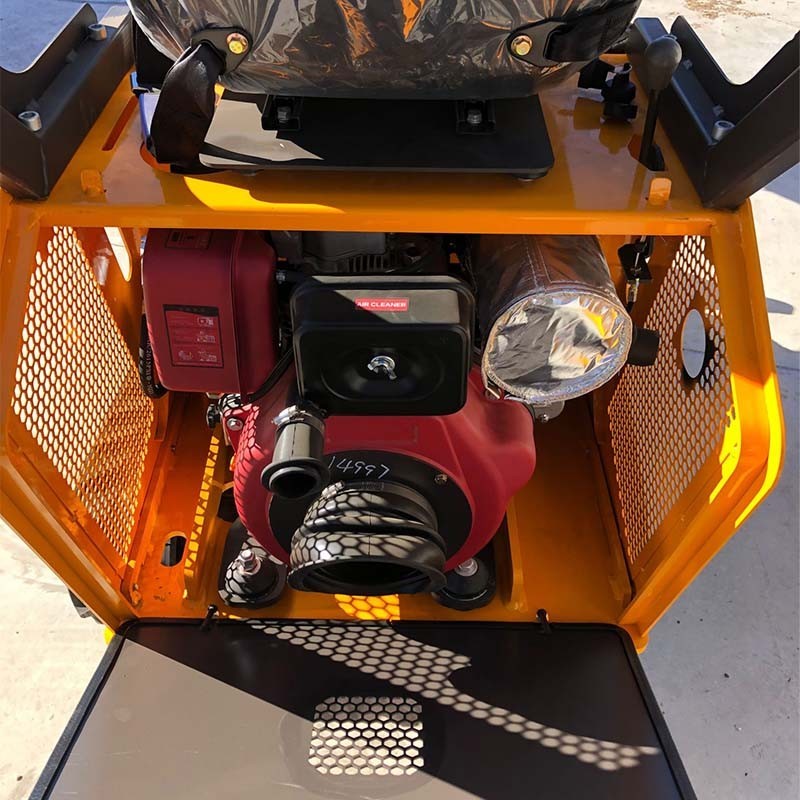

Its 10 hp single-cylinder KOOP diesel engine complies with the strict EURO5 emission standards, ensuring efficient and environmentally friendly performance.
It incorporates a 40 cm bucket, which extends its versatility by being able to dig and load a variety of materials with ease.

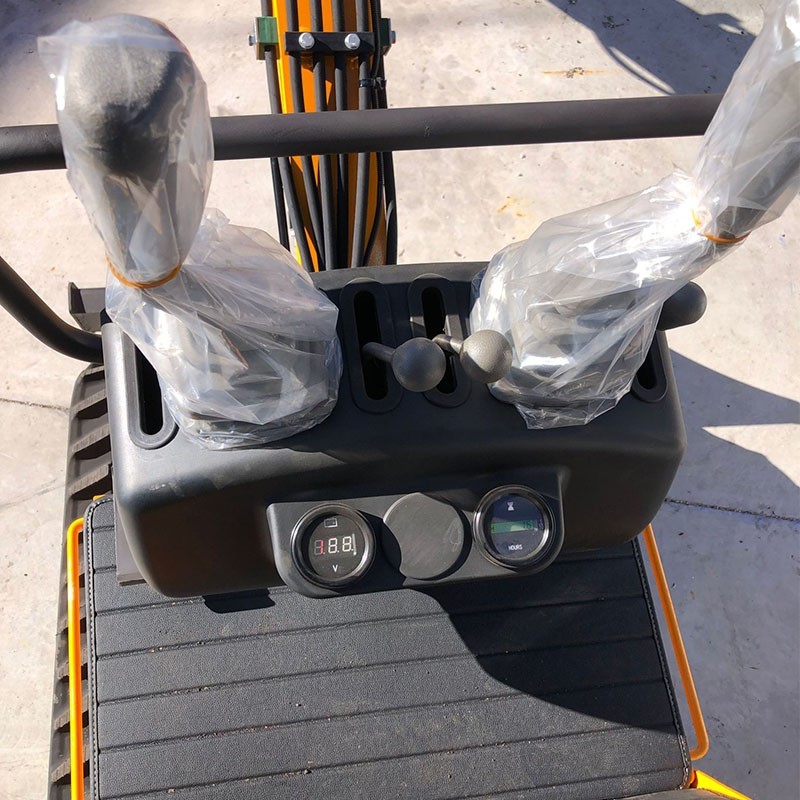

The instrument panel is equipped with a voltmeter and hour meter, providing essential information to the operator on the machine's performance during tasks. In addition, its reinforced canopy ensures worker safety during use.
| Model | GR10 |
| Wheelbase | 914 mm |
| Track length | 1234 mm |
| Chassis height from ground | 453 mm |
| Counterweight radius | 660 mm |
| Chassis width | 800/954 mm |
| Track width | 180 mm |
| Track height | 320 mm |
| Overall length with boom on the ground | 2850 mm |
| Chair height above ground | 1525 mm |
| Total height with roof | 2211 mm |
| Maximum digging length | 3039 mm |
| Maximum digging depth | 3136 mm |
| Maximum digging radius | 1568 mm |
| Maximum digging height | 2646 mm |
| Maximum dump height | 1876 mm |
| Maximum vertical digging depth | 1377 mm |
| Folded boom length | 1510 mm |
| Maximum blade height | 141 mm |
| Maximum depth of blade | 200 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
