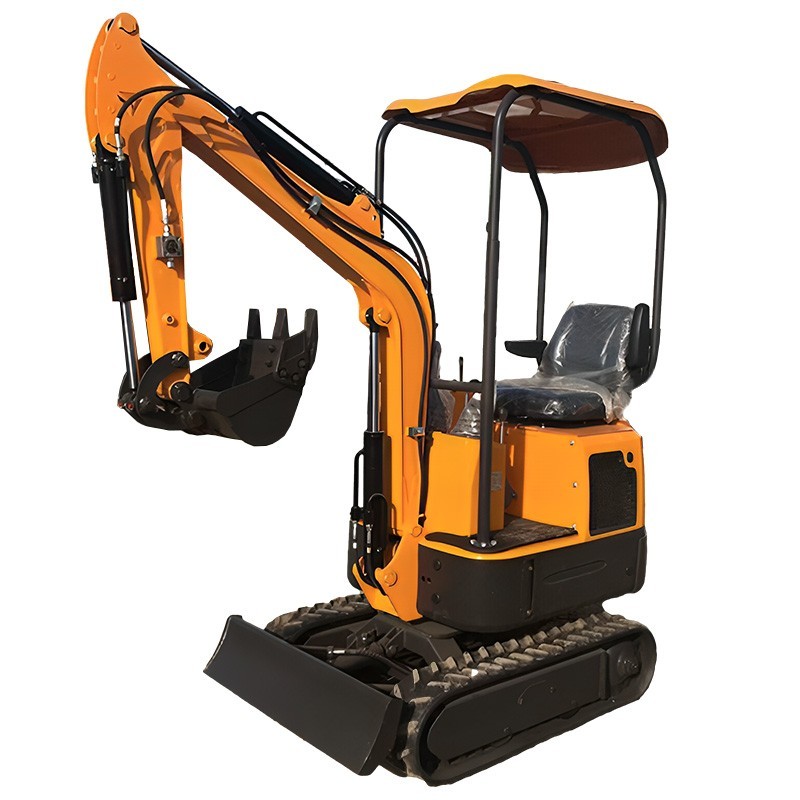

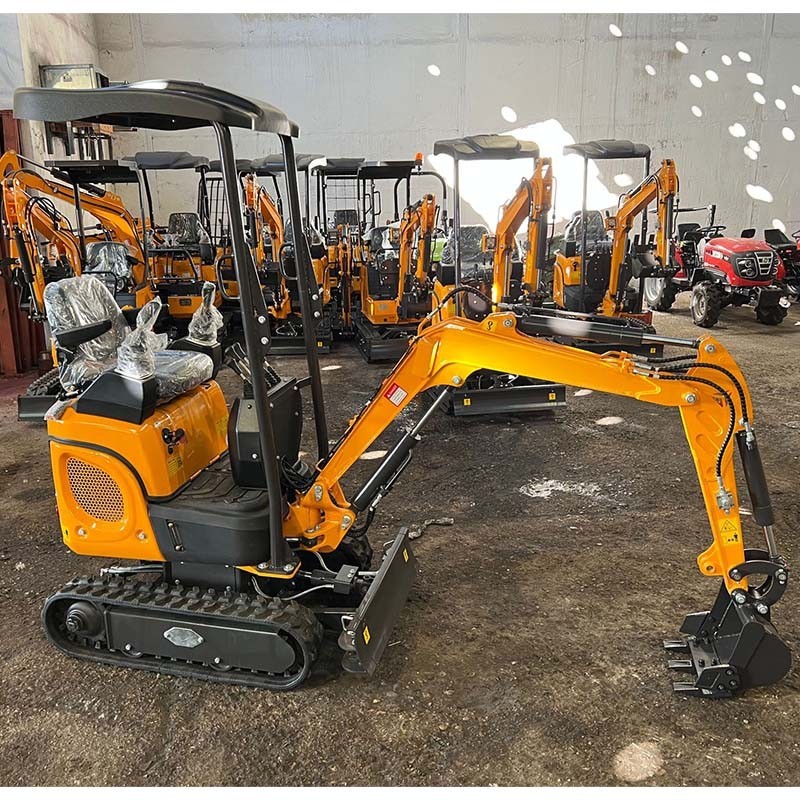

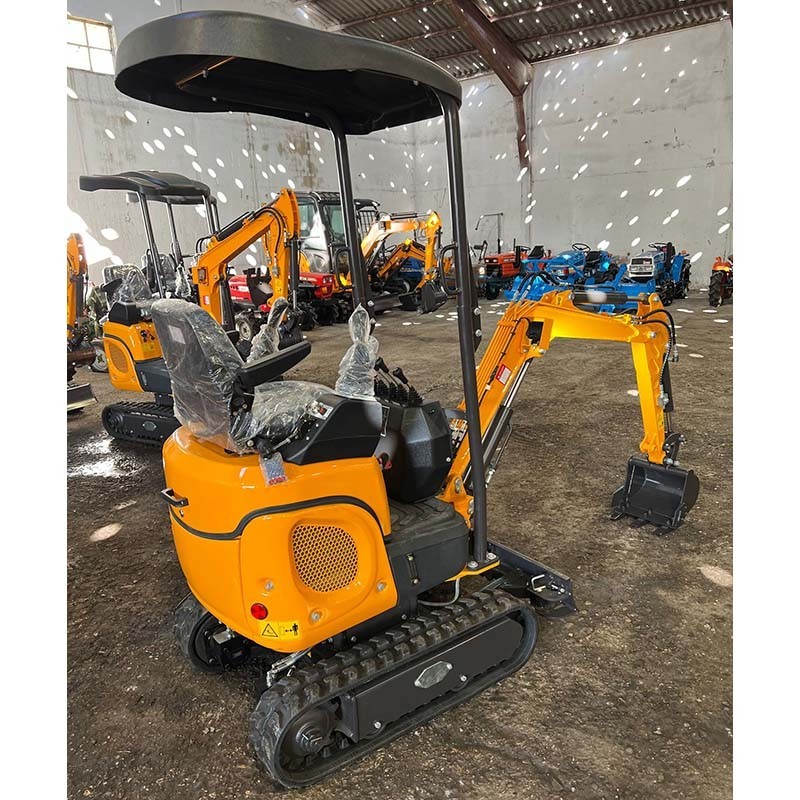

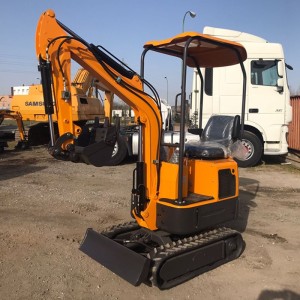

The Mini Excavator diesel engine Garto GR12 2610 mm is a reliable and efficient construction machine, with a weight of 1130 kg that provides stability and maneuverability.

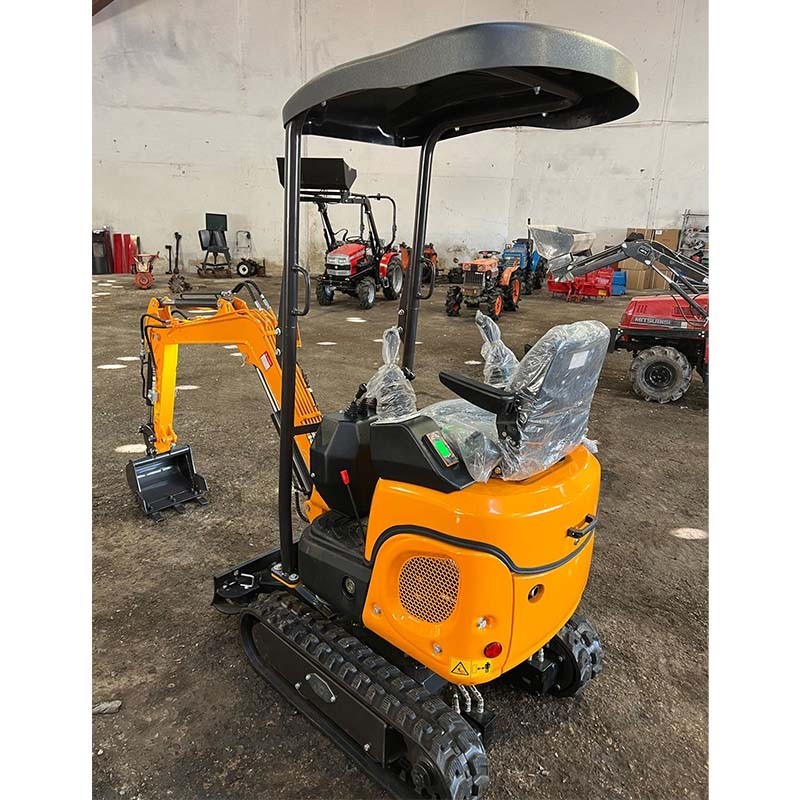

Operator safety is ensured thanks to the 4-anchor cage, offering solid protection during excavation and earthmoving work.

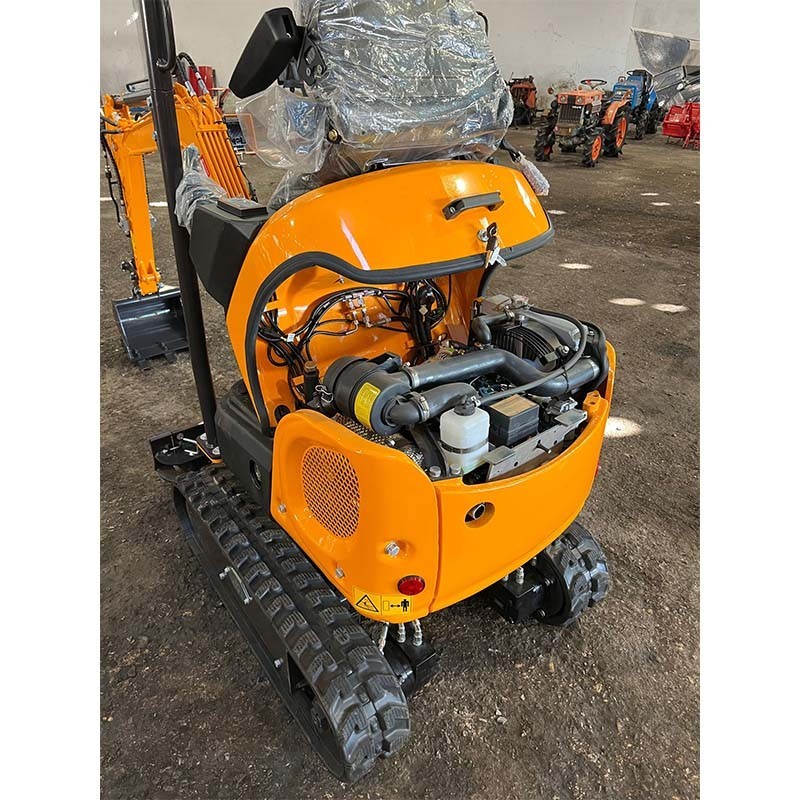

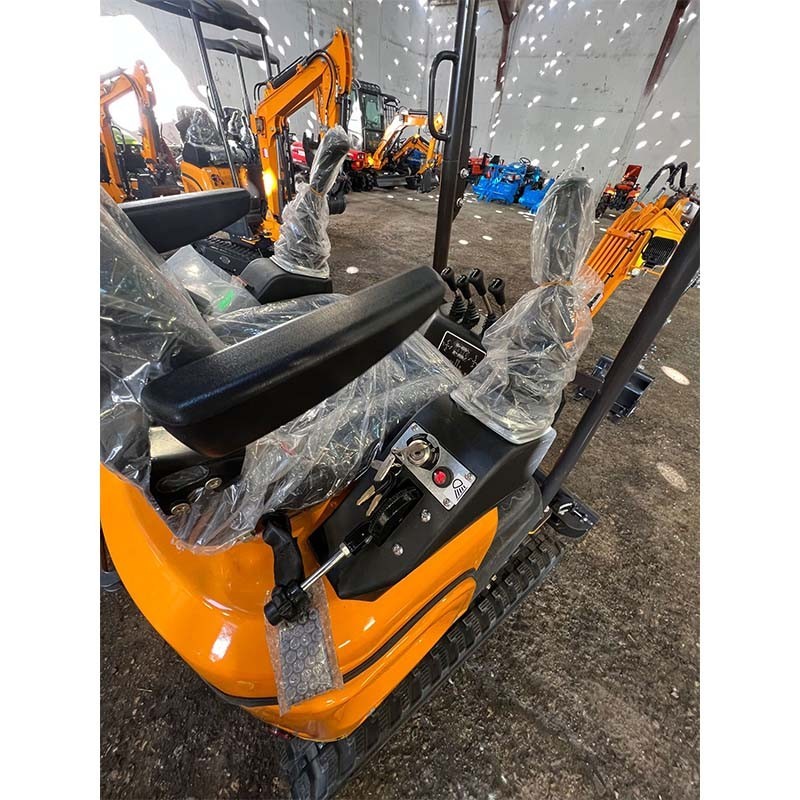

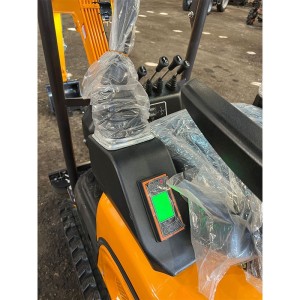

Powered by a KUBOTA D 722 three-cylinder engine, the GR12 meets the stringent EURO5 emission standards, ensuring powerful performance. Its backlit digital display provides detailed information, including coolant temperature, making it easy for the operator to control and monitor the machine during operation.
The GR12 Mini Excavator stands out for its additional functionality, with a battery disconnect switch and glow plugs for cold starting, as well as a battery disconnect for emergency situations.
With an auxiliary hydraulic output that allows the use of an auger and front grader blade, the GR12 extends its versatility to suit a variety of construction and excavation tasks.
| Model | GR12 |
| Track length | 770 mm |
| Total length of tracks | 1090 mm |
| Platform height | 380 mm |
| Platform length | 784 mm |
| Chassis width | 896 mm |
| Track width | 170 mm |
| Track height | 320 mm |
| Transport length | 2770 mm |
| Total height without roof | 1330 mm |
| Maximum digging length | 2850 mm |
| Maximum digging radius | 1650 mm |
| Maximum digging depth | 2610 mm |
| Maximum dump height | 1850 mm |
| Maximum vertical digging depth | 1375 mm |
| Minimum turning radius | 1330 mm |
| Maximum blade height | 345 mm |
| Maximum blade depth | 255 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
