Super Pack Rhinoceros 108 1T Mini Excavator + 6 attachments


  • Wheelbase : 914 mm
  • Track length : 1234 mm
  • Height to the ground of the upper chassis : 453 mm
  • Turning radius of the counterweight : 660 mm
Assembly and set-up INCLUDED
En stock
icon Power Supply
Power Supply
Diesel
icon Engine
Engine
KOOP
icon Power
Power
11.7 HP
icon Standard ladle
Standard ladle
30 cm
icon Operating weight
Operating weight
1 T
icon Excavator
Excavator
With roof
icon Cylinders
Cylinders
1
icon ✔️
✔️
Multifunction
icon Position of controls
Position of controls
Front joysticks
icon Tipo de orugas
Tipo de orugas
Adjustable width
icon Weight
Weight
1000 Kg
€7,861.76 excl. VAT
€9,512.73 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Super Pack Rhinoceros 108 1T Mini Excavator + 6 attachments
€9,512.73
Qty

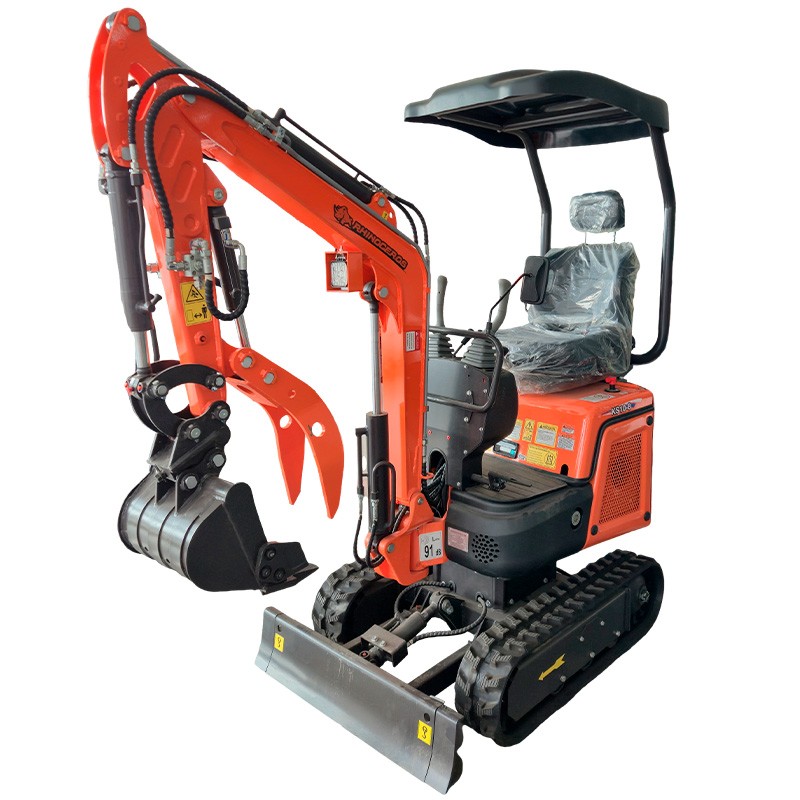

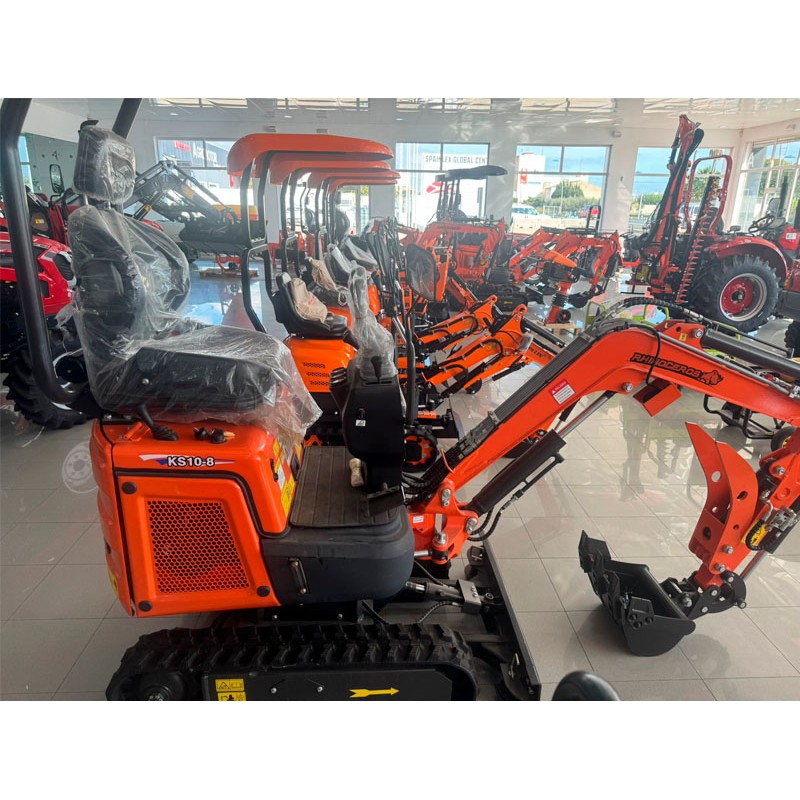

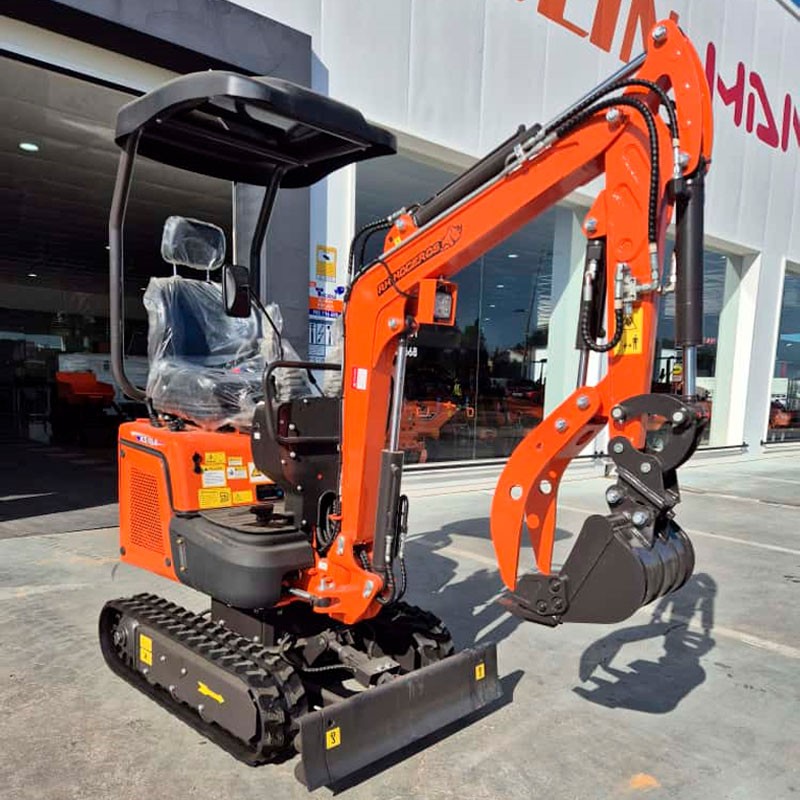

Mini Excavator Zeppelin Rhinoceros 108 1T + 6 attachments

The Rhinoceros 108 1 ton mini-excavator includes a limited pack with six attachments that is more economical than buying the machine without attachments because it is a unique super offer. It is compact with adjustable width between 800 and 954 mm and 360º rotation to enter yards and urban worksites with total precision.

The kit includes EDT100 hydraulic breaker for light demolition and concrete breaking, 200 mm narrow bucket for clean trenches, 600 mm leveling bucket for profiling and spreading, hydraulic grapple for holding and moving debris, 800 mm hydraulic bucket for loading and cleaning, and mechanical quick coupler that reduces tool change time to seconds.

With the mechanical quick coupler you take advantage of the hammer, buckets and grapple without wasting time and get more work per hour. This package lowers the overall equipment cost and delivers a mini excavator ready to work from day one with key attachments already included.

Performance is ensured by the KOOP 4-stroke diesel engine with 8.6 kW 11.7 HP and electric start with air-cooling for easy maintenance. The 108 offers maximum digging depth of 1568 mm, digging height of 2646 mm, dump height of 1876 mm and maximum ground radius of 3039 mm with a travel speed of 1.5 km/h and oscillation of 12 rpm.

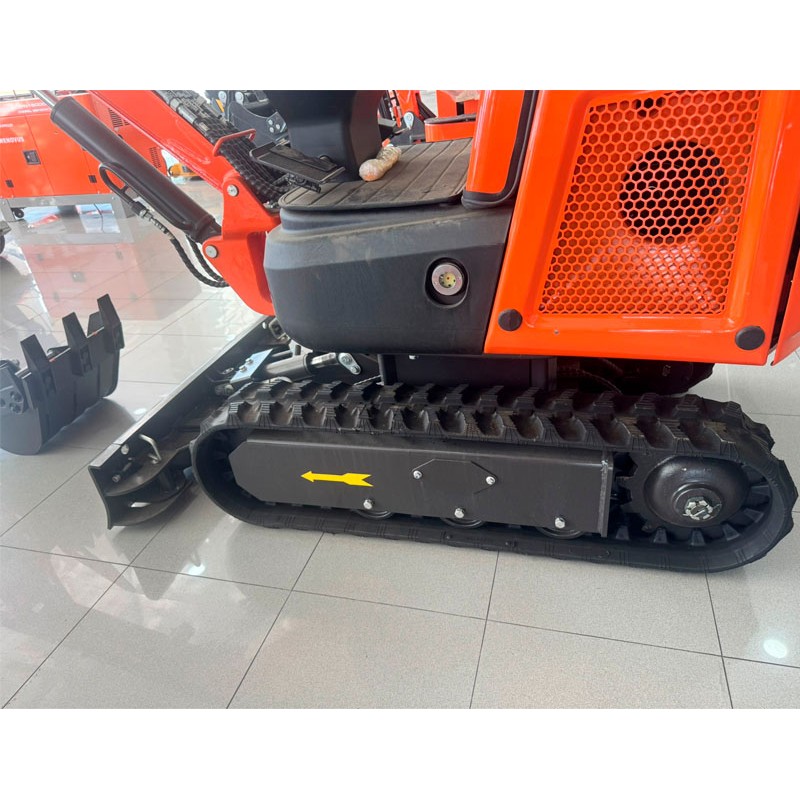

Stability comes with 1000 kg of weight and a hydraulically adjustable width track undercarriage that improves grip in difficult terrain. The bulldozer blade raises 141 mm and lowers 200 mm for quick grading, and the accessible 5.5 L fuel and 1.65 L oil tanks make daily service easy. If you are looking for a compact mini excavator with six tools and the best price per complete kit this Rhinoceros 108 super kit is the most cost effective option.

Included add-ons

  • EDT100 hydraulic breaker
  • Narrow bucket 200 mm
  • Leveling bucket 600 mm

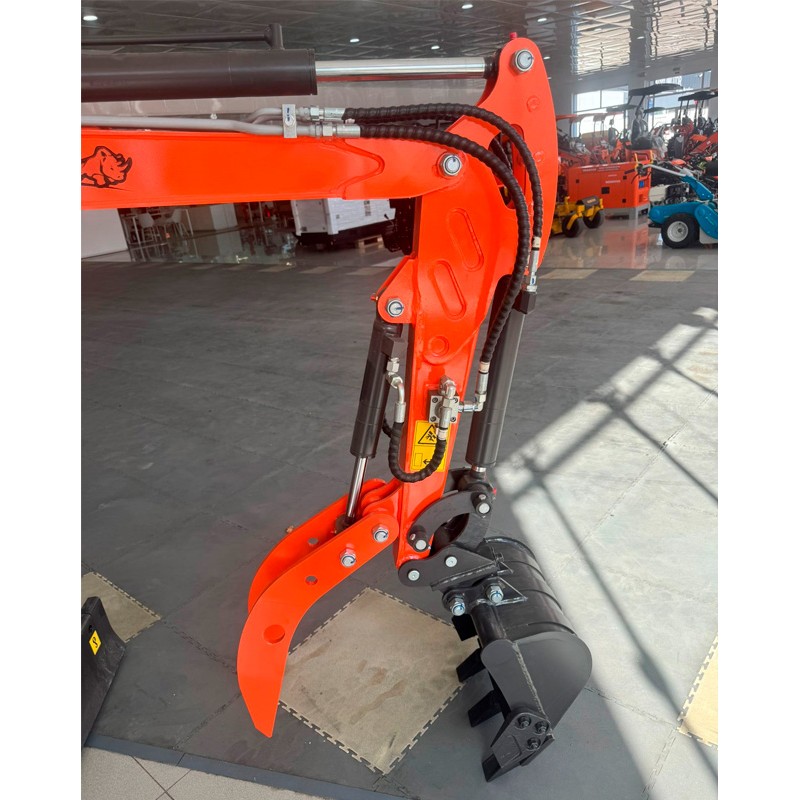

  • Hydraulic nail
  • Hydraulic bucket 800 mm
  • Mechanical quick hitch

Features

Weight 1000 kg
Engine type 4-stroke diesel
Rated power 8.6 kW / 11.7 HP
Power Supply Diesel
Engine Model KOOP
Cooling Air
Displacement 49.9 cc
Rated speed 3600 rpm
Starter Electric
Fuel tank 5.5 L
Oil tank 1.65 L

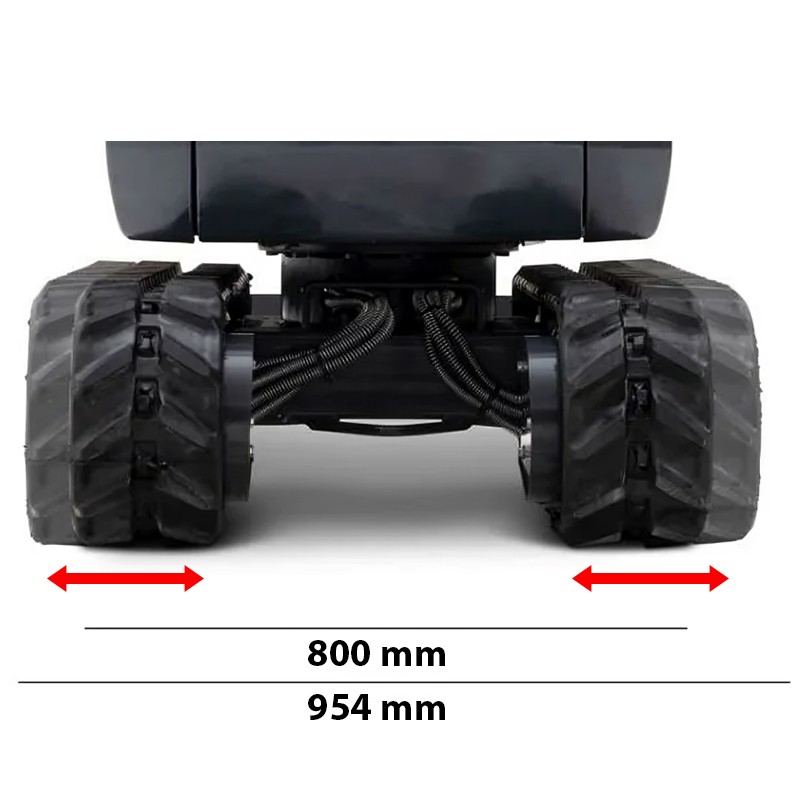

Total width 800 / 954 mm
Oscillation speed 12 rpm
Maximum digging height 2646 mm
Maximum digging depth 1568 mm
Maximum speed 1.5 km/h
Rotation 360º
Chain carriages Hydraulically adjustable width


Main dimensions

a. Distance between axles 914 mm
b. Track length 1234 mm
c. Ground clearance of upper chassis 453 mm
d. Counterweight turning radius 660 mm
e. Working width To be confirmed
f. Track width 180 mm
g. Track height 320 mm
h. Transport length 2850 mm
i. Height from seat to ground 1525 mm
j. Overall height 2211 mm

Operating dimensions

A. Maximum digging radius in the ground 3039 mm
C. Maximum digging depth 1568 mm
D. Maximum digging height 2646 mm
E. Maximum discharge height 1876 mm
F. Maximum vertical digging depth 1377 mm
G. Minimum turning radius 1510 mm
H. Maximum bulldozer blade lift height 141 mm
I. Maximum bulldozer blade depth 200 mm
J. Left arm swing 363 mm
K. Right arm swing 325 mm
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case.
