GARTO GAR-25 Mini Excavator KUBOTA D1105 Engine 2480 kg


  • Operating weight: 2480 kg
  • Engine: KUBOTA D1105 (3 cylinders) : 20 HP : Stage V
  • Bucket capacity: 0,07 m³ | Digging force: 19,5 kN
  • Max. digging depth: 2050 mm | Max. radius: 4130 mm
En stock
icon Power Supply
Power Supply
Diesel
icon Engine
Engine
Kubota
icon Engine model
Engine model
D1105
icon Power
Power
20 HP
icon Engine type
Engine type
4 times
icon Operating weight
Operating weight
2480 Kg
icon Excavator
Excavator
With cabin
icon Certificate
Certificate
Euro V
icon Cylinders
Cylinders
3
icon ✔️
✔️
Air conditioning
icon ✔️
✔️
Water-cooled
icon ✔️
✔️
Multifunction
icon Weight
Weight
2000 Kg
€23,986.86 excl. VAT
- 13%
€20,868.57 excl. VAT
€25,250.97 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


GARTO GAR-25 Mini Excavator KUBOTA D1105 Engine 2480 kg
€25,250.97
Qty

GARTO GAR-25 Mini Excavator GARTO GAR-25 KUBOTA D1105 Engine (2480 kg)

The GARTO GAR-25 is a high performance mini excavator designed for professionals who need more power, stability and digging capacity. With an operating weight of 2480 kg, it incorporates a robust 20 HP KUBOTA D1105 engine, complying with Tier 5 / Stage V (EURO V) emission standards, guaranteeing efficiency, low consumption and mechanical reliability.

Its design incorporates a retractable and extendable chassis (1300 x 1500 mm), which allows combining stability in demanding jobs with easy access in narrow areas. Thanks to its 21.5 MPa hydraulics and maximum digging force of 19.5 kN, the GAR-25 offers superior performance in deep excavation, technical trenching and structural work.

With a maximum digging radius of 4130 mm, dumping height of 2610 mm and 35° climbing capacity, this machine is positioned as a professional solution for construction, civil engineering and advanced agricultural work.

Technical Specifications

Model GAR-25
Engine KUBOTA
Engine Model D1105
Emission standard Tier 5 / Stage V
Power 14.1 kW (20 HP)
Rated speed 2000 rpm
Number of cylinders 3
Operating weight 2480 kg

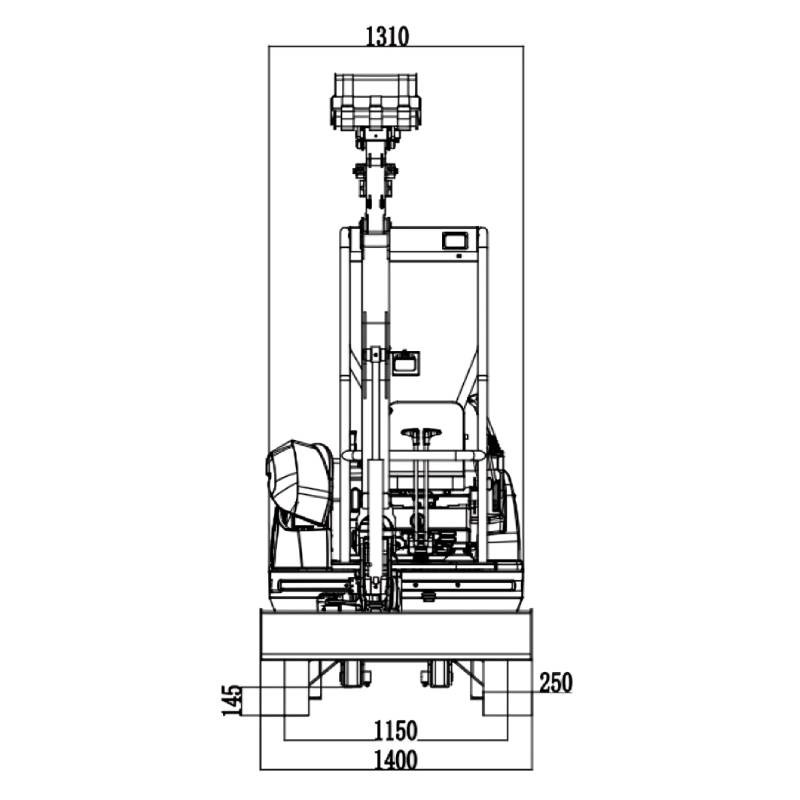

Overall dimensions (L x W x H) 3850 x 1300 x 2290 mm
Retractable chassis 1300 mm
Extended chassis 1500 mm
Wheelbase 1300 mm
Minimum ground clearance 230 mm
Tail swing radius 750 mm
Tail shoe width 250 mm
Number of shoes per side 38 pcs.
Upper rollers per side 1
Lower rollers per side 3
Travelling speed 3 x 5.5 km/h
Turning speed 9.5 rpm
Climbing capacity 35°
Hydraulic system pressure 21.5 MPa
Bucket capacity 0,07 m³
Bucket digging force 19,5 kN
Digging force arm 11 kN

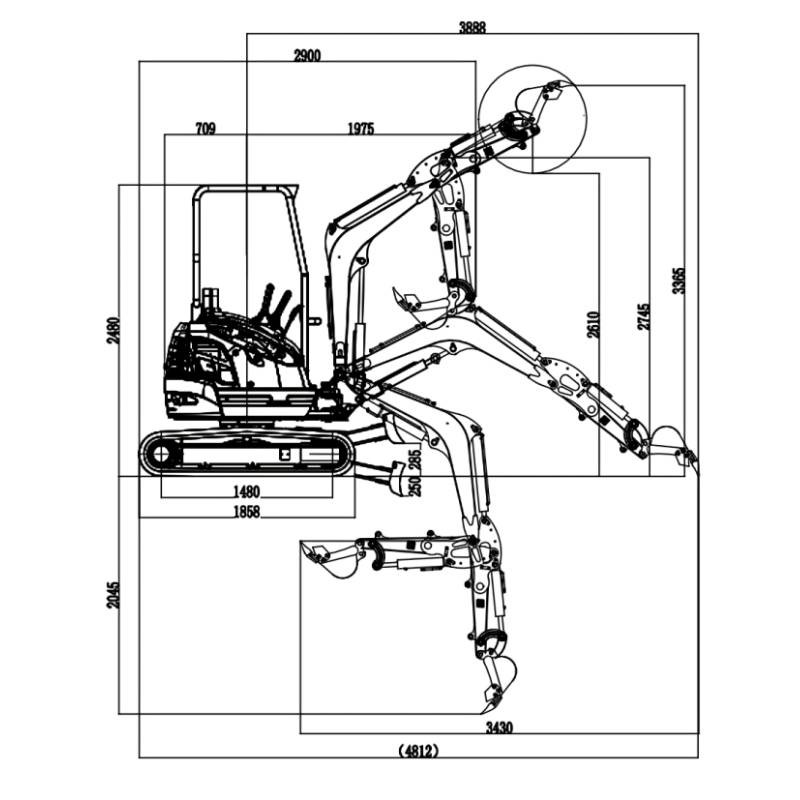

Max. digging height 3980 mm
Max. dumping height 2610 mm
Max. digging depth 2050 mm
Max. vertical depth 2050 mm
Max. digging radius 4130 mm
Min. digging radius 1850 mm
Max. boom lift height 2850 mm
Max. blade cutting height 310 mm
Boom swing angle (left/right) 75° / 55°
