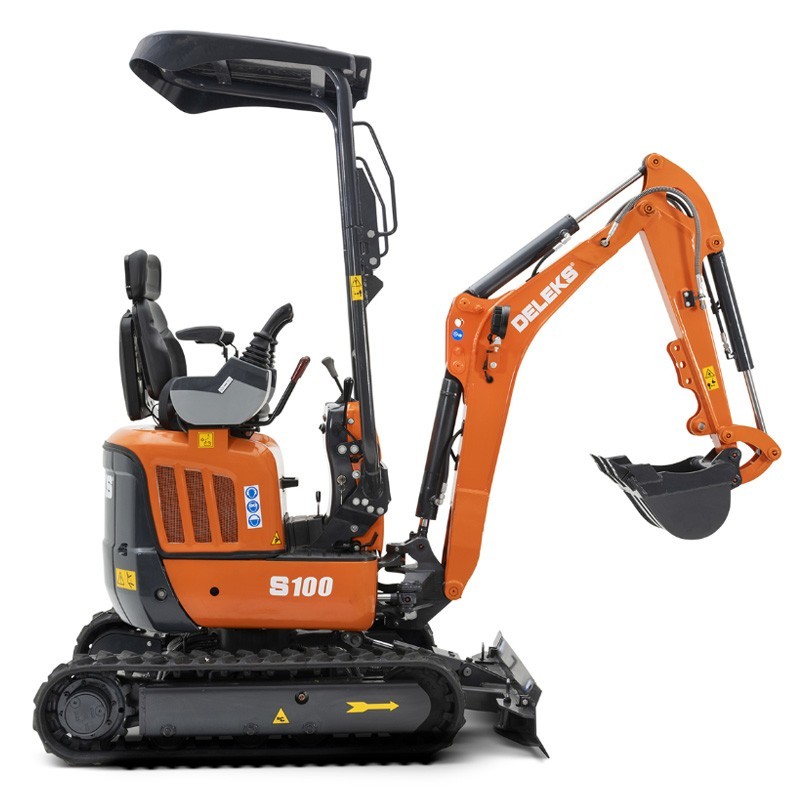

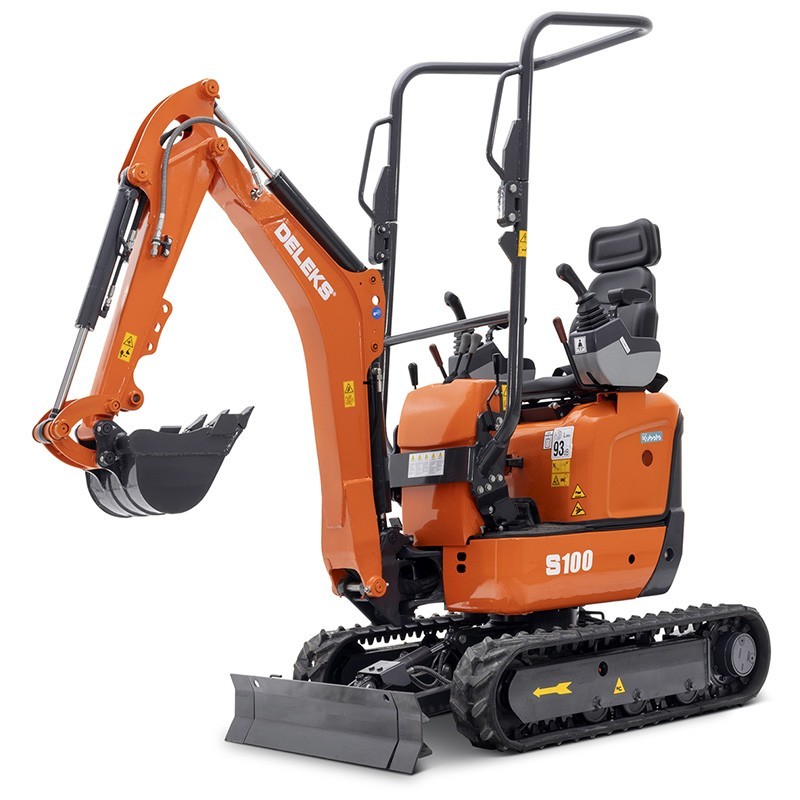

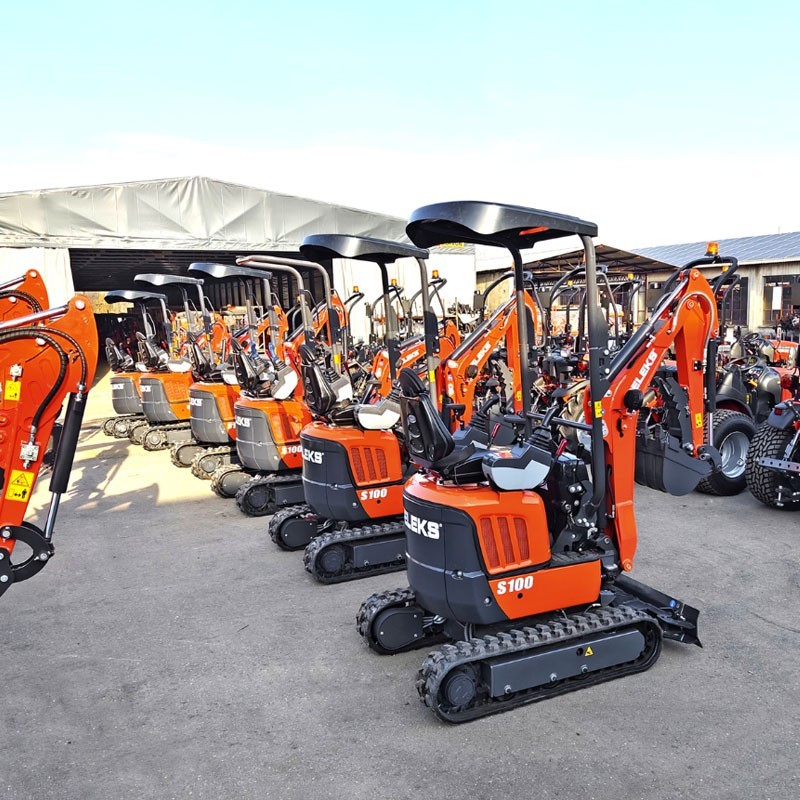

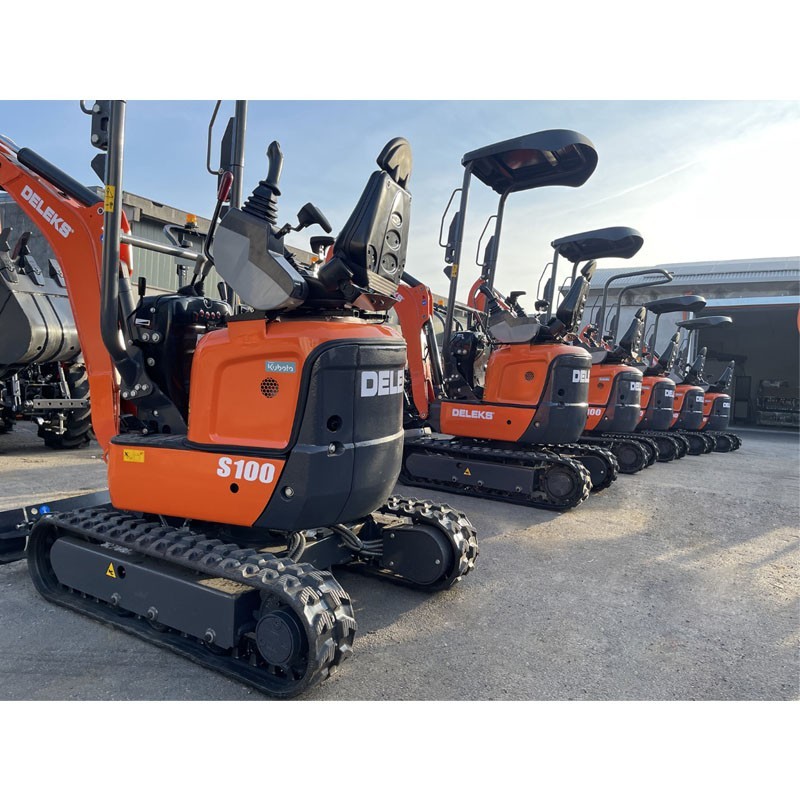

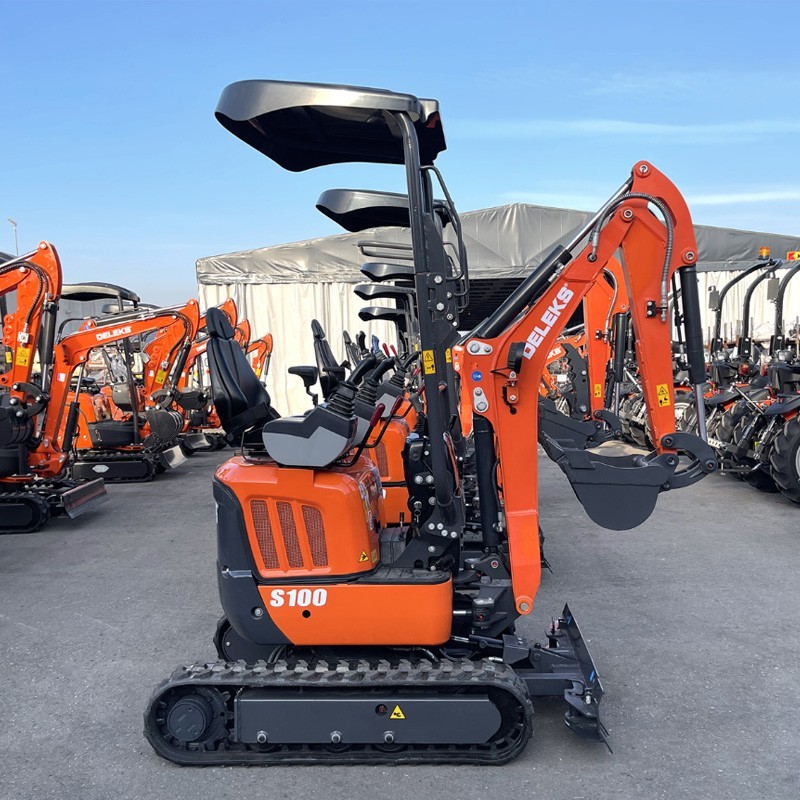

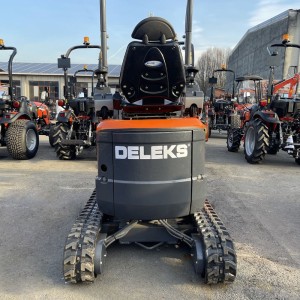

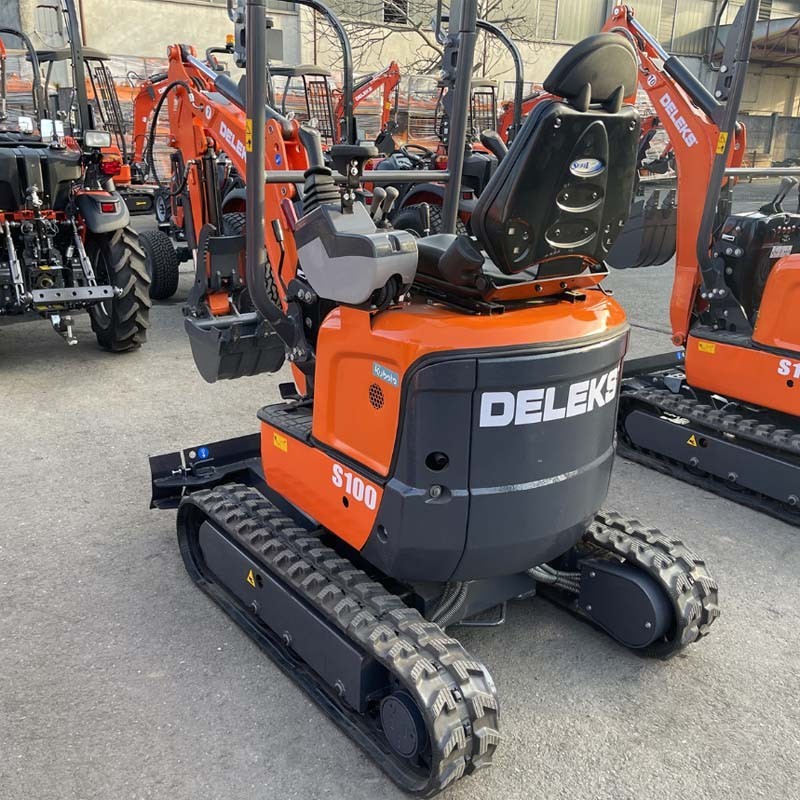

DELEKS S100 1.0T compact mini excavator
The DELEKS S100 1.0T compact mini excavator It is a compact machine capable of delivering great performance in confined spaces such as buildings, parks, and gardens.

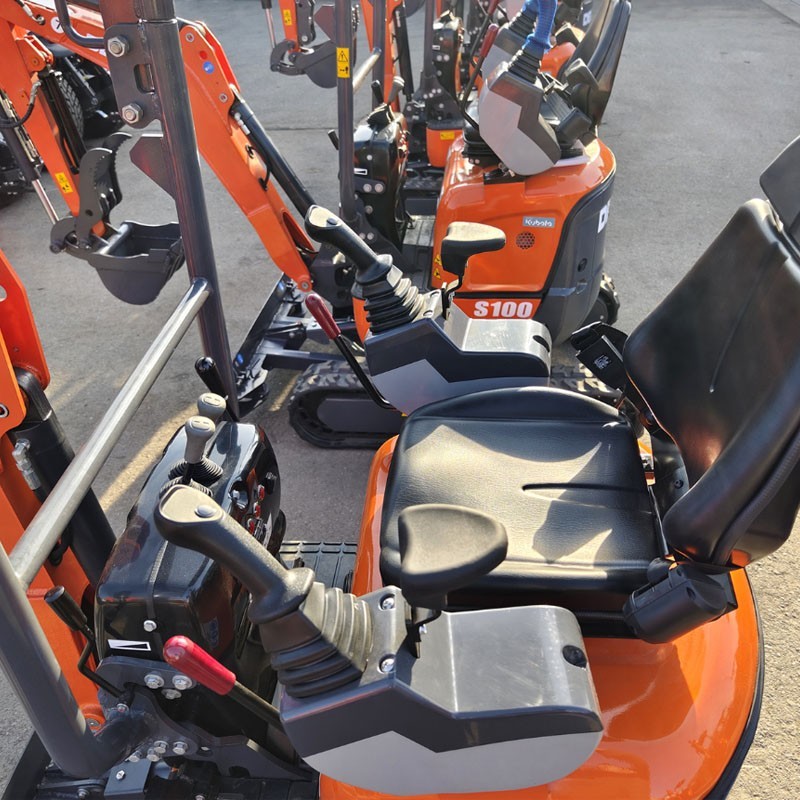

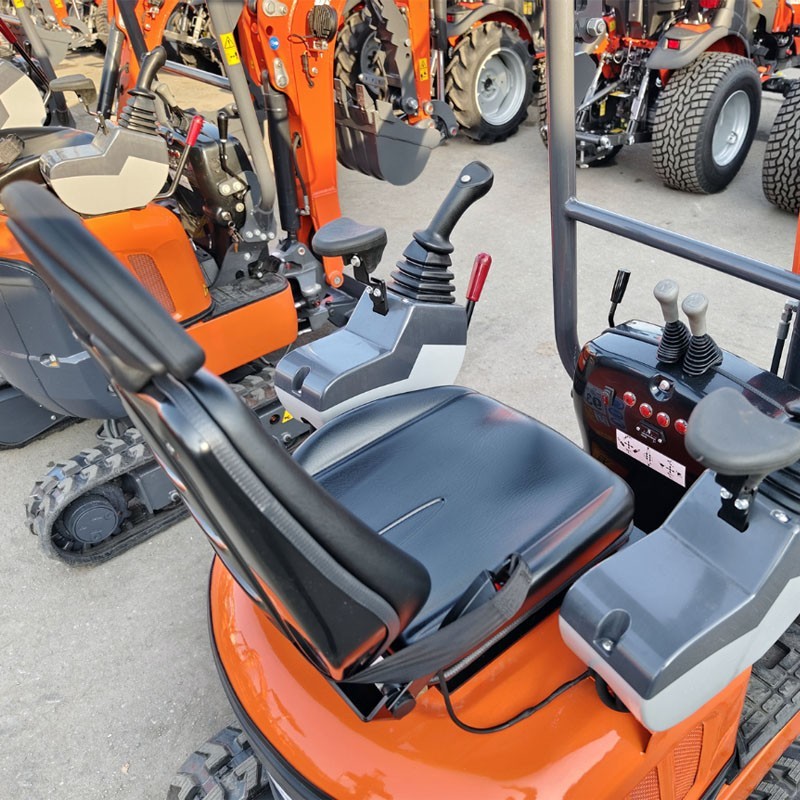

The S100 comes standard with side control levers for better posture and even more precise control of arm movements and the mounted accessory. Double speed to move quickly. from one point to another in the work area.
It is extremely easy to use. Appreciated by rental companies and businesses that handle urban or green maintenance, but also by DIY enthusiasts.

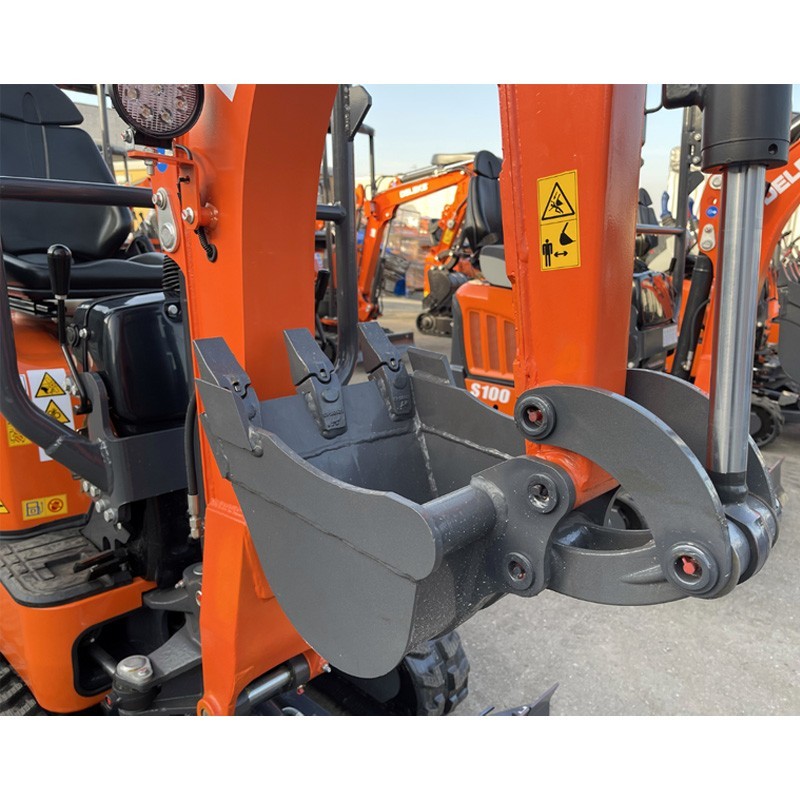

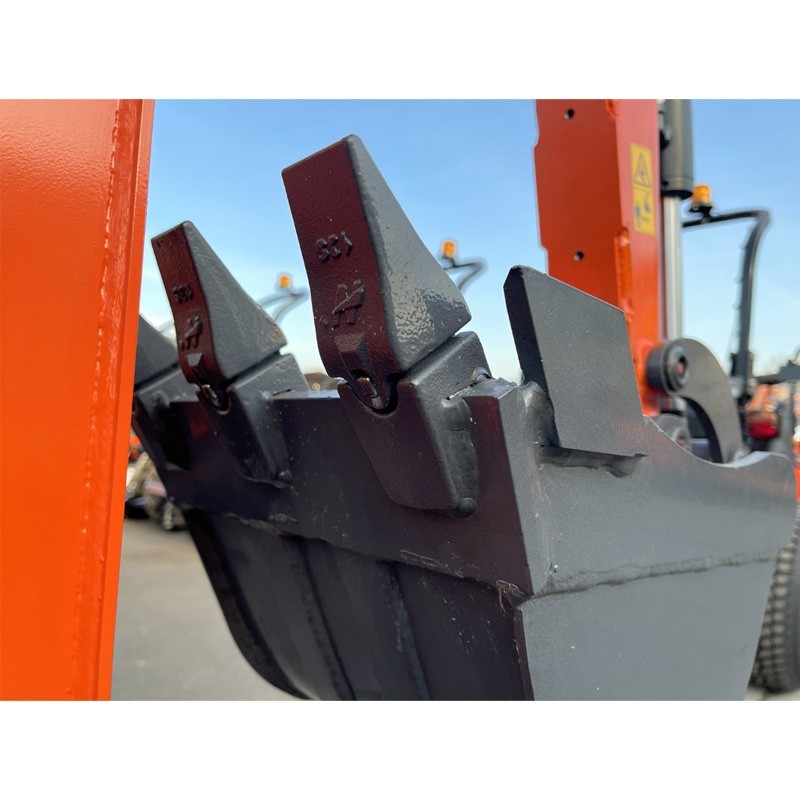

The S100 is compact and can be easily transported in a trailer or van., from one work to another and it has a large number of equipment that makes it very versatile. Standard 35 cm bucket.

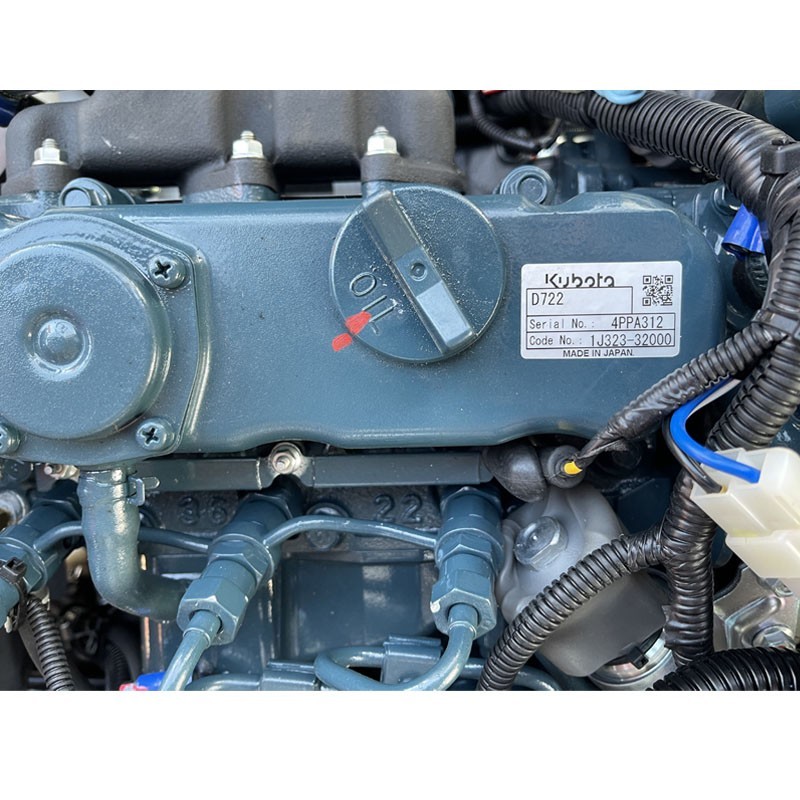

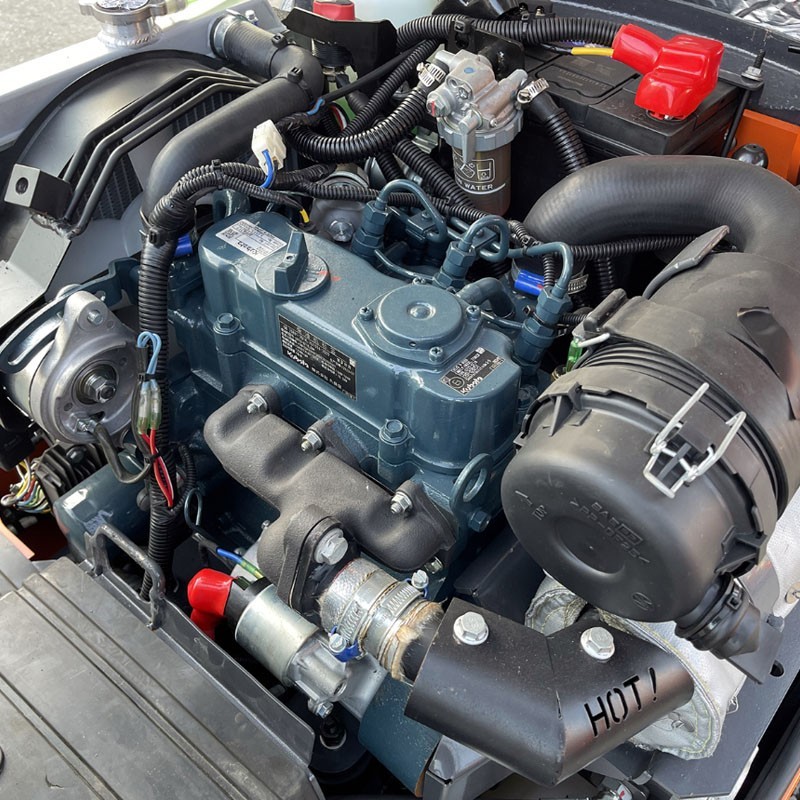

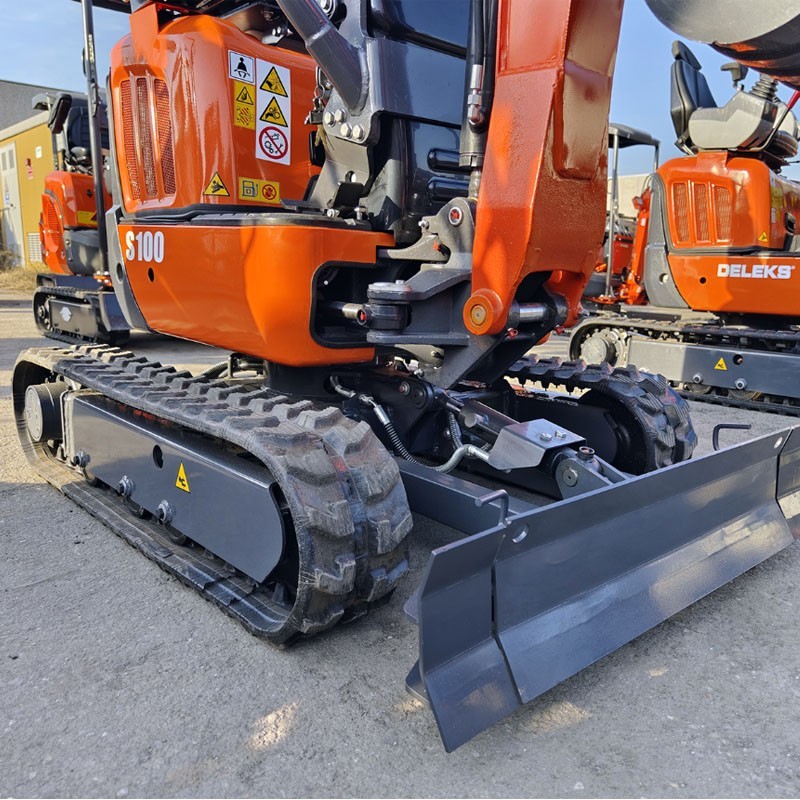

It has a Kubota D722 diesel engine 3-cylinder, a 3-pump hydraulic system: double gear hydraulic pump + auxiliary pump, a 35 cm pot, auxiliary hydraulic system on the arm for the use of the auger or hammer, it has a front blade, canopy, and 3 free filters: air, oil, diesel, and a toolbox.
Technical specifications
| Engine |
| Model |
Kubota D722-EF11 |
| Type |
EU Stage V, water-cooled, 3 cylinders |
| Power |
10.2 kW/2500 rpm |
| Hydraulic system |
| Main pump |
Double gear pump |
| Maximum oil flow |
10.5 L/min + 10.5 L/min |
| Hydraulic pressure |
17.2 MPa |
| Control pump |
Gear pump |
| Flow |
3.1 L/min |
| Hydraulic pressure |
3.9 MPa |
| Hydraulic oil tank |
12.6 L |
| Pressure on the ground |
29 kpa |
| Benefits |
| Oil radiator |
Included |

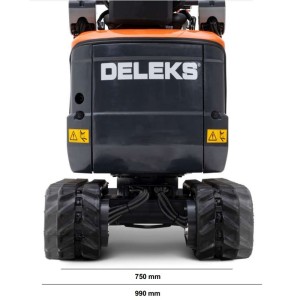

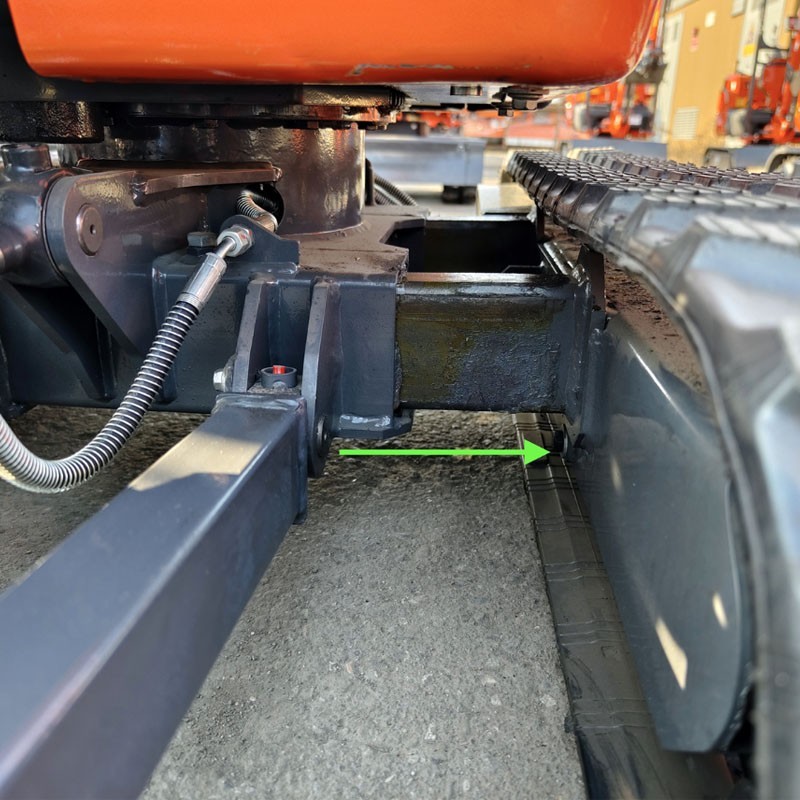

| Adjustable undercarriage |
750 - 900 mm |
| Operating weight |
1050kg |
| Bucket width and capacity |
400mm / 0.03m3 |
| Swing speed |
8.3 rpm |
| Slow-fast speed |
2.0km/h, , 4.0km/h |
| Inclination |
10th |
| Arm swing angle |
55° |
| Breakout force (bucket) |
10.4 kN |
| Arm strength |
5.4 kN |
| Ground clearance |
140 mm |
| Distance between wheel tracks |
1010 mm |

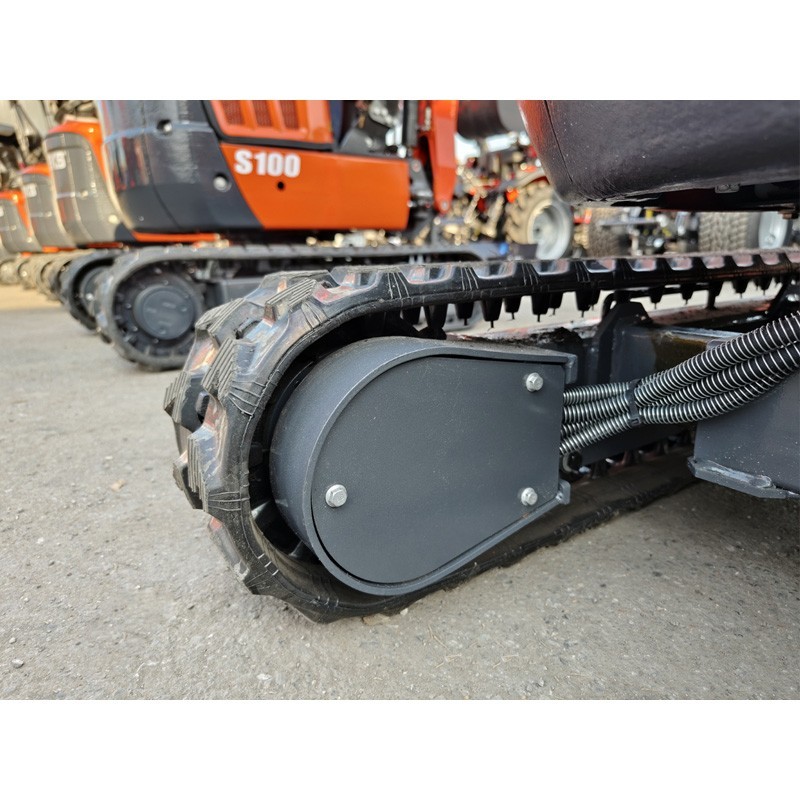

| Width of the tracked |
180 mm |
| Fuel tank |
12 L |
Main dimensions
| IMPORTANT NOTICE |
|
| Mandatory on the part of the client, Review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be indicated on the carrier's sheet that the customer is in agreement. except for pending exam. |
|
| For the correct delivery of this product, the customer must a forklift will be needed or similar for the download of this product as well as the address must be accessible for a 24t truck. |
