Mini excavator Zeppelin Rhinoceros XN13 kubota 15 HP engine

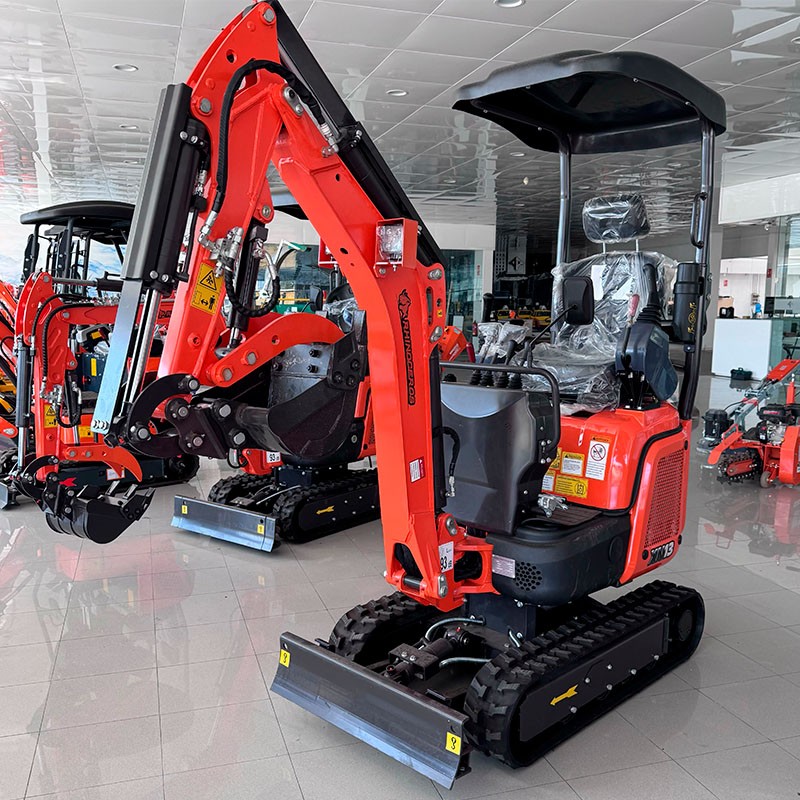

Mini excavator Zeppelin Rhinoceros XN13

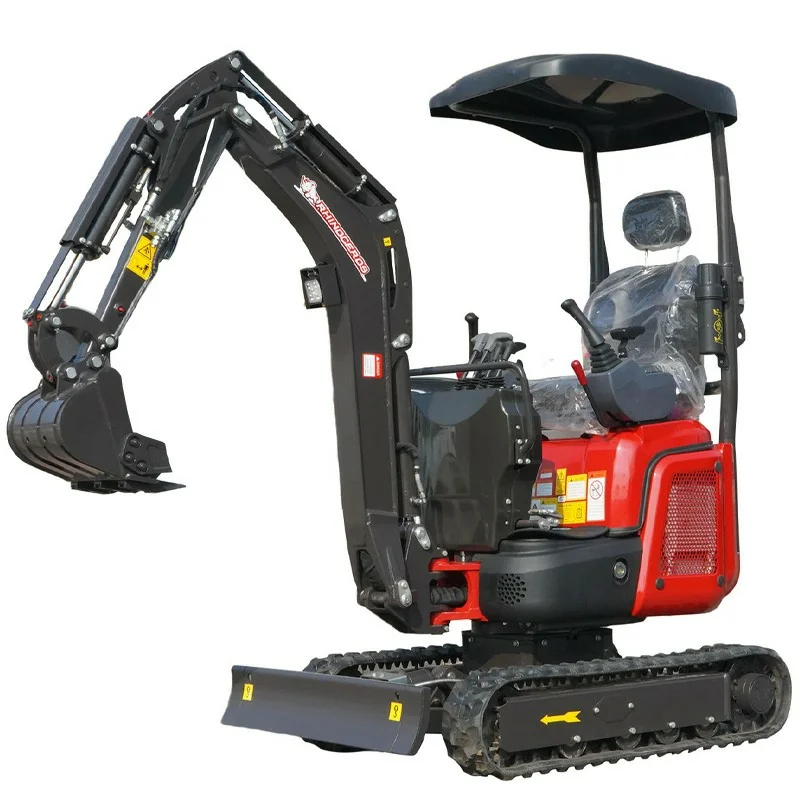

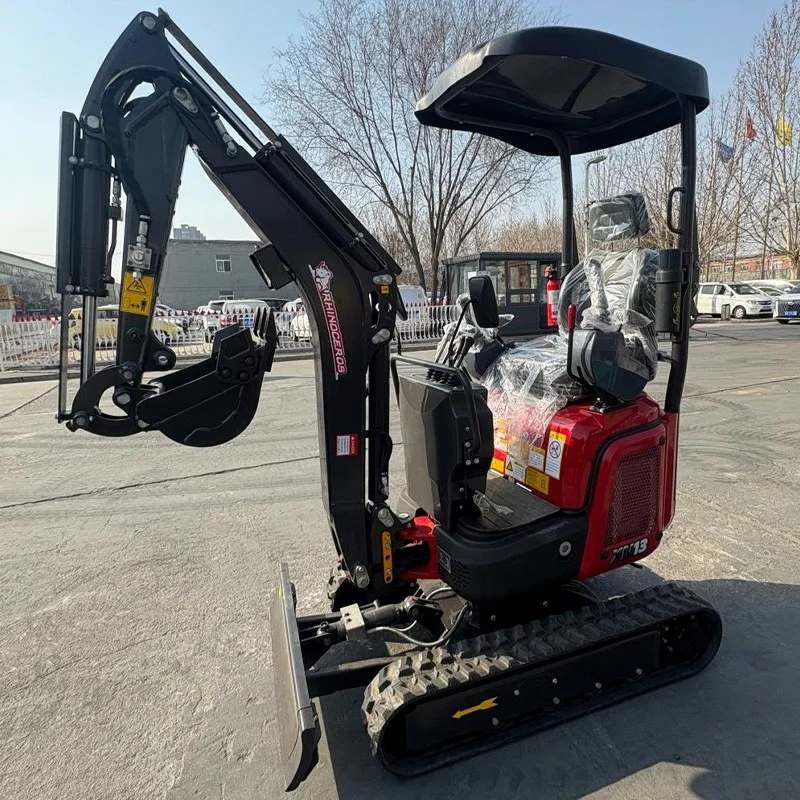

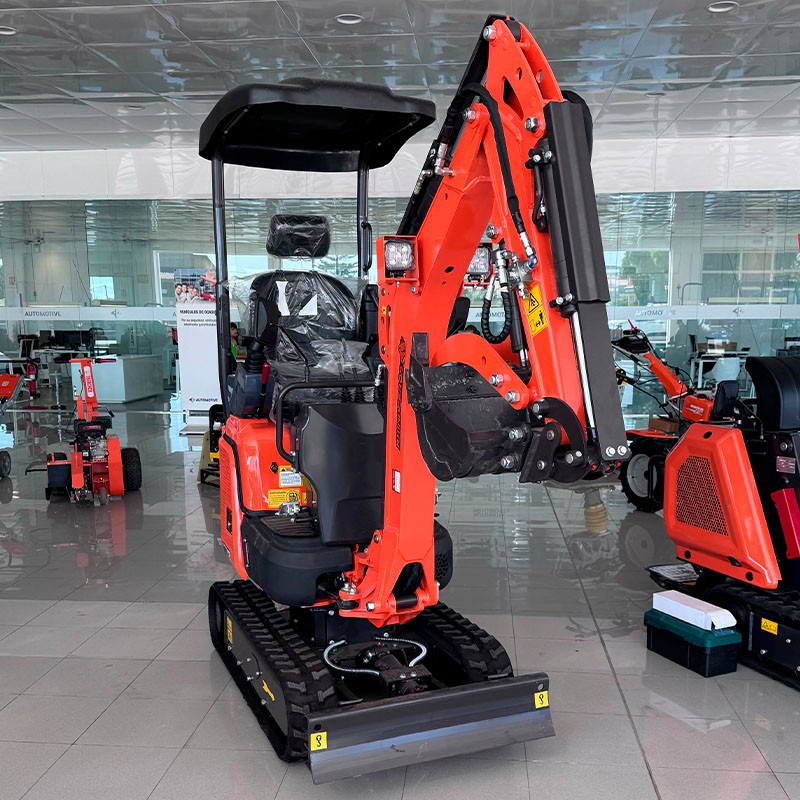

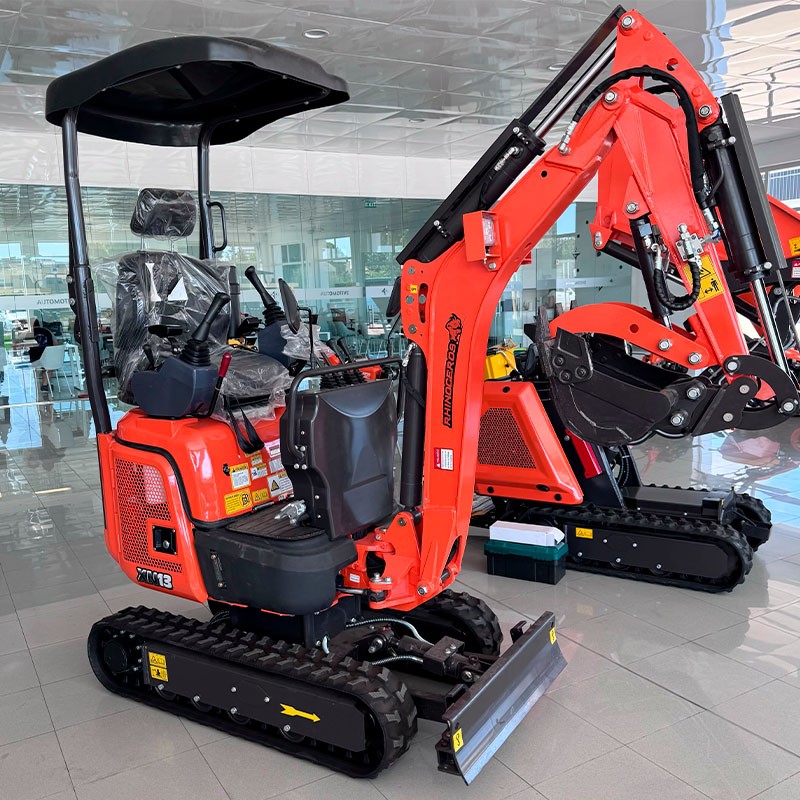

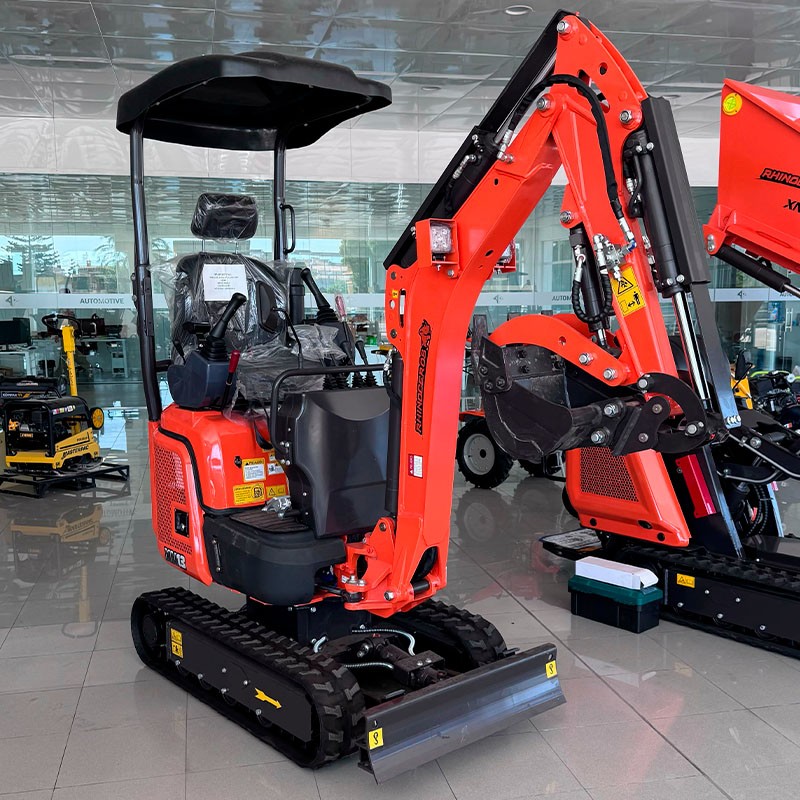

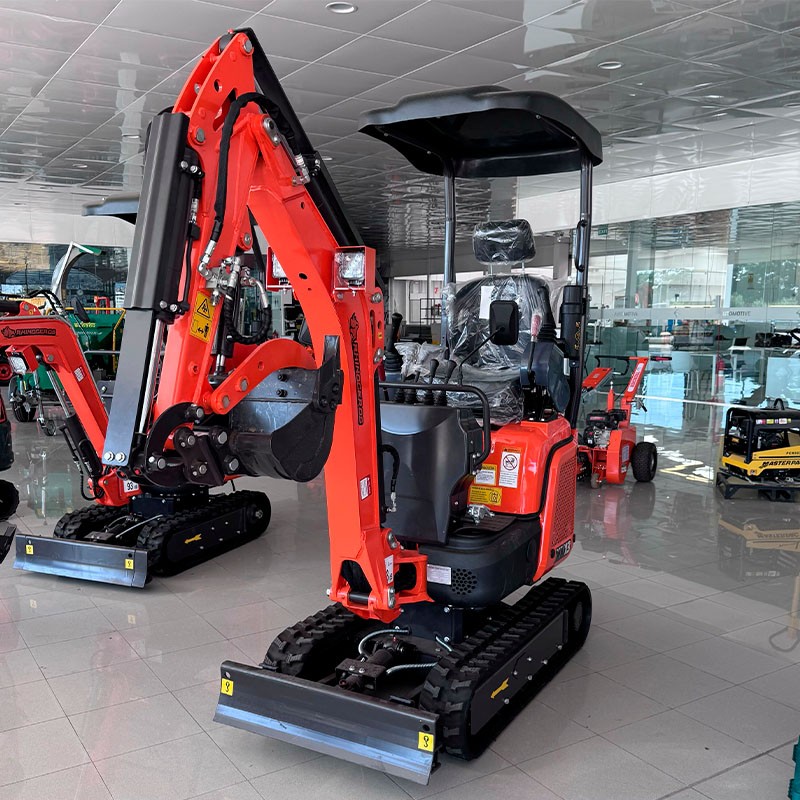

The mini excavator Zeppelin Rhinoceros XN13 arrives with SUPER OFFER and a price-performance ratio that is hard to match. It is compact and maneuverable and fits through narrow passages thanks to its telescopic chassis with tracked that open and close to adapt to the working width. It is equipped with a 15 HP Kubota engine and offers a operating weight of 1,290 kg that provides stability and stability on site to work with confidence from the first day.

Rhinoceros is a quality brand which is part of Zeppelin. . Zeppelin is a Spanish brand and stands out for its quality, safety and availability of spare parts. It complies with European standards and has a warranty network and technical service with international coverage so that you can buy with peace of mind wherever you are

Engine

The heart of the XN13 is a Kubota D722 diesel of 15 HP and 719 cc that pushes smoothly and doesn't come down when you load the bucket. It is a well-proven three-cylinder that fits perfectly with the operating weight of 1,290 kg and gives the machine a poise that is noticeable in every work cycle.

Works with water cooling to keep the temperature stable even in summer and delivers a torque of 42.9 N m at 2,500 rpm which translates into strong output at the start of digging. Consumption is contained with a tank of 11 liters for long days and the feel is rounded, designed for urban and precision work.

Daily maintenance is easy with good access to filters and dipstick from the side covers and the Kubota service network ensures fast replacement and support with good international coverage. The whole cE compliant and has ePA approval which brings confidence and resale value when buying a machine to work for many years.

Hydraulics and pilot controls

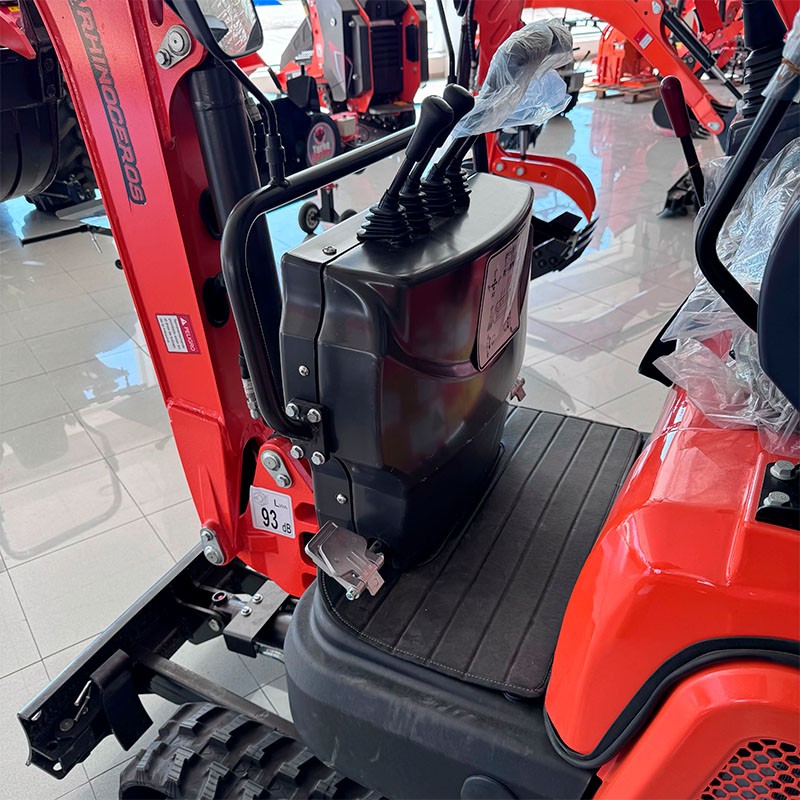

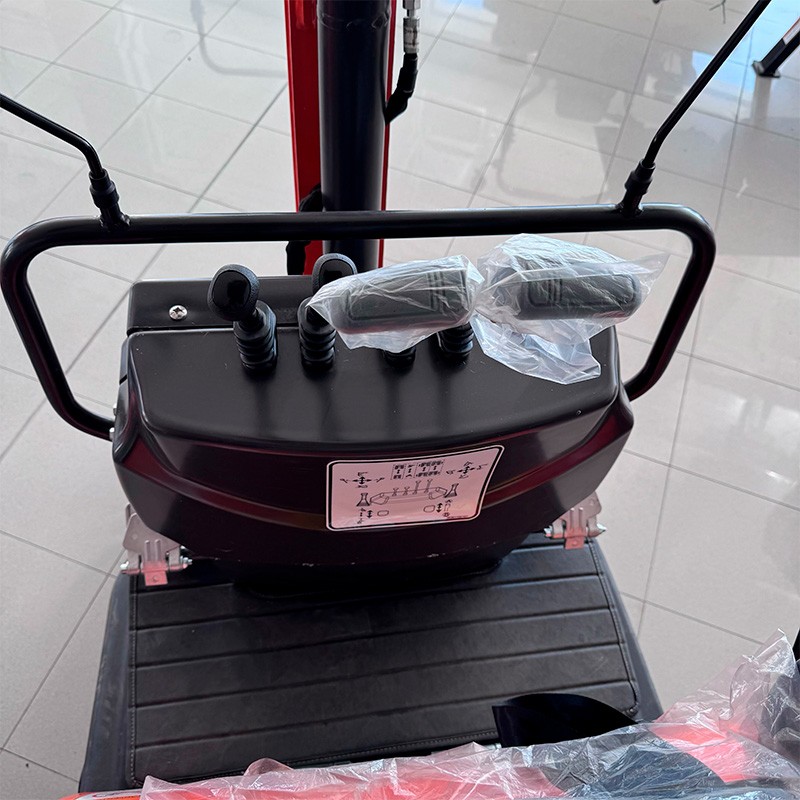

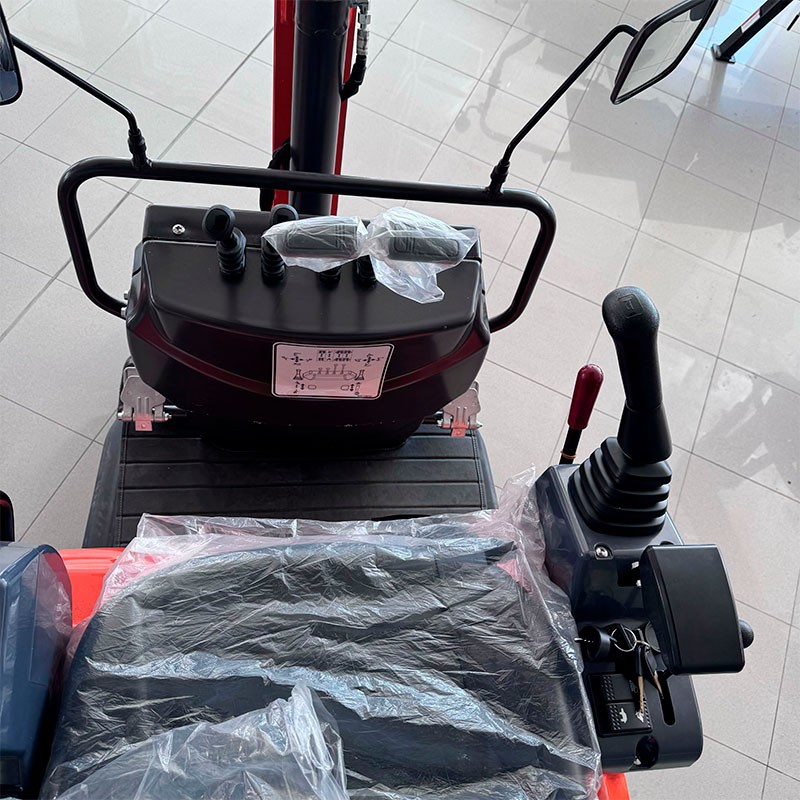

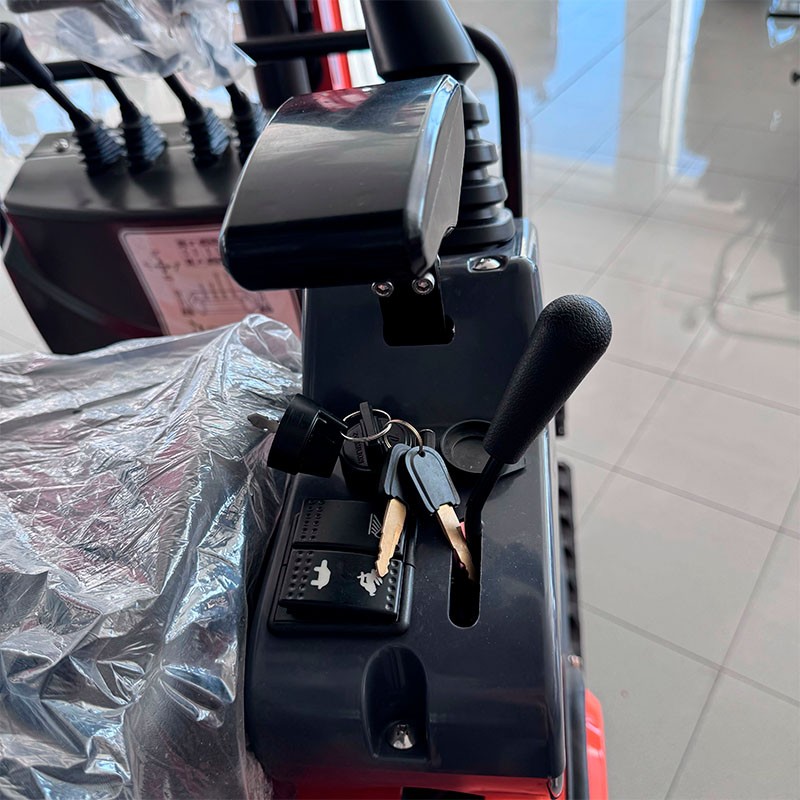

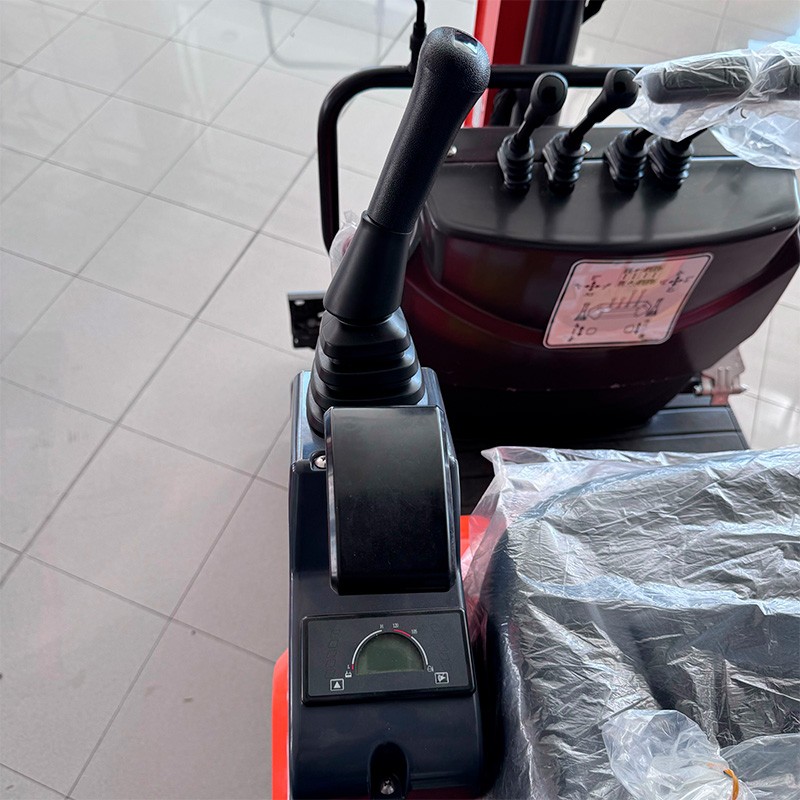

The xN13 hydraulics works with a piston pump at 18 MPa and a flow rate of 45 L per minute to maintain constant thrust on the jib arm and swing. The response is progressive and allows micro movements the side-controlled pilot controls are light and precise and reduce fatigue on long days. Pilot controls with side control are light and precise and reduce fatigue on long days.

The circuit incorporates a 25-micron filter and protected hoses that keep the oil clean and extend the life of hydraulic valves and motors. With an auger or tongs the power comes without jerks and the work rate increases because there are fewer corrections and more usable meters at the end of the day.

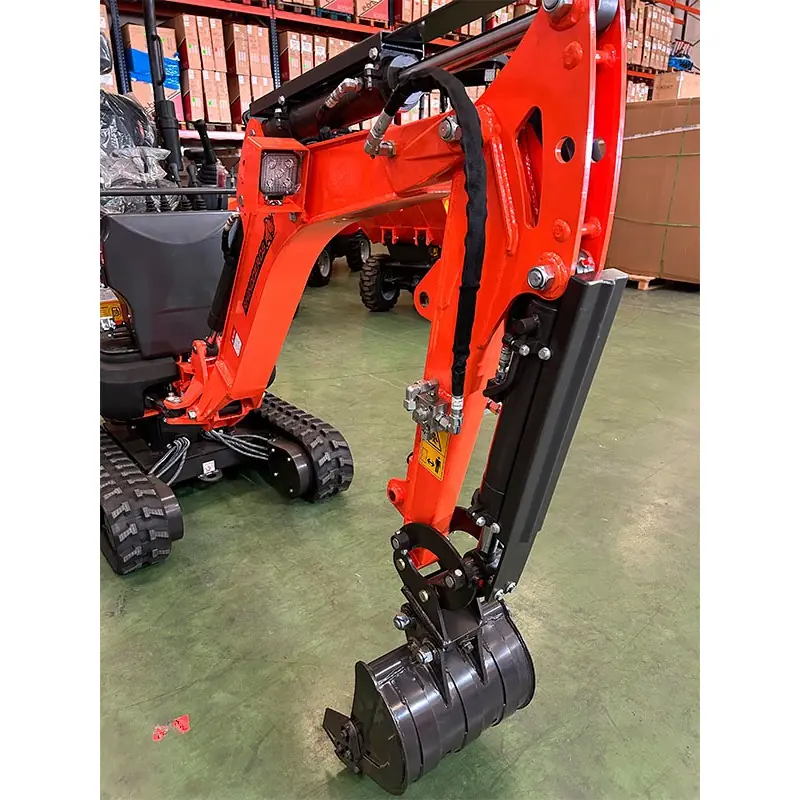

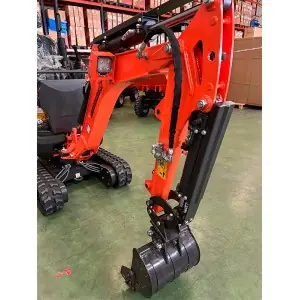

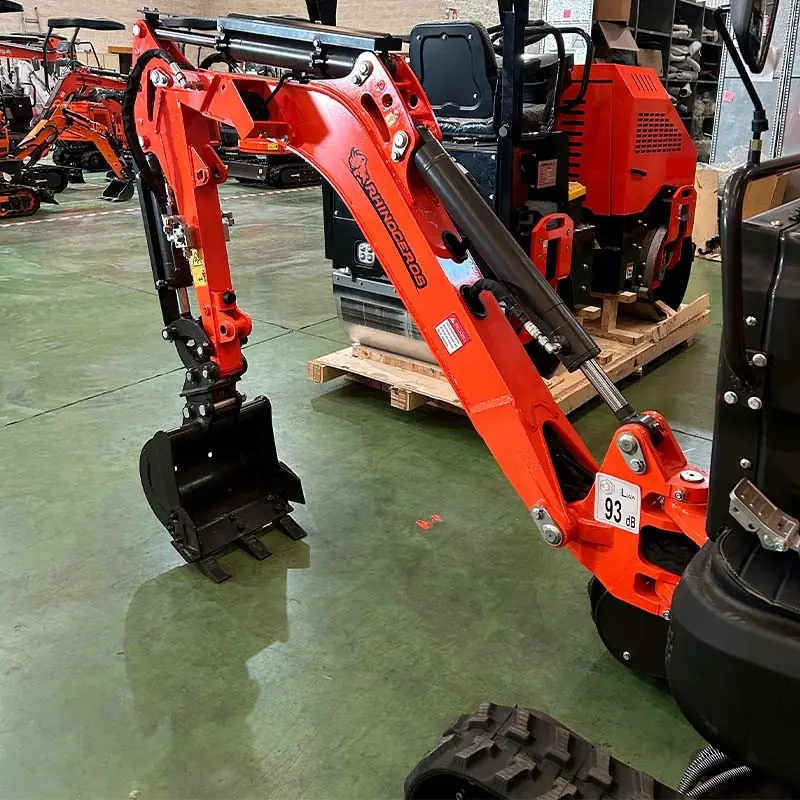

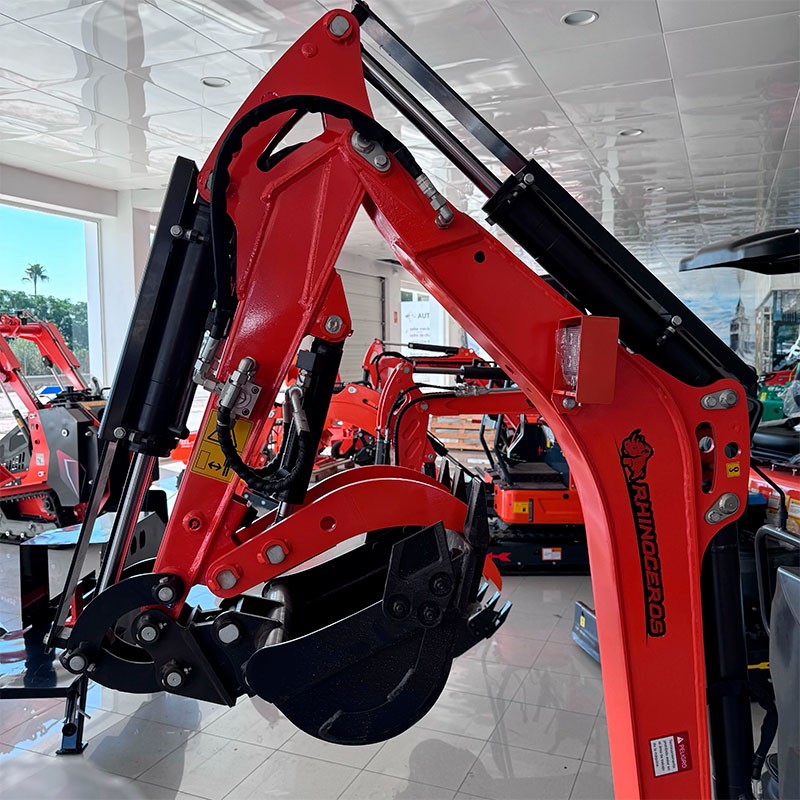

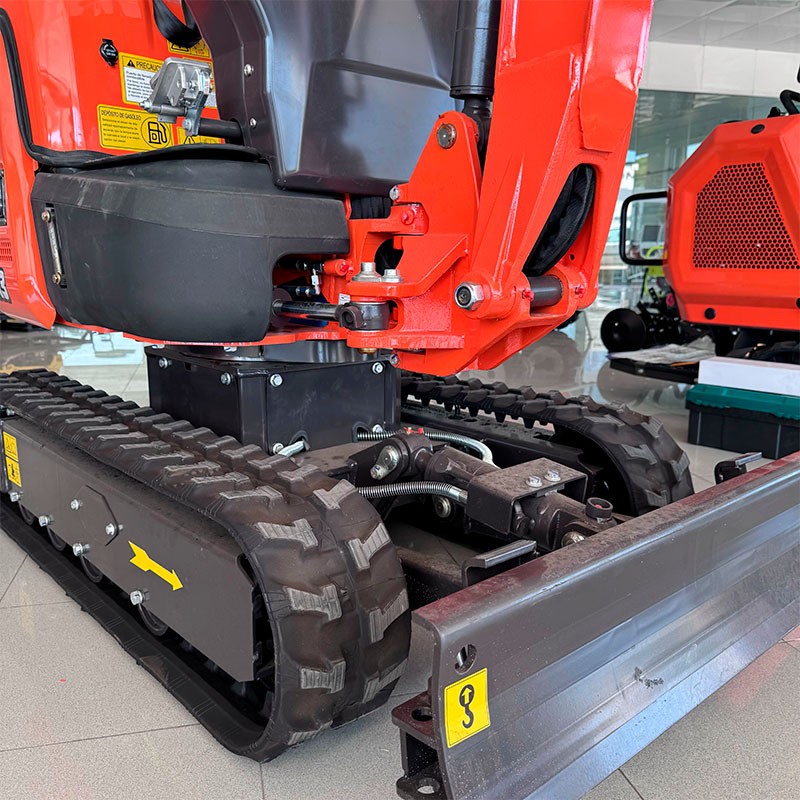

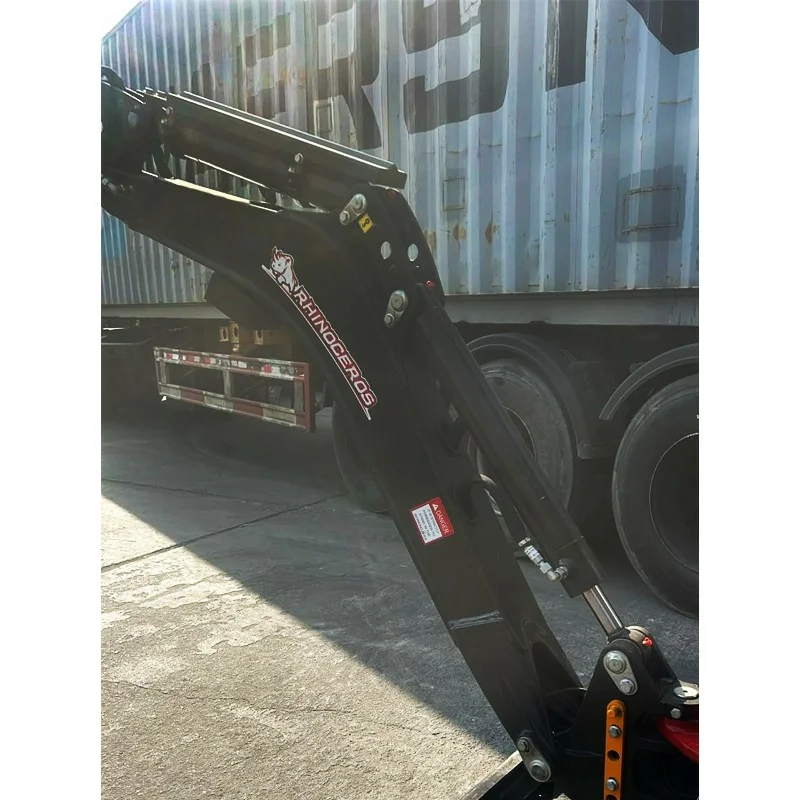

Swivel jib and telescopic chassis

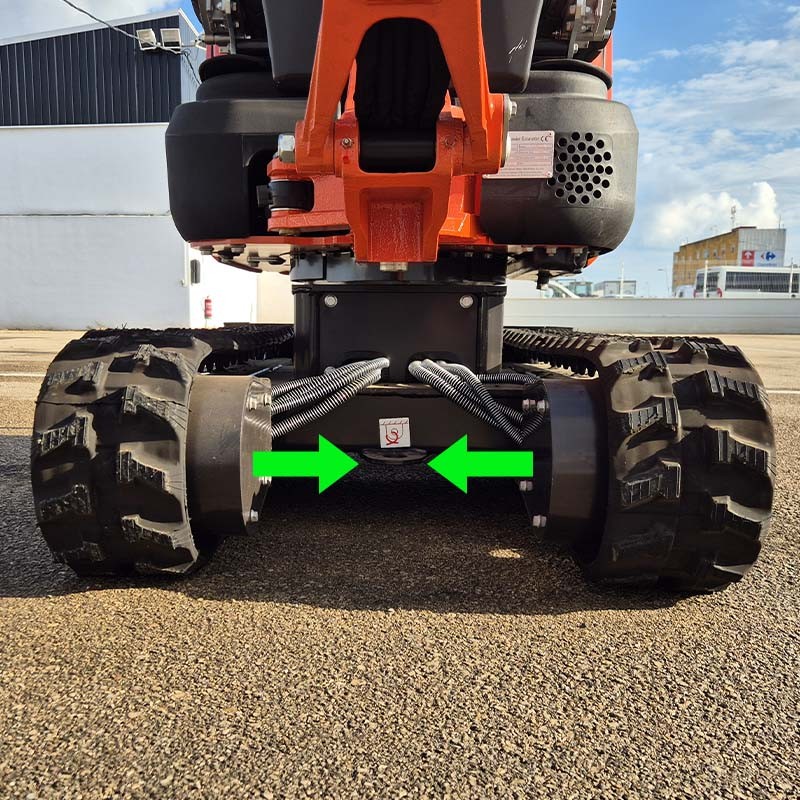

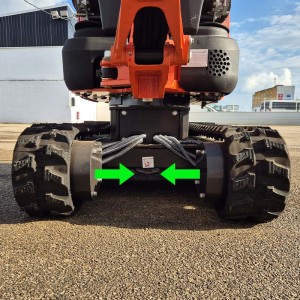

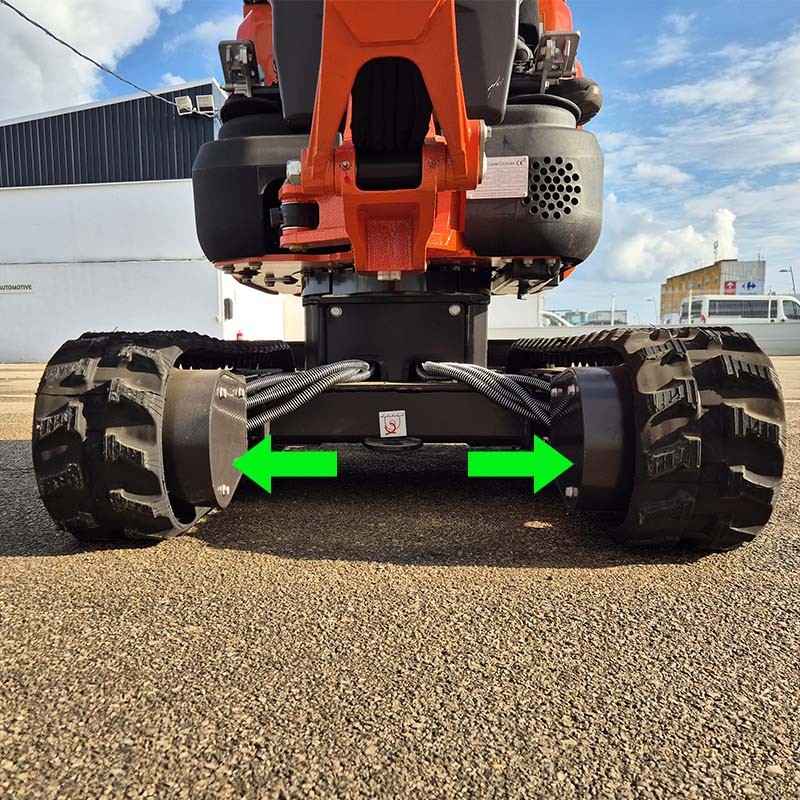

The jib pivots left and right to work close to walls without repositioning the machine. Telescopic undercarriage adjusts the track width from 850 to 1000 mm opening the tracked when you need more poise and closing them to access narrow areas. With a minimum turning radius of 1490 mm, the XN13 maneuvers easily in yards and sidewalks.

You enter through a one-meter door and when you widen the tracked you work steadily and with less rocking

Excavation and traction capacities on site

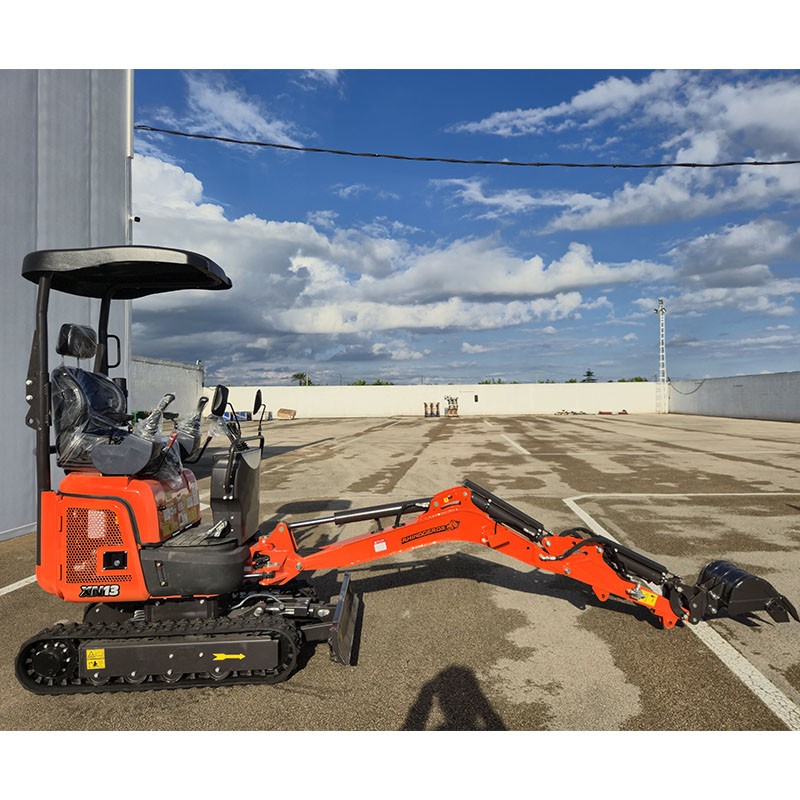

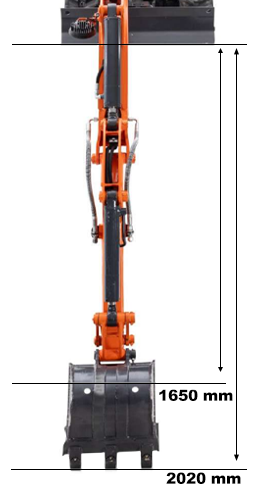

Depth up to 2020 mm and reaches 3410 mm with 2170 mm dump height for loading into dumper without spillage. The turret rotates fast and the bulldozer blade assists in refining with 140 mm lift and 200 mm cut. The long crawler with 180 mm track shoe raises 30-degree slopes and moves between 2 and 3.6 km per hour with aplomb thanks to its 1290 kg.

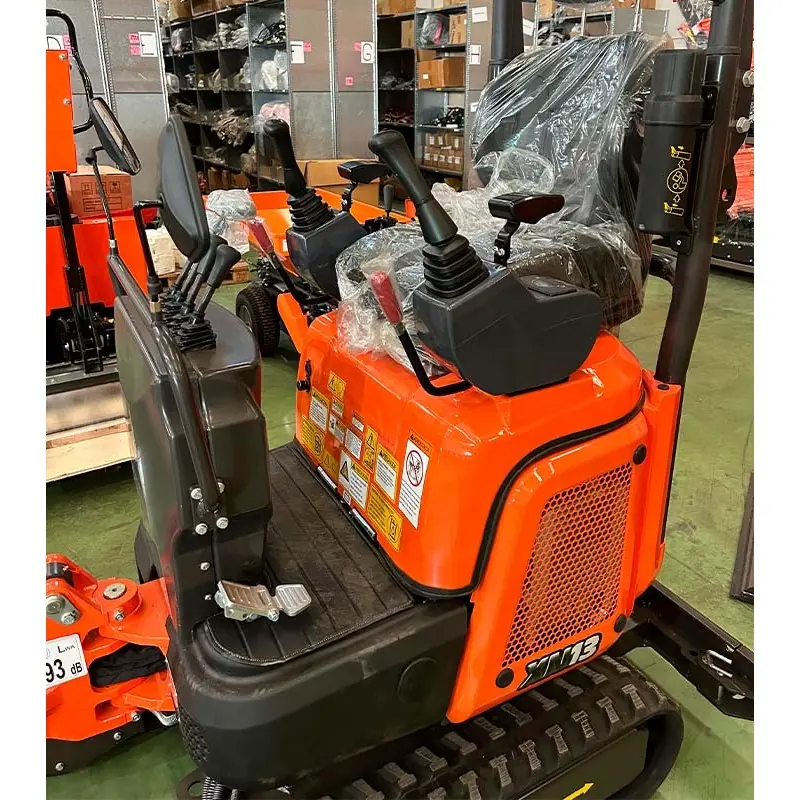

Ergonomics, maintenance and safety

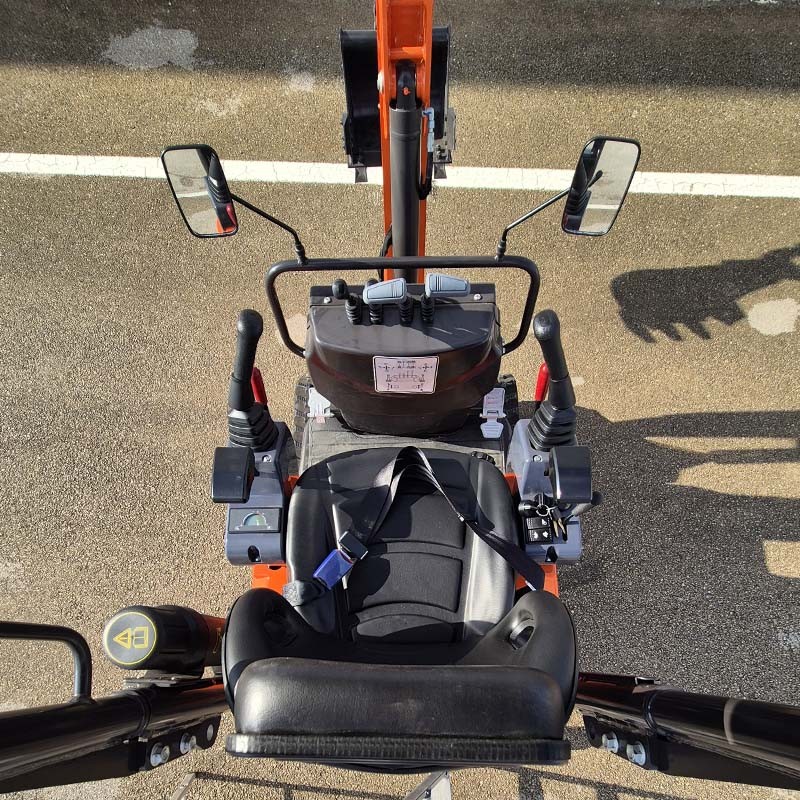

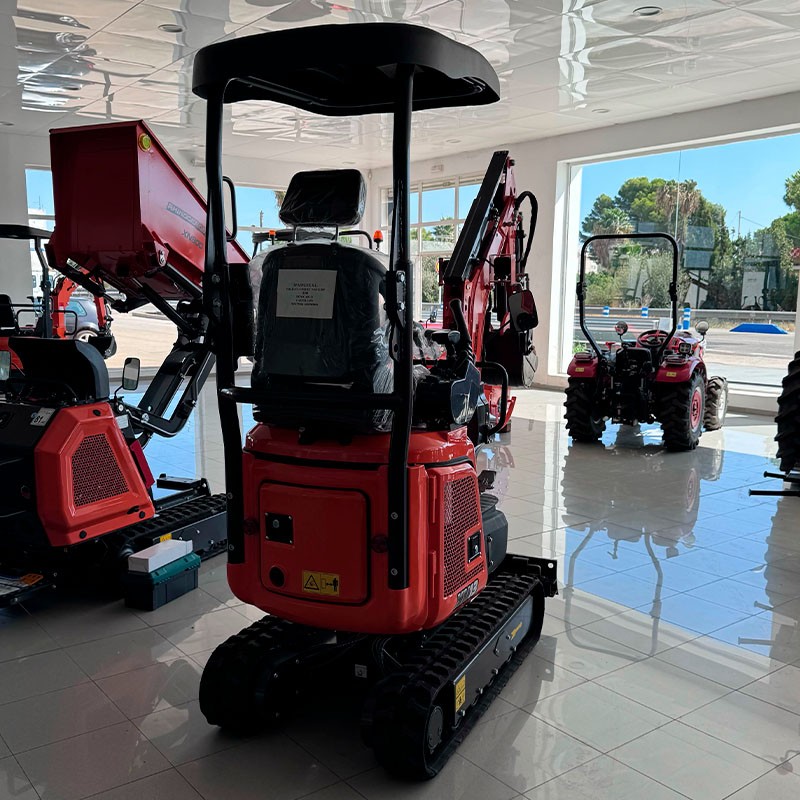

Open post with high seating for improved visibility and soft pilot controls that facilitate intuitive operation. Accessible service points and water cooling that keeps the temperature stable in summer. Complies with cE certification and use the cylinder in the upper position to protect the rod and work with more peace of mind.

Implements and applications

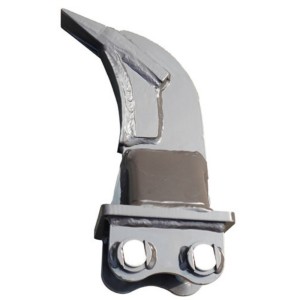

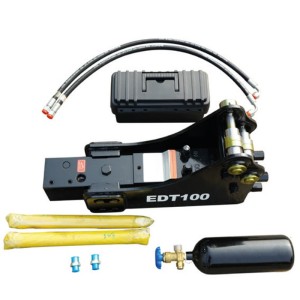

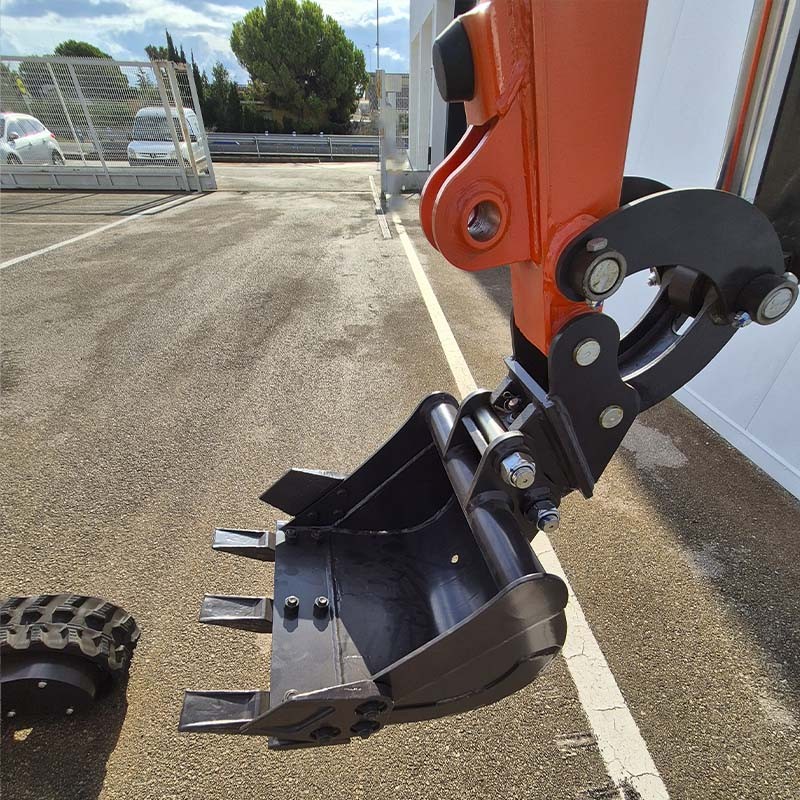

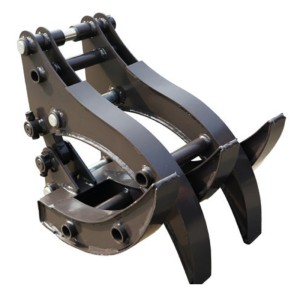

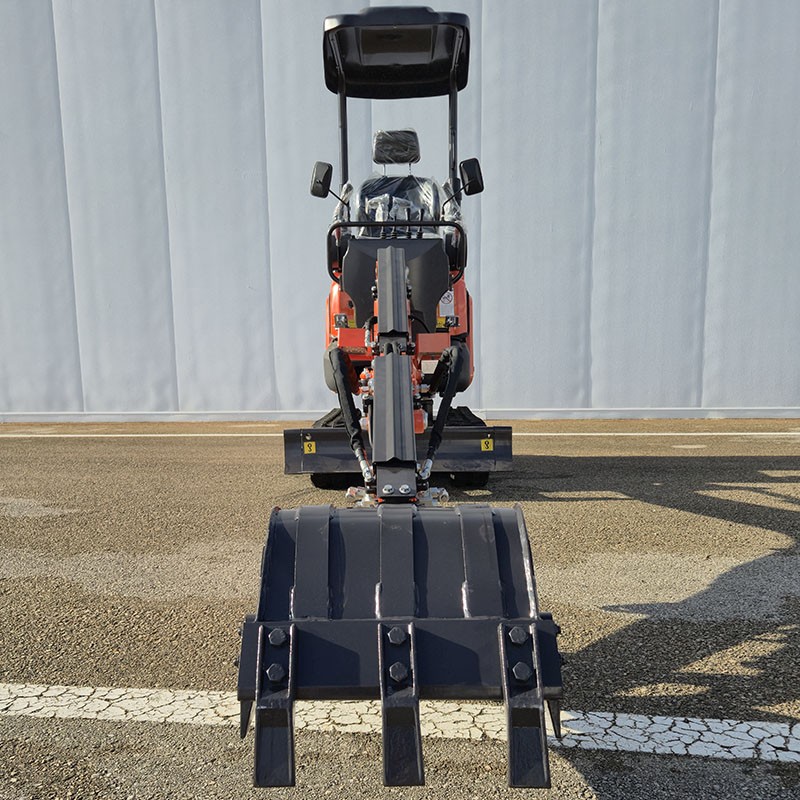

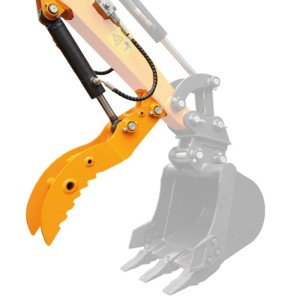

XN13 arrives standard with bucket with 36 cm teeth that enters easily into compact soil and leaves a clean and uniform trench. Optionally, it can be fitted with a 200 mm narrow bucket, 600 mm leveling bucket, 800 mm hydraulic bucket, hydraulic ripper, hydraulic hammer, mechanical quick coupler, auger and crab grapple.

The accessories are available the advantage is that you can start with the basic equipment and later add an auger or a hammer by buying only the head compatible with the excavator you already have. This way the machine grows with you and covers trenching, post installation, grading and small demolition jobs all year round.

Technical specifications

Main dimensions

a. Distance between axles 1100 mm b. Track length 1435 mm c. Ground clearance of upper chassis 450 mm d. Counterweight turning radius 690 mm e. Working width 850-1000 mm f. Track width 180 mm g. Track height 320 mm h. Transport length 2265/3100 mm i. Seat-to-floor height 1900 mm j. Total height 2320 mm

Operating dimensions

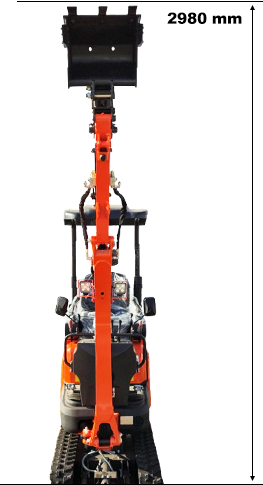

A. Maximum radius of excavation in the ground 3380 mm B. Maximum excavation radius 3410 mm C. Maximum excavation depth 2020 mm D. Maximum excavation height 2980 mm E. Maximum discharge height 2170 mm F. Maximum vertical excavation depth 1650 mm G. Minimum turning radius 1490 mm H. Maximum bulldozer blade lift height 140 mm I. Maximum depth of the bulldozer blade 200 mm J. Arm swing (left) 50º K. Arm swing (right) 55º
