ACB+ M0 (Morin) hitch for DELEKS mini excavator
- ACB+ M0 (Morin) hitch for DELEKS mini-excavator
€855.80 VAT incl.
Deleks products take about 15 to 25 days. |

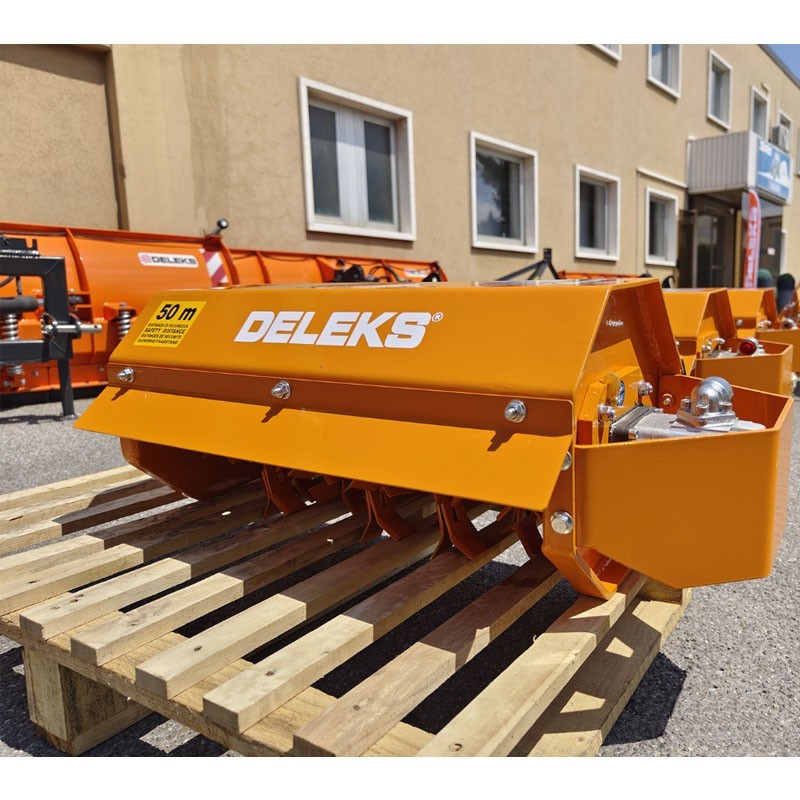

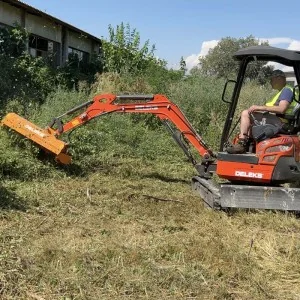

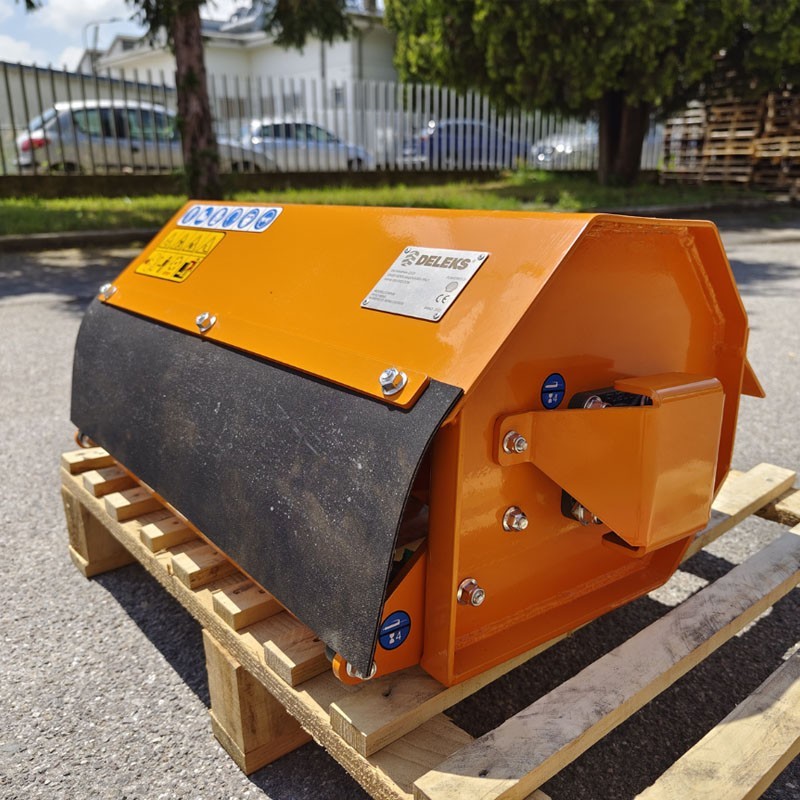

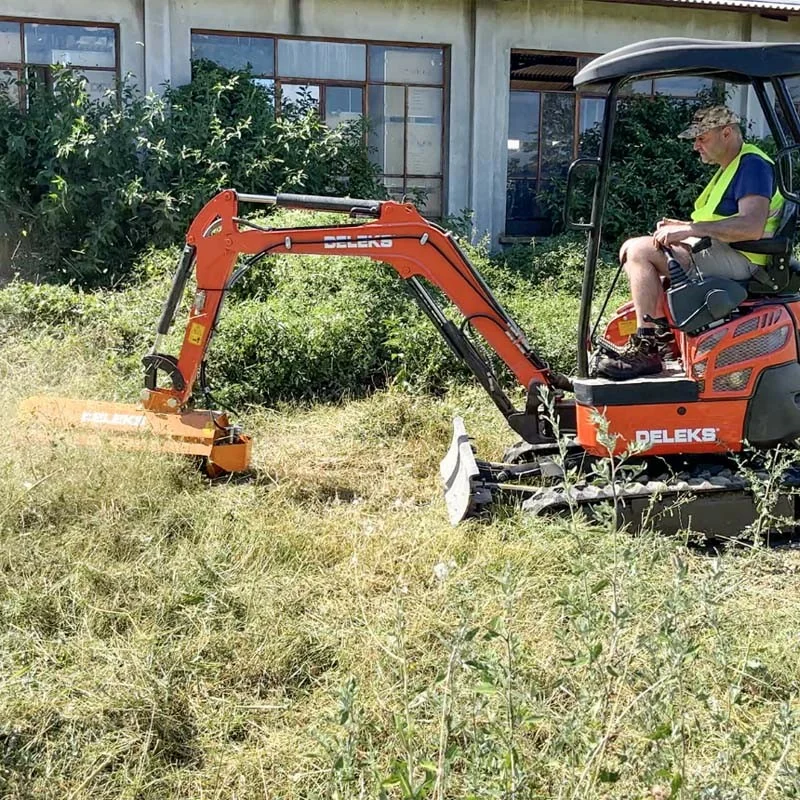

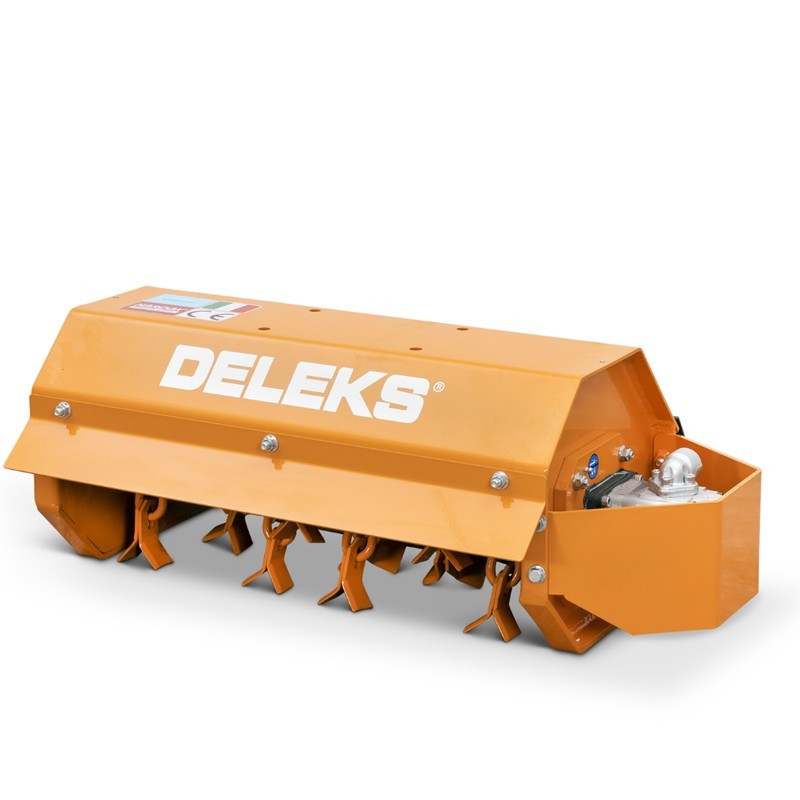

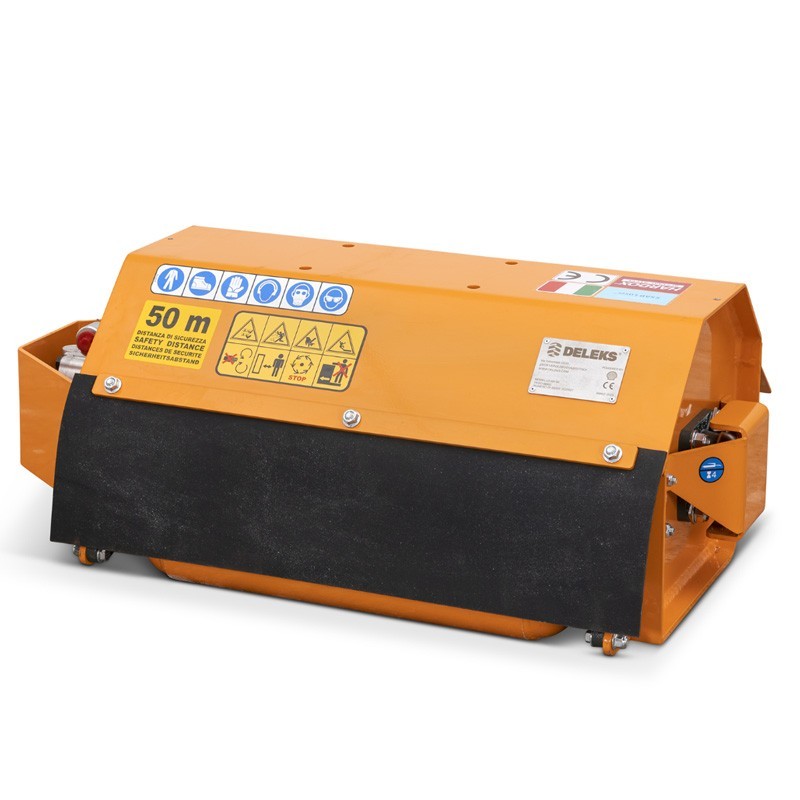

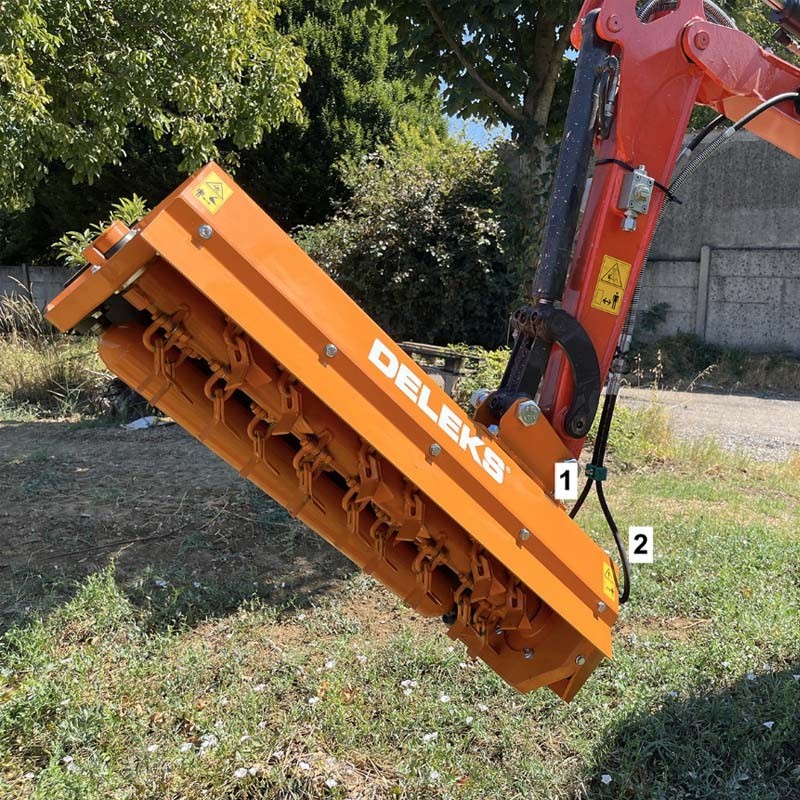

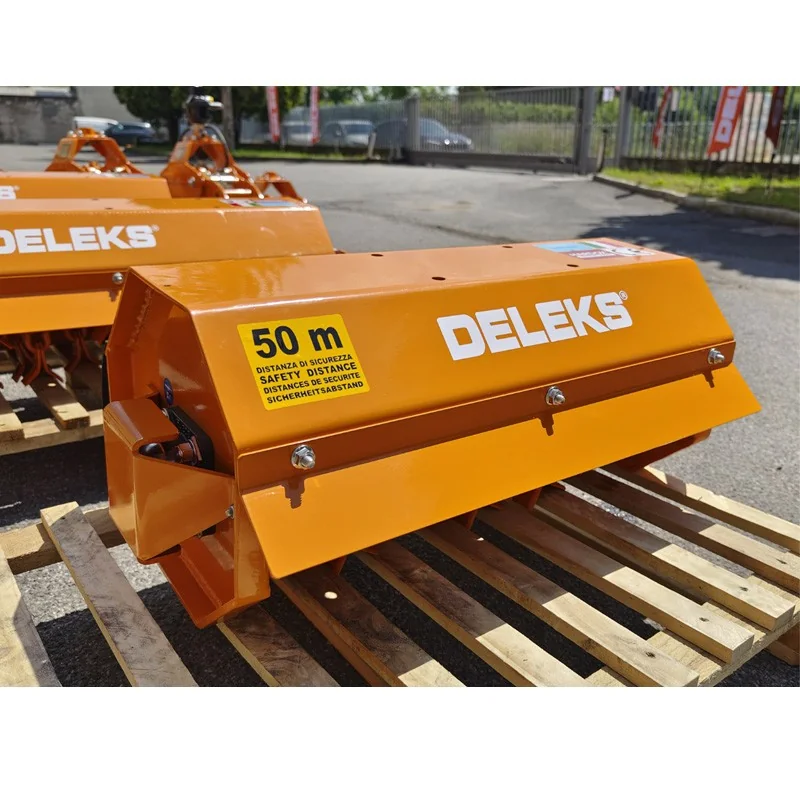

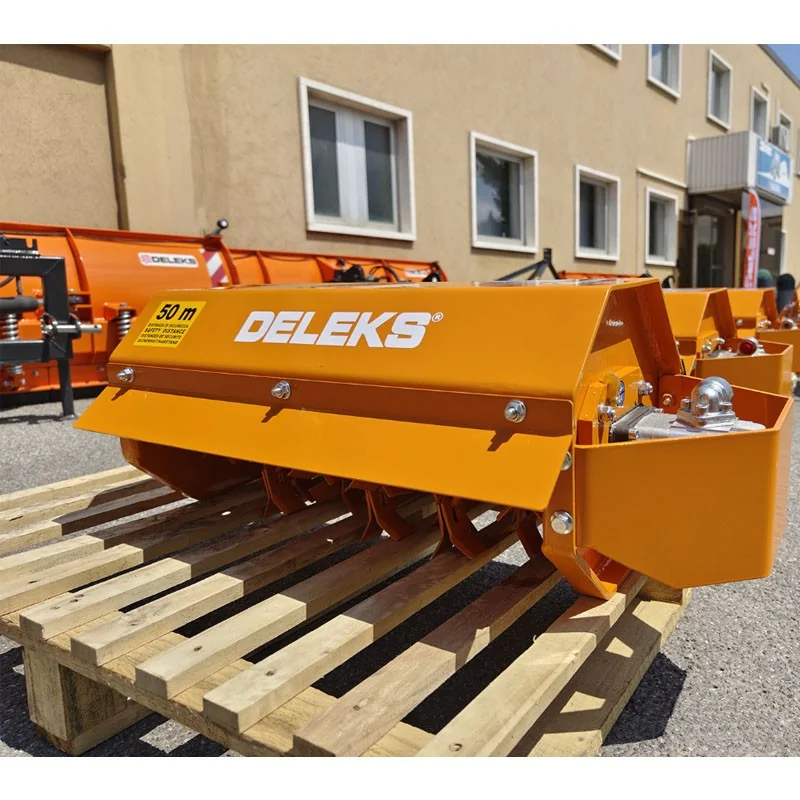

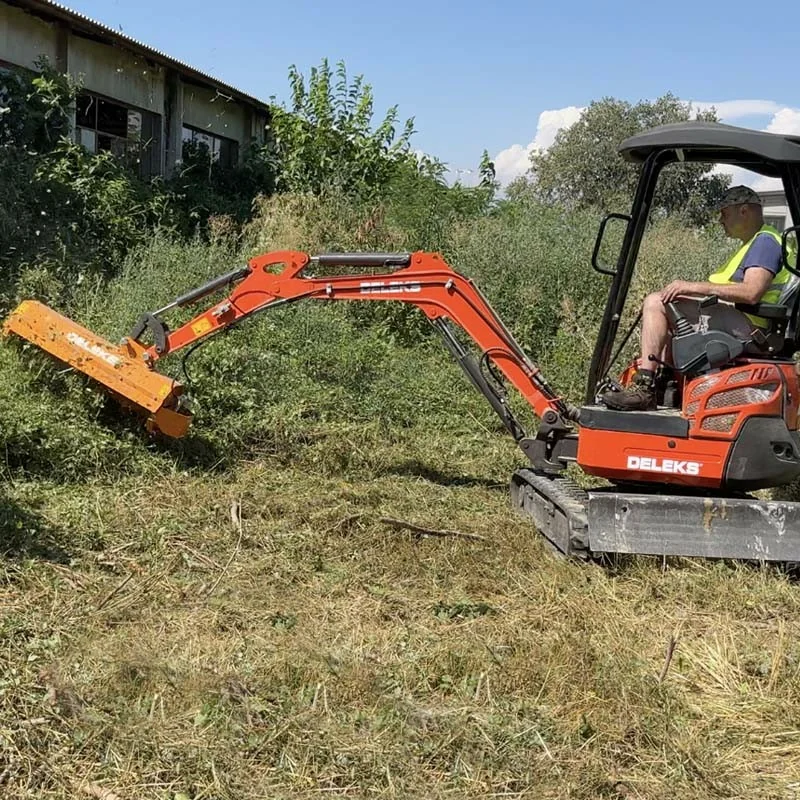

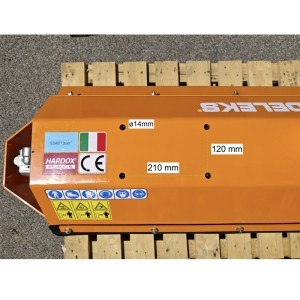

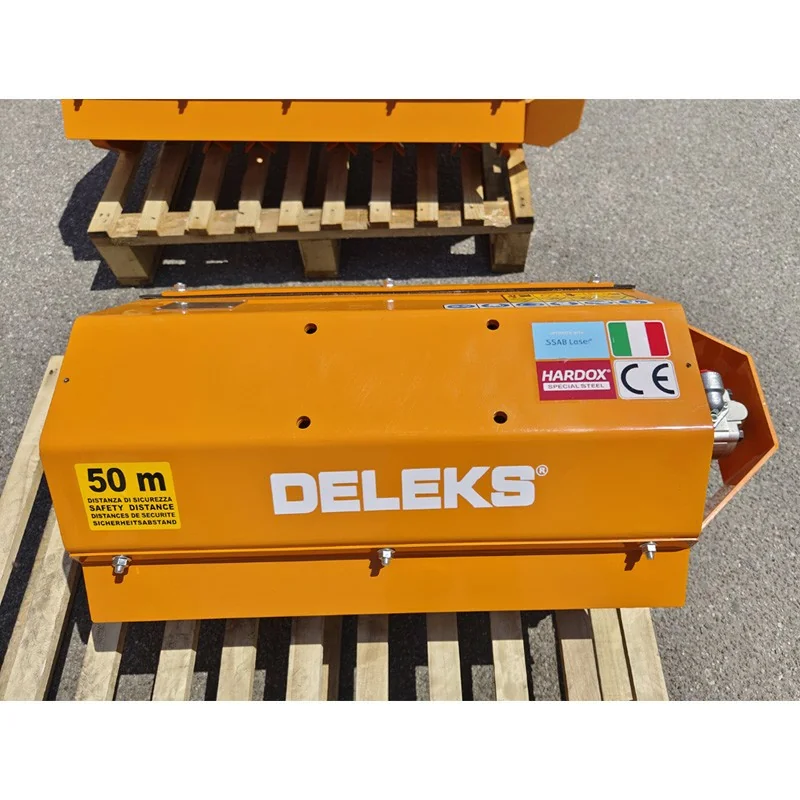

60 cm blade head Made in Italy for clearing brambles, bushes, ditches, slopes and branches with mini excavators from 1 to 2 tons. It offers fast cutting, low vibration and easy maintenance, with a 2-year warranty and compatibility with all major brands on the market.
The set is built to last. Housing in Swedish SSAB steel and rotor in 8 mm THYSSENKRUPP S355 tube electronically balanced and turned along its entire length to turn straight and smooth. The hammer supports are made of HARDOX for maximum shock resistance.

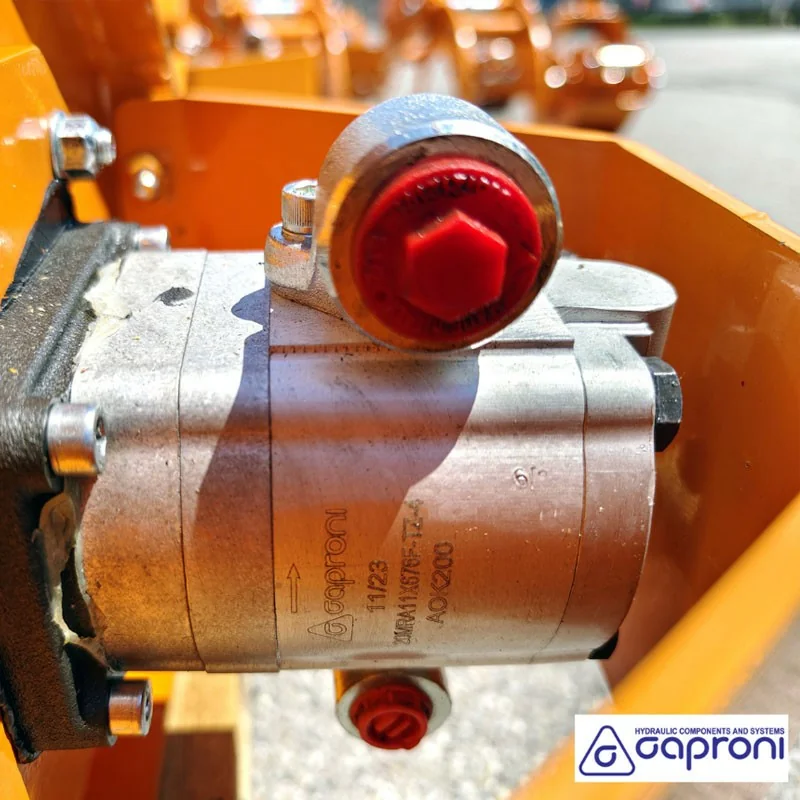

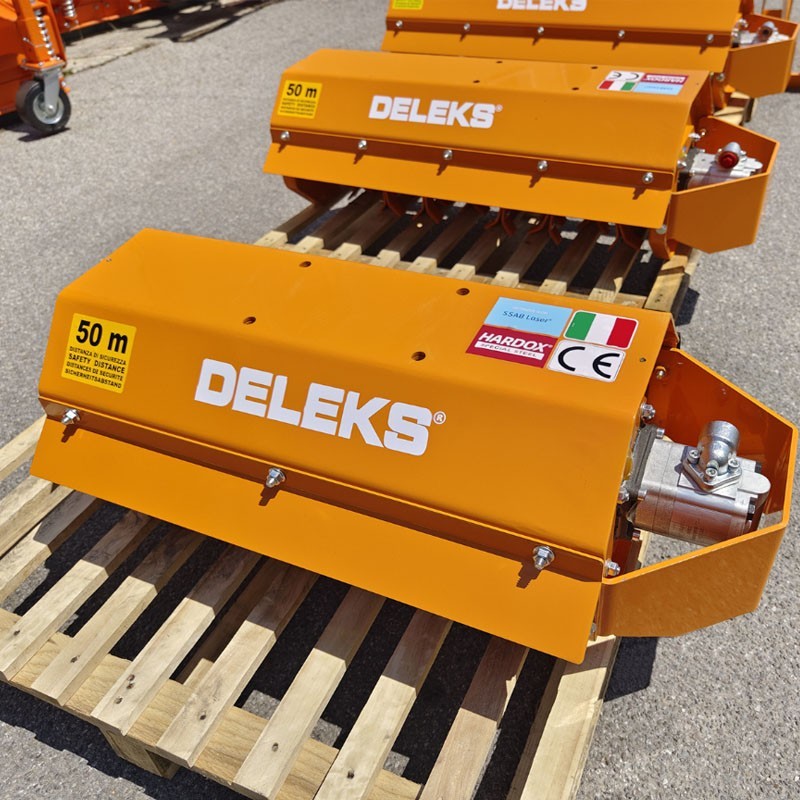

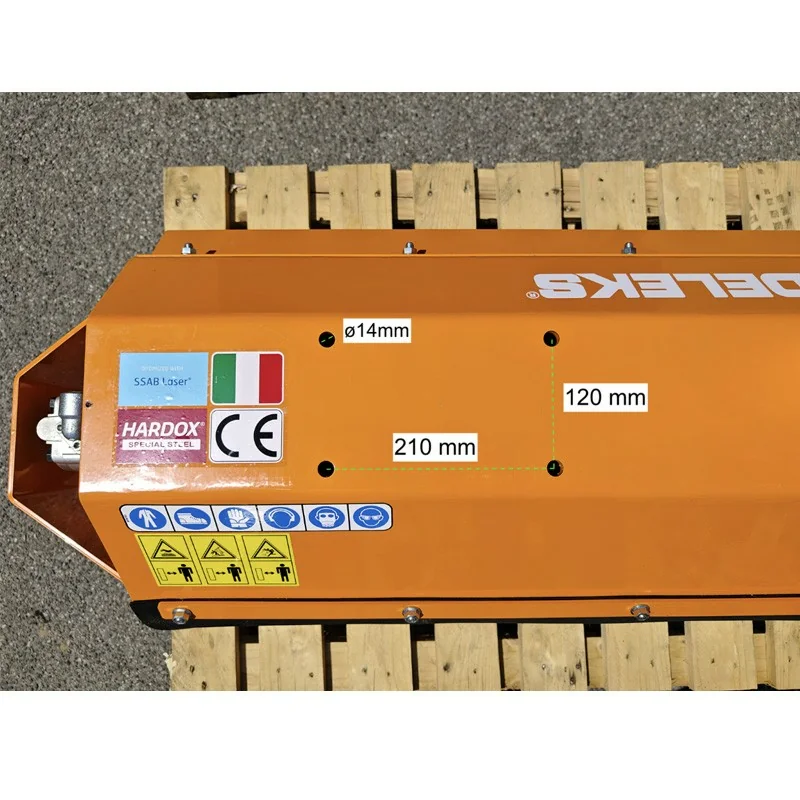

Mounts Caproni hydraulic gear motor developed for DELEKS heads. Operates in single direction with only two hoses, no drain line, integrated relief valve, reinforced retainer and support bearing to protect the transmission. The coupling can be supplied according to measurements or custom made to drawing.
Dimensions and capacities | |
Working width | 600,0 mm |
Overall width | 900,0 mm |
Cutting height min/max | 20.0 - 80.0 mm |
Weight | 76,0 kg |
Hood height | 340,0 mm |
Max. cutting diameter | 20.0 mm |
Sheet thickness | 5.0 mm |
Hood length | 520.0 mm |
Packing dimension | 900.0 × 600.0 × 500.0 mm |
Rotor | |
Rotor speed (transmission) | 1500 r/min |
Rotor diameter | 76.0 mm |
Bearings and dimensions | SKF 6207 + SKF UCF206 |
Balancing | Electronic |
Blade thickness | 8,0 mm |

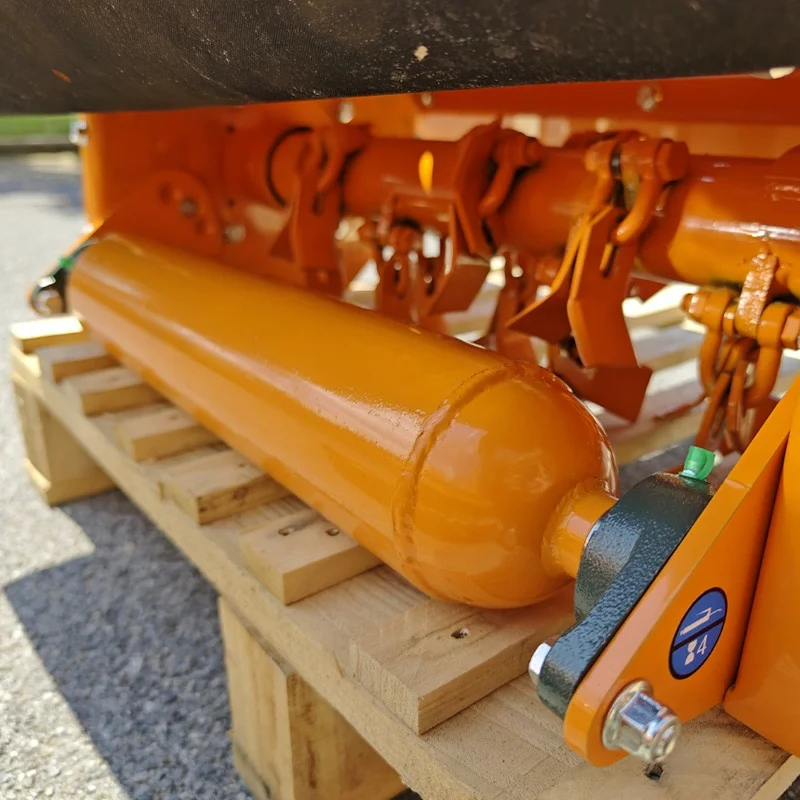

Roll | |
Roll diameter | 102.0 mm |
Roll sheet thickness | 5.0 mm |
Roll Bearings | UCFL205 |
Hydraulics | |
Min./max. oil pressure | 5 - 8 bar |
Optimal oil flow | 20-22 L/min |
Max. pressure | 200 bar |
Blades and knives | |
No. of blades | 36 |
Blade weight | 130,0 g |
Blade hole Ø | 13.0 mm |
Knives, base width | 50.0 mm |
Knives, diagonal | 85.0 mm |
Data sheet
