ACB+ M0 (Morin) hitch for DELEKS mini excavator
- ACB+ M0 (Morin) hitch for DELEKS mini-excavator
€855.80 VAT incl.
Deleks products take about 15 to 25 days. |

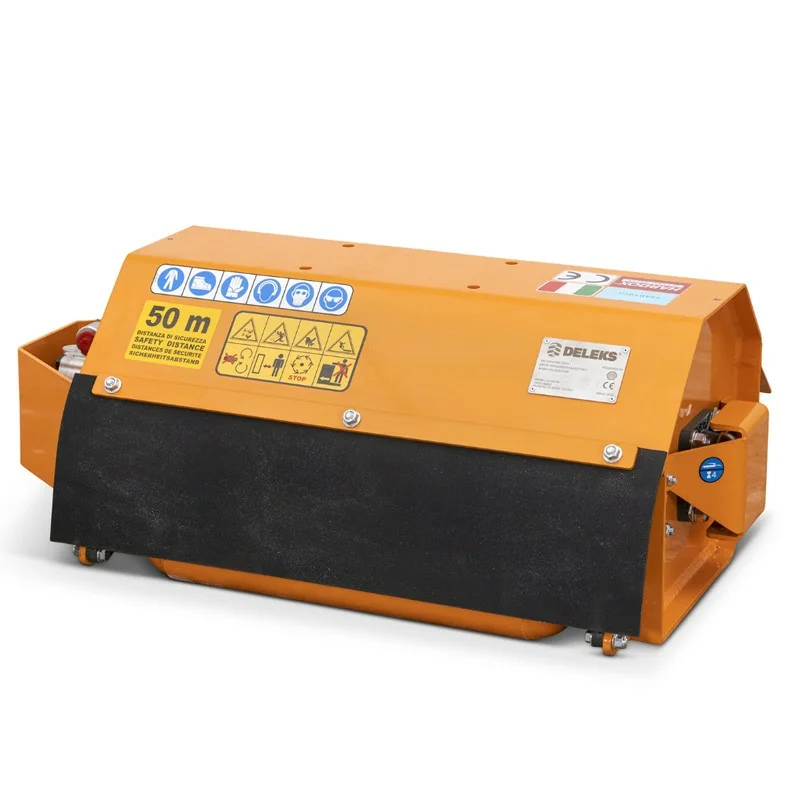

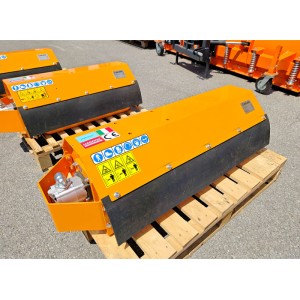

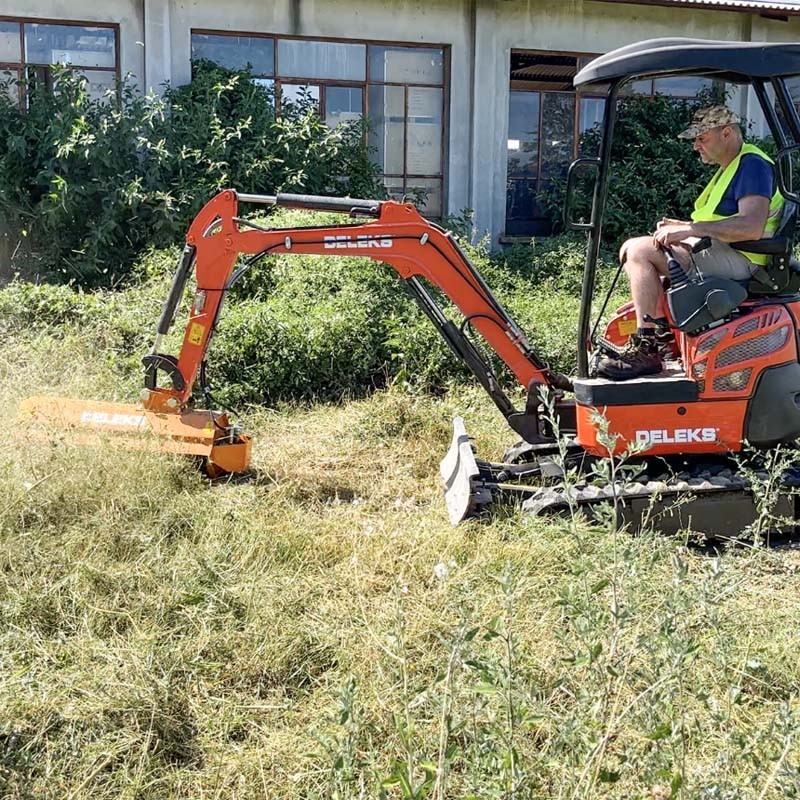

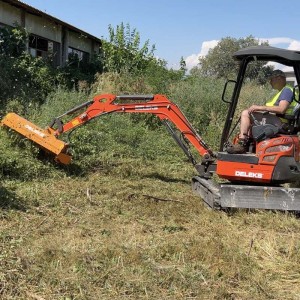

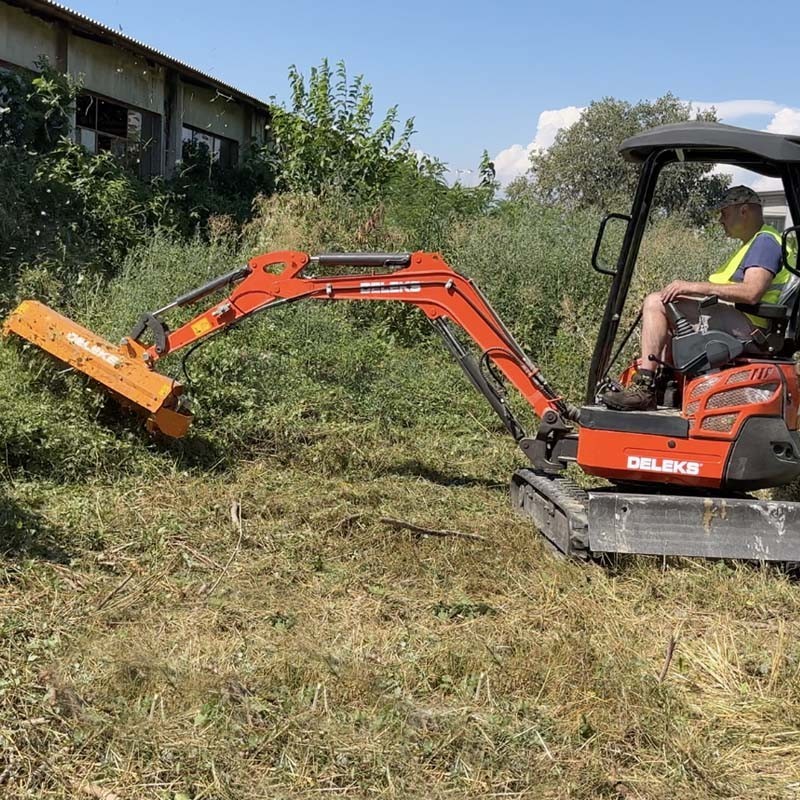

Brushcutter head one meter wide to advance more in each pass. The ARS-100 is designed for intensive cleaning of ditches, slopes and margins on mini-excavators from 1 to 2 tons. Manufactured in Italy and with a 2-year warranty, it combines great coverage with a homogeneous finish even in dense vegetation.

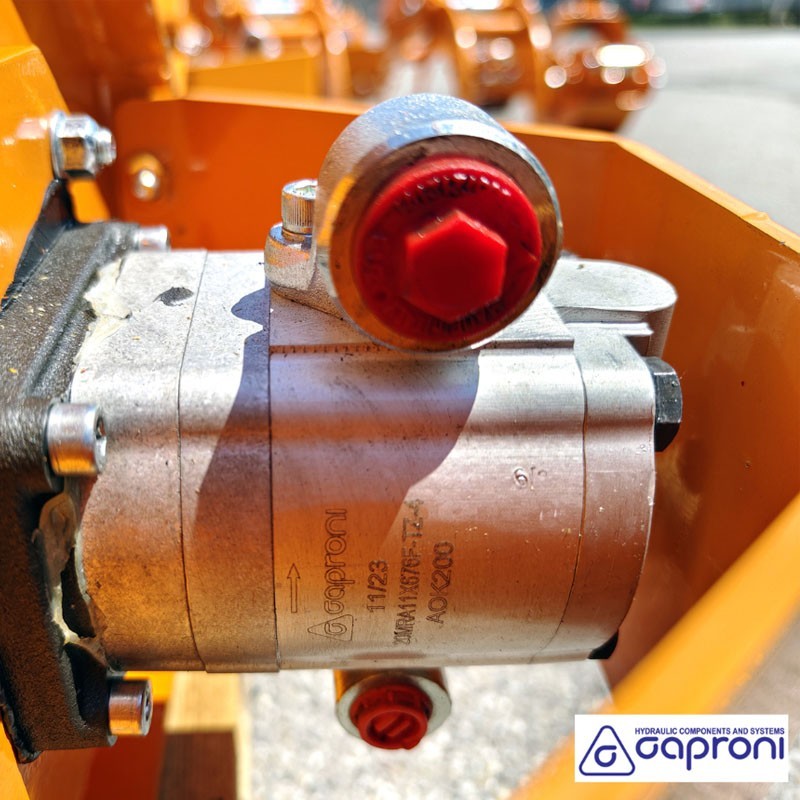

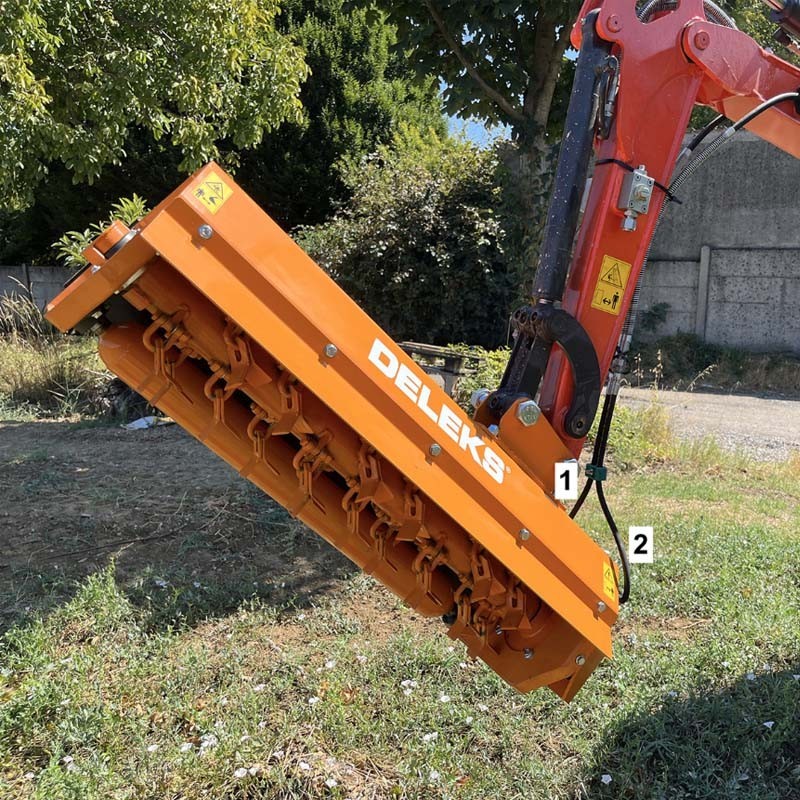

Installation is simple and flexible. It works with 20 to 22 l/min hydraulic service line and Caproni gear motor in single direction that works with only two hoses, without drain return. It integrates limiting valve, reinforced oil seal and support bearing to protect the transmission. Can be mounted with standard coupling or manufactured ad hoc to drawing. Built to last.

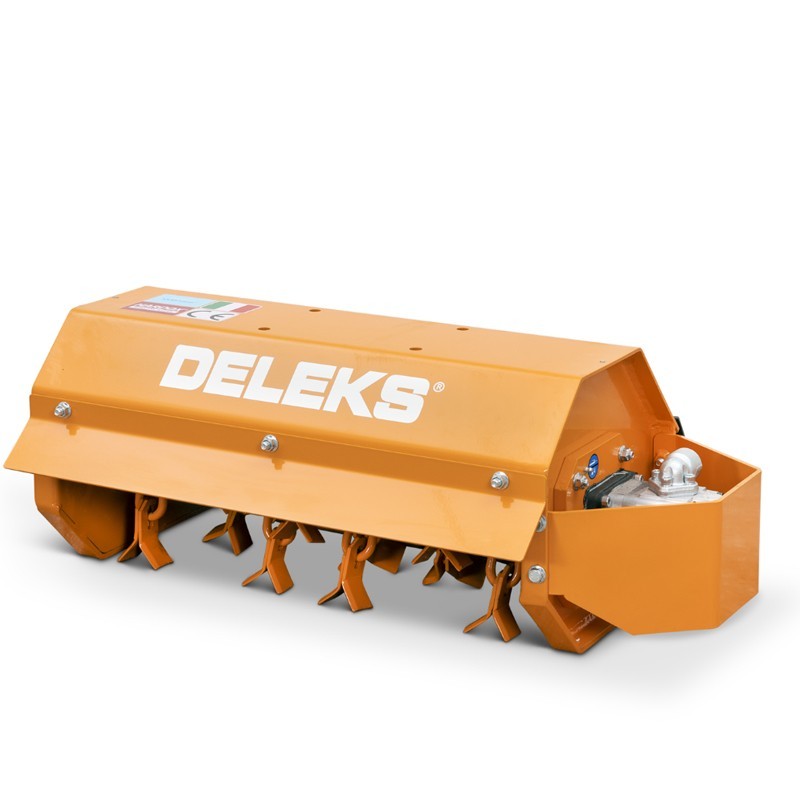

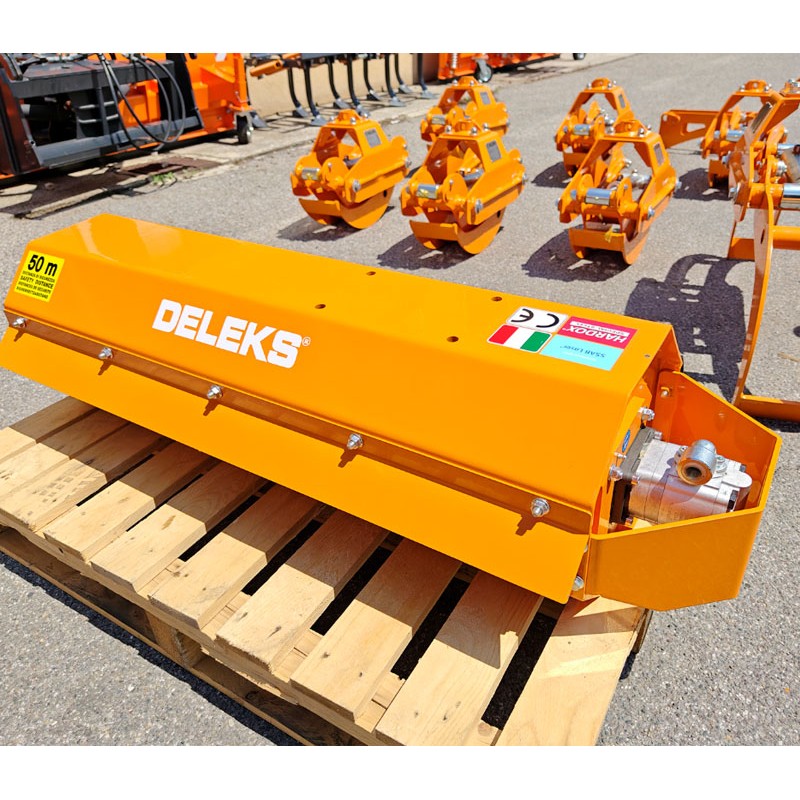

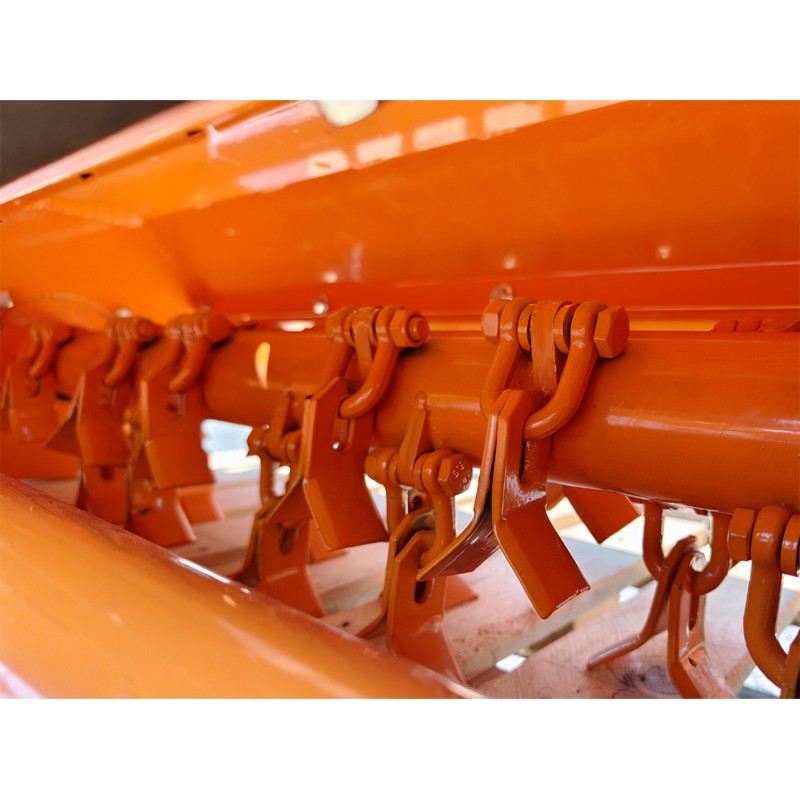

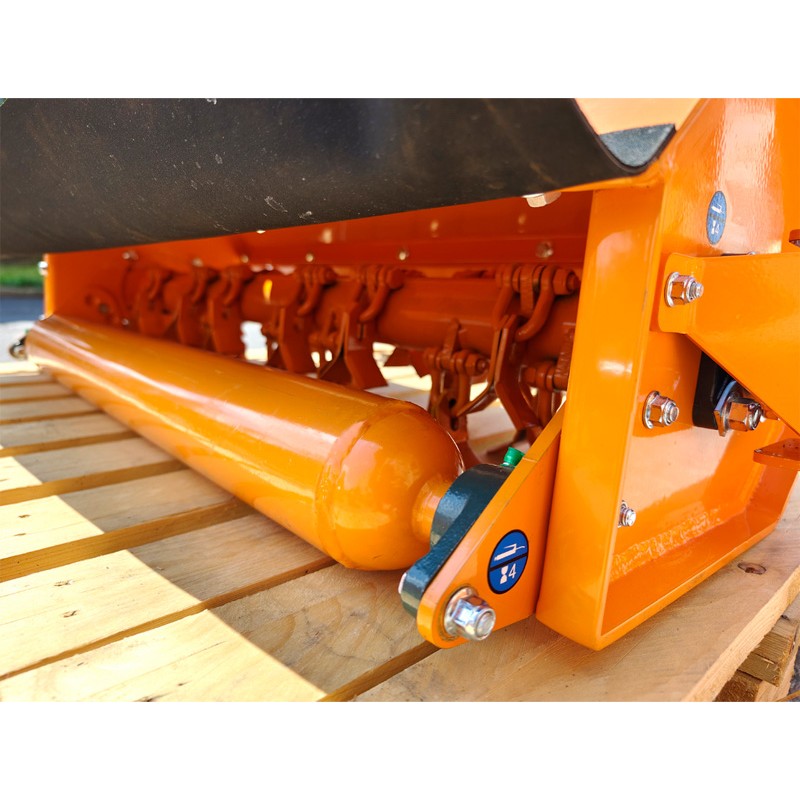

Swedish SSAB steel housing and 8 mm THYSSENKRUPP S355 tube rotor machined and electronically balanced to turn straight and with low vibration. The HARDOX blade supports resist impacts and the 102 mm rear roller stabilizes the cutting height. Its 48 blades distribute the effort and leave a clean cut in brambles, bushes and thin branches.
Dimensions and capacities | |
Working width | 1000.0 mm |
Overall width | 1300,0 mm |
Cutting height min/max | 20.0 - 80.0 mm |
Weight | 100,0 kg |
Hood height | 340,0 mm |
Max. cutting diameter | 20.0 mm |
Sheet thickness | 5.0 mm |
Hood length | 520.0 mm |
Packing dimension | 1300.0 × 600.0 × 500.0 mm |
Rotor | |
Rotor speed (transmission) | 1500 r/min |
Rotor diameter | 76.0 mm |
Bearings and dimensions | SKF 6207 + SKF UCF206 |
Balancing | Electronic |
Blade thickness | 8,0 mm |
Roll | |
Roll diameter | 102.0 mm |
Roll sheet thickness | 5.0 mm |
Roll Bearings | UCFL205 |
Hydraulics | |
Min./max. oil pressure | 5 - 8 bar |
Optimal oil flow | 20 - 22 L/min |
Max. pressure | 200 bar |
Blades and knives | |
No. of blades | 48 |
Blade weight | 130,0 g |
Blade hole Ø | 13.0 mm |
Knives, base width | 50.0 mm |
Knives, diagonal | 85.0 mm |
Data sheet
