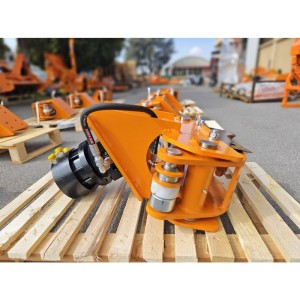

Forestry head, shearer and hydraulic rotator for mini-excavator

Forestry head, Hydraulic shear and rotator for mini-excavator - 100% HARDOX

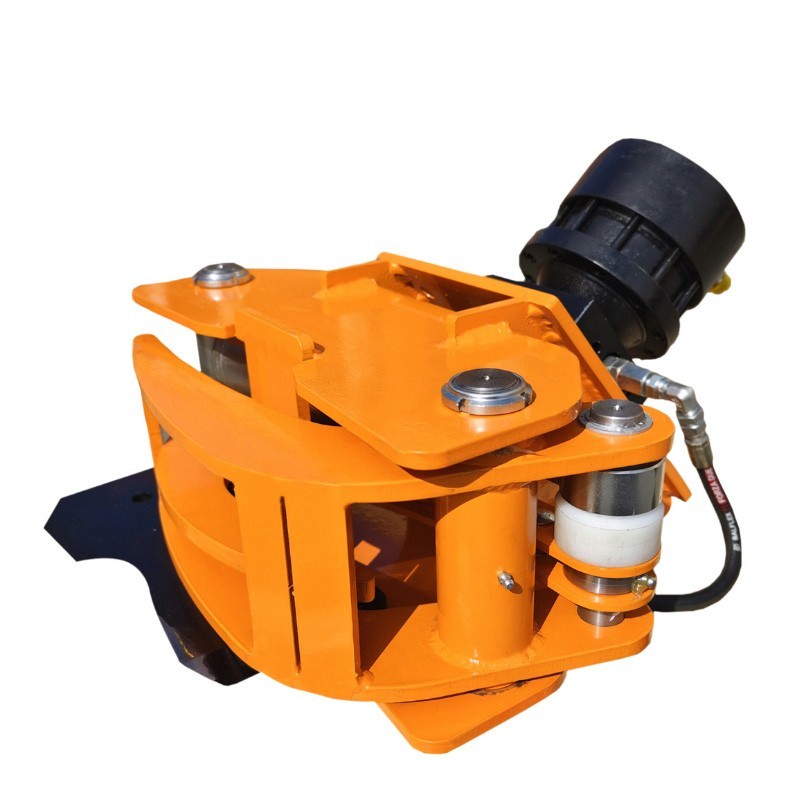

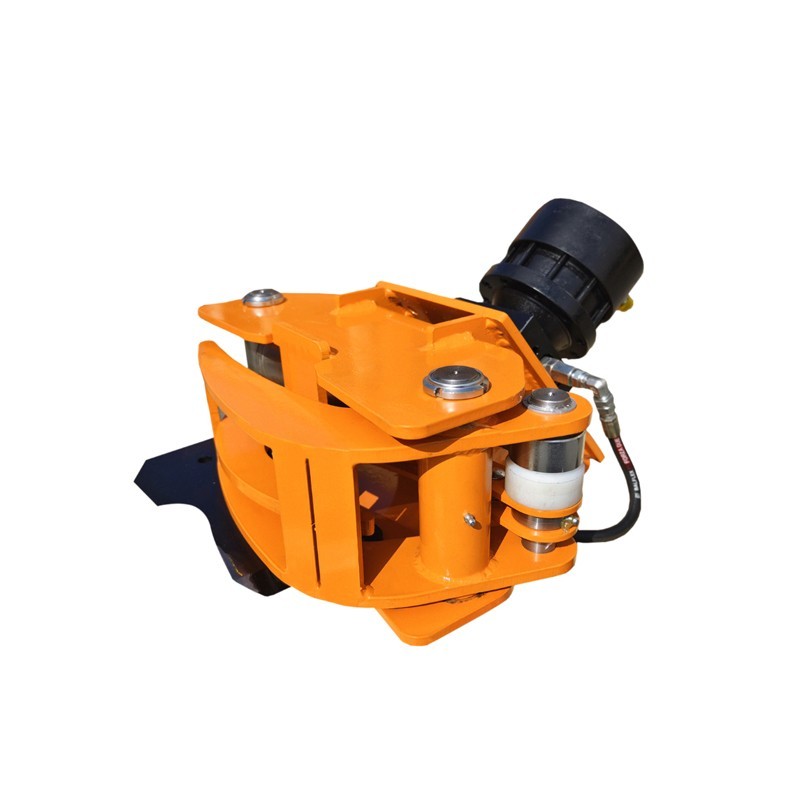

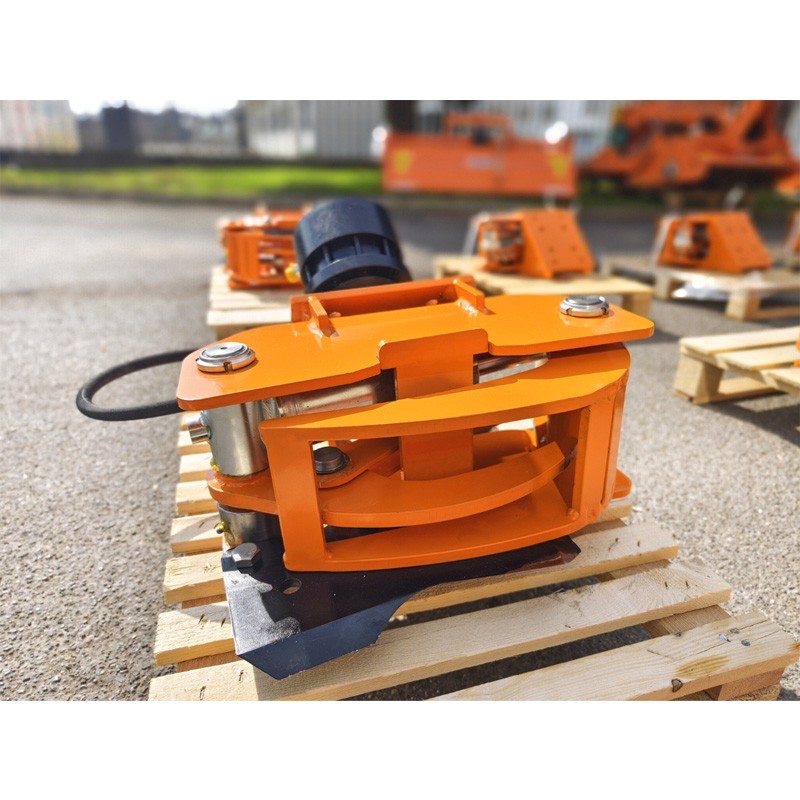

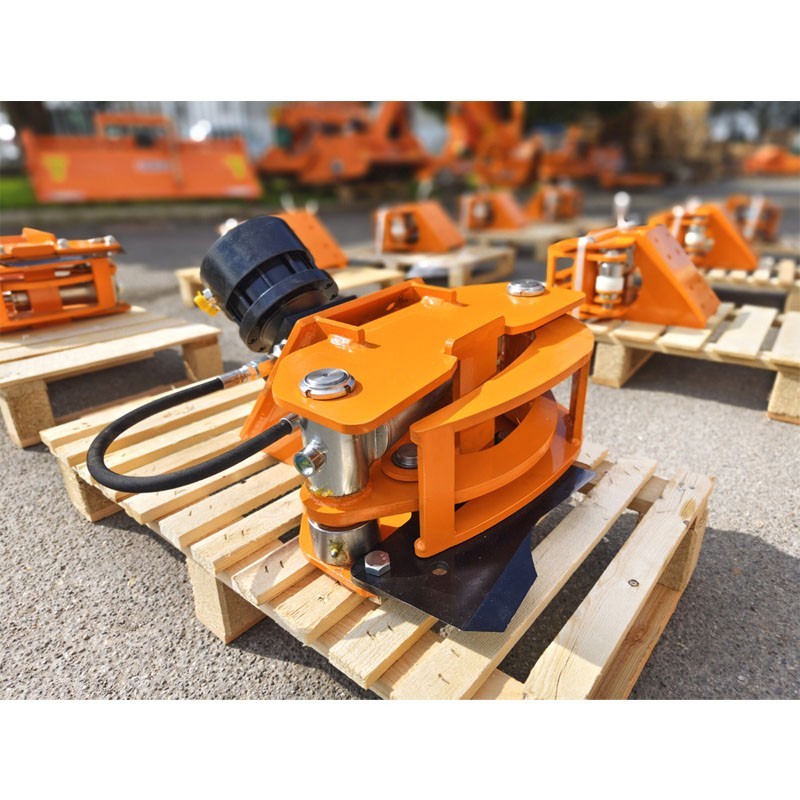

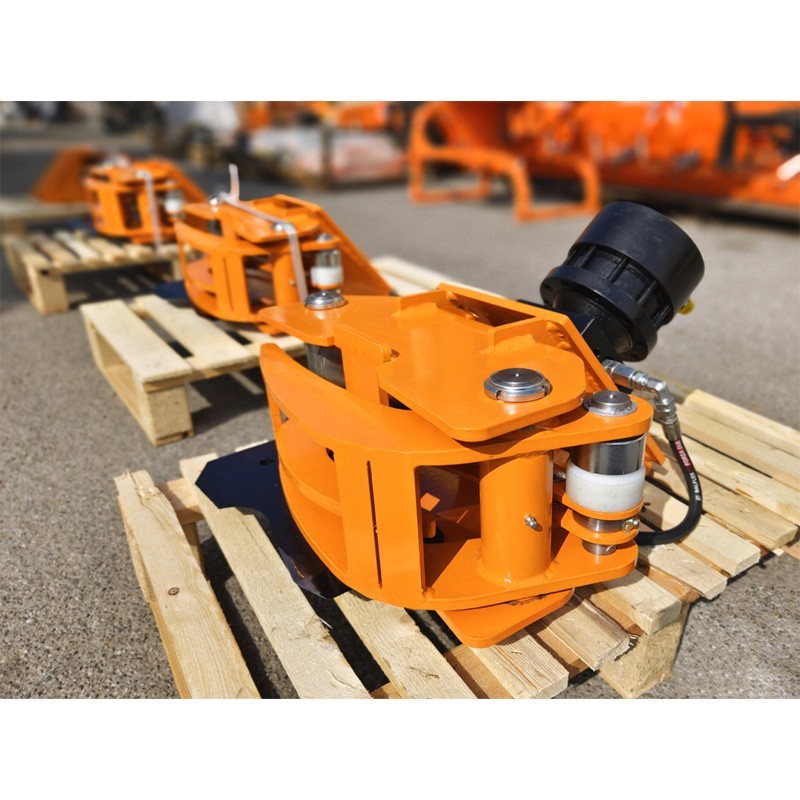

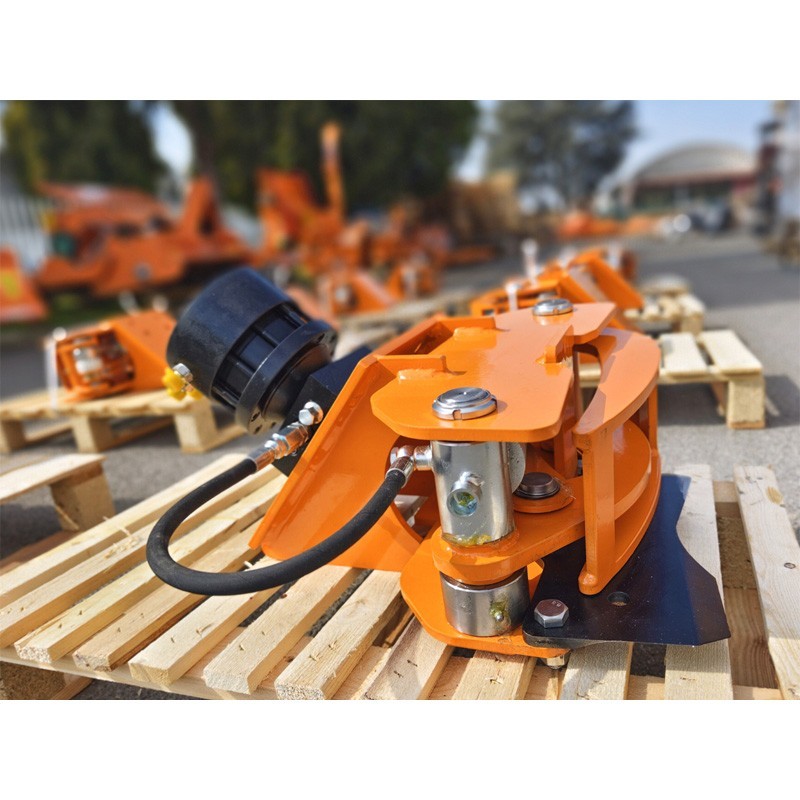

Hydraulic felling shear and DELEKS® grapple - Italian production - 100% Hardox, made of hardened steel, flanged rotator, for cutting and handling trunks and trees up to ø 10 cm.

USE

The CF-10R model is ideal for felling and harvesting wood for energy use, for clearing fields and roadsides.

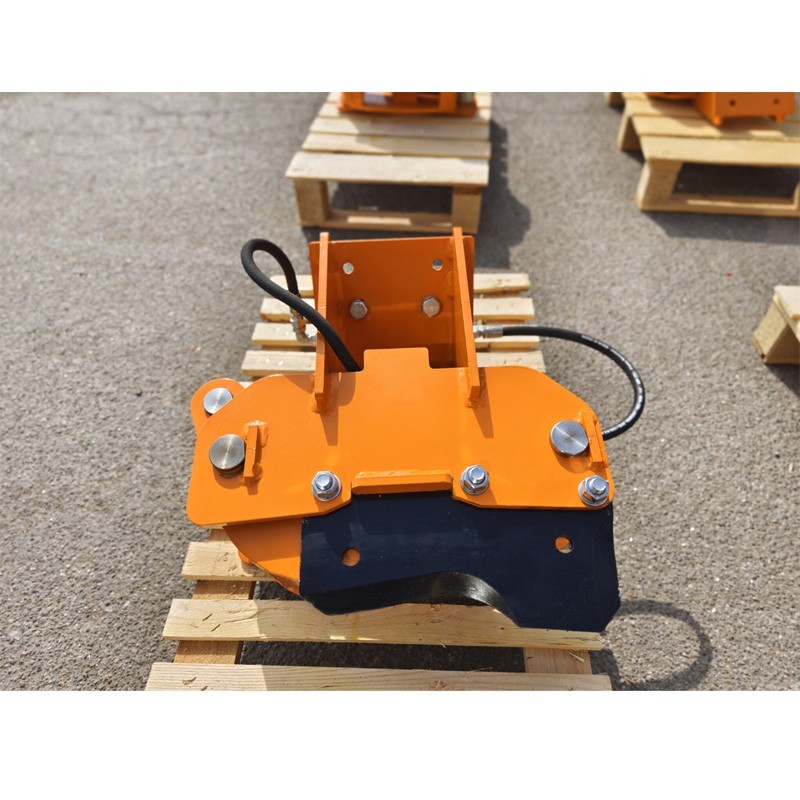

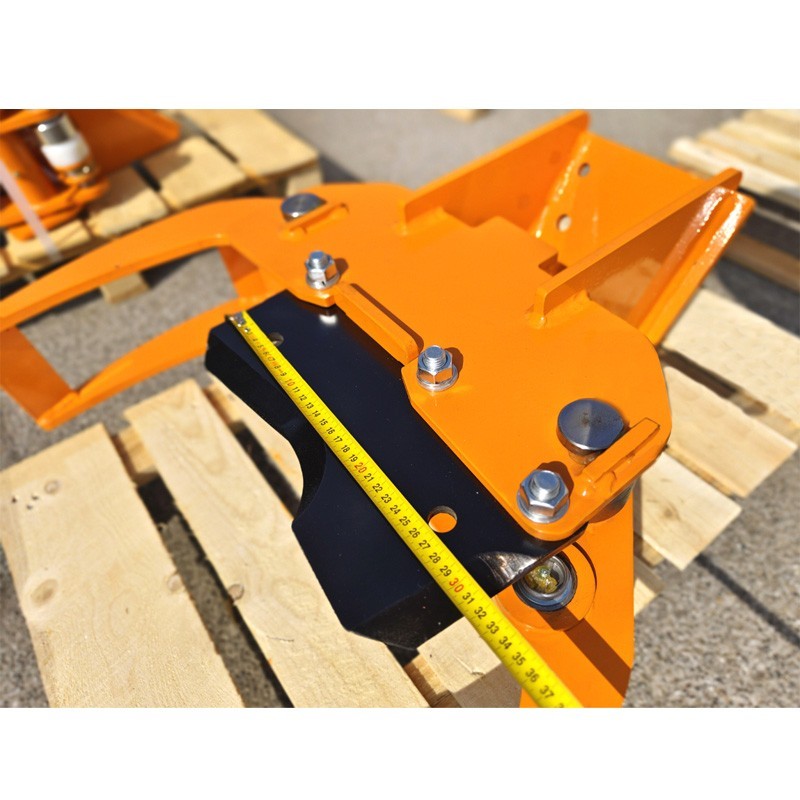

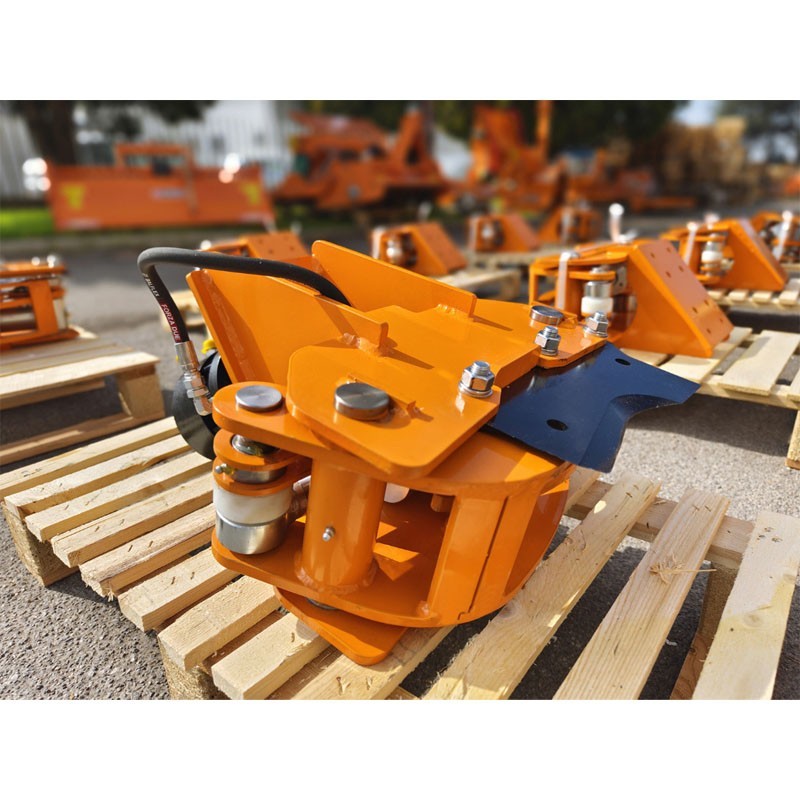

The DELEKS® CF-10R mini-excavator cutting grapple can cut thinner trees or bundle wood with the head. The head has a powerful reinforced blade that will cut wood cleanly and safely.

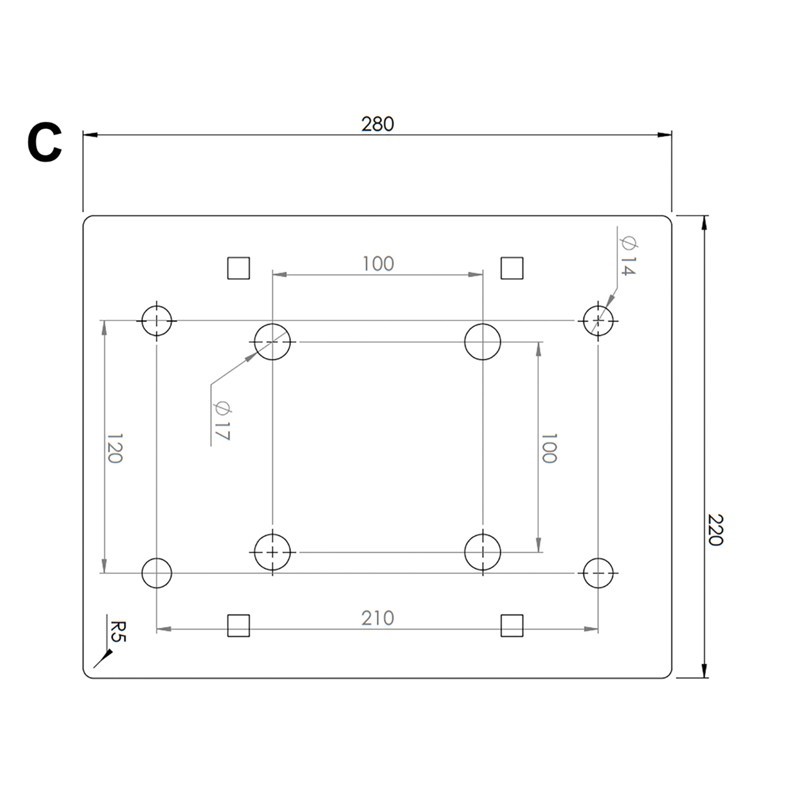

Available with excavator attachments (upon request).

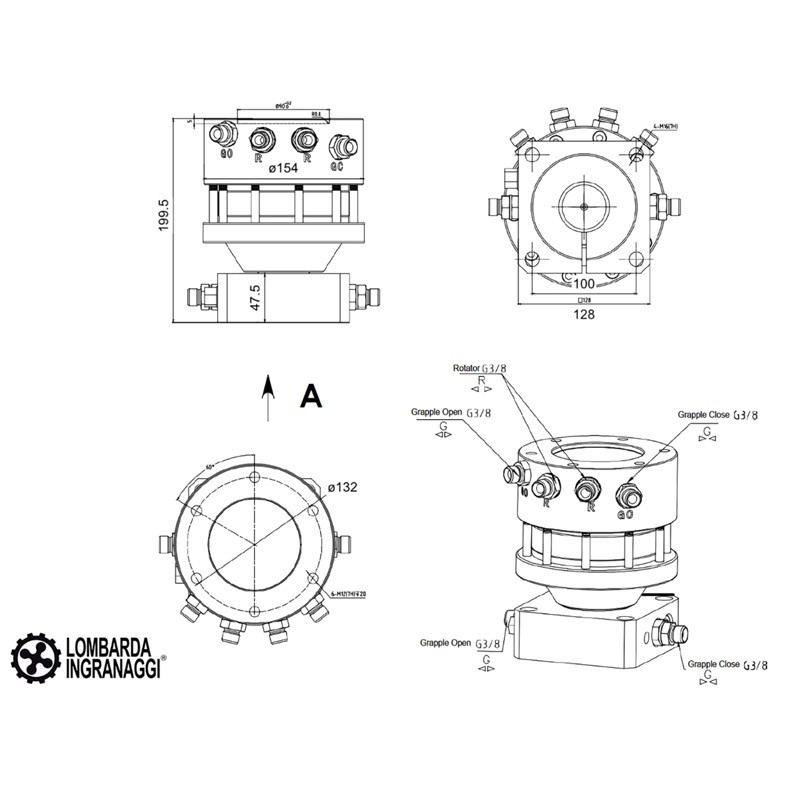

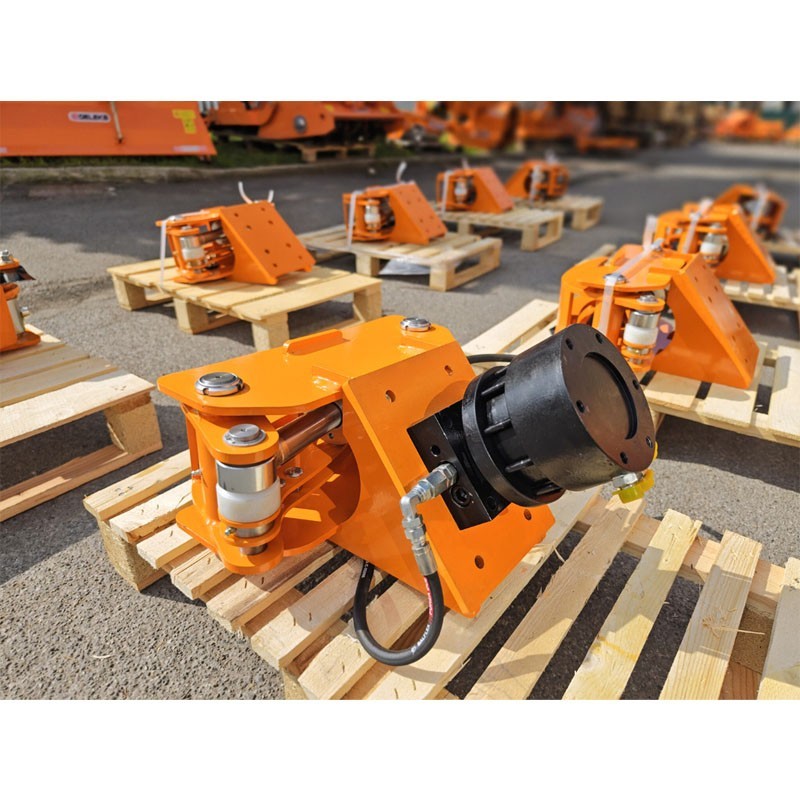

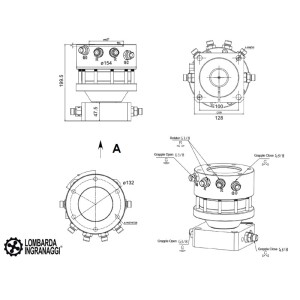

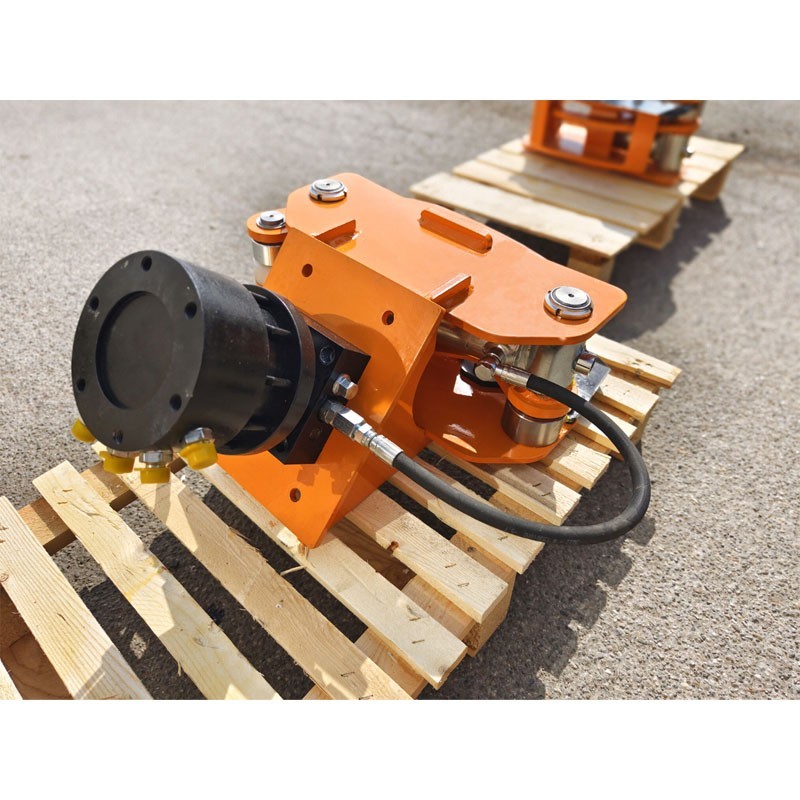

The Lombarda Ingranaggi GR30FF rotator is powerful, reliable and robust. It is designed to lift a load of 3000kg with (maximum) effectiveness while minimizing downtime.

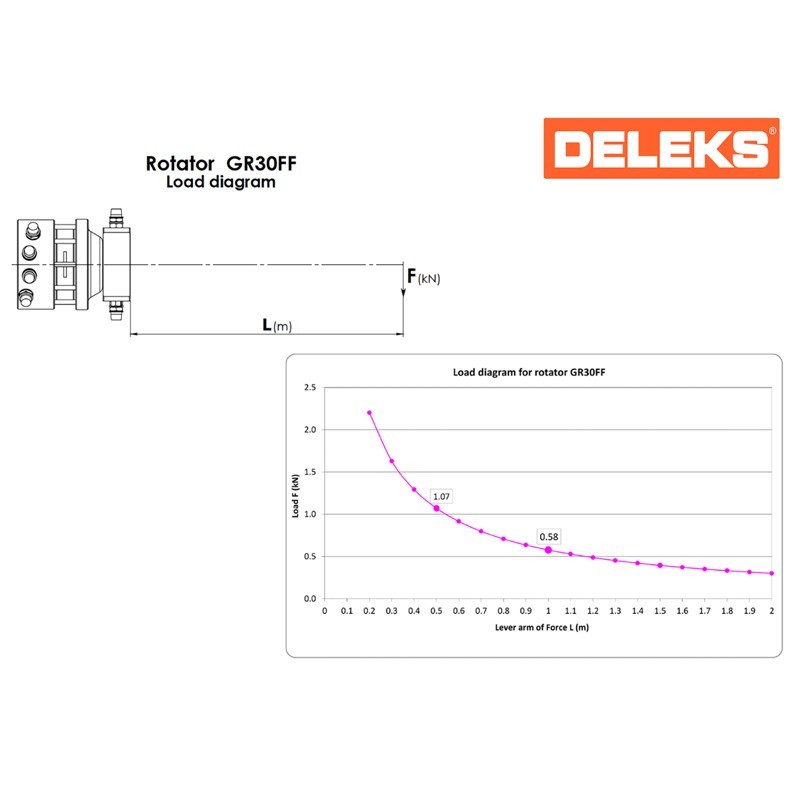

Load diagram for GR30FF rotator: see drawing D (Load - Load | lever arm of force L )

FEATURES AND ADVANTAGES

Made of 100% HARDOX for maximum resistance to torsion.

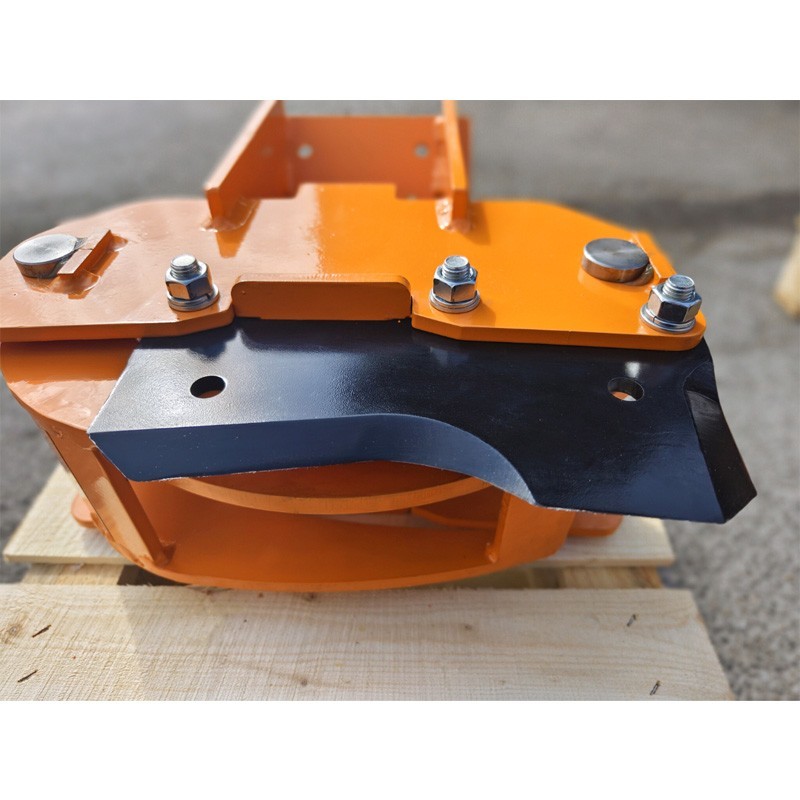

Blade made in Italy, hardened 43 HRC.

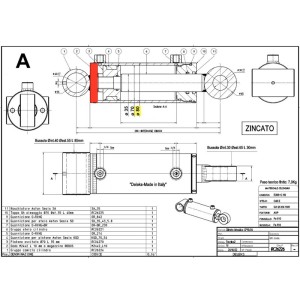

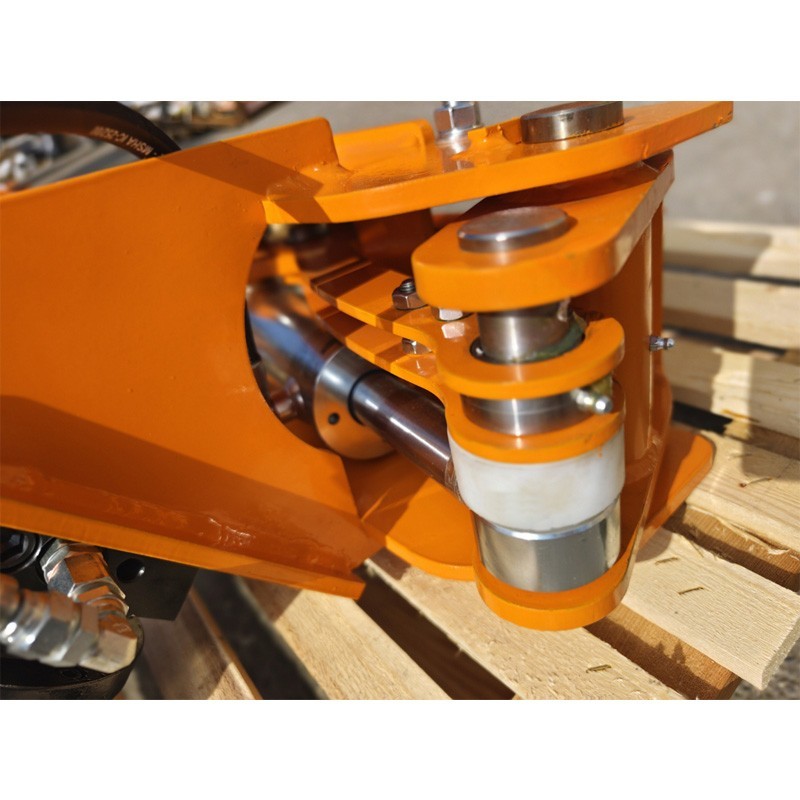

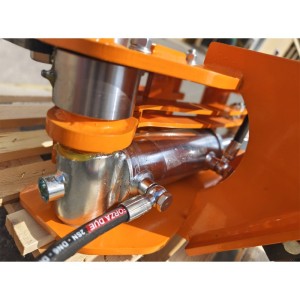

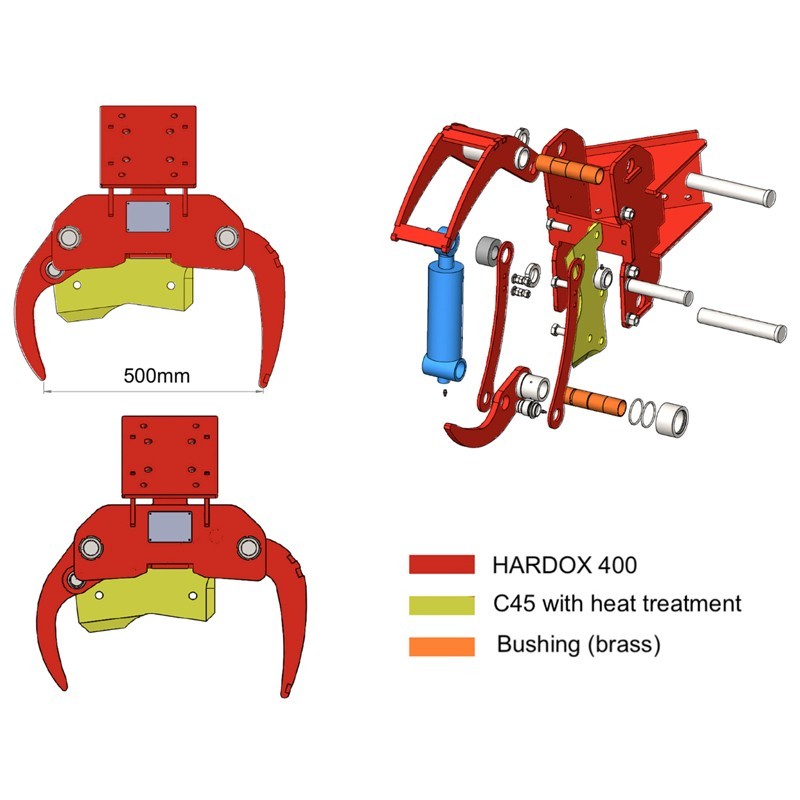

Hydraulic cylinder specially designed for this use with reinforced bottom for high loads (see drawing A).

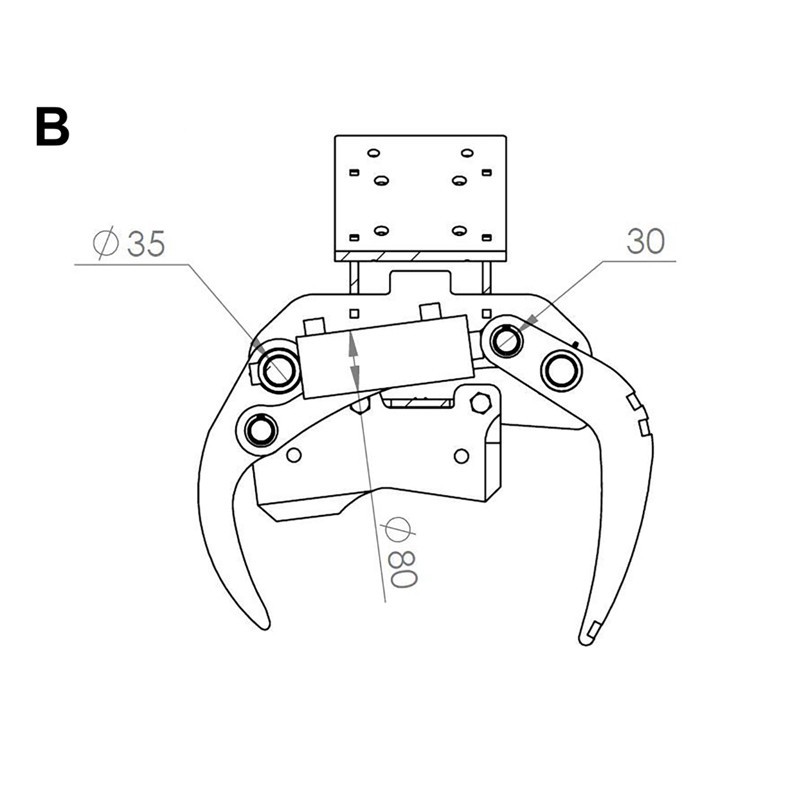

Pins in special material 42CrMo4 of ø30 and ø35 mm (see drawing B).

Easy installation and use.

The CF-10R model is the smallest cutting grapple in the range and its light weight allows the mini-excavator to maintain its capacity.

It cuts at ground level, allowing stumps to be cut low to the ground.

The DELEKS® CF-10R grapple cuts the wood cleanly and precisely at the desired point at ground level.

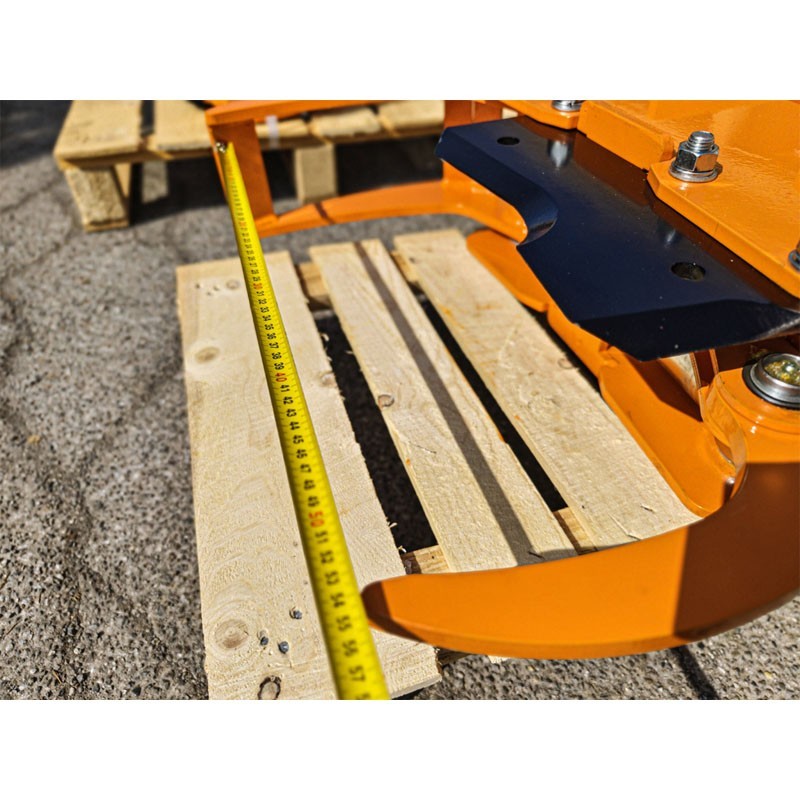

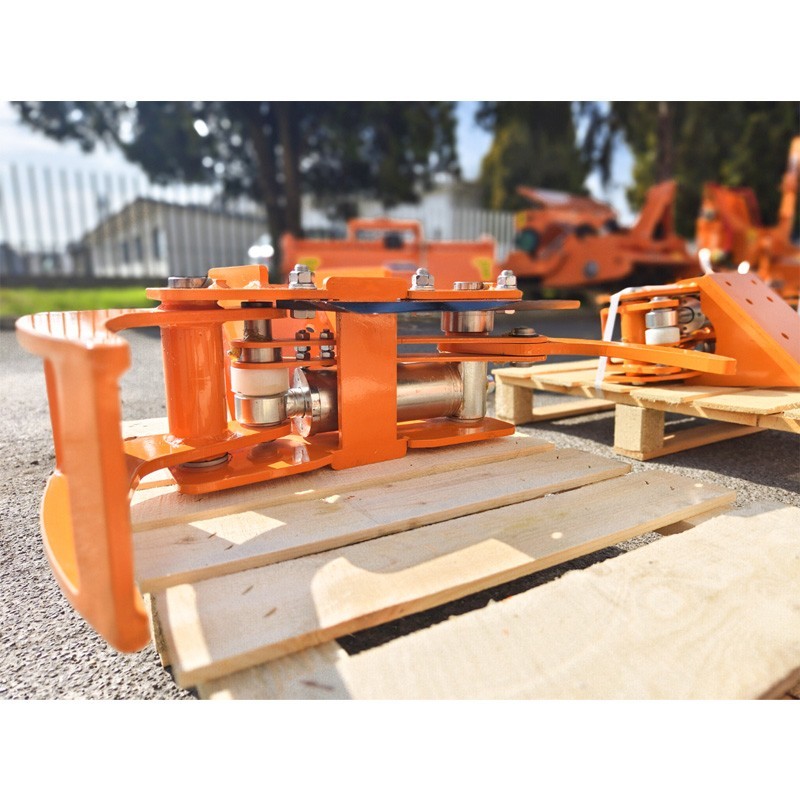

Thanks to the large opening of the grapple, it is also easy to cut several small trees at the same time.

2-in-1 use: cutting and harvesting

If necessary, the cutting blade can be removed, in which case the grapple head acts as a classic log grapple.
