Gasoline Multifunction Machine Eurosystems P70 EVO 3.7-4.3 kW
- Starting : Manual
- Displacement : 420 cc
- Engine : Amura
- Engine type : 4 stroke
- Fuel : Gasoline
- Transmission type : Gearbox in oil bath
- Gears : 3+3
- Power : 11,4 HP
€989.75 VAT incl.

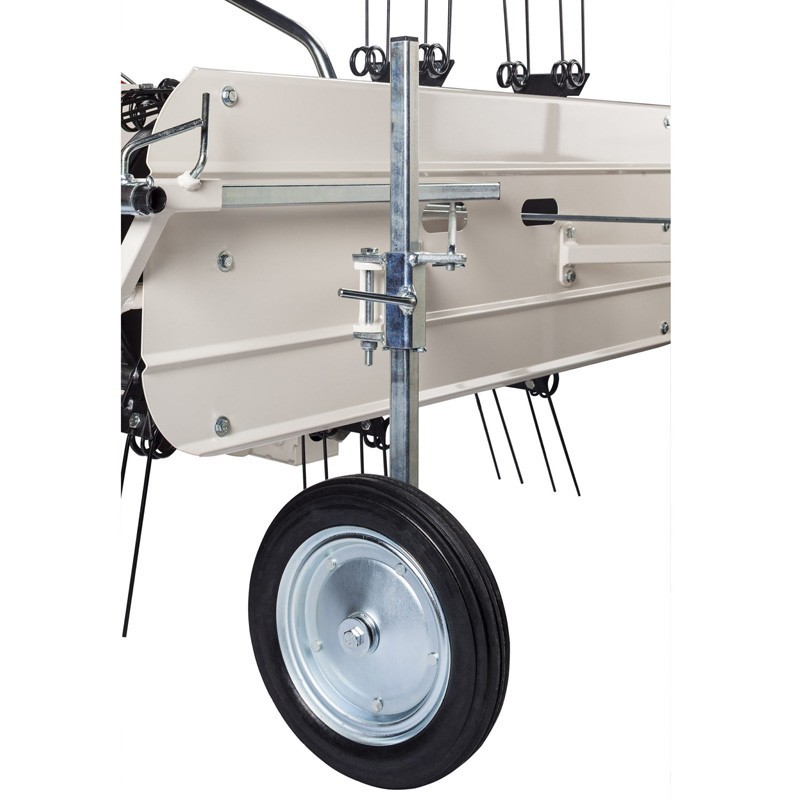

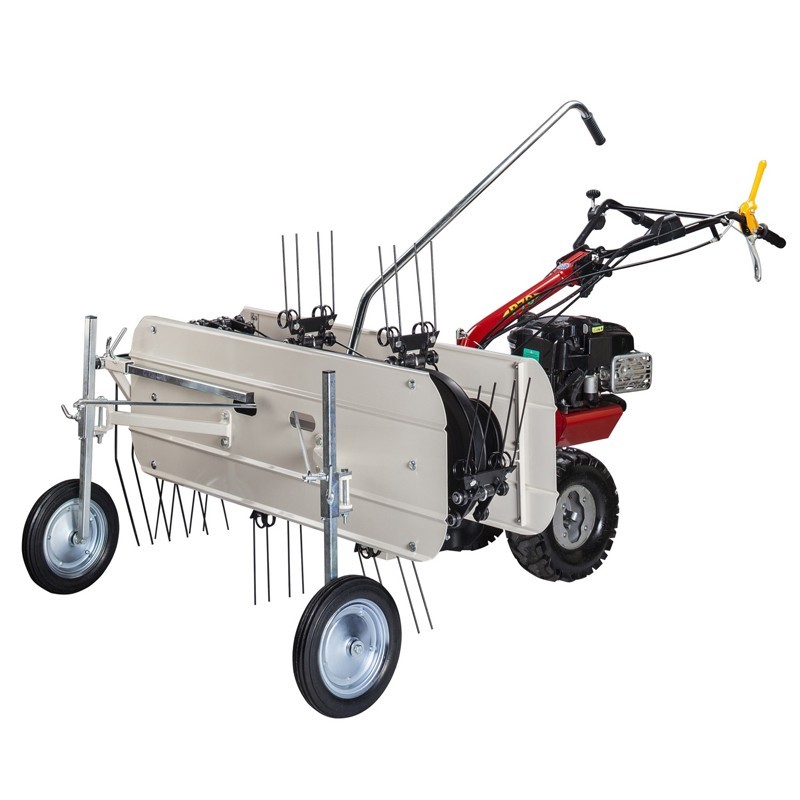

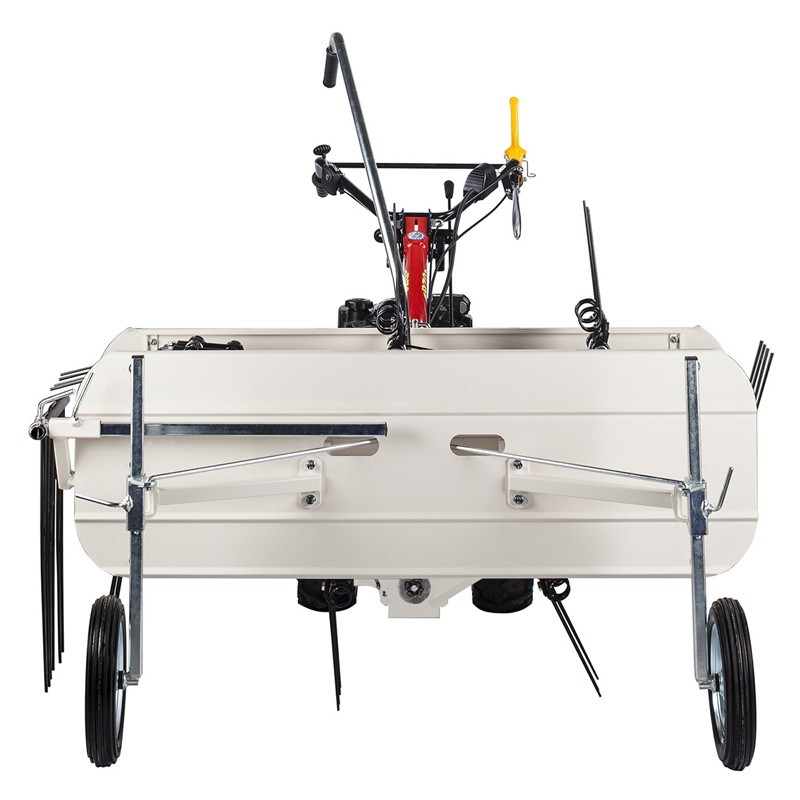

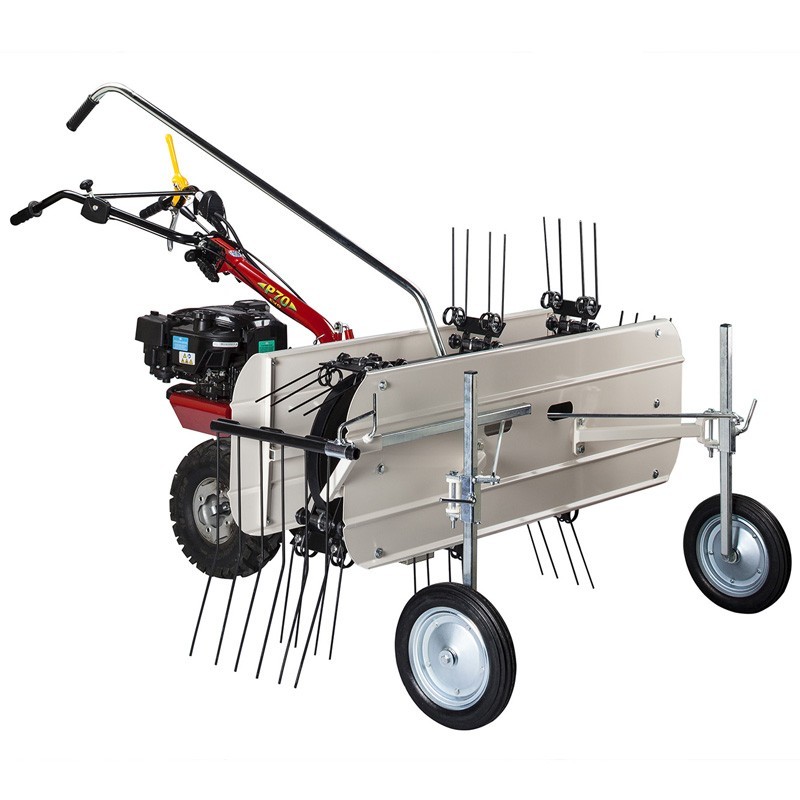

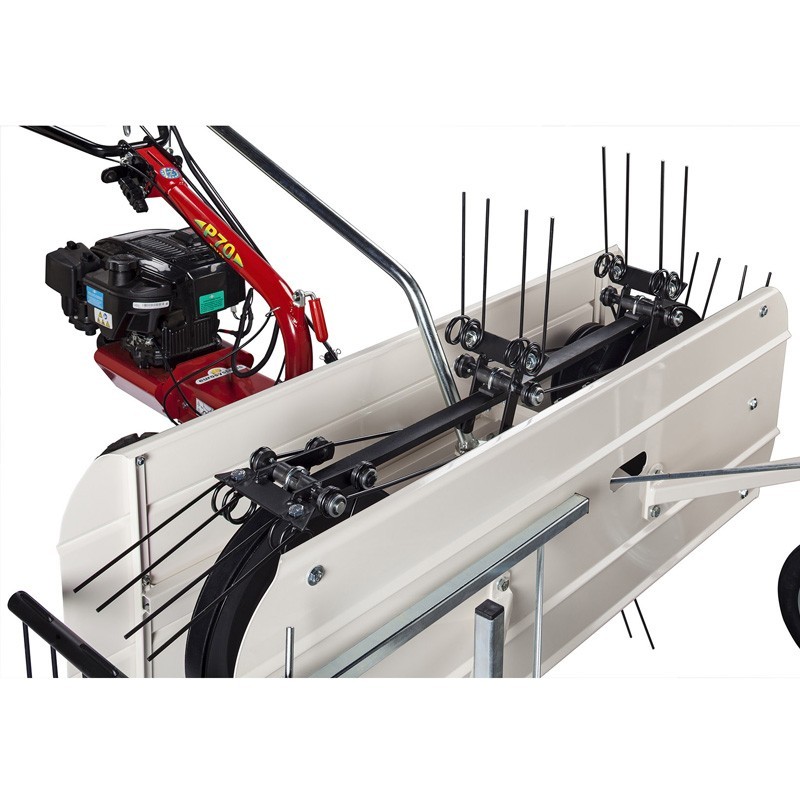

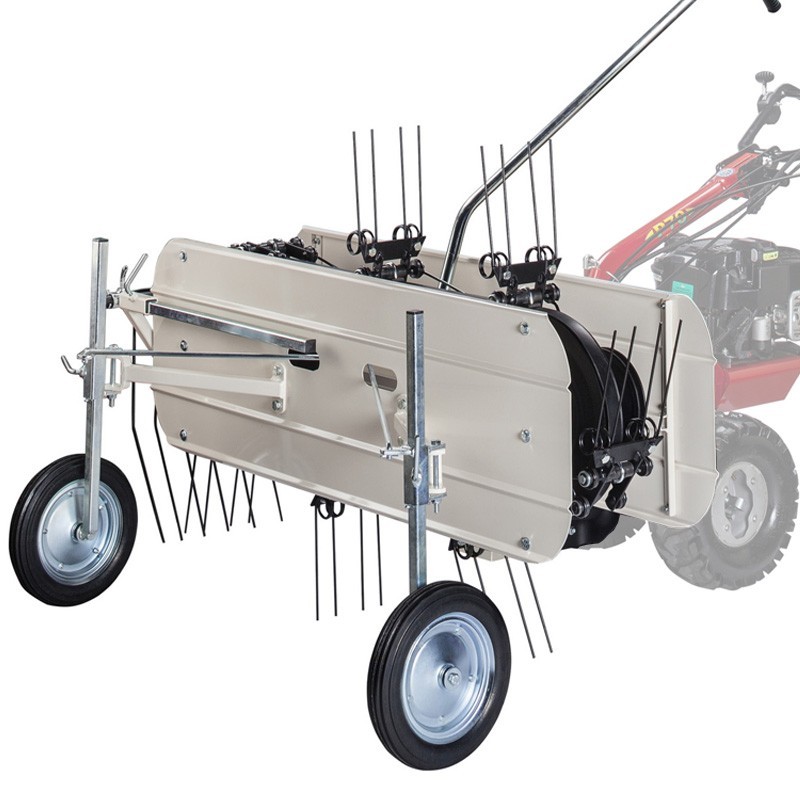

The aligning rake Eurosystems P70 EVO is a valuable accessory designed to improve the efficiency of the P70 EVO power unit. With its efficient operation, it features 7 combs on the belt, each equipped with 2 pairs of tips for optimum performance. The sturdy structure is made of sheet metal, ensuring a long service life of the equipment.
With a working width of 100 cm, this aligning rake offers a height adjustment from 0 to 19 cm, controlled through the front wheels. Operating at 200 RPM, it features two steerable front wheels, which can be operated from the driving position for added comfort.
In addition, the rake includes a 3.2 cm belt and hay stop flap for precise raking adjustment. This attachment is ideal for properties up to 7,500 m² and has a net weight of 90 kg with dimensions of 152x218x130 cm.
-Power unit not included as standard.
Operation | 7 combs on the belt, 2 pairs of tips per comb. |
Structure | Sheet metal. |
Working width | 100 cm. |
Adjustments | Adjustable height through front wheels, from 0 to 19 cm. |
RPM | 200 |
Transport wheels | 2 directional front wheels, operated from the driving position. |
Other | 3.2 cm strap; hay stop flap for raking adjustment. |
Recommended use | up to 7,500 m² |
Net weight | 90 kg |
Dimensions | 152x218x130 cm |
IMPORTANT NOTICE |
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
