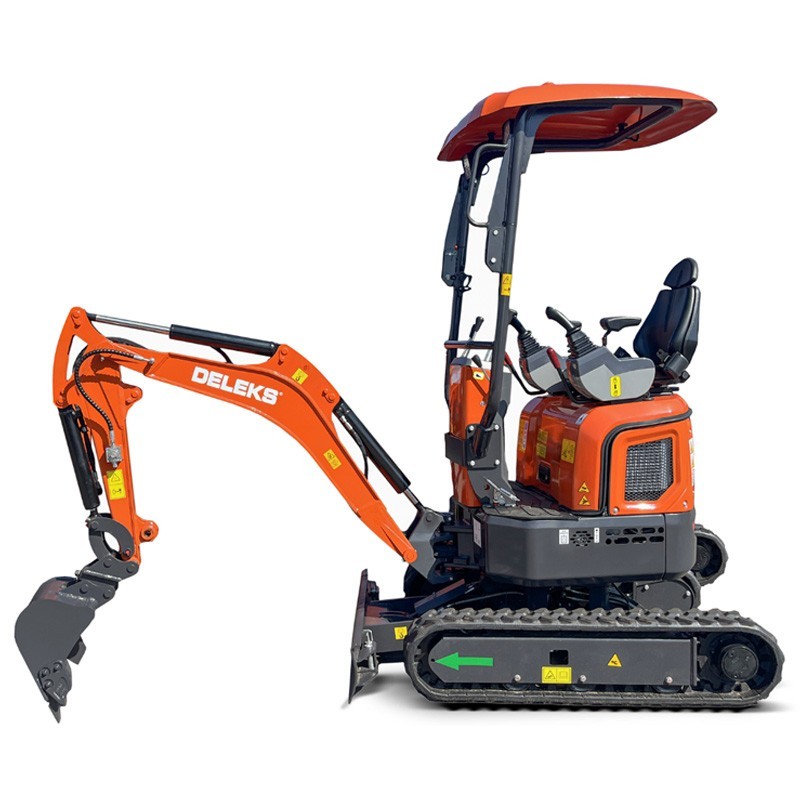

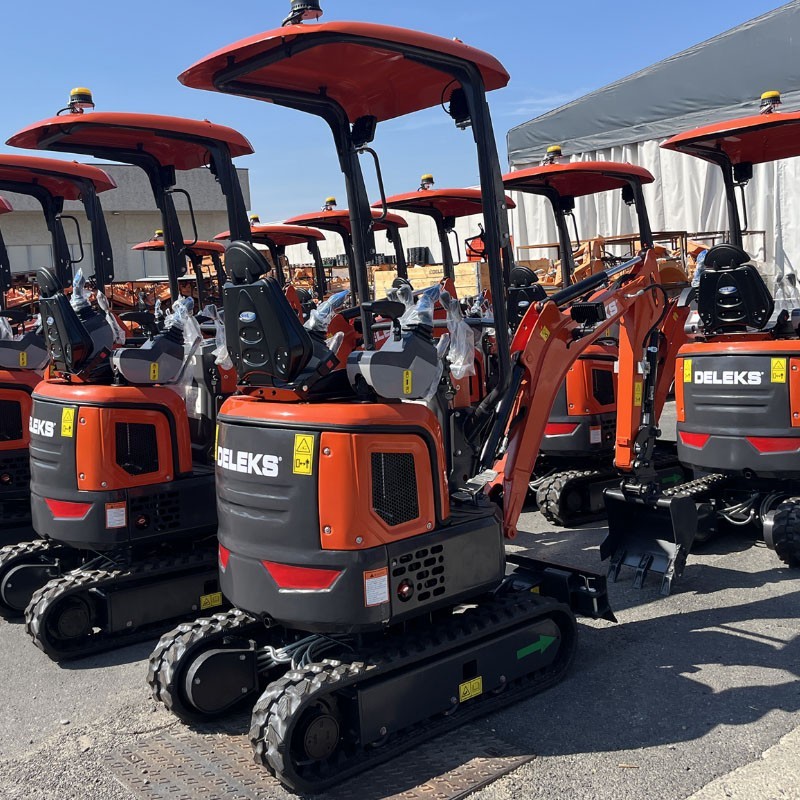

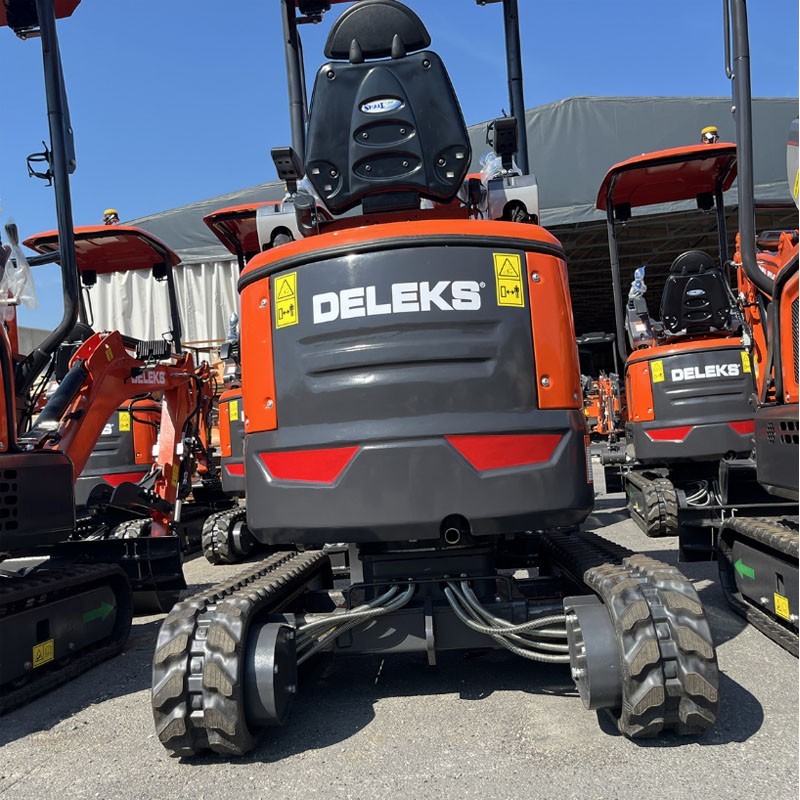

Mini excavator Deleks M120

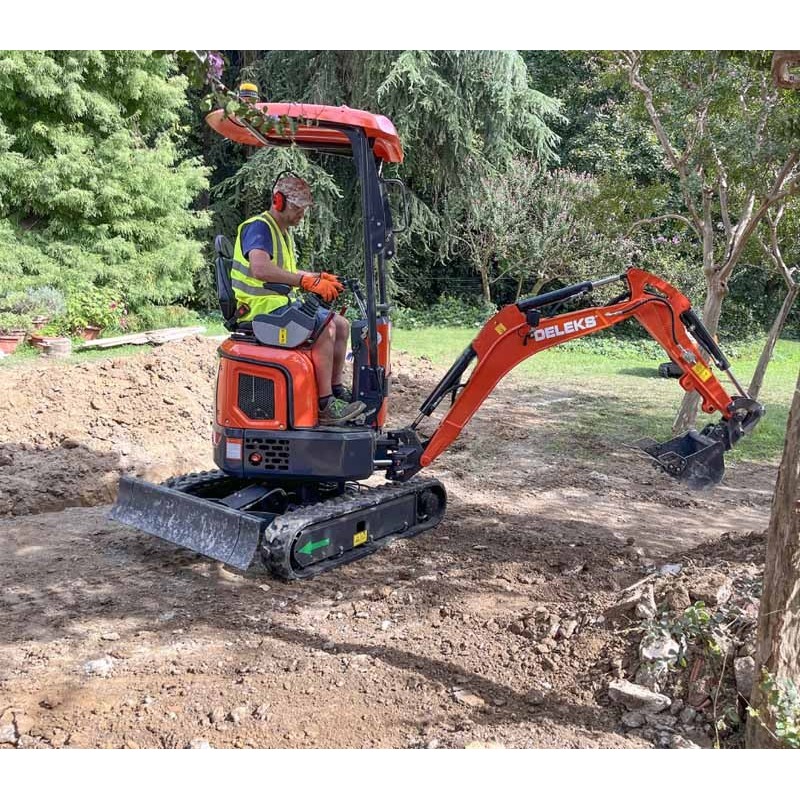

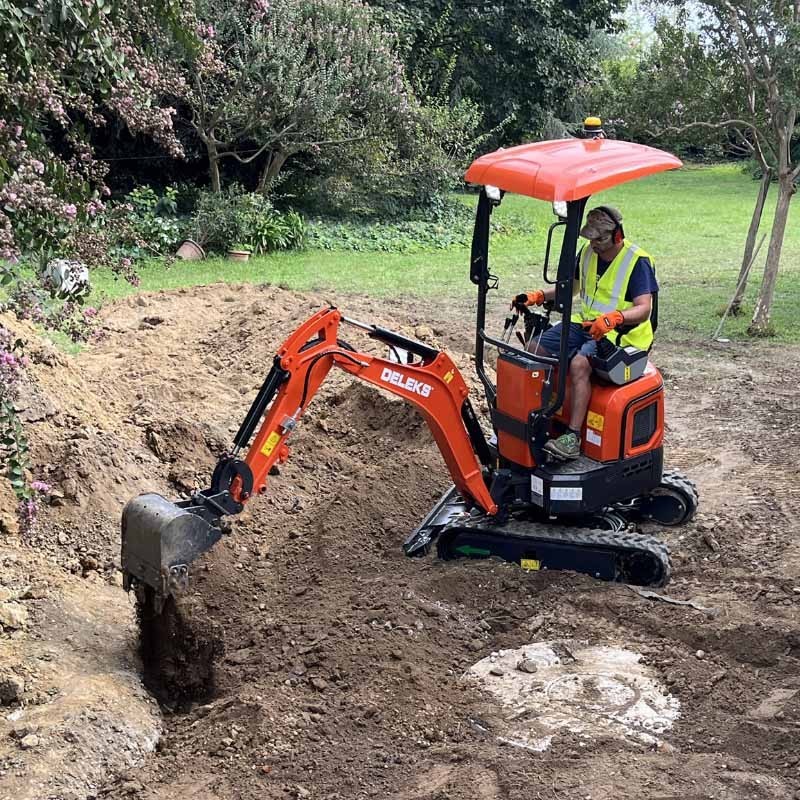

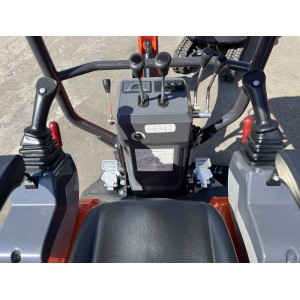

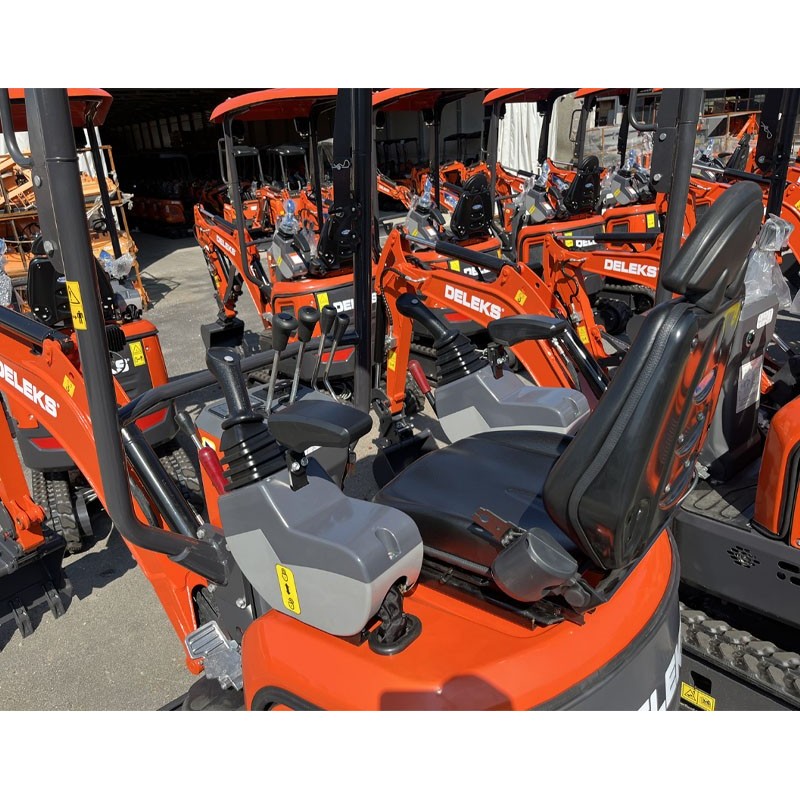

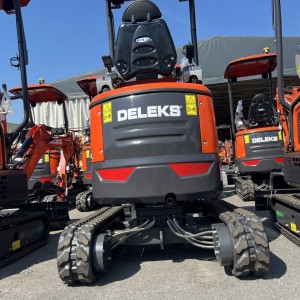

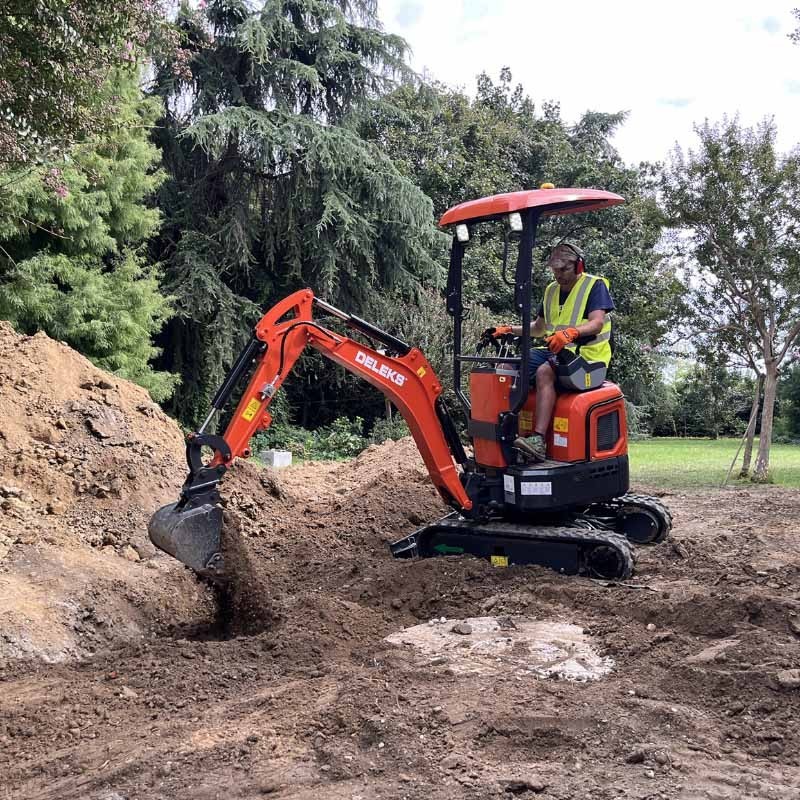

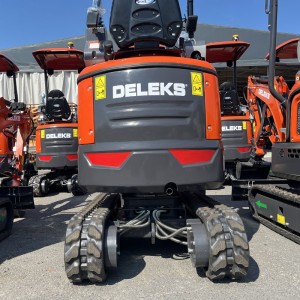

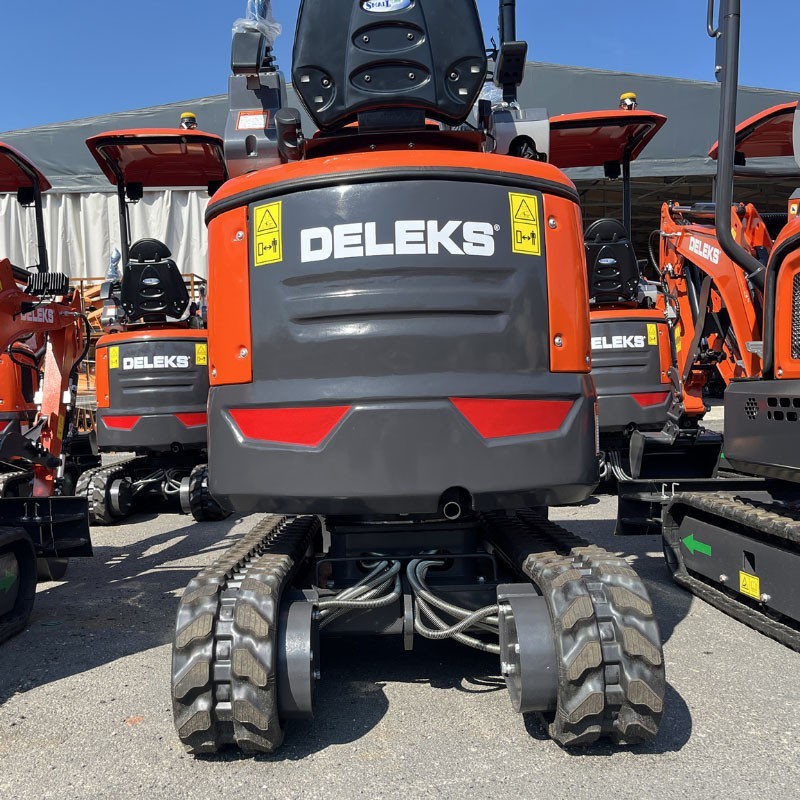

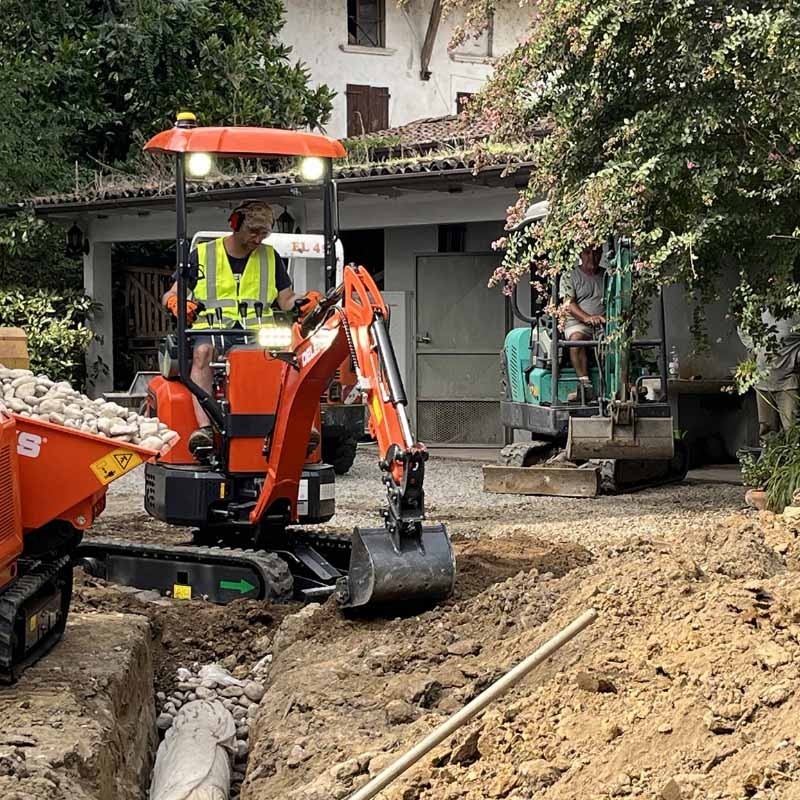

The Deleks M120 mini excavator is a compact 1.2-ton machine equipped with a 3-cylinder Yanmar 3TNV70-SSY engine, designed for versatility and efficiency in tight spaces. Its zero tail swing and extendable undercarriage allow for easy maneuvering, while side-mounted control levers enhance the operator experience.
The extendable blade is equipped with a simple projection system for easy adjustment and use. This mini excavator includes an adjustable arm and a dual speed option, making it suitable for a wide variety of tasks.
Available attachments, such as buckets of different sizes, ripper ripper and hammers, add to its functionality and adaptability. In addition, the flexible outlet is located in the center of the upper frame, ensuring maximum protection and minimizing possible damage during work.

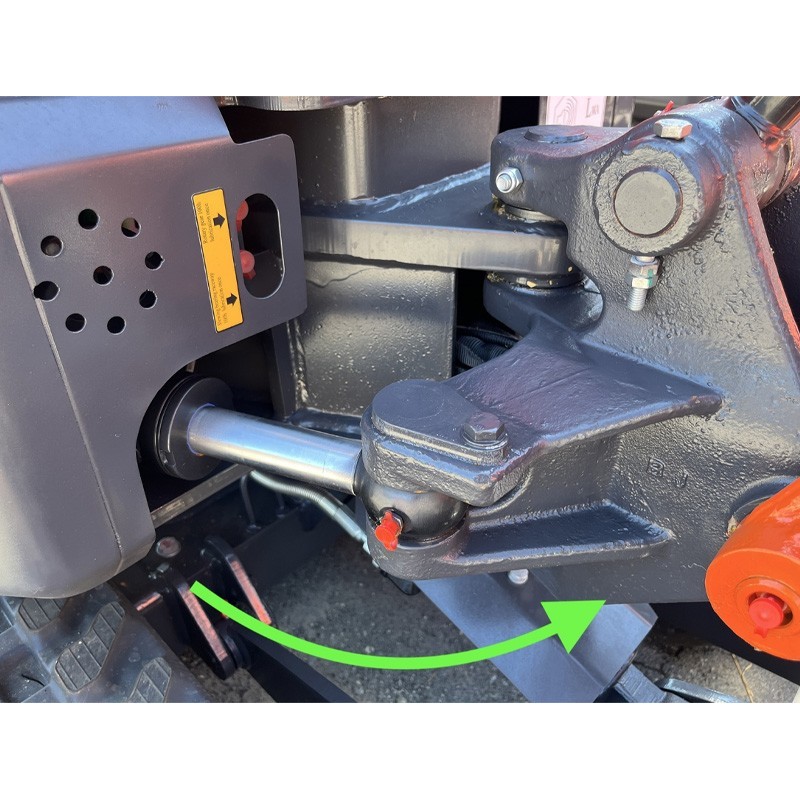

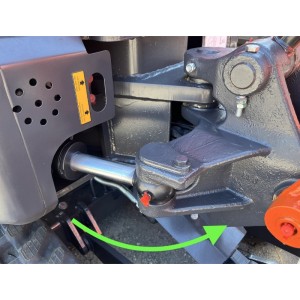

The torsion blade cylinder is perfectly protected, ensuring greater durability and safety. Its robust design and versatility make it an ideal tool for professionals in the construction and gardening sector, who need a reliable and easy-to-operate machine on any type of terrain.
Technical Specifications
| Standard bucket |
40 cm |

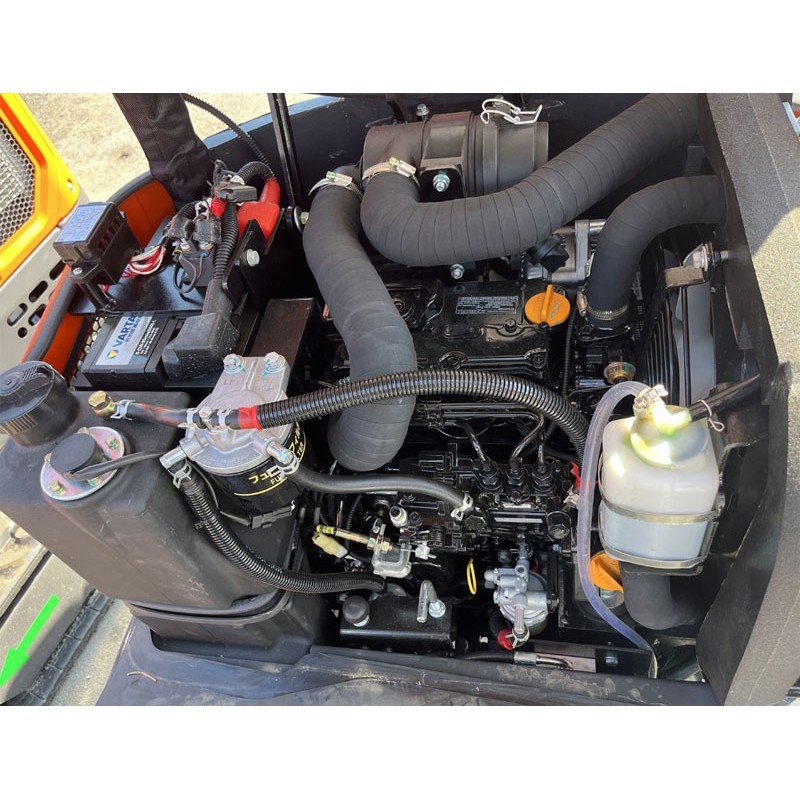

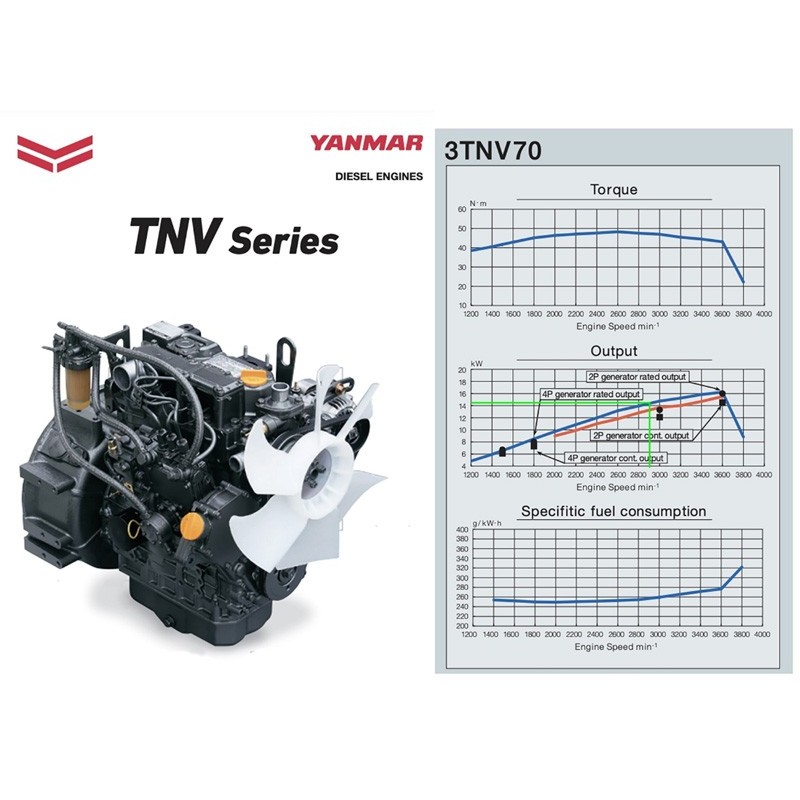

| Engine |
YANMAR 3TNV70 |
| Type |
EU Stage V, water-cooled, 3 cylinders |
| Power |
19 HP / 14.2 kW / 2900 rpm |
| Hydraulic system |
Dual gear pump |
| Oil flow |
19.2 L / min |
| Hydraulic pressure |
18.0 Mpa |
| Control pump |
Gear pump |
| Hydraulic oil tank |
13 L |
| Ground pressure |
31 kpa |
| Operating weight |
1200 kg |
| Bucket width and capacity |
400 mm / 0.03 m³ |
| Oscillation speed |
10 rpm |
| Slow-fast speed |
1.3 km/h, 2.5 km/h |
| Inclination |
10° |
| Breakout force (bucket) |
11 kN |
| Breakout force (arm) |
6.5 kN |
| Ground clearance |
130 mm |
| Undercarriage ground clearance |
1080 mm |
| Undercarriage width tracked |
180 mm |
| Fuel tank |
13 L |
Certifications - Directives applied
2006/42/EC (Machinery Directive)
2014/30/EU (Electromagnetic Compatibility Directive)
2000/14/EC, 2005/88/EC (Noise Directive for Machinery Operated Outdoors)
Harmonized standards (on the Machinery Directive)
EN 474-1:2006+A6:2019
EN 474-5:2006+A3:2013
Certification body: ECO S.p.a. - Faenza (RA) Italy
FOPSLevel I ISO 3449:2008
TOPS: EN 13531:2001+A1:2008
Certification body: Italcert S.r.l. - Milano, Italy
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
|
| For the correct shipment of this product, the customer will need a forklift or similar for the unloading of this product as well as the address must be accessible for a 24t truck. |
