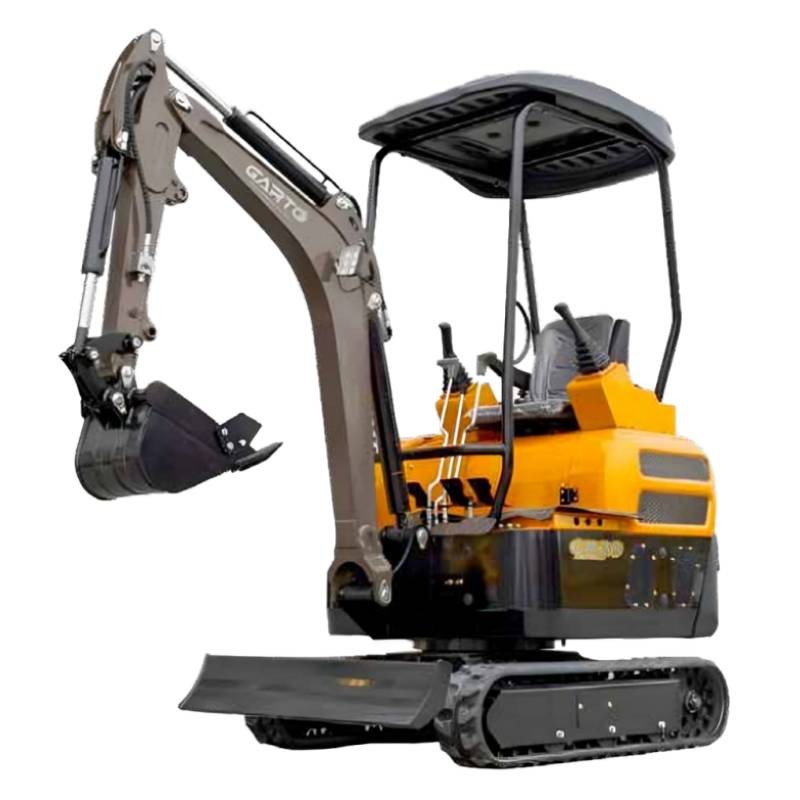

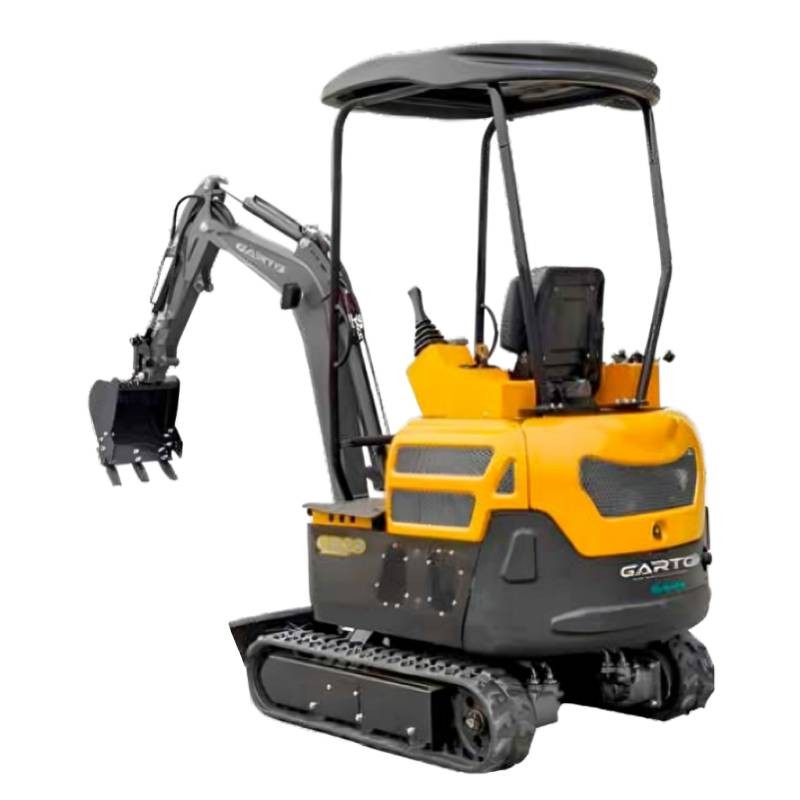

The GARTO GAR-20 represents a high and powerful range of the brand, with an operating weight of 2 tons designed specifically for the most demanding professionals in the sector.
This model stands out for being equipped as standard with the best technological features, including high-precision joysticks, offset boom foot and a retractable track system that allows the width of the machine to be adapted according to the needs of stability or access on site.

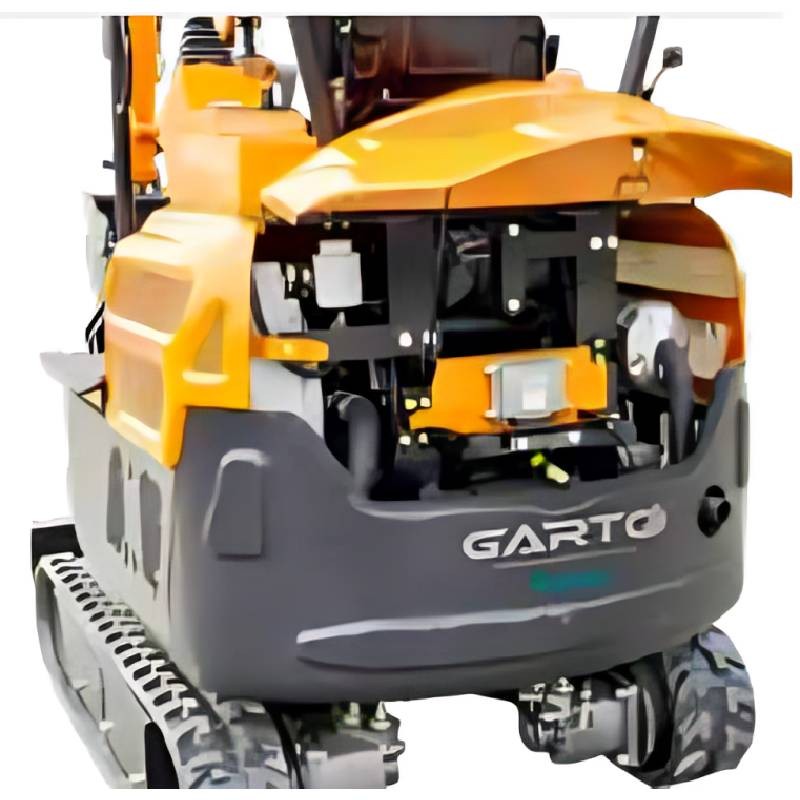

At its core, the GAR-20 is powered by the reliable KUBOTA D902 three-cylinder EURO5 engine, supported by an advanced three-pump hydraulic system. This configuration allows superior hydraulic flow, facilitating the simultaneous use of functions and the connection of a wide variety of professional attachments such as augers (Auger), hydraulic hammers (BRH) or hedge trimmers (Hedge Trimmer).
With a maximum digging depth of 2150 mm and a reach radius of 3700 mm, this mini excavator offers exceptional working capacity. Its robustness is complemented by a front leveling blade and a design designed to maximize productivity and operator comfort on the most intense days.
| Model | GAR-20 | |
| Engine | KUBOTA D902 (3 cylinders) | |
| Emission standard | EURO5 | |
| Hydraulic system | 3 hydraulic pumps | |
| Standard equipment | Joysticks, offset arm foot, retractable tracks | |
| Compatible accessories | Auger, BRH, hedge trimmer, etc. | |
| Operating weight | 2000 kg | |

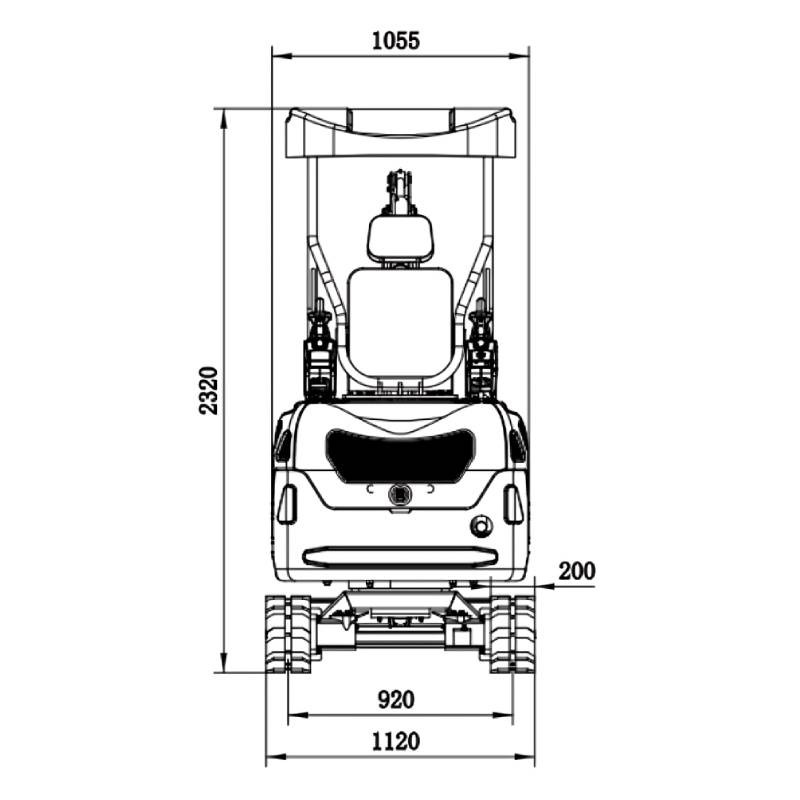

| Chassis width | 1110 mm | |
| Track width | 230 mm | |
| Track height | 320 mm | |
| Track length | 1130 mm | |
| Total length of tracks | 1450 mm | |
| Platform height | 437 mm | |
| Min. counterweight rotation radius | 790 mm | |
| Transport length | 3160 mm | |
| Overall height (with / without roof) | 2377 mm / 1637 mm | |

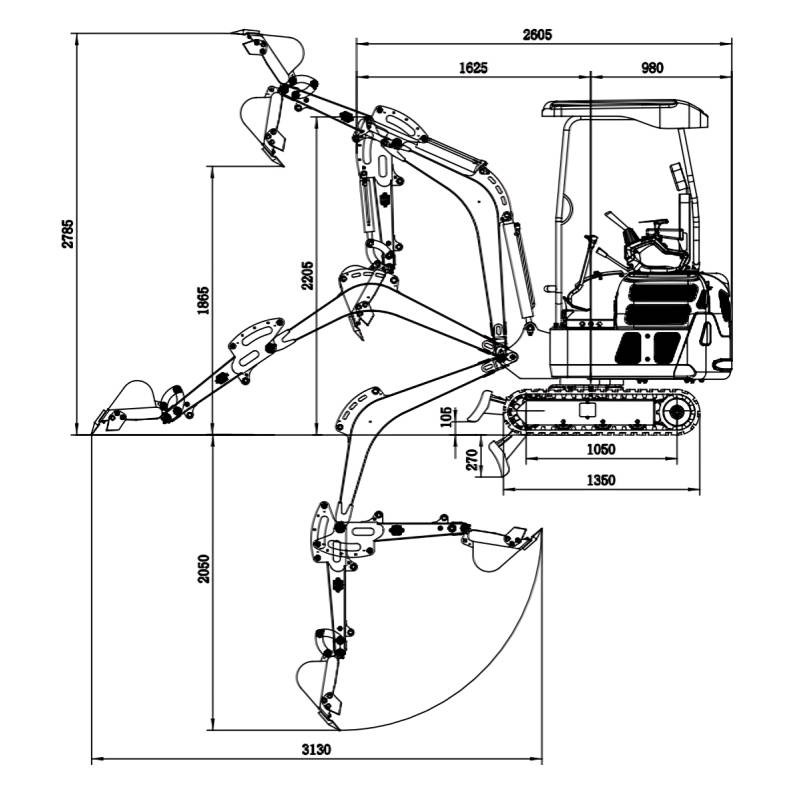

| Maximum digging length | 3610 mm | |
| Maximum digging radius | 3700 mm | |
| Maximum digging depth | 2150 mm | |
| Maximum vertical depth | 1740 mm | |
| Maximum lift height | 3275 mm | |
| Maximum discharge height | 2310 mm | |
| Min. boom rotation radius | 1580 mm | |
| Maximum blade height | 275 mm | |
| Maximum blade depth | 180 mm | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
