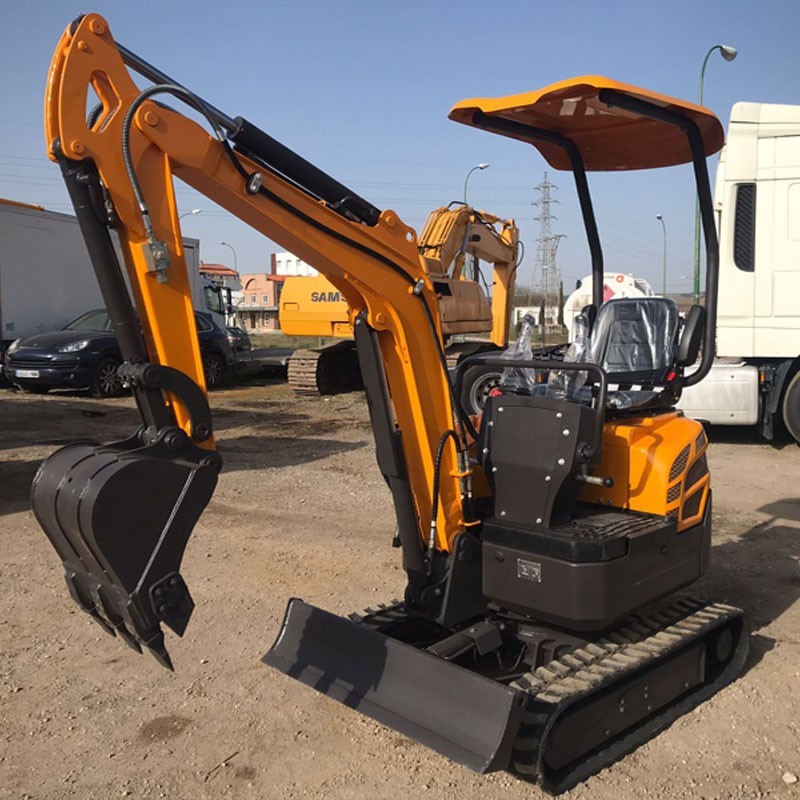

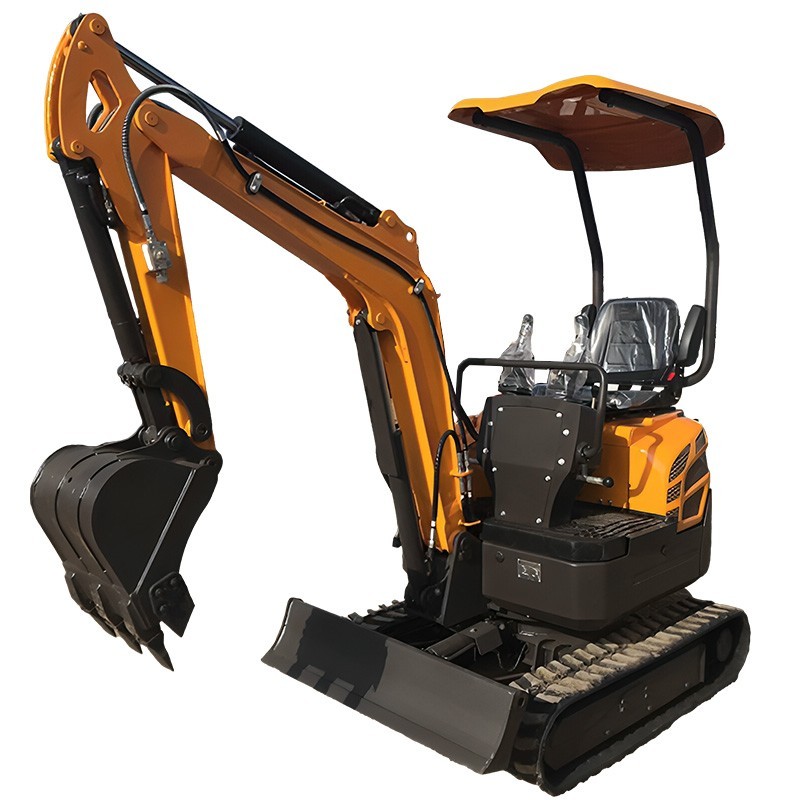

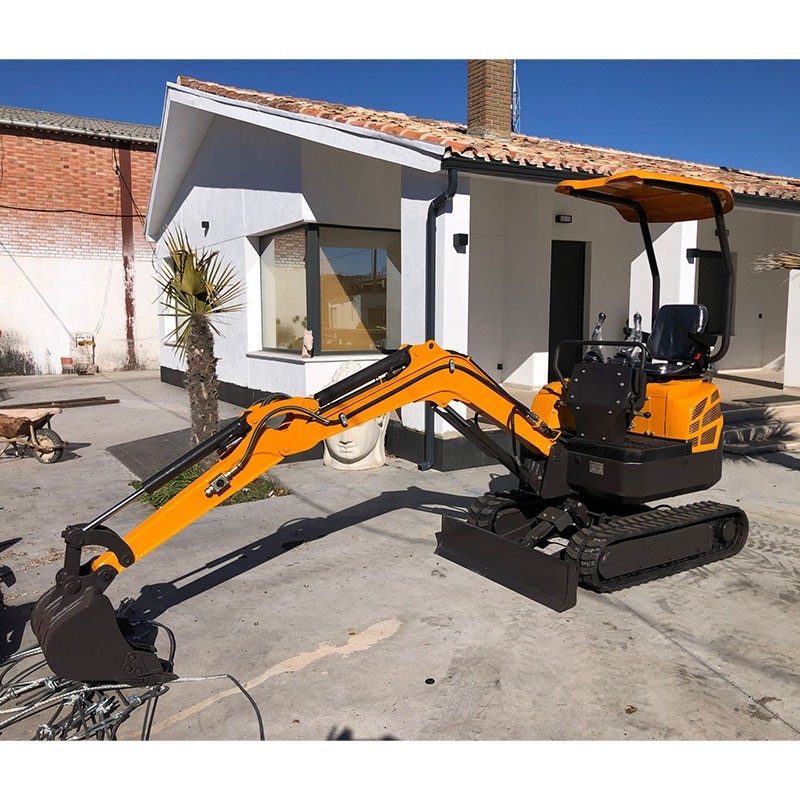

The Garto GR16 2150 mm diesel-powered mini excavator is equipped with a front dozer blade, this mini excavator offers greater versatility when performing grading and ground preparation tasks with precision.
With a KDK pump, the GR16 ensures efficient hydraulic performance, enhancing its digging capacity of up to 400 kg at the bucket end. It comes with a 40 cm bucket.
The machine's digital display provides essential information, such as engine temperature and fuel level, allowing the operator to have detailed control of the excavator's operation.
Powered by a three-cylinder KUBOTA D 902 engine, in compliance with EURO5 emission standards, the GR16 offers reliable and environmentally friendly power at a weight of 1,450 kg.
In addition to its focus on performance, the GR16 incorporates safety features such as a battery disconnect for emergency situations and a reinforced canopy to ensure operator protection.
With an auxiliary hydraulic output, this mini excavator allows the connection of an auger or BRH, extending its utility and making it a versatile and efficient tool for a variety of construction and excavation tasks.
| Model | GR16 |
| Track length | 1130 mm |
| Total length of tracks | 1450 mm |
| Platform height | 437 mm |
| Platform length | 790 mm |
| Chassis width | 1110 mm |
| Track width | 230 mm |
| Track height | 320 mm |
| Transport length | 3160 mm |
| Total height without roof | 1637 mm |
| Total height with roof | 2377 mm |
| Maximum digging length | 3470 mm |
| Maximum digging radius | 3560 mm |
| Maximum digging depth | 2150 mm |
| Maximum lift height | 3275 mm |
| Maximum dump height | 2310 mm |
| Maximum vertical digging depth | 1740 mm |
| Minimum turning radius | 1440 mm |
| Maximum blade height | 262 mm |
| Maximum blade depth | 192 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
