Mechanical quick hitch Zeppelin for mini excavators
- Mechanical quick coupling
€173.94 VAT incl.
| Assembly and set-up INCLUDED |

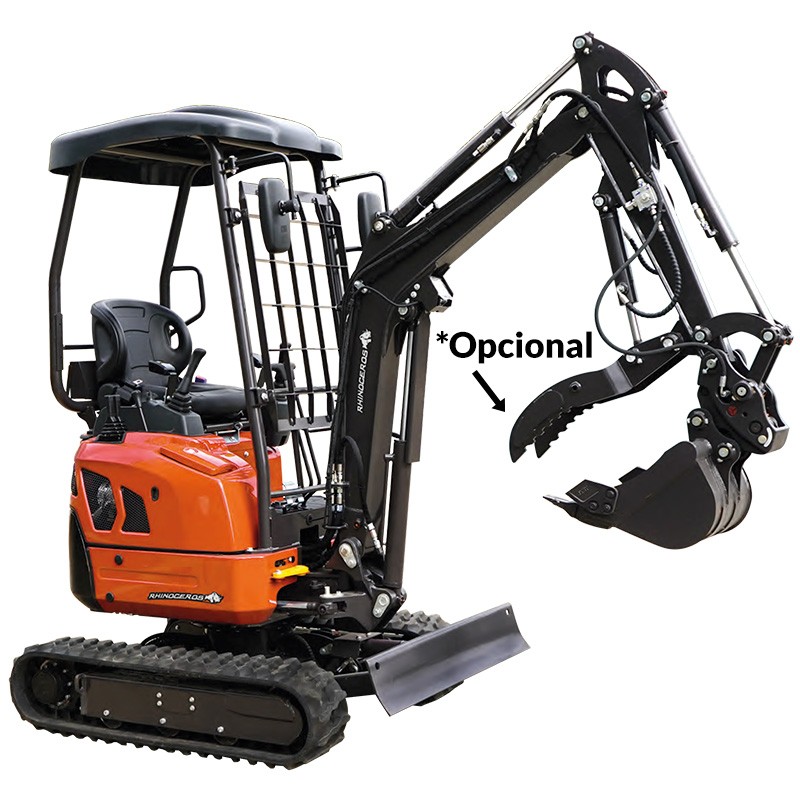

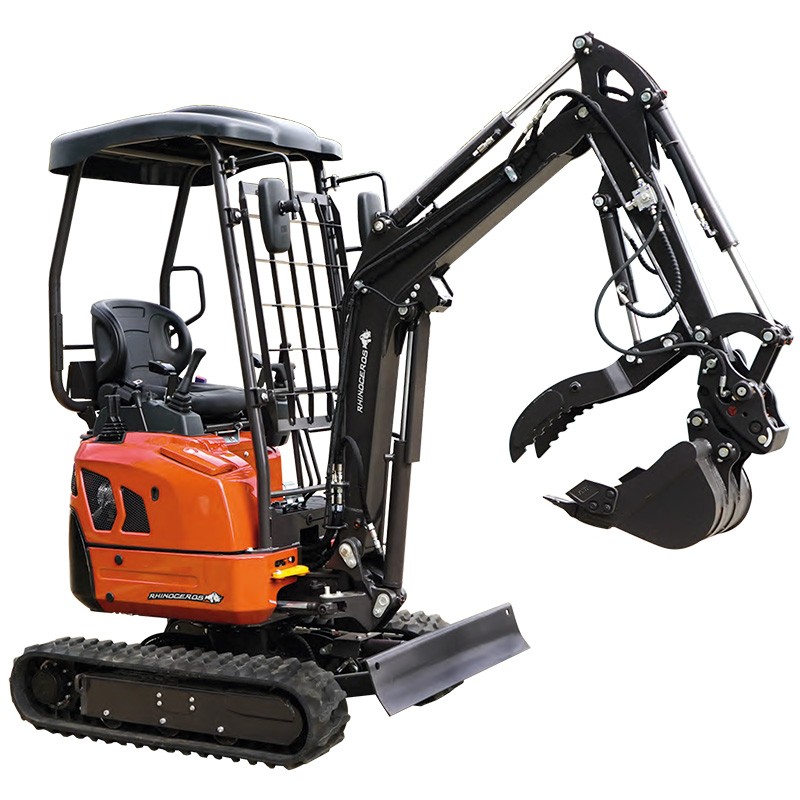

The Rhinoceros 180 mini-excavator features the prestigious Kubota D722 diesel engine, a world reference in compact machinery for its extreme durability and smooth operation. This 3-cylinder, 15 HP (10.2 kW) engine is water-cooled and designed to withstand intensive working days with minimal maintenance and very low fuel consumption.
Featuring Kubota's indirect injection technology, the machine delivers a constant 2,000 rpm of torque, ensuring that the hydraulic system responds with power and precision even in the most demanding excavations. Thanks to the reliability of its engine, this 1.6-ton excavator allows 360° slewing with independent arm movement, a key feature for working close to walls or in hard-to-reach areas.
Maneuvering is controlled by highly sensitive hydraulic joysticks, allowing the operator to manage the maximum digging depth of 2204 mm and dumping height of 2263 mm with complete ease. In addition, it incorporates a two-speed system (High and Low) that makes the most of the Kubota engine's power to move with agility or push with force according to the needs of the terrain.
With an overall width of only 1128 mm, the Rhinoceros 180 is able to enter places where other machines in its category cannot access, while maintaining enviable stability thanks to its 1550 kg weight. Standard equipment includes a 430 mm bucket and a reinforced dozer blade for leveling tasks. It is the perfect investment for professionals who prioritize the peace of mind of working with a Kubota engine, ensuring a long service life and high resale value in the construction and agricultural market.
| Model | ESEXCAV180HZ | |
| Weight | 1550 kg | |
| Engine | Kubota D722 Diesel 4T | |
| Cylinders | 3 cylinders | |
| Cooling | Water | |
| Rated power | 10.2 kW - 14 hp | |
| Rated speed | 2.500 rpm | |
| Maximum torque | At 2,000 rpm | |
| Combustion system | Indirect injection | |
| Overall width | 1128 mm | |
| Wheelbase | 1135 mm | |
| Boom swing | 510 mm | |
| Speeds | 2 (High and Low) | |
| Control | Hydraulic joystick | |
| Rotation | 360° with independent arm movement | |
| Bucket | Standard 430 mm wide | |
| Maximum digging depth | 2204 mm | |
| Maximum vertical digging depth | 1789 mm | |
| Maximum digging height | 3224 mm | |
| Maximum dump height | 2263 mm | |
| Digging radius on the ground | 3616 mm | |
| Minimum turning radius | 1591 mm | |
| Maximum dozer blade lift height | 197 mm | |
| Maximum digging depth of support | 202 mm | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
