  • Make / model : Kubota D1105
  • Displacement : 1,267 / 1,123 L
  • Rated power : 14,2 kW
Assembly and set-up INCLUDED
En stock
icon Power Supply
Power Supply
Diesel
icon Engine
Engine
Kubota
icon Engine model
Engine model
D1105
icon Power
Power
19 HP
icon Standard ladle
Standard ladle
46 cm
icon Operating weight
Operating weight
2,6 T
icon Excavator
Excavator
With cabin
icon Cylinders
Cylinders
3
icon ✔️
✔️
Air conditioning
icon ✔️
✔️
Water-cooled
icon ✔️
✔️
Multifunction
icon Position of controls
Position of controls
Lateral joysticks
icon Weight
Weight
2610 Kg
€26,621.84 excl. VAT
€32,212.43 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Mini excavator with cab Rhinoceros XN28ZC Kubota 19 HP engine
€32,212.43
Qty

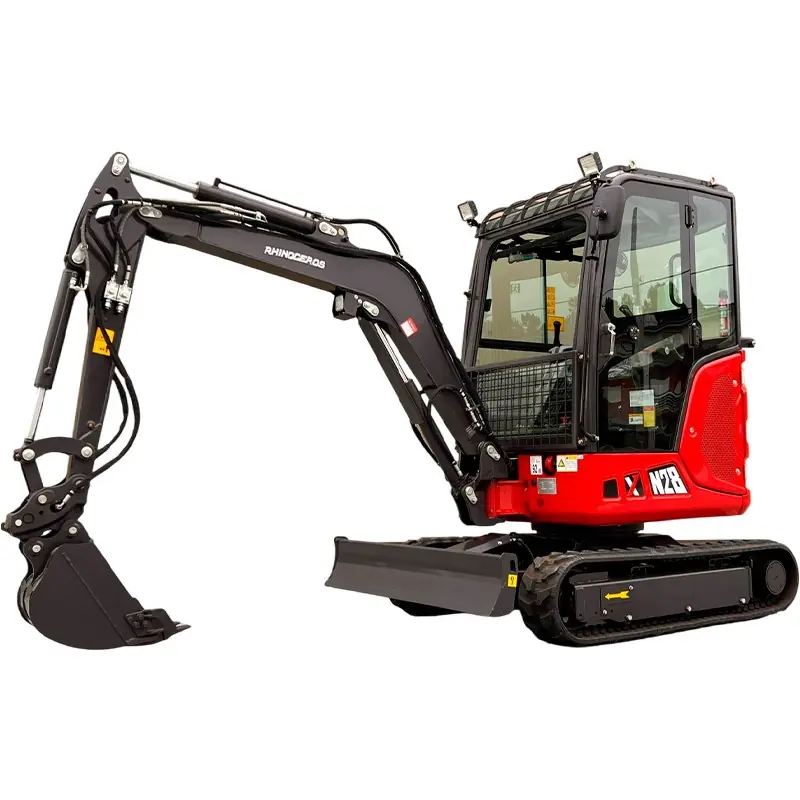

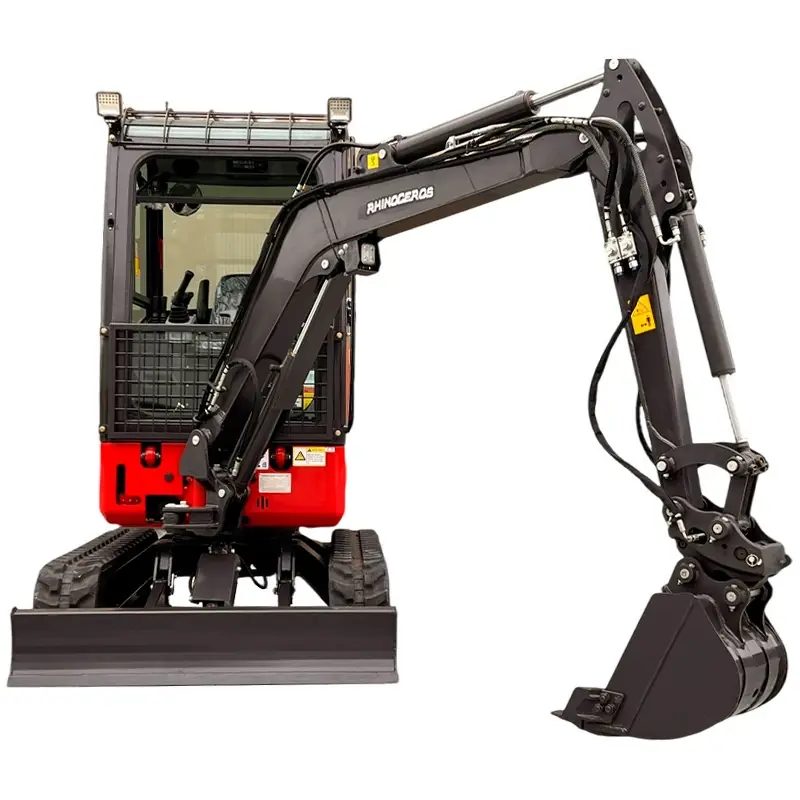

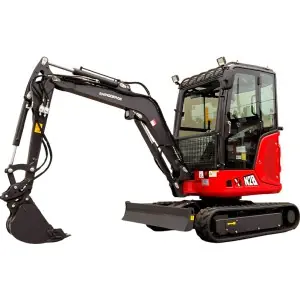

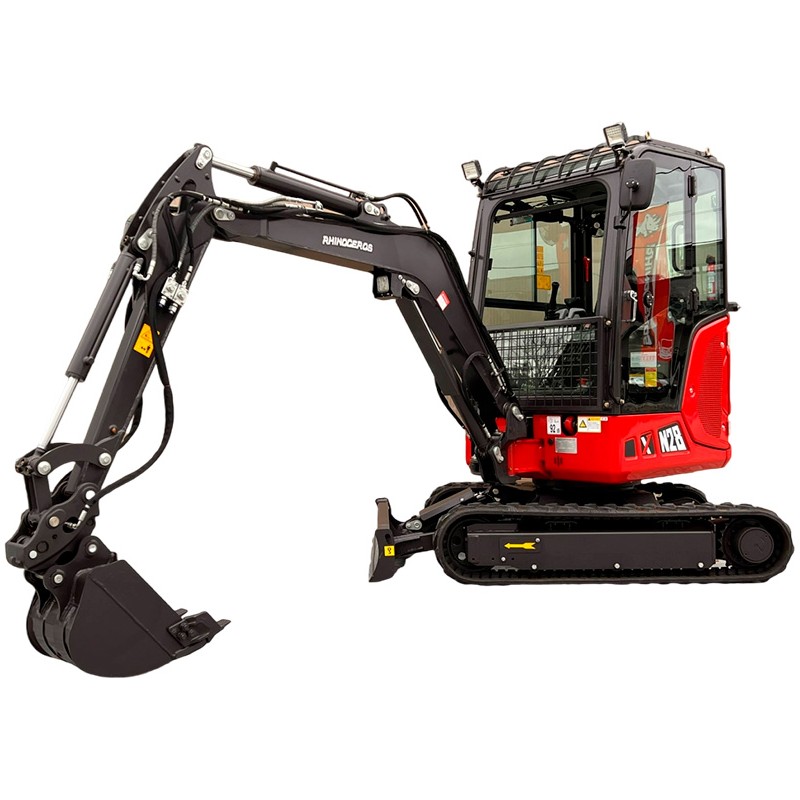

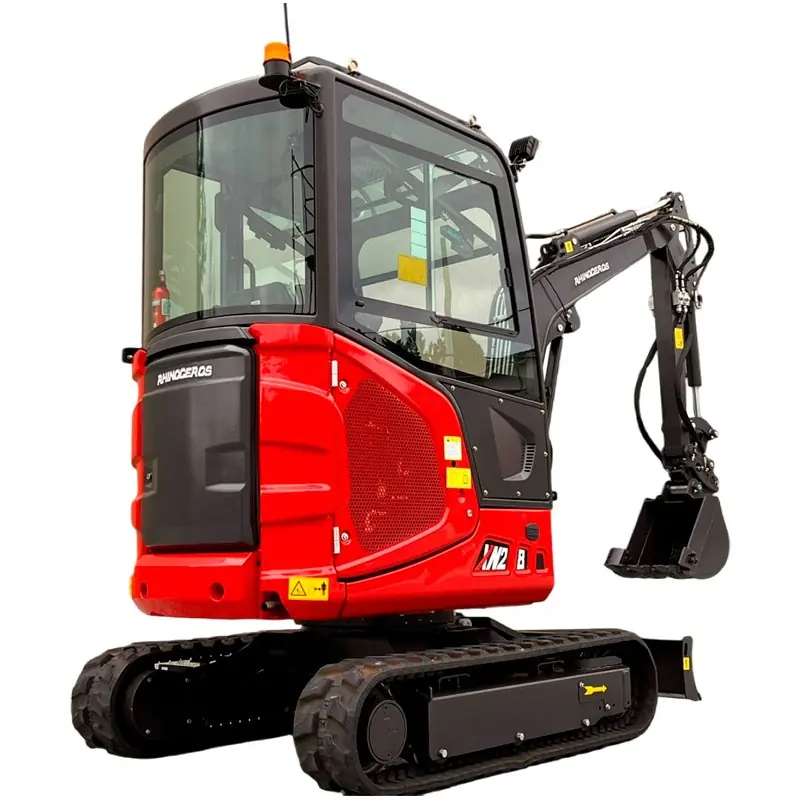

Mini Excavator Zeppelin Rhinoceros XN28ZC

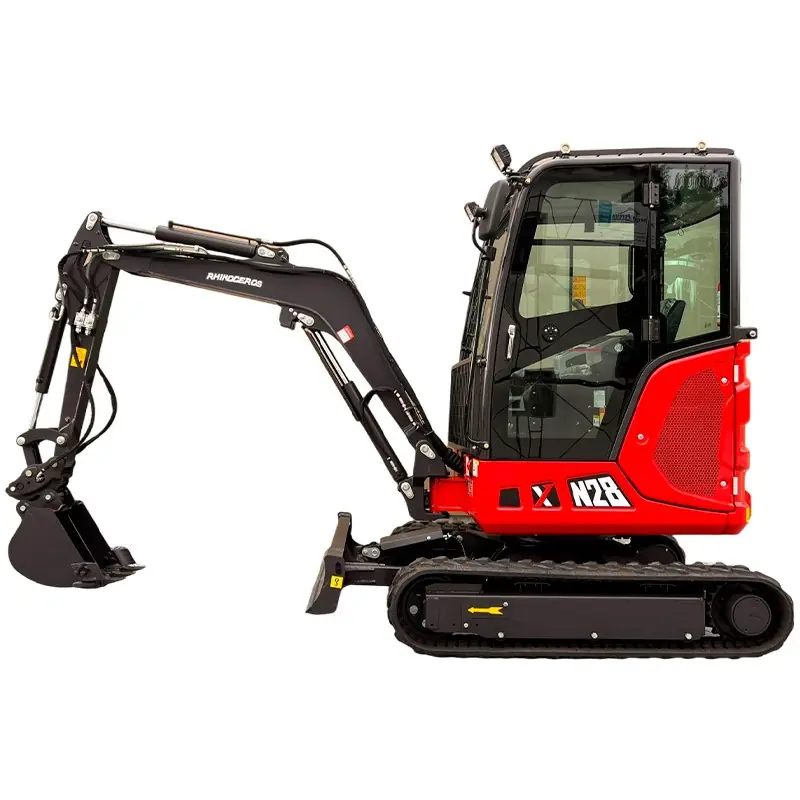

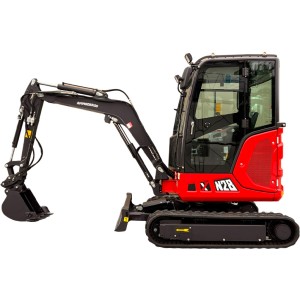

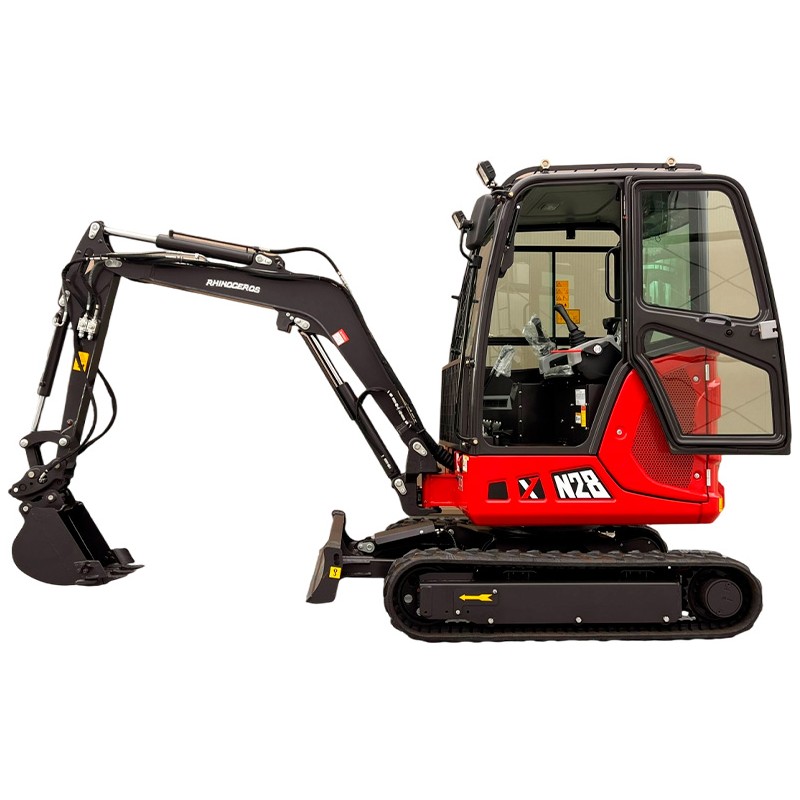

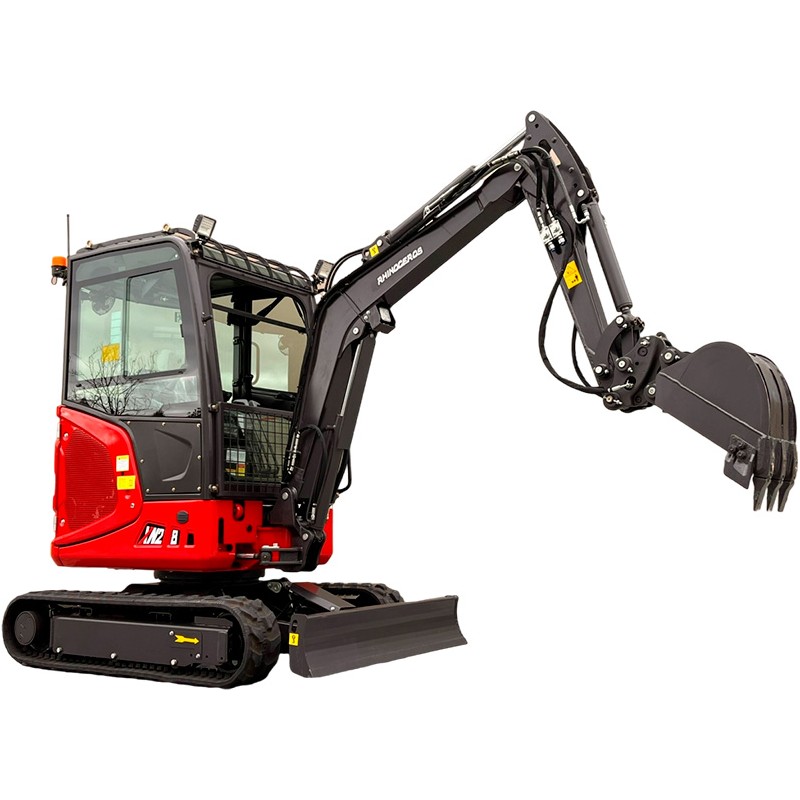

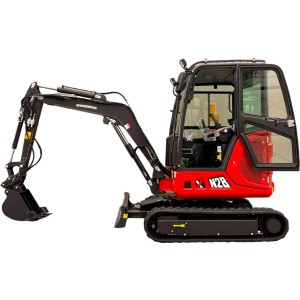

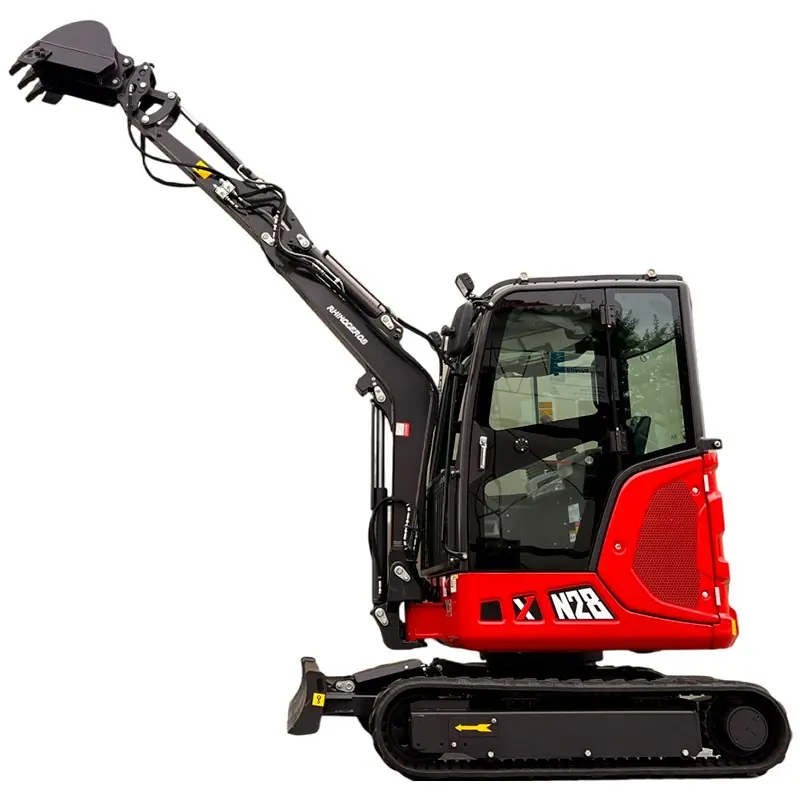

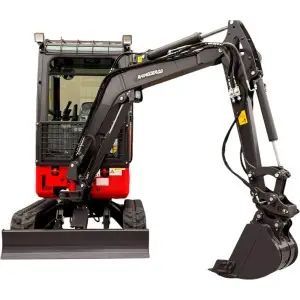

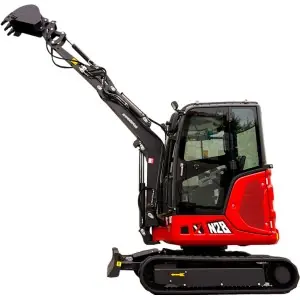

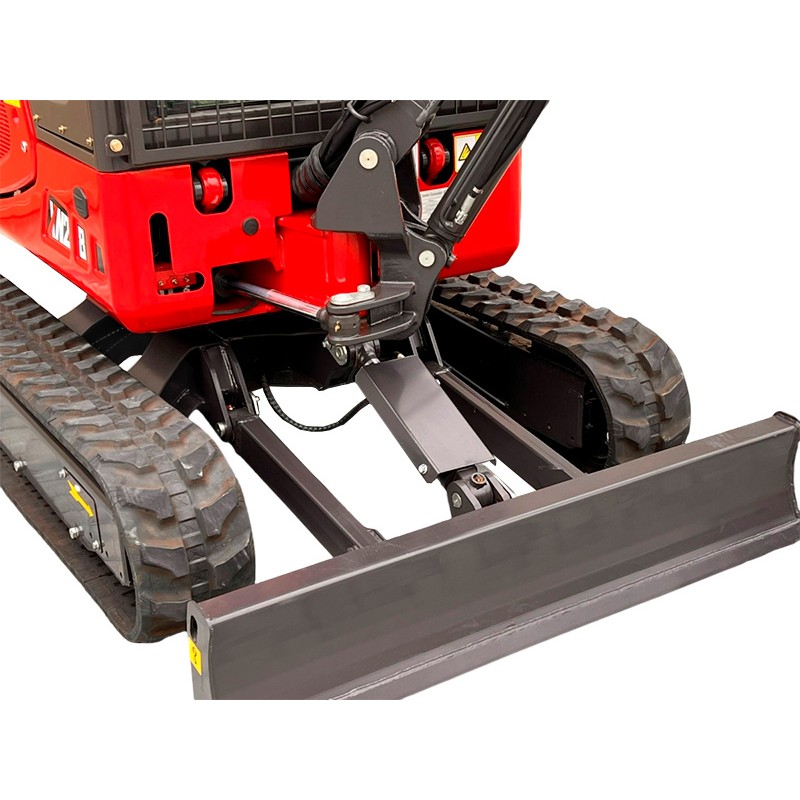

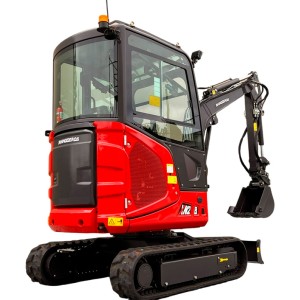

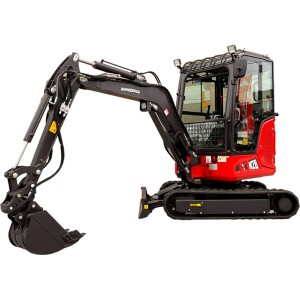

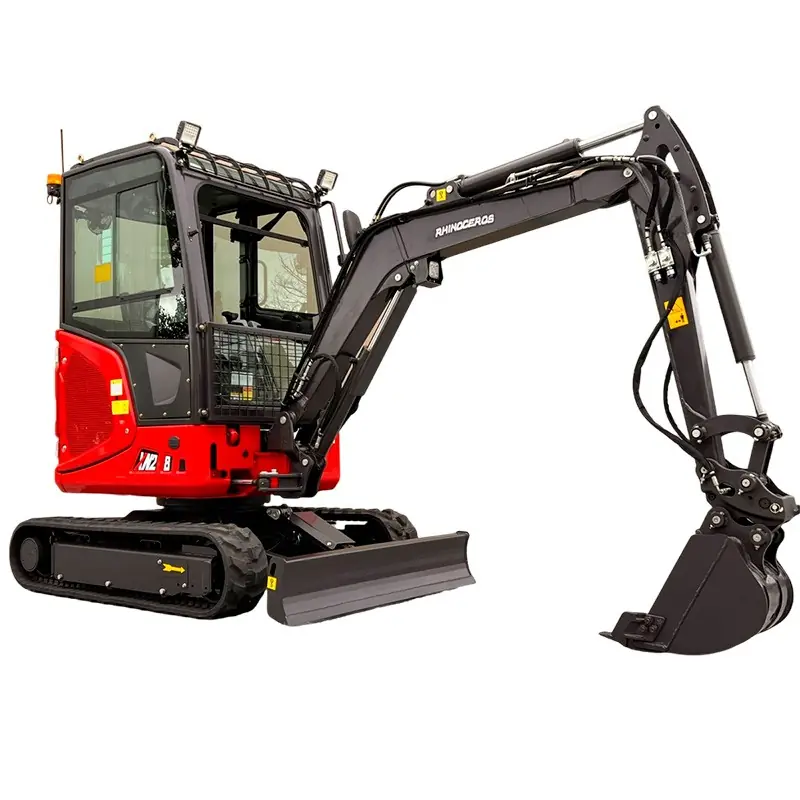

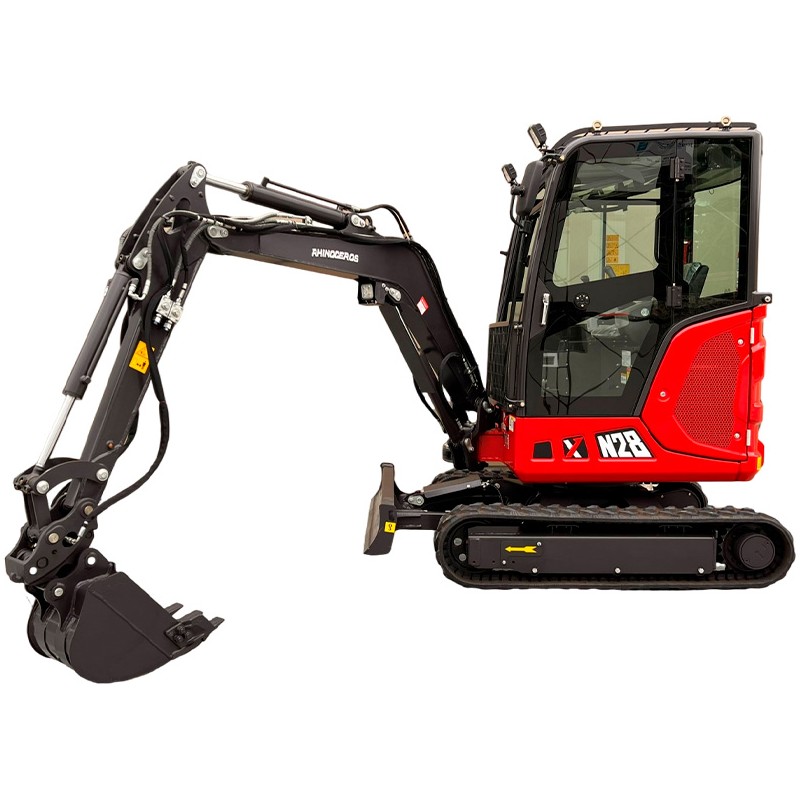

The Rhinoceros XN28ZC mini-excavator Zeppelin Rhinoceros XN28ZC combines compact size with professional performance. With a width of 1.45 m and a transport length of 3.92 m, it is suitable for urban construction sites, gardens and sheds without sacrificing stability and power. The operating weight is around 2.6 tons and the front blade speeds up grading and trench backfilling.

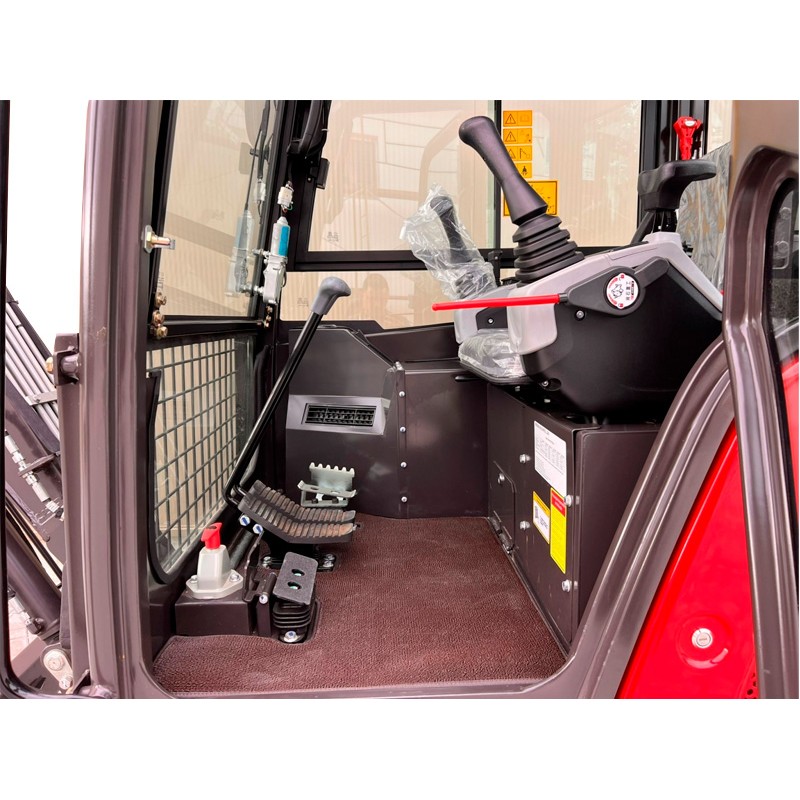

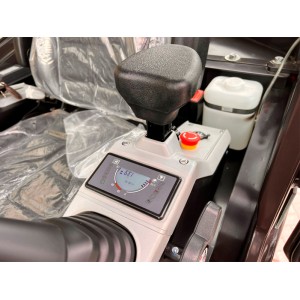

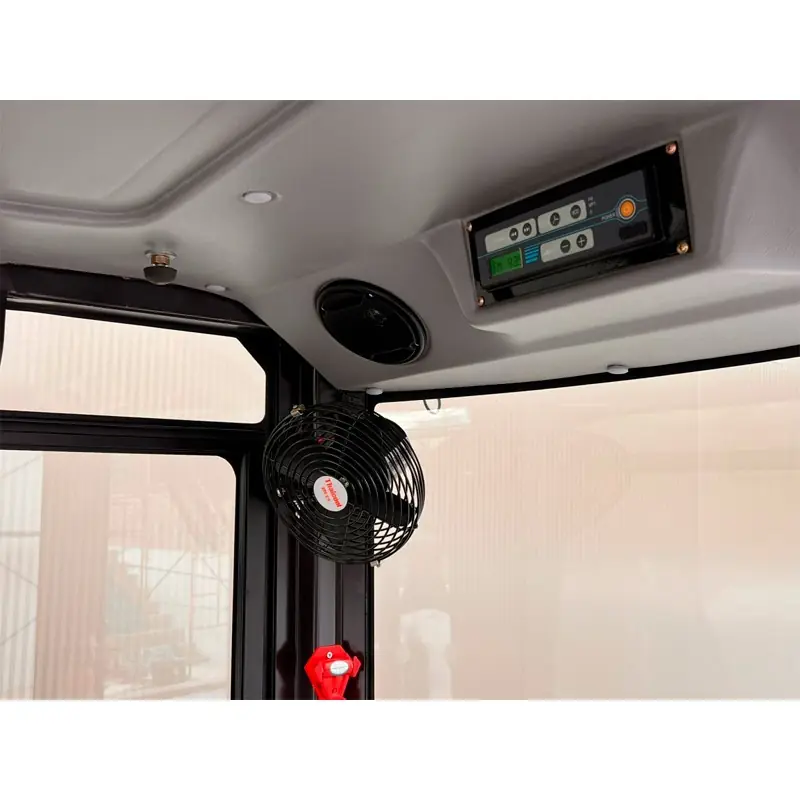

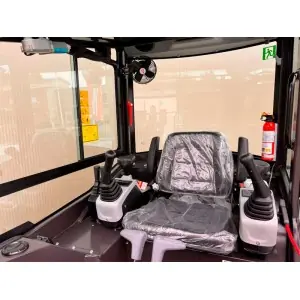

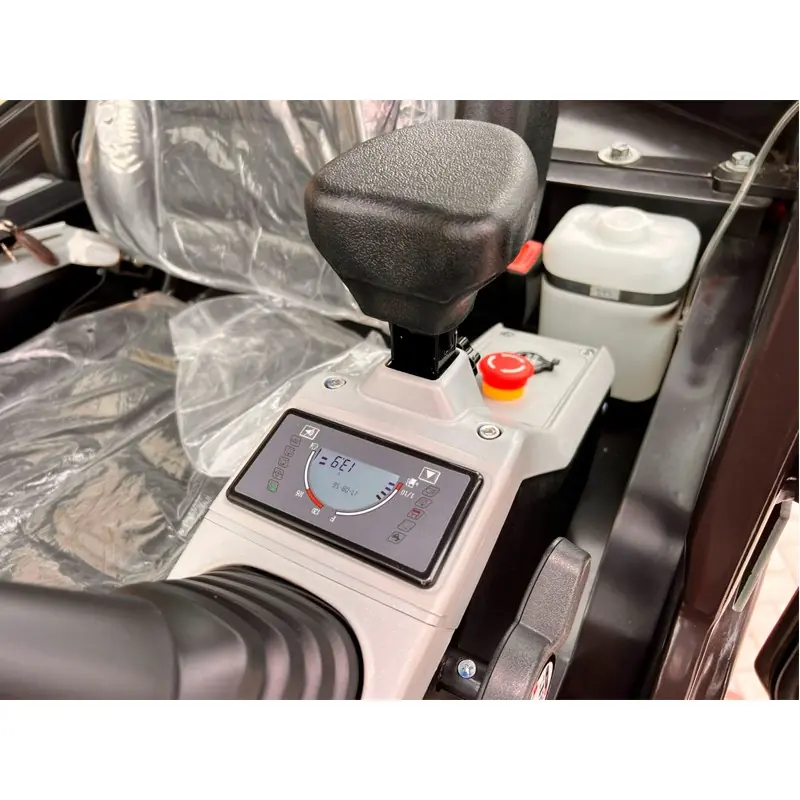

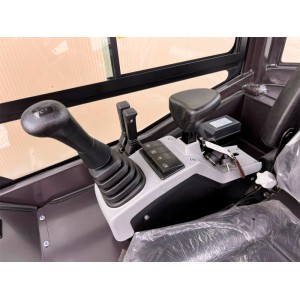

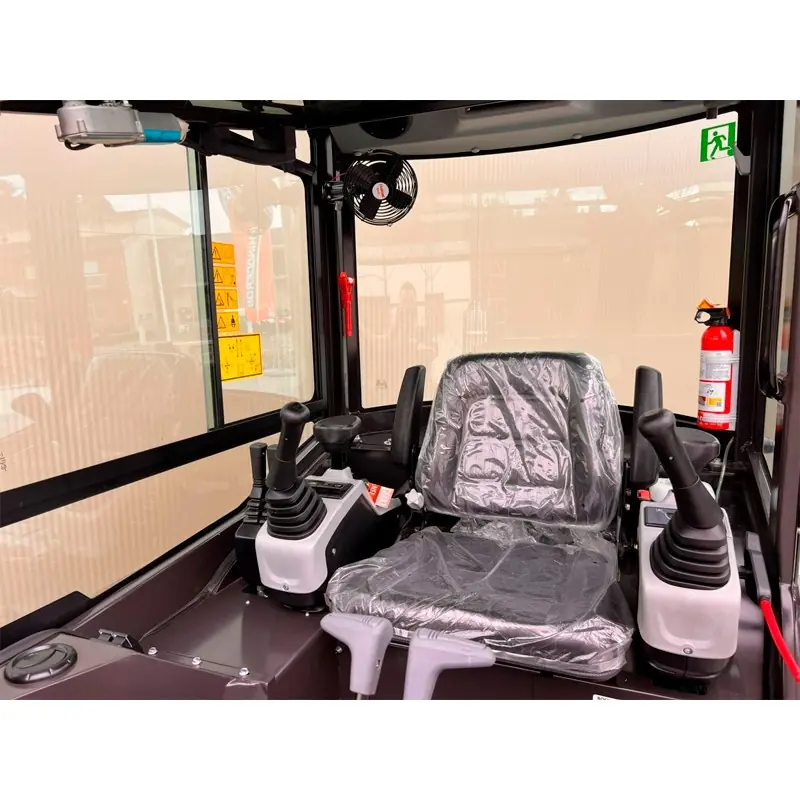

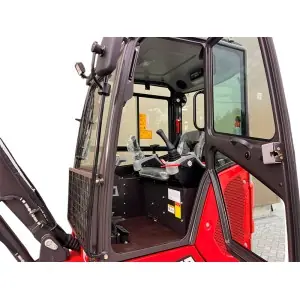

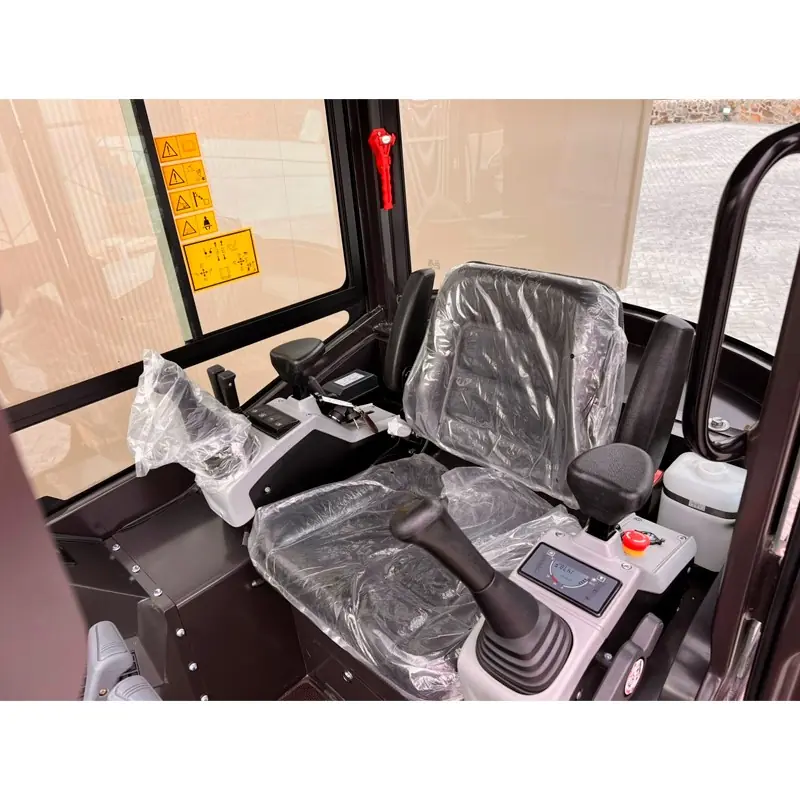

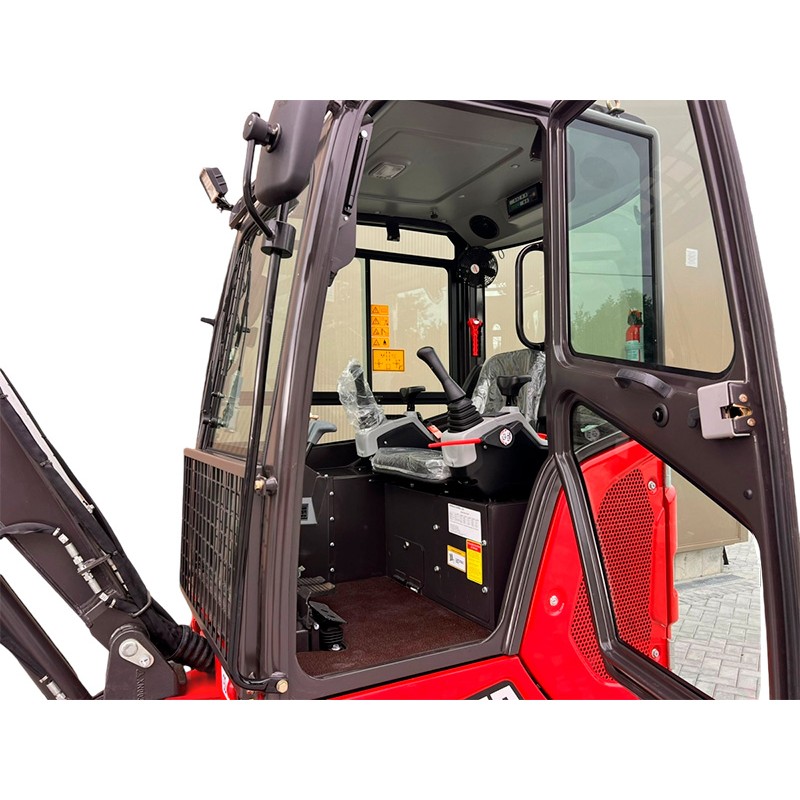

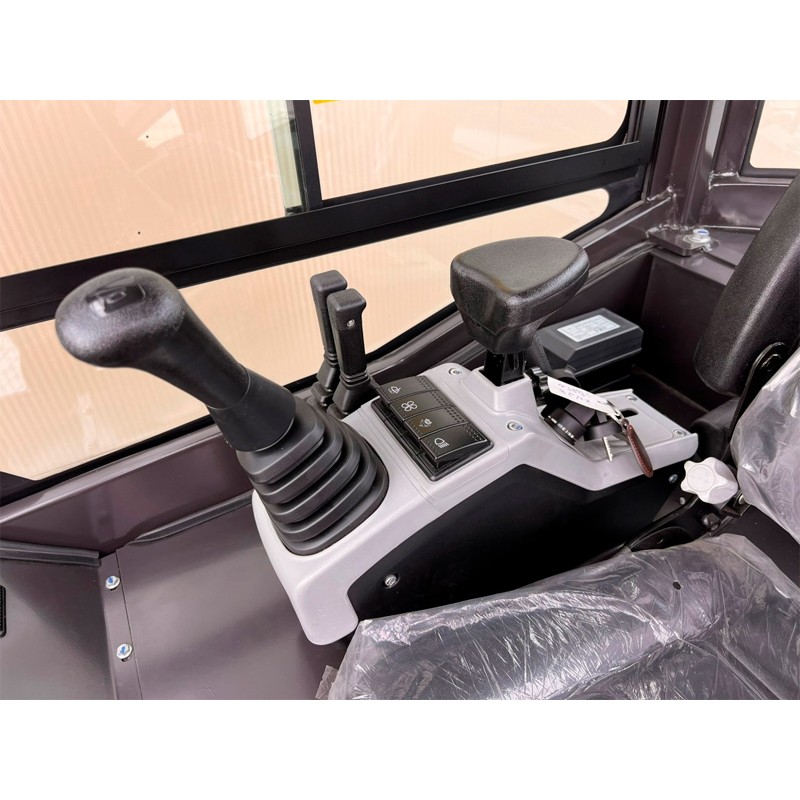

The cab is its strong point. Fully enclosed and panoramic, it protects from dust, rain and wind and allows comfortable working all year round. Visibility to the bucket, blade edge and tracked is ample, and controls are close at hand to reduce fatigue and improve accuracy. A quieter, more protected environment means more working hours with better control.

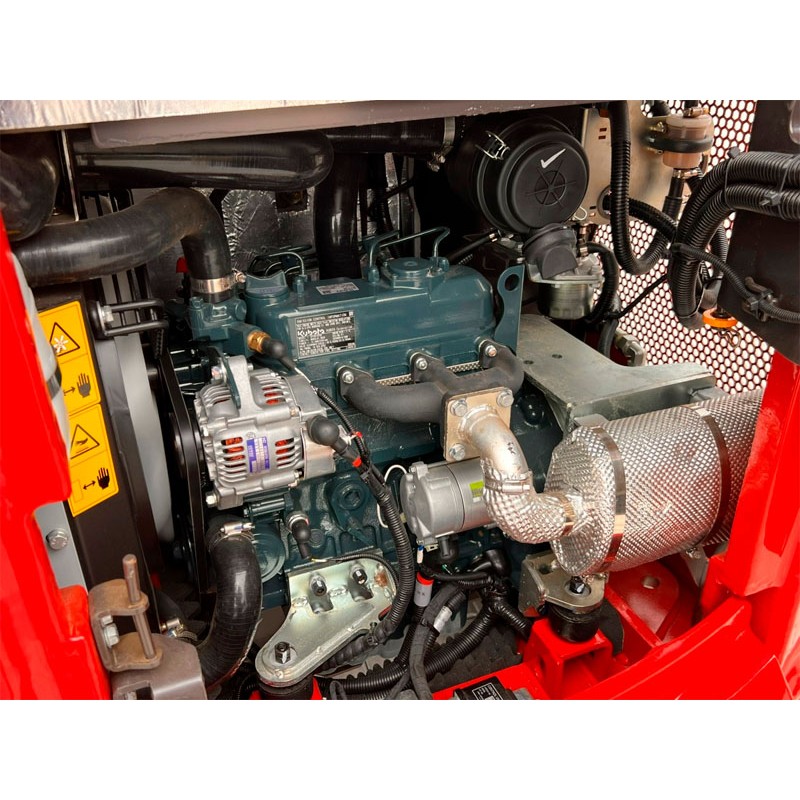

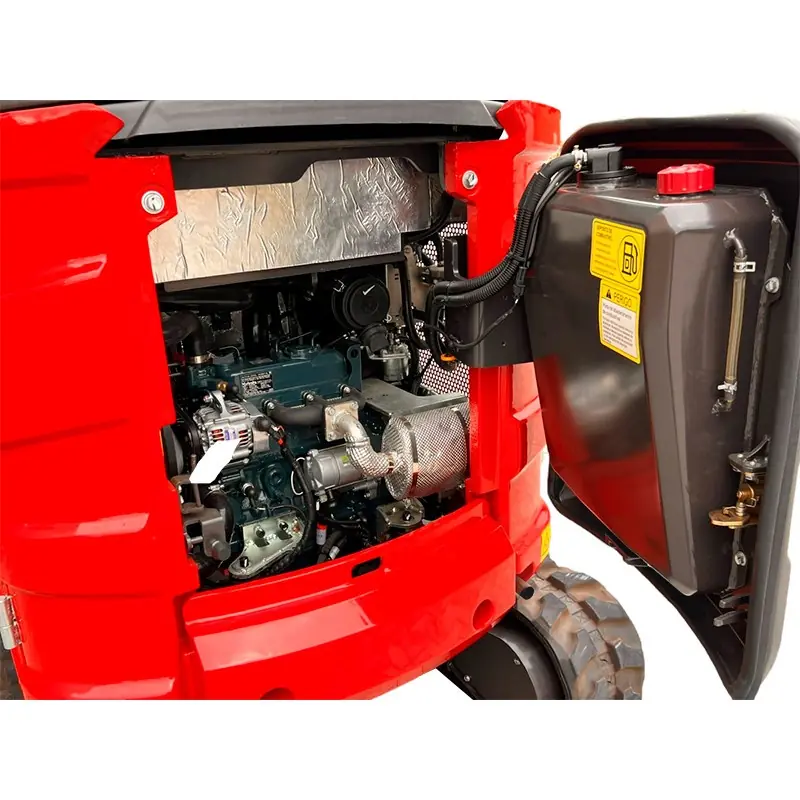

At the heart is a reliable and efficient 14.2 kW Kubota D1105 engine, powering 22 MPa piston hydraulics at 61.9 L/min for smooth movements and real power: 16.14 kN at the bucket and 11.7 kN at the boom. It moves at 1.4-2.7 km/h, turns at 9 rpm and overcomes slopes of 30%.

For day-to-day use, it provides a maximum reach of 4.29 m and a digging depth of 2.40 m, which is sufficient for utility trenches, foundations and farm drainage. The standard 0.04 m³ bucket offers a good balance between capacity and precision. A compact mini-excavator with a comfortable cab, designed to perform safely on construction sites and continuous work.

Features

Operating weight 2610 / 2580 kg
Bucket capacity 0,04 m³
Type Backhoe loader (backhoe)
Engine
Make / model Kubota D1105
Displacement 1,267 / 1,123 L
Rated power 14,2 kW
Maximum torque 51.9 / 5.13 N-m
Starting 12 V - 1.4 kW
Generator 12 V - 55 A
Battery (accumulator) 12 V - 45 Ah, CCA 433
Speed and working forces
Travel speed High 2,7 km/h - Low 1,4 km/h
Turning speed 9 rpm
Maximum gradeability 30°
Bucket digging force 16,14 kN
Arm digging force 11.7 kN
Maximum traction 13 kN
Ground pressure 36 kPa
Part of tracked
Track material Rubber / steel
Tensioning Grease cylinder
Hydraulic system and capacities
Pump type Plunger pump (plunger pump)
Working pressure 22 MPa
Flow rate 61.9 L/min
Hydraulic oil tank 25,3 L
Engine oil capacity 3.4 L (1.6 L)
Fuel tank 22 L

Main dimensions

A. Wheelbase 144 cm
B. Track length 189.2 cm
C. Ground clearance of upper chassis 53.5 cm
D. Counterweight turning radius 88.5 cm
E. Chassis width 145.4 cm
F. Track width 25 cm
G. Track height 45.5 cm
H. Transport length 391.8 cm
I. Height from seat to ground 190.4 cm
J. Overall height 246.9 cm
Dimensiones excavadora

Operating dimensions

A. Max. digging radius on ground 416.8 cm
B. Max. digging radius 429 cm
C. Max. digging depth 239.6 cm
D. Max. digging height 415,3 cm
E. Max. discharge height 290,9 cm
F. Max. vertical depth 209.3 cm
G. Min. turning radius 185.7 cm
H. Max. blade lift 25,7 cm
I. Max. blade depth 41.3 cm
J. Arm swing (right) 47.7 cm
K. Arm swing (left) 53.9 cm
Dimensiones excavadora 1
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case.
262554

Data sheet

Power Supply
Diesel
Power (HP)
19.0 - 19.9 HP
Engine
Kubota
Engine model
D1105
Power
19 HP
Standard ladle
46 cm
Operating weight
2,6 T
Excavator
With cabin
Cylinders
3
✔️
Air conditioning
Multifunction
Water-cooled
Position of controls
Lateral joysticks
Weight
2610 Kg

Specific References

MPN
ESEXCAV400HZ
