Mini Excavator Zeppelin Self-propelled Rhinoceros 190 15.8 HP


  • Weight : 1840 kg
  • Engine : D902 KUBOTA 11,8 Kw - 15,8 hp
  • Total width 800/950 mm
  • Oscillating speed 12 RPM
Assembly and set-up INCLUDED
En stock
icon Power Supply
Power Supply
Diesel
icon Engine
Engine
Kubota
icon Power
Power
15.8 HP
icon Multifunction
Multifunction
Yes
icon Standard ladle
Standard ladle
30 cm
icon Operating weight
Operating weight
1,8 T
icon Excavator
Excavator
With Roof
icon Cylinders
Cylinders
3
icon ✔️
✔️
Water-cooled
icon Weight
Weight
1840 kg
icon Tipo de orugas
Tipo de orugas
Adjustable width
€21,049.50 excl. VAT
- 2%
€20,628.51 excl. VAT
€24,960.50 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Mini Excavator Zeppelin Self-propelled Rhinoceros 190 15.8 HP
€24,960.50
Qty

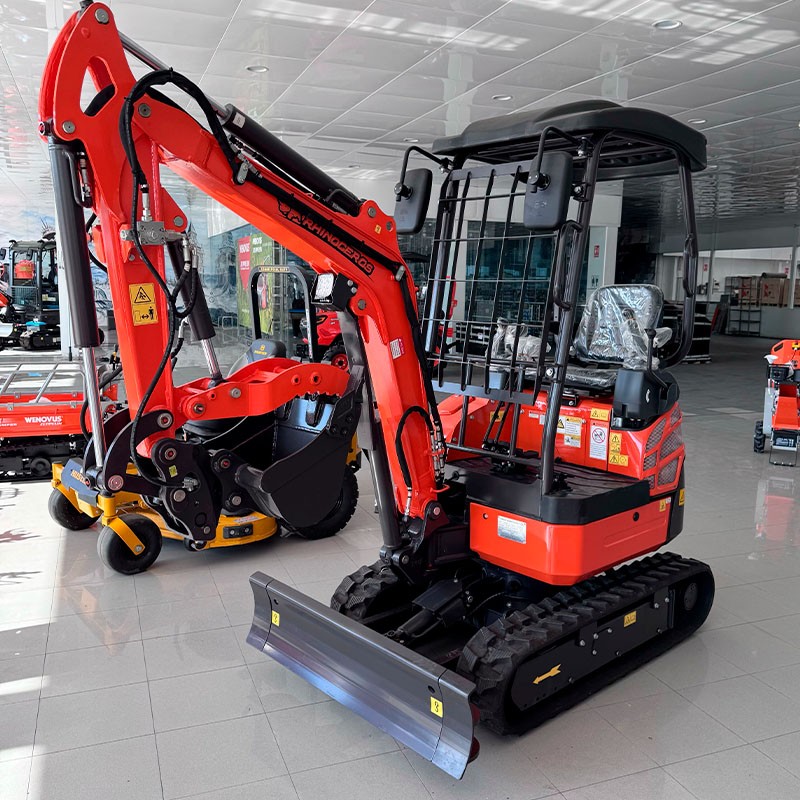

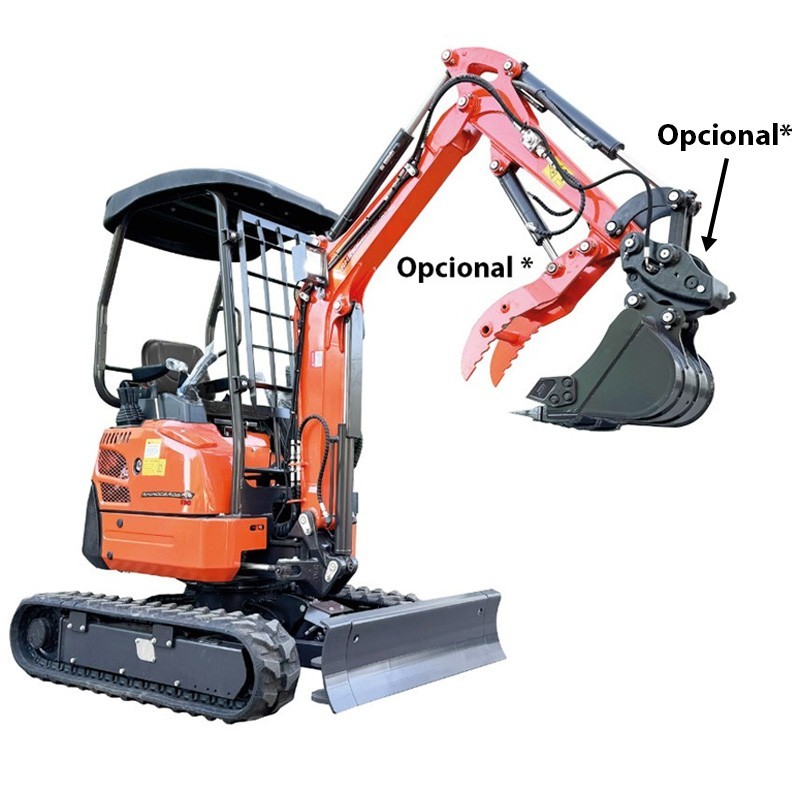

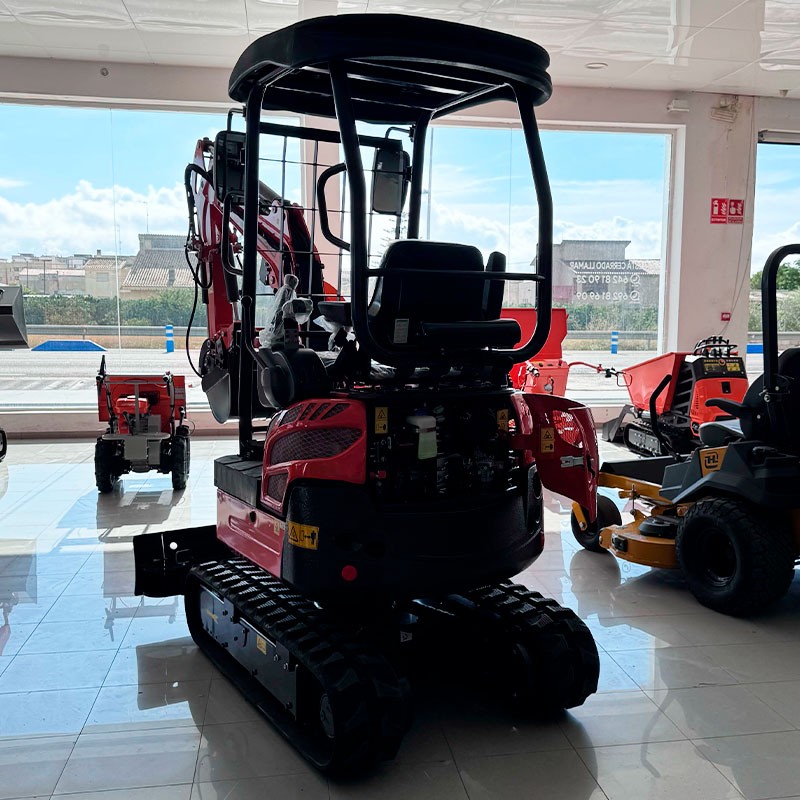

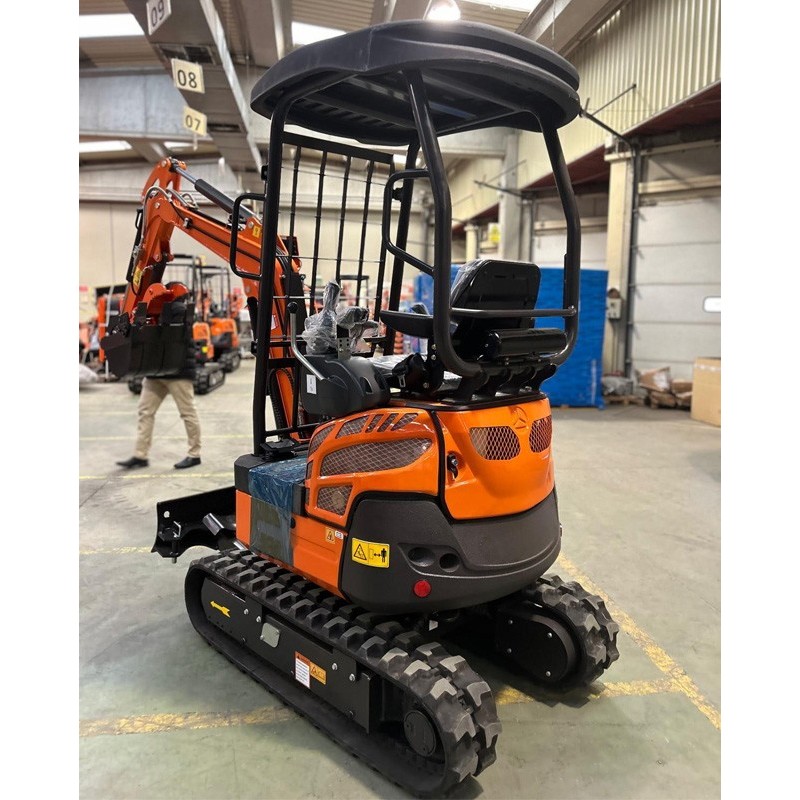

Mini Excavator Zeppelin Self-propelled Rhinoceros 190

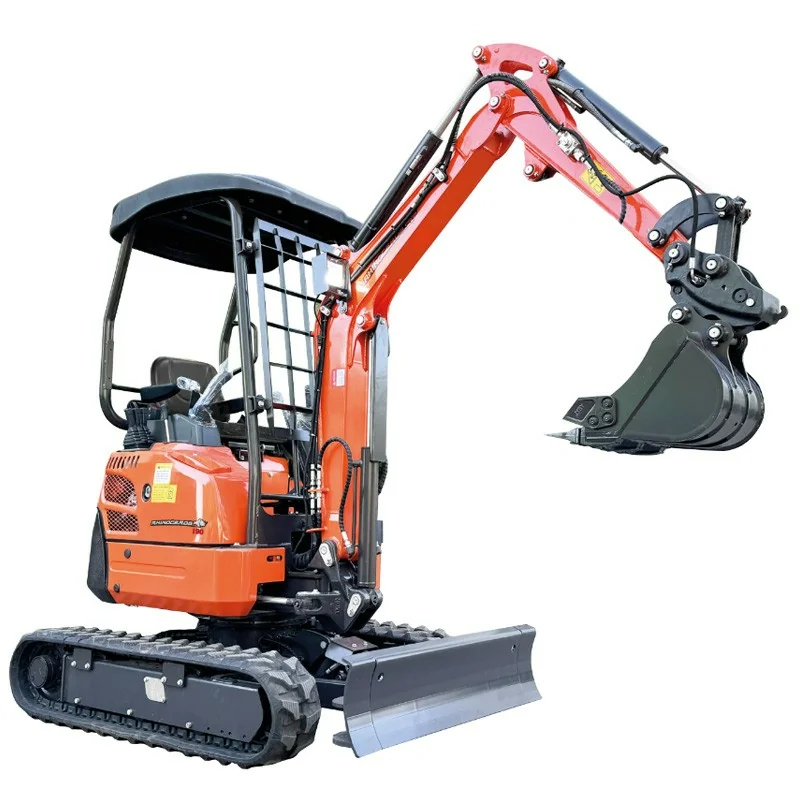

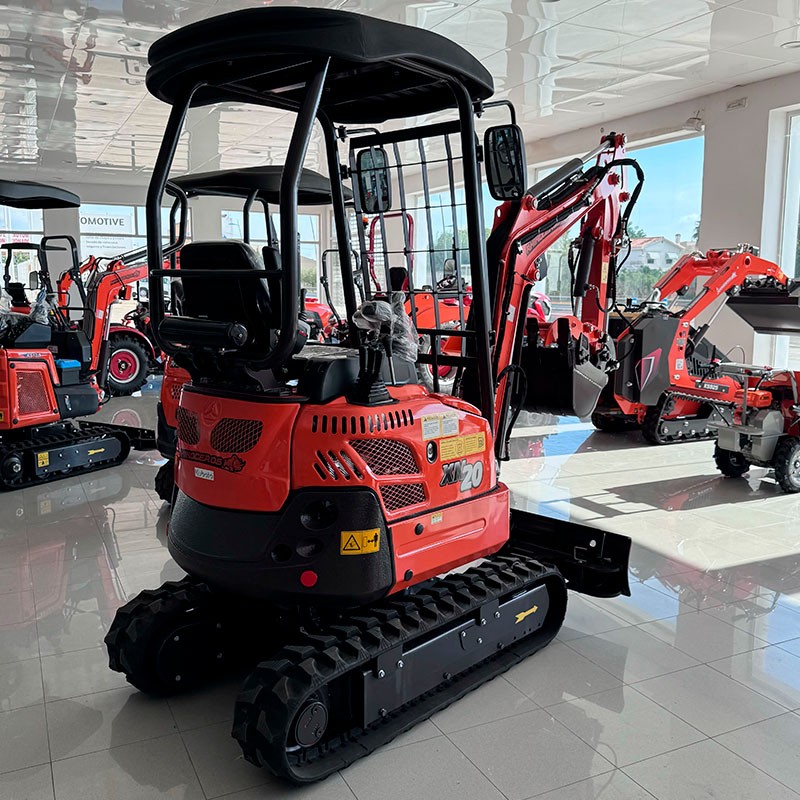

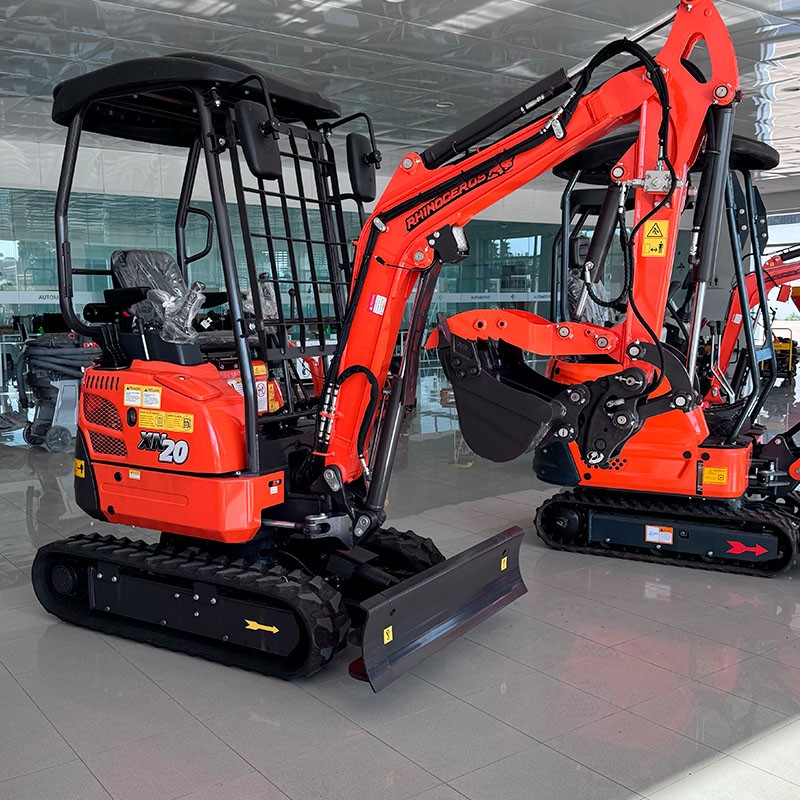

The mini excavator Zeppelin Rhinoceros 190 is a compact and versatile machine, ideal for excavation work in confined spaces. Thanks to its operating weight of 1,840 kg and its telescopic chassis, it can adapt to different working widths between 990 and 1240 mm, facilitating access to difficult areas without sacrificing stability.

Equipped with a 15.8 hp, water-cooled Kubota D902 diesel engine, this mini-excavator offers reliable power and low fuel consumption. Its joystick hydraulic system provides precise maneuvering control, while the 360° rotation allows smooth and continuous operation.

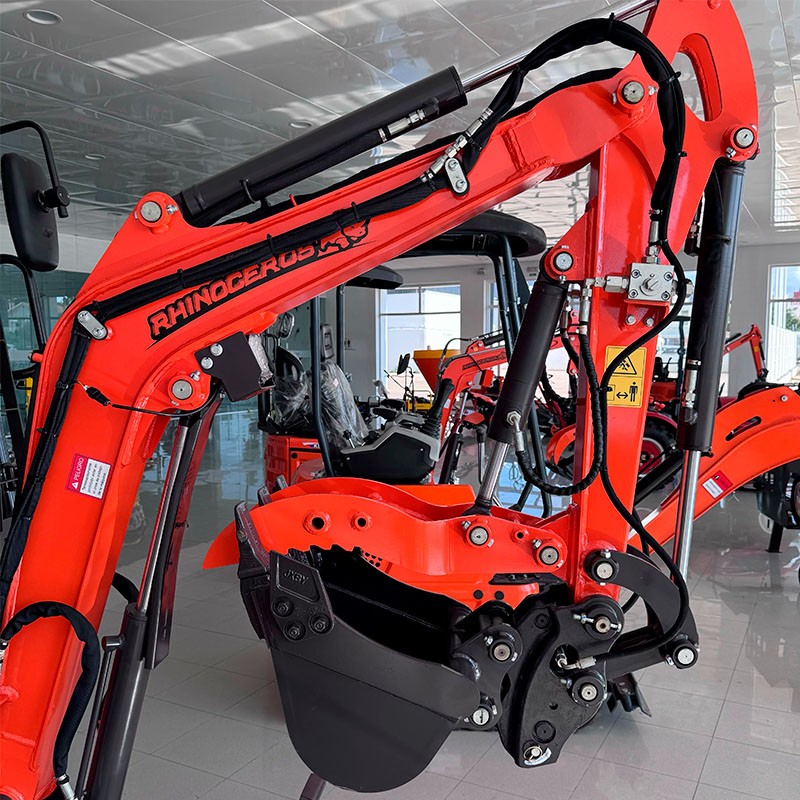

The Rhinoceros 190 stands out for its digging capacity, reaching a maximum depth of 2,150 mm and a dump height of up to 2,310 mm. Its robust design, together with the boom swinging in both directions, makes it an efficient choice for urban construction sites, landscaping work or utility maintenance.

Features

Model ESEXCAV190HZ
Weight 1840 kg
Engine - Model KUBOTA D902
Engine - Type Diesel, 4-stroke, 3 cylinders
Engine - Power 11,8 Kw - 15,8 hp
Engine speed 2300 rpm
Cooling Water
Combustion system TVCR
Total width 990 - 1240 mm

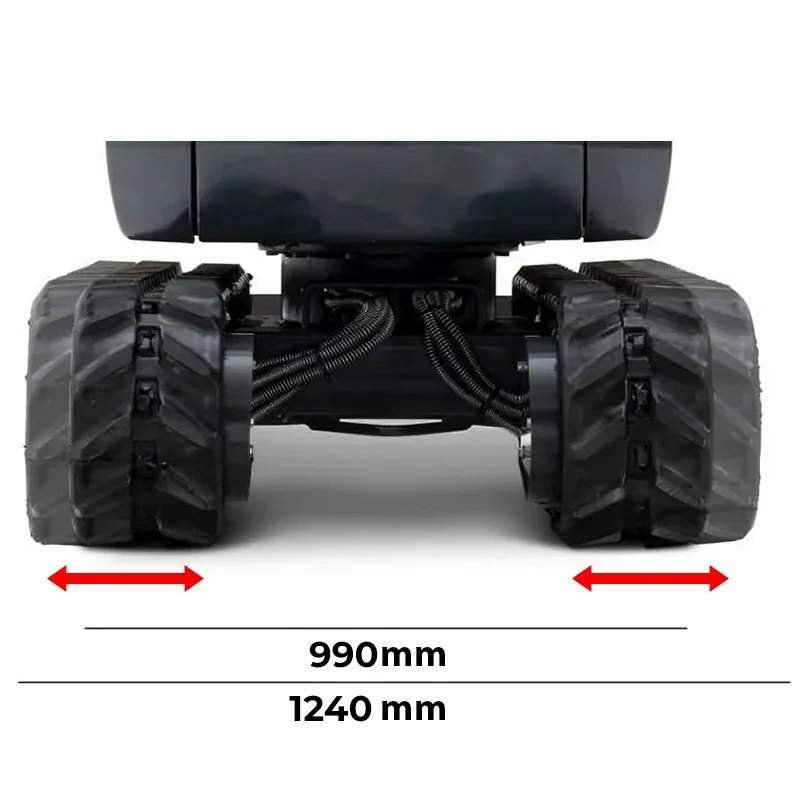

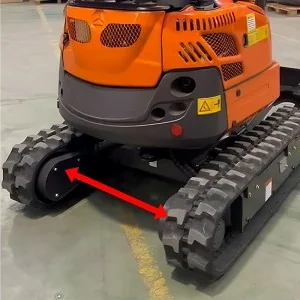

Telescopic lower frame 990 mm in transport, 1240 mm in operation
Swing speed 12 rpm
Rotation 360º

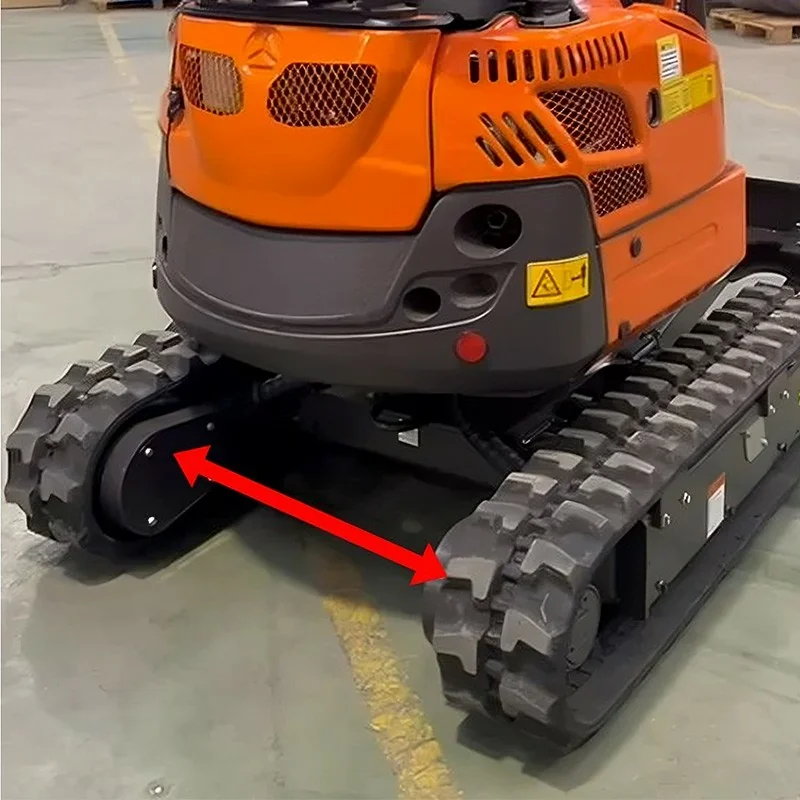

Chains Hydraulically adjustable width

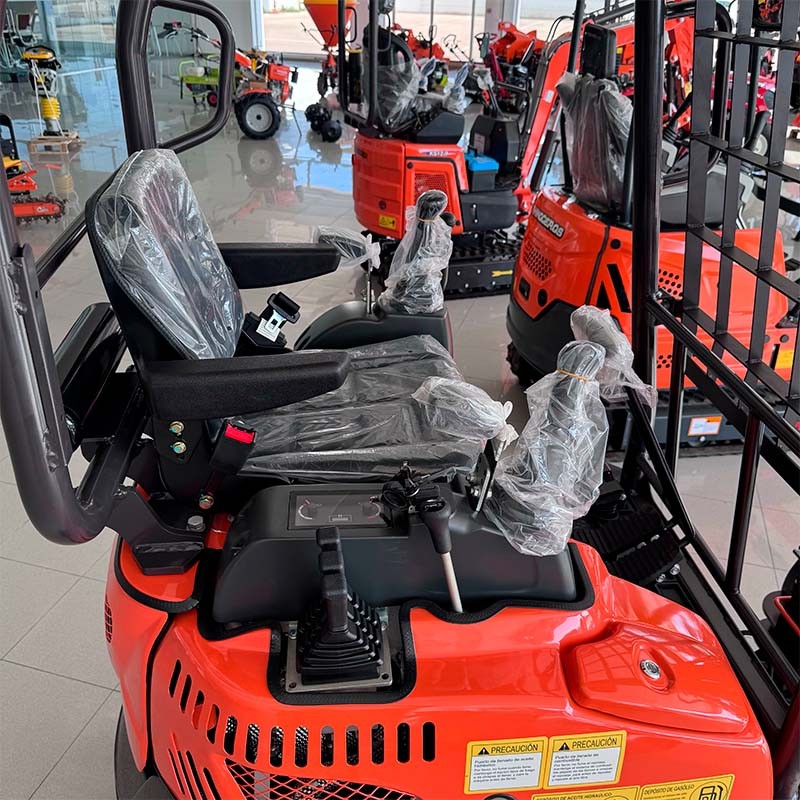

Maneuvering control Hydraulic joystick


Main dimensions

a. Distance between axles 1230 mm
b. Track length 1590 mm
c. Ground clearance of upper chassis 473 mm
d. Counterweight turning radius 740 mm
e. Working width 990 - 1240 mm
f. Track width 230 mm
g. Track height 360 mm
h. Transport length 3400 mm
i. Height from seat to ground 1660 mm
j. Overall height 2350 mm

Operating dimensions

A. Maximum digging radius in the ground 3610 mm
B. Maximum digging radius 3700 mm
C. Maximum digging depth 2150 mm
D. Maximum digging height 3275 mm
E. Maximum discharge height 2310 mm
F. Maximum vertical digging depth 1740 mm
G. Minimum turning radius 1580 mm

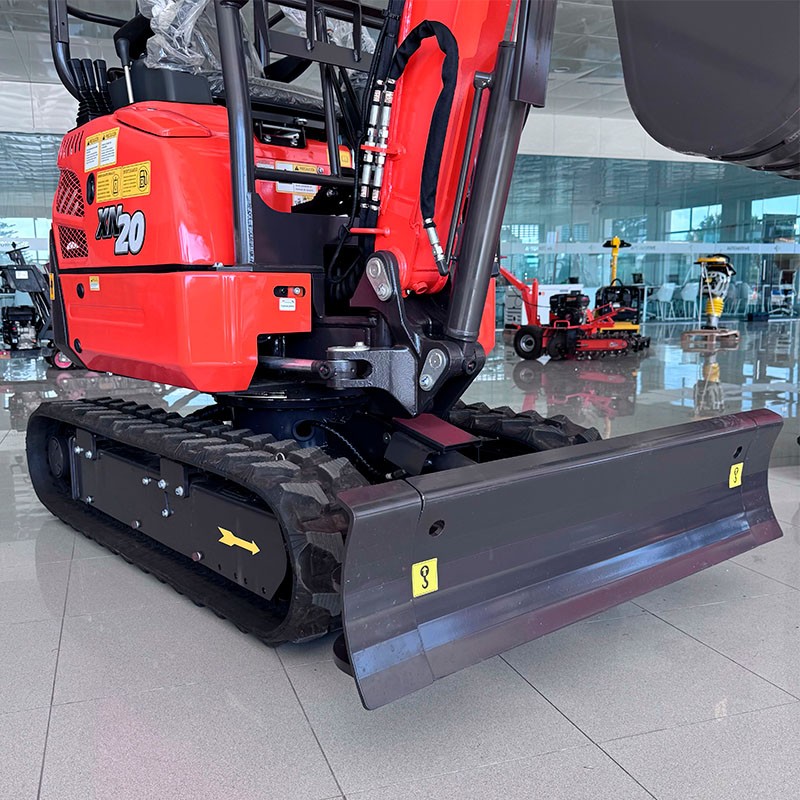

H. Maximum bulldozer blade lifting height 275 mm
I. Maximum bulldozer blade depth 180 mm
J. Arm swing (right) 390 mm
K. Arm swing (left) 510 mm
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
This product requires means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before ordering to evaluate your case.
