  • Model : LONCIN 302
  • Displacement: 302 cc
  • Power / rotation : 6,8 kW / 3600 r/min
Deleks products take about 15 to 25 days.
En stock
icon Power Supply
Power Supply
Gasoline
icon Engine
Engine
Loncin
icon Engine model
Engine model
302
icon Power
Power
9 HP
icon Standard ladle
Standard ladle
40 cm
icon Operating weight
Operating weight
0,7 T
icon Excavator
Excavator
With roof
icon Position of controls
Position of controls

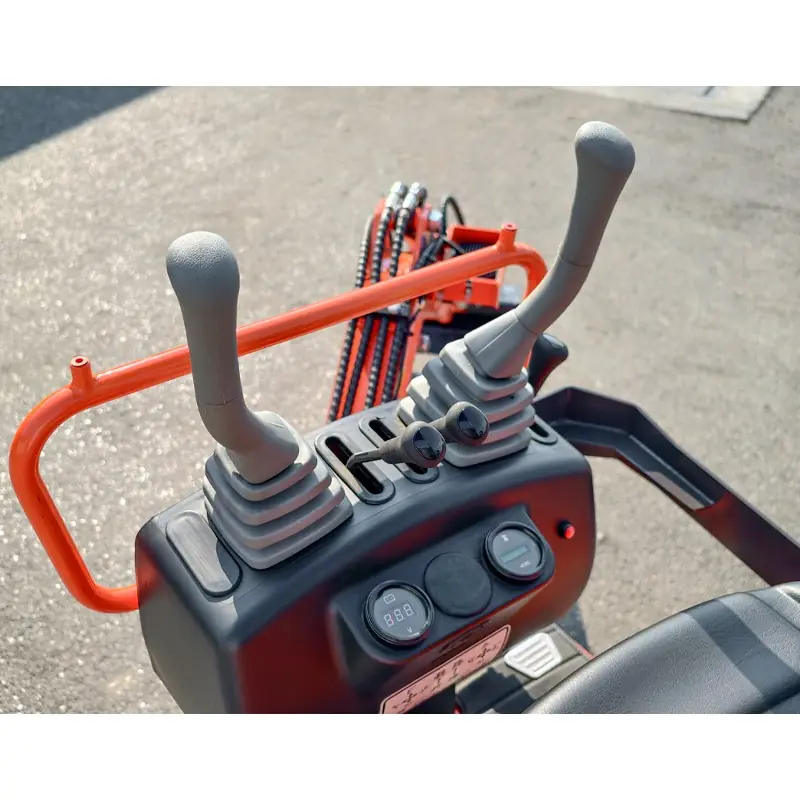

Front joysticks
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
665 kg
€4,378.88 excl. VAT
€5,298.44 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Mini small excavator Deleks M60 gasoline engine 9 HP
€5,298.44
Qty

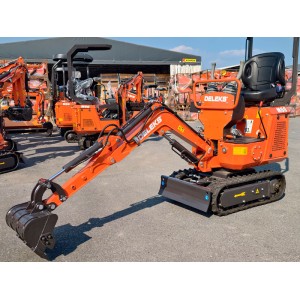

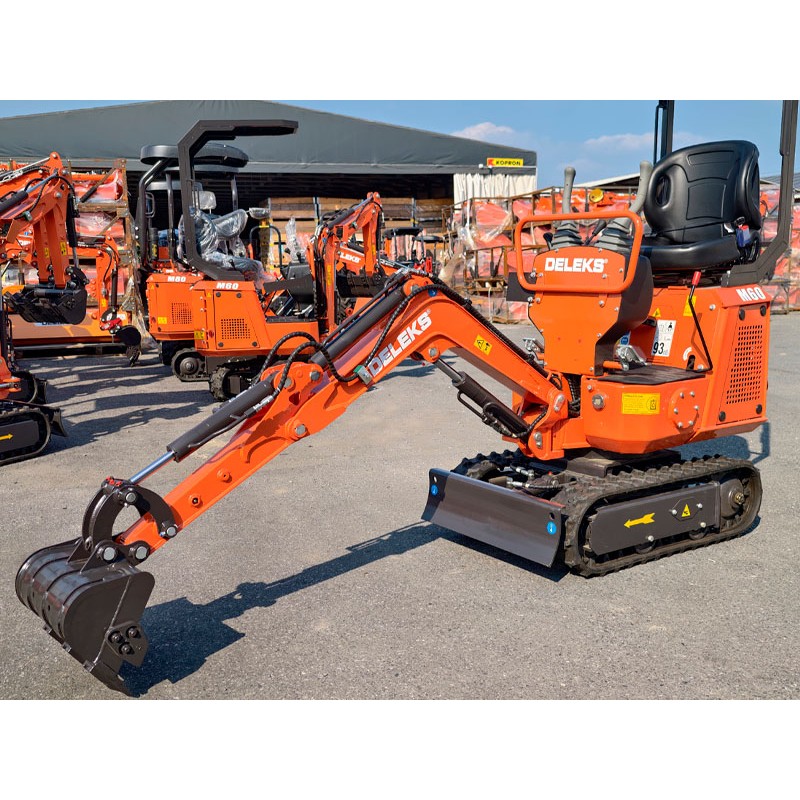

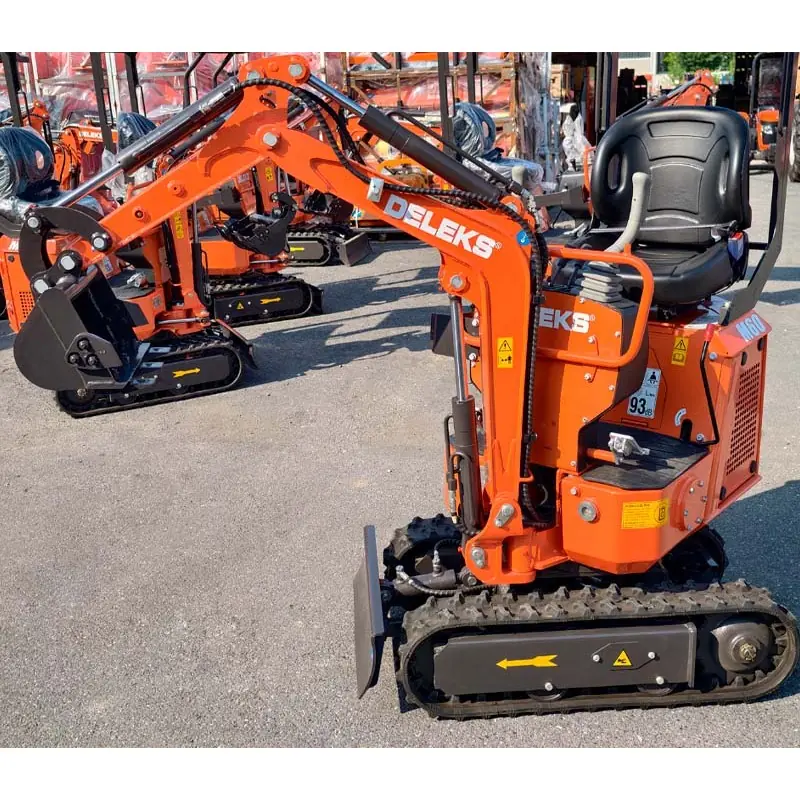

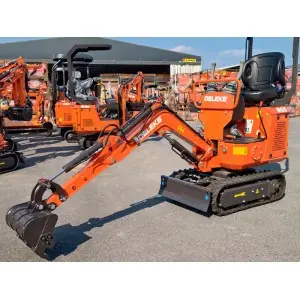

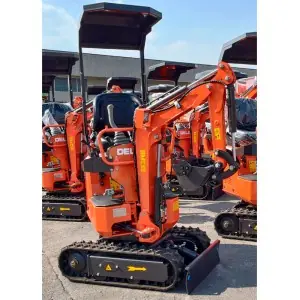

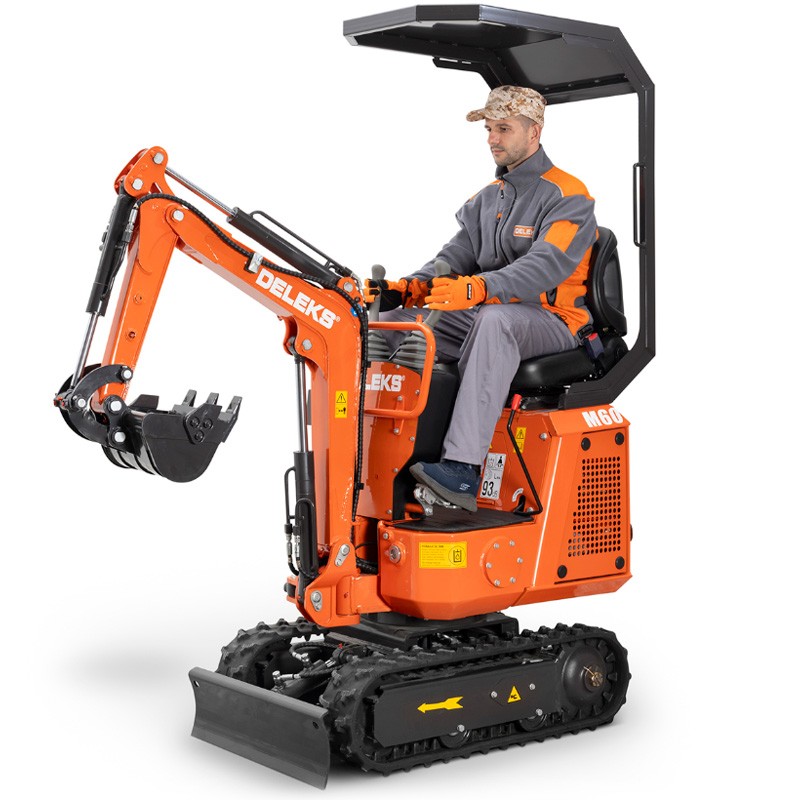

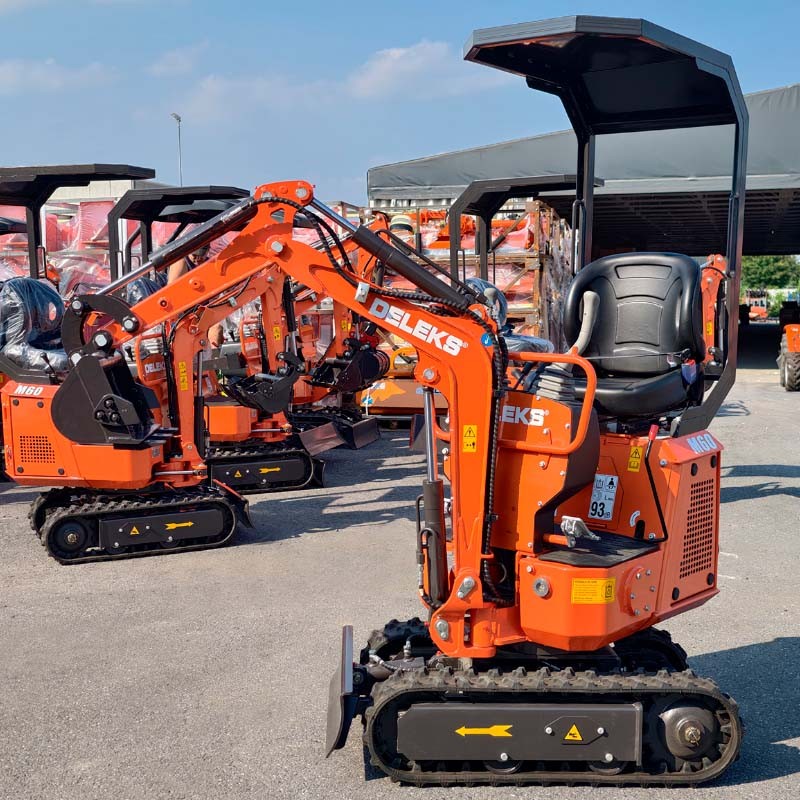

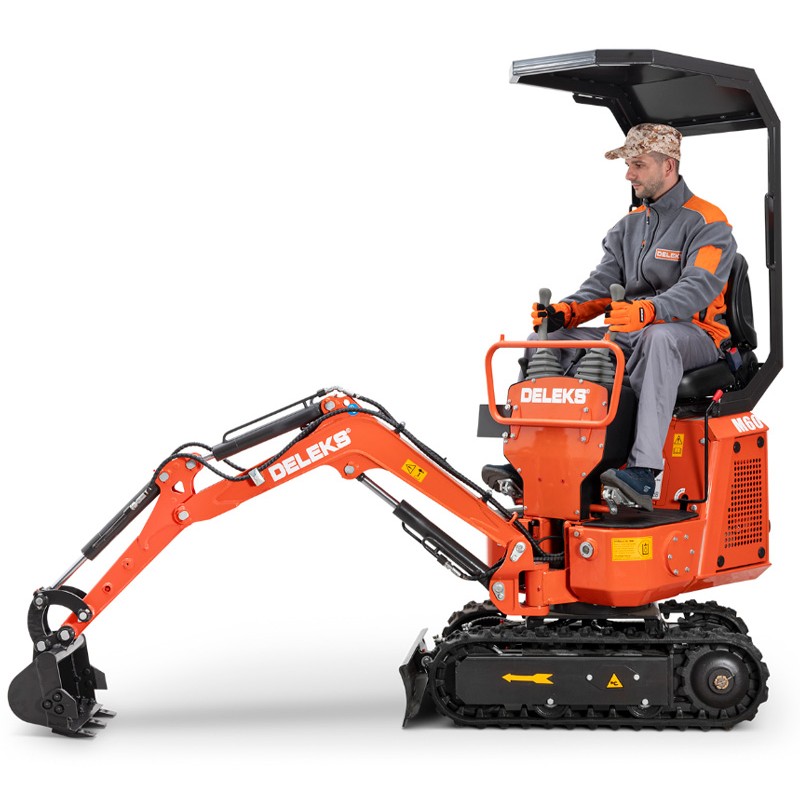

Mini excavator Deleks M60

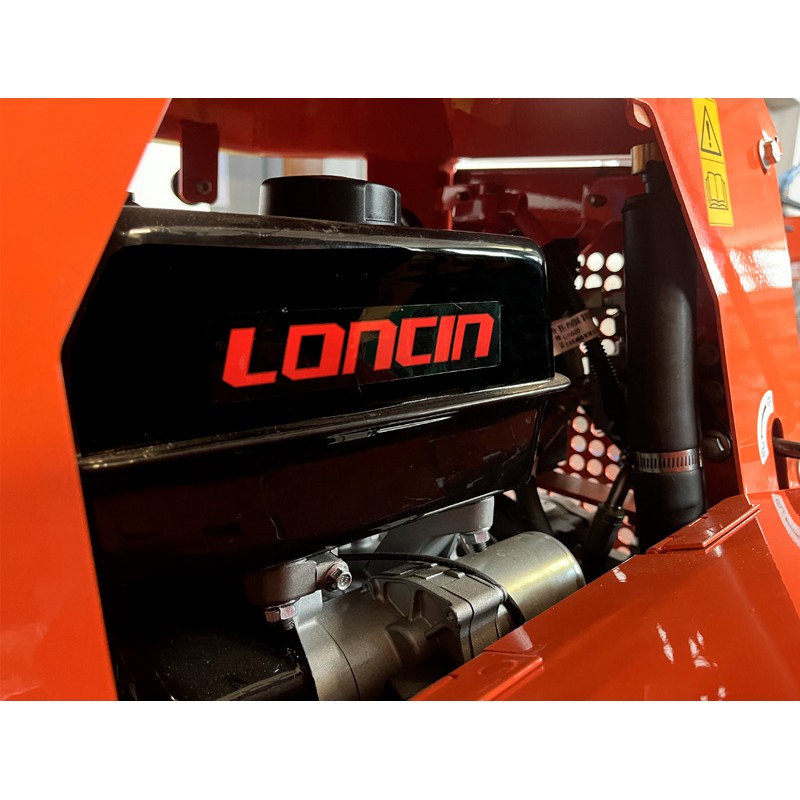

The mini excavator Deleks M60 is the ideal solution for working in confined spaces thanks to its extremely compact design and its gasoline engine Loncin 302 with 9.0 hp at 3600 rpm. With an advanced hydraulic system that offers smooth and vibration-free movements, this machine guarantees precision and comfort in every maneuver.

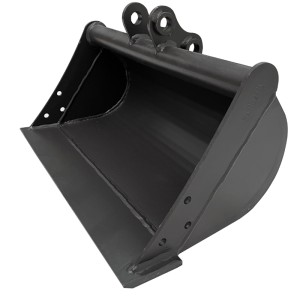

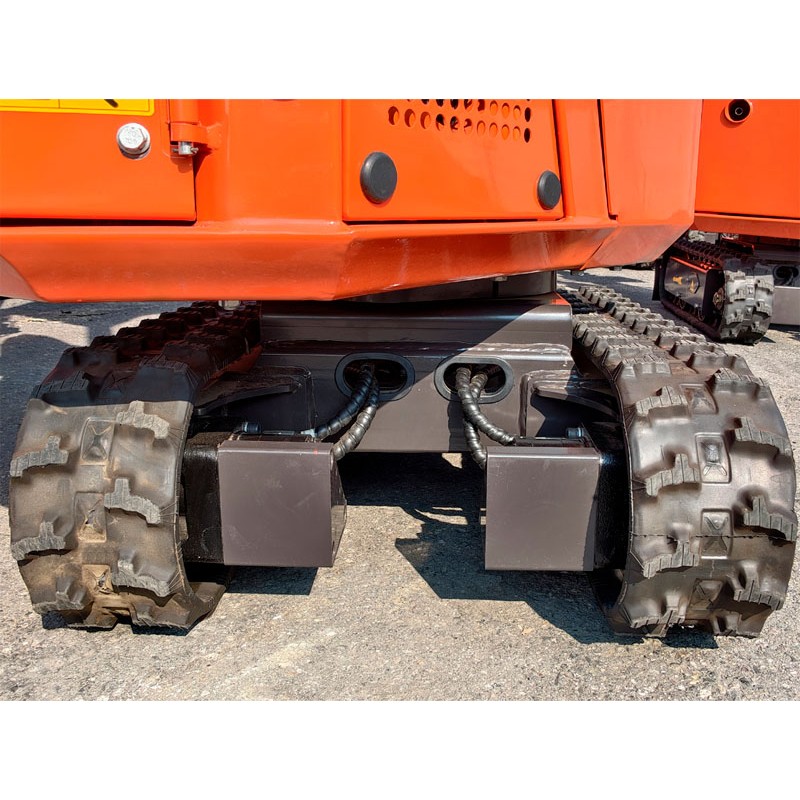

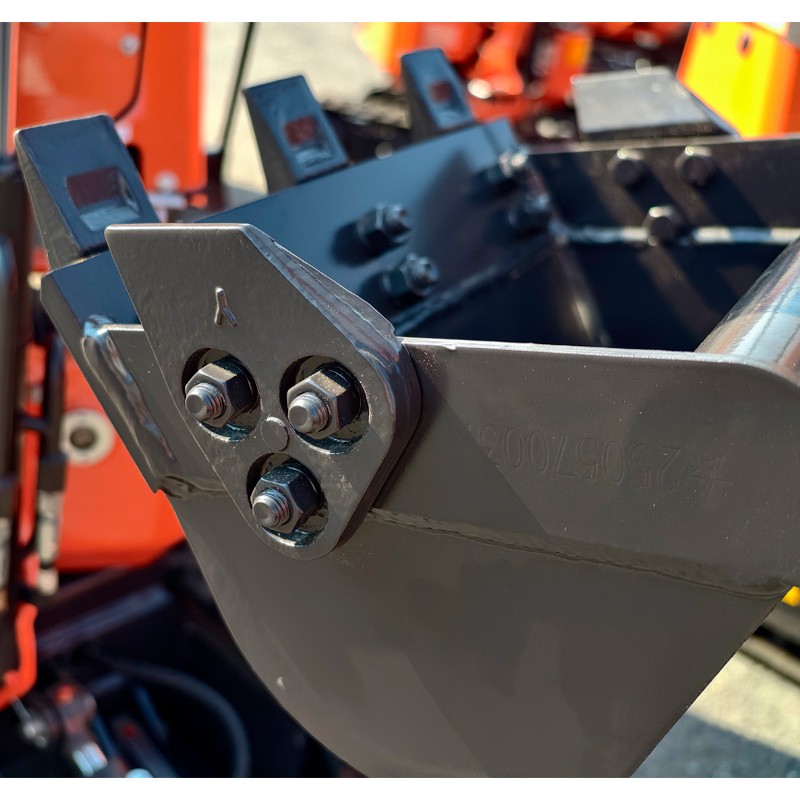

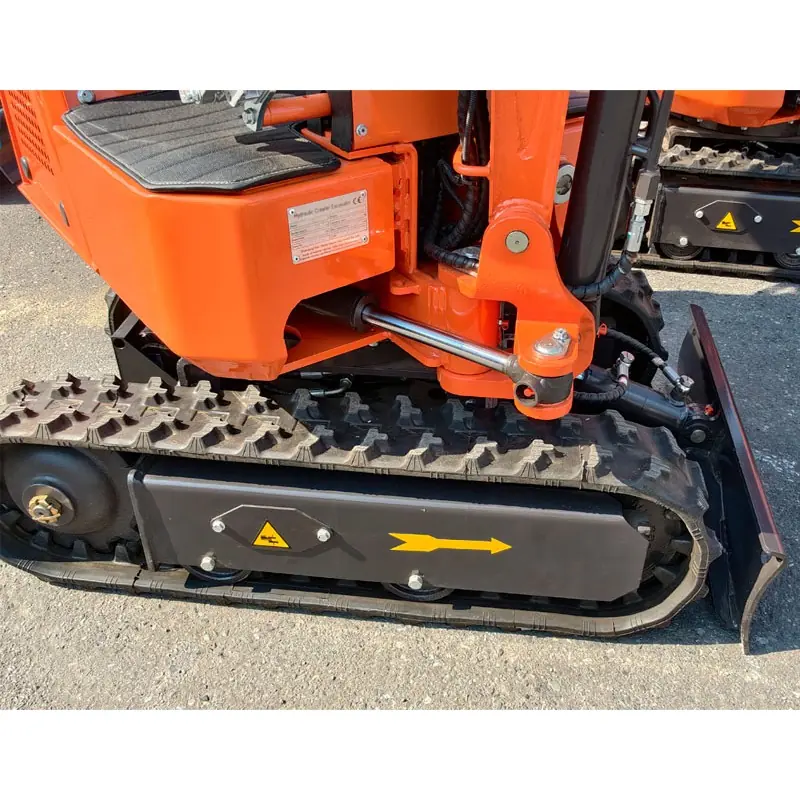

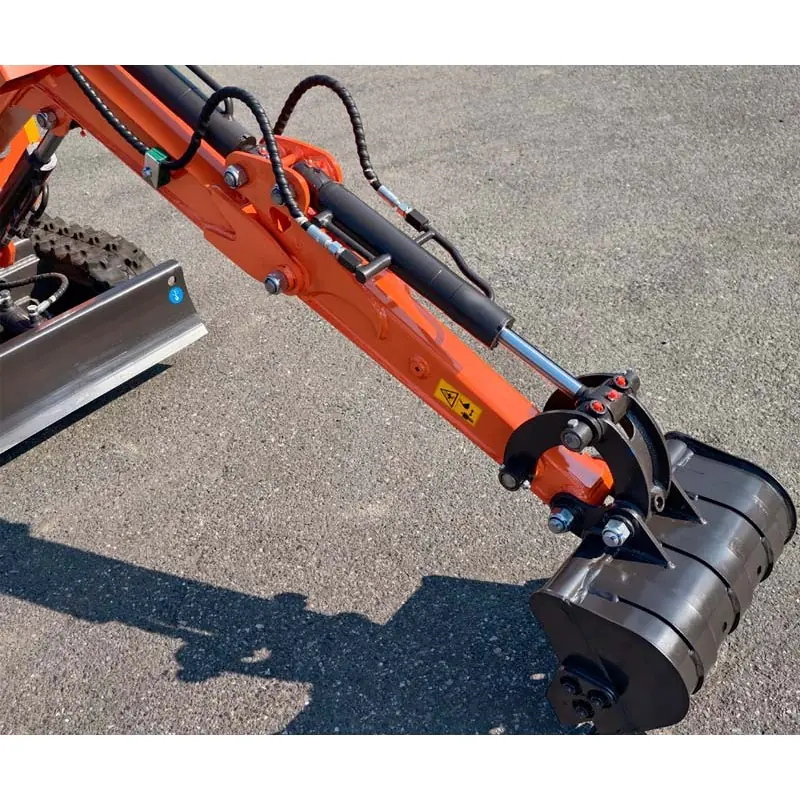

Equipped with a 40 cm ladle and adjustable arm, the Deleks M60 facilitates the canalization of irrigation systems, the placement of plants in gardens and small demolition tasks during renovations. Its weight of 665 kg and its tracked rubber pads allow it to access places where other larger machines cannot fit, also avoiding soil compaction thanks to its low ground pressure of 25.4 KPa.

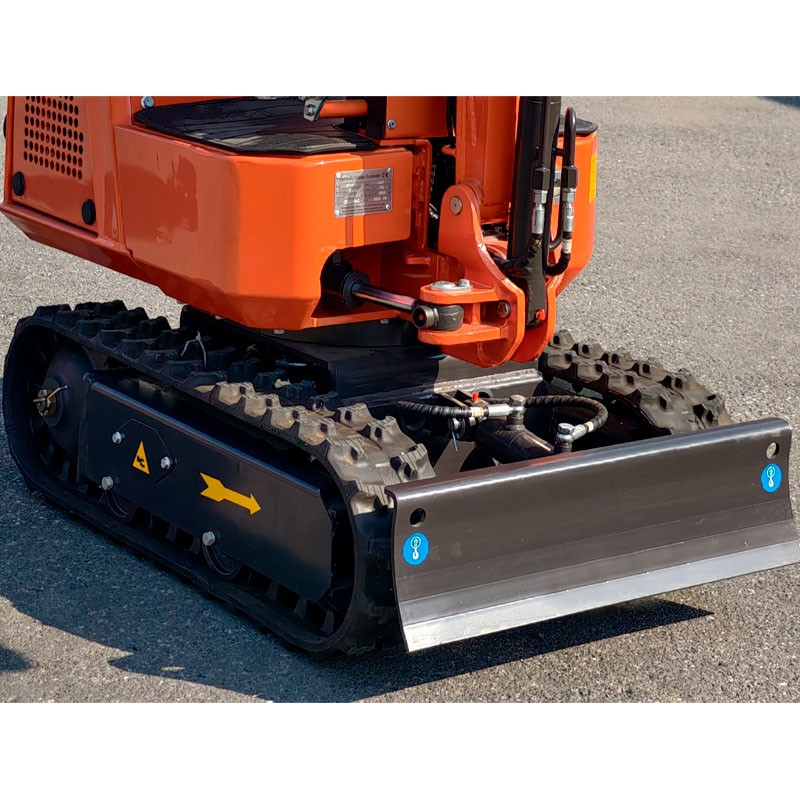

This excavator has a 6-liter fuel tank, front blade and a maximum speed of 2 km/h, offering efficiency in landscaping, light construction and land leveling projects. In addition, it is certified and assembled in Italy, the high standard of quality and reliability is guaranteed.

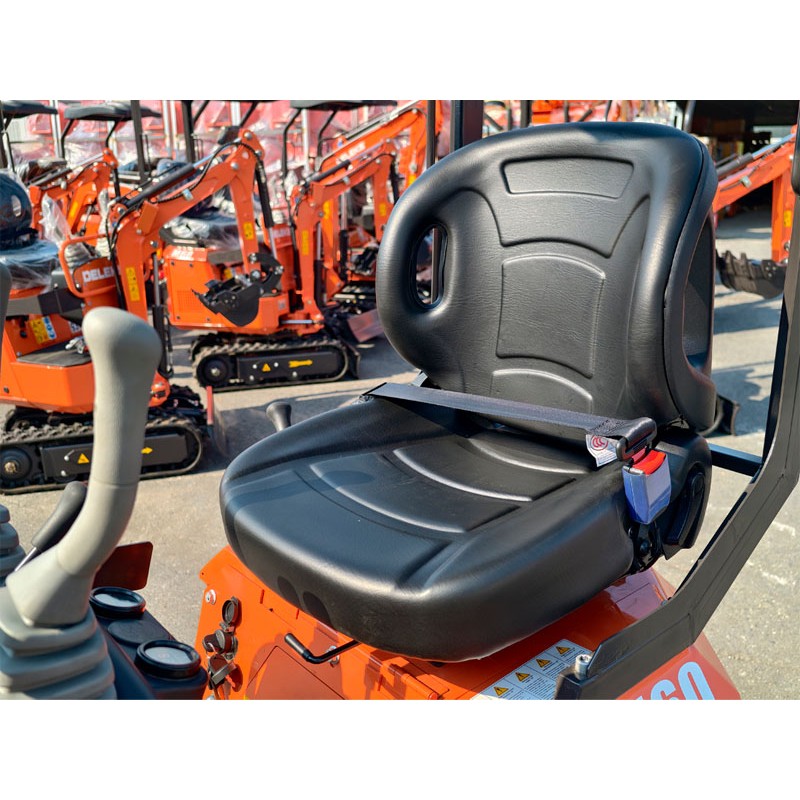

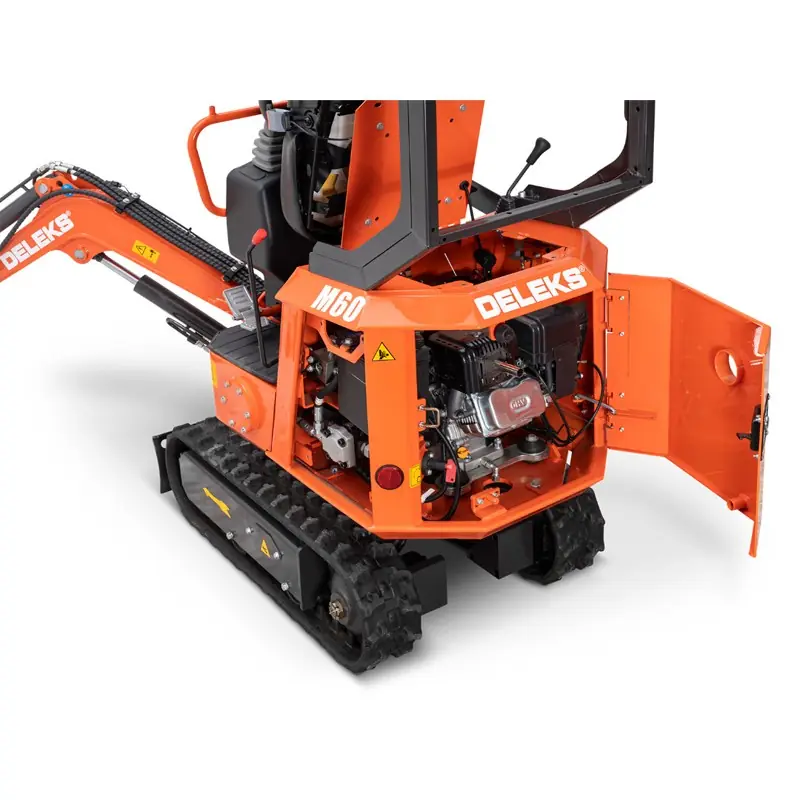

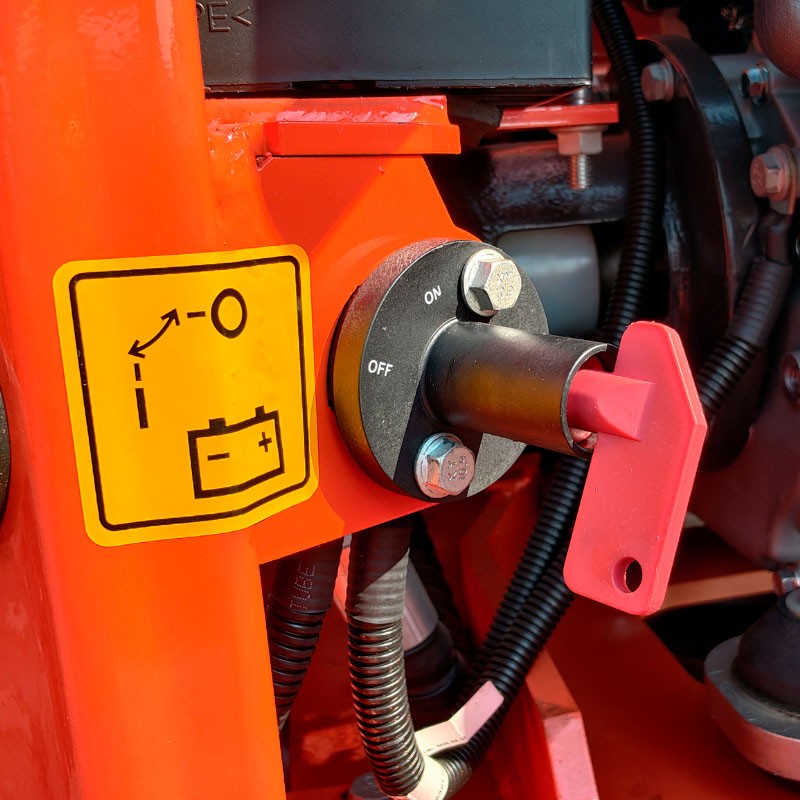

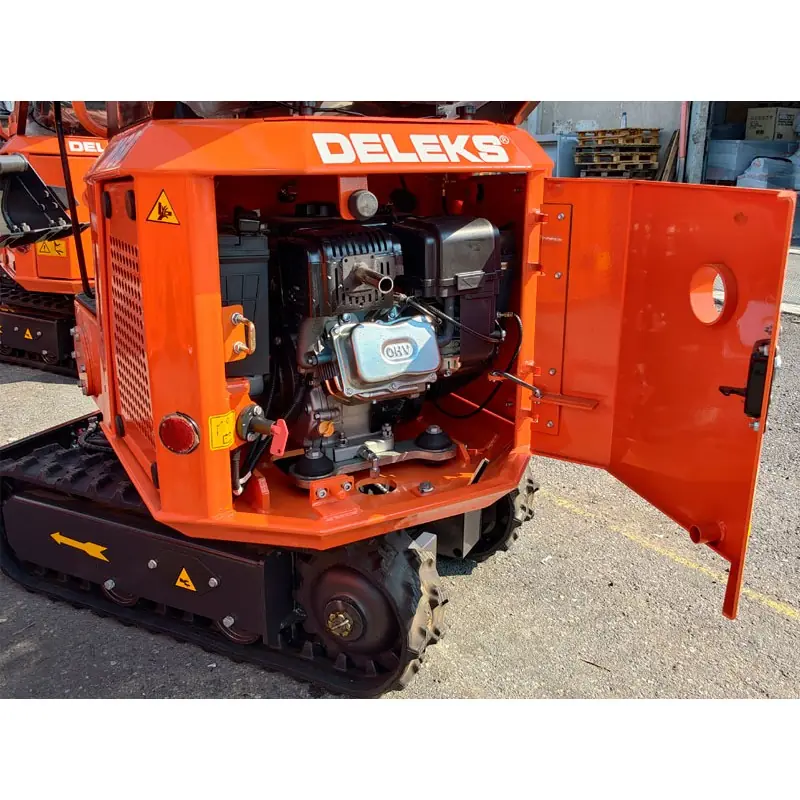

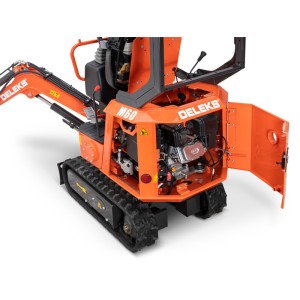

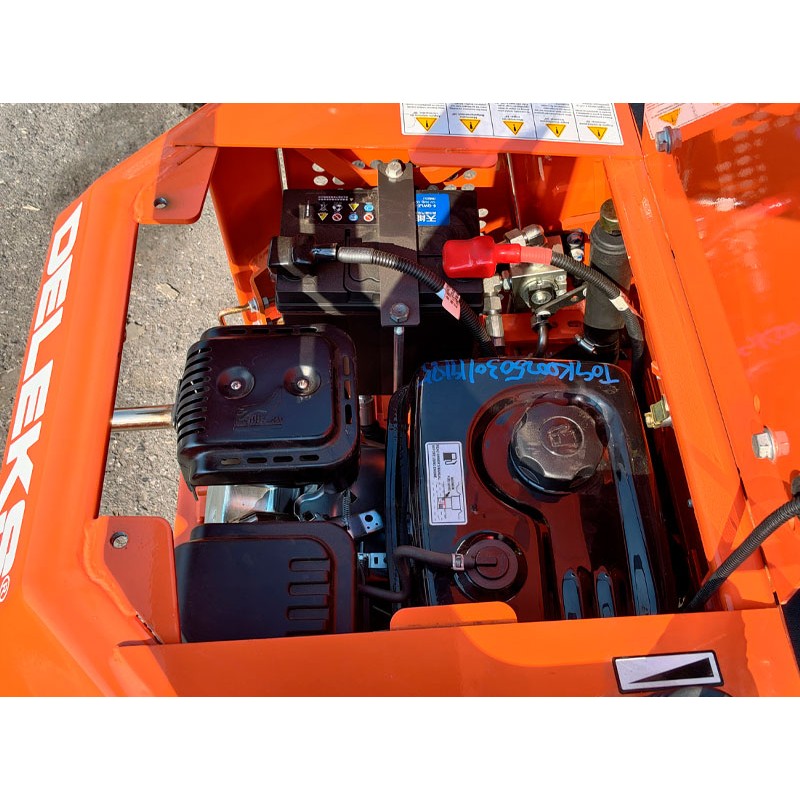

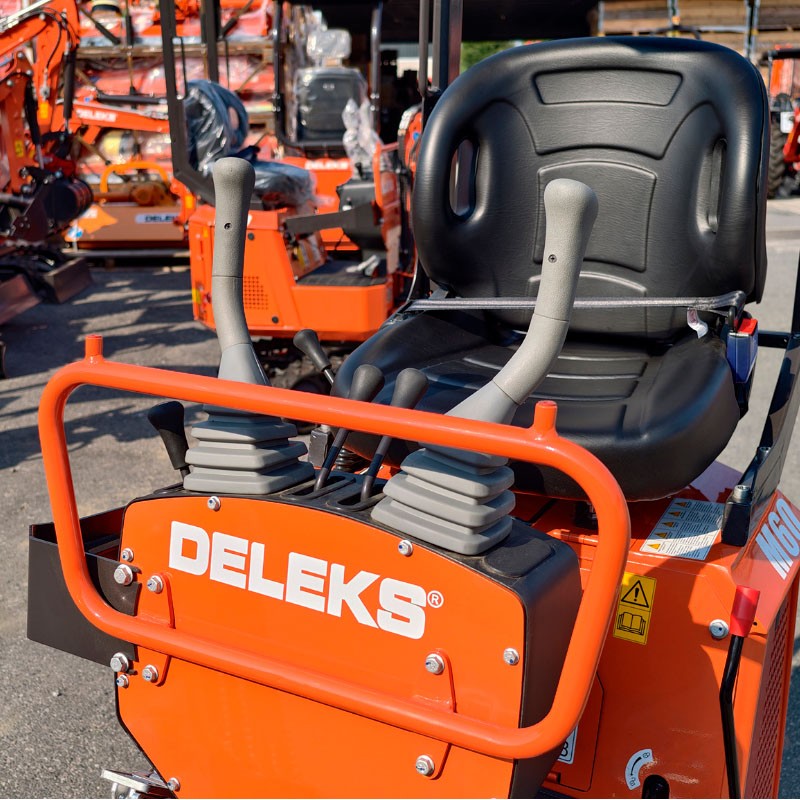

The model Deleks M60 adds comfort and safety thanks to its seat with seat belt, roof with 360-degree visibility and power cut-off switch. Daily maintenance is quick thanks to the fully foldable hood, making this mini excavator practical, powerful and perfect for professionals who need high performance in tight spaces.

Technical specifications

Weight 665 kg
Bucket capacity 0,015 m³
Standard accessory Benna
Engine
Model LONCIN 302
Displacement 302 cc
Power / rotation 6.8 kW / 3600 r/min
Maximum torque 20.3 N-m / 2500 r/min
Services
Maximum speed 2.0 km/h
Oscillation speed 6.5 rpm
Maximum frontal slope 15°
Cingoli
Ground pressure 25.4 kPa
Material Rubber
Adjustment From the screw
Tank capacity
Pump type Gear
Working pressure 16 MPa
Oil flow 21.6 L/min
Hydraulic oil tank 12 L
Fuel tank 6 L


Main dimensions

a. Distance between axles 800 mm
b. Track length 1120 mm
c. Ground clearance of upper chassis 406 mm
d. Counterweight turning radius 730 mm

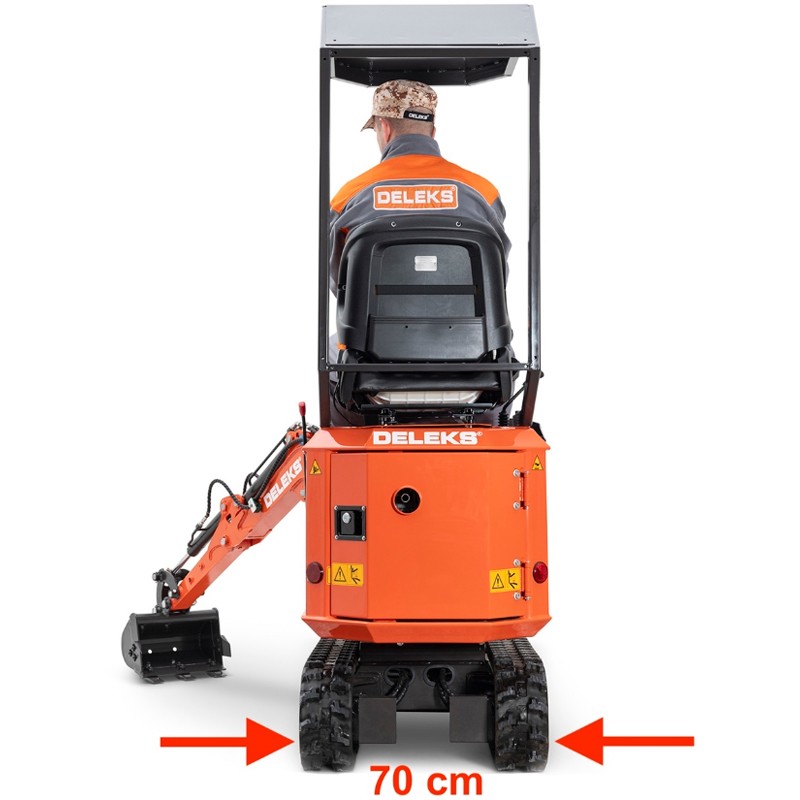

e. Chassis width 700 mm
f. Track width 150 mm
g. Track height 320 mm
h. Machine length 1818/2785 mm
i. Seat-to-floor height 1390 mm
j. Height (with/without rollbar) 2200/1700 mm

Operating dimensions

A. Maximum radius of excavation in the ground 2250 mm
B. Maximum excavation radius 2342 mm
C. Maximum excavation depth 1250 mm
D. Maximum excavation height 2107 mm
E. Maximum discharge height 1442 mm
F. Maximum vertical excavation depth 880 mm
G. Minimum turning radius 1112 mm
H. Maximum bulldozer blade lift height 96 mm
I. Maximum depth of the bulldozer blade 116 mm

Certifications - Directives applied

2006/42/EC (Machinery Directive)
2014/30/EU (Electromagnetic Compatibility Directive)
2000/14/EC, 2005/88/EC (Noise Directive for machinery operated outdoors)

Harmonized standards (on the Machinery Directive)

EN 474-1:2006+A6:2019
EN 474-5:2006+A3:2013

FOPS Level I ISO 3449:2008
TOPS: EN 13531:2001+A1:2008
Certification body: Italcert S.r.l. - Milan, Italy

IMPORTANT NOTICE
Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
For the correct shipment of this product, the customer will be required to a forklift will be required or similar for the download of this product as well as the address must be accessible for a 24t truck.
