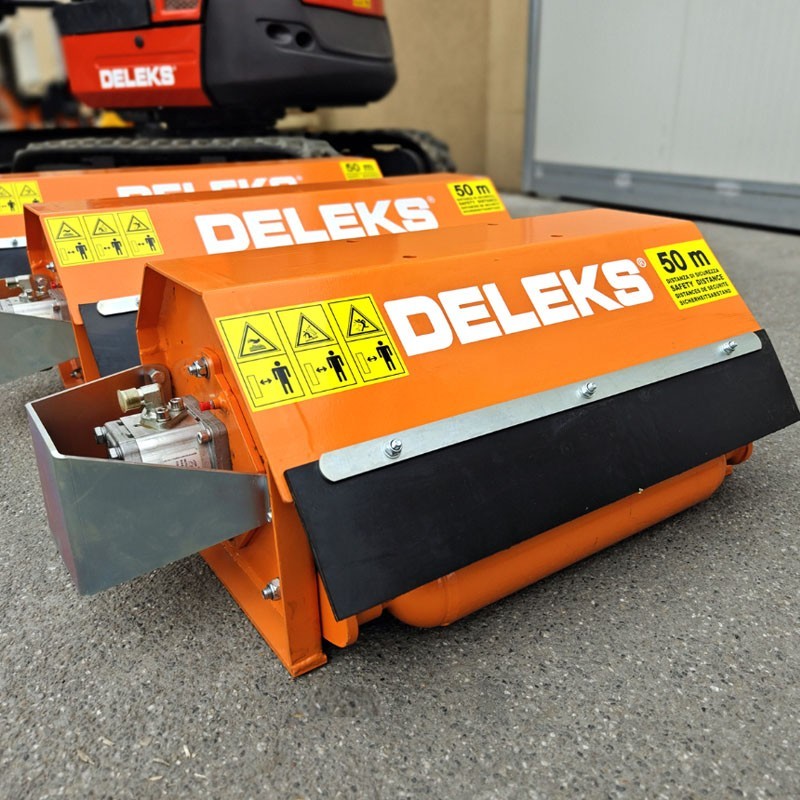

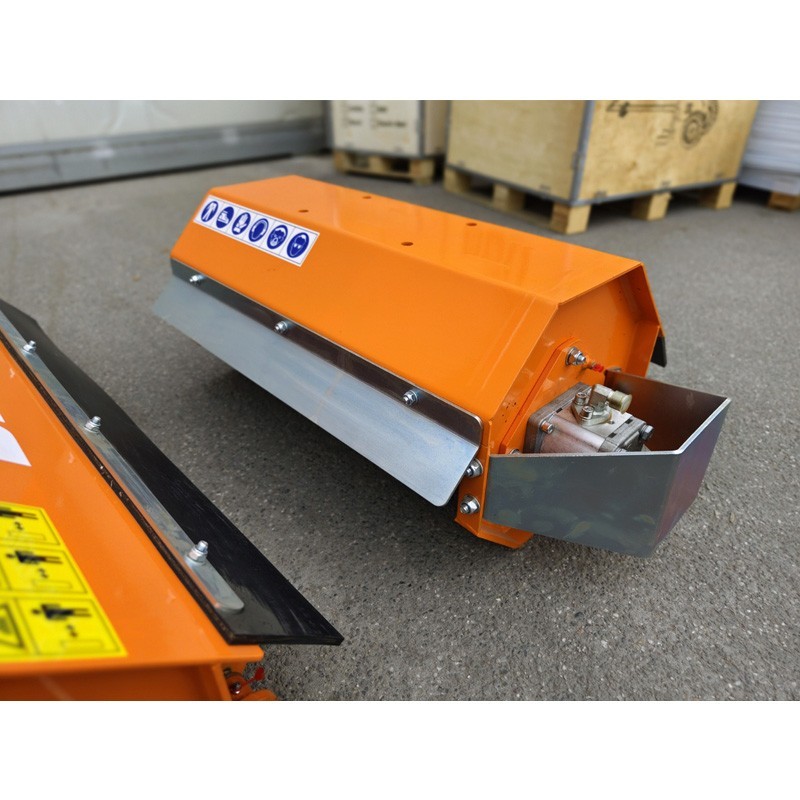

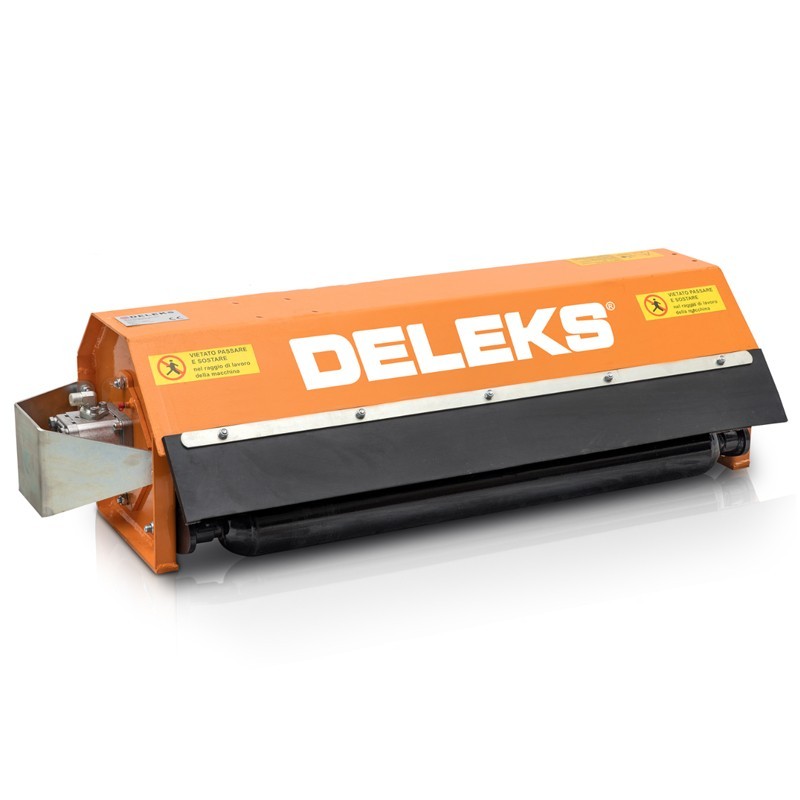

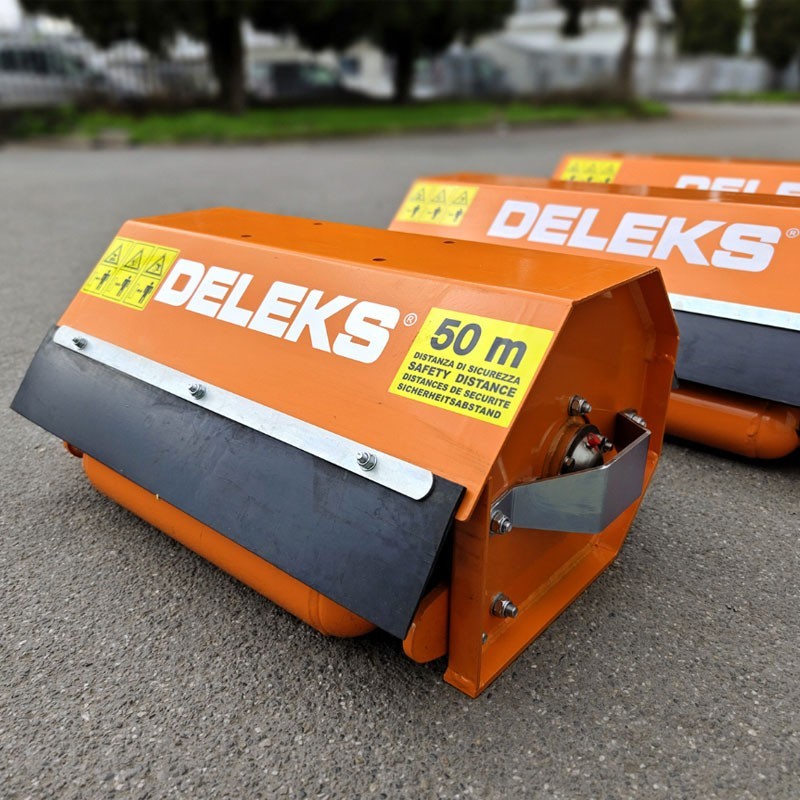

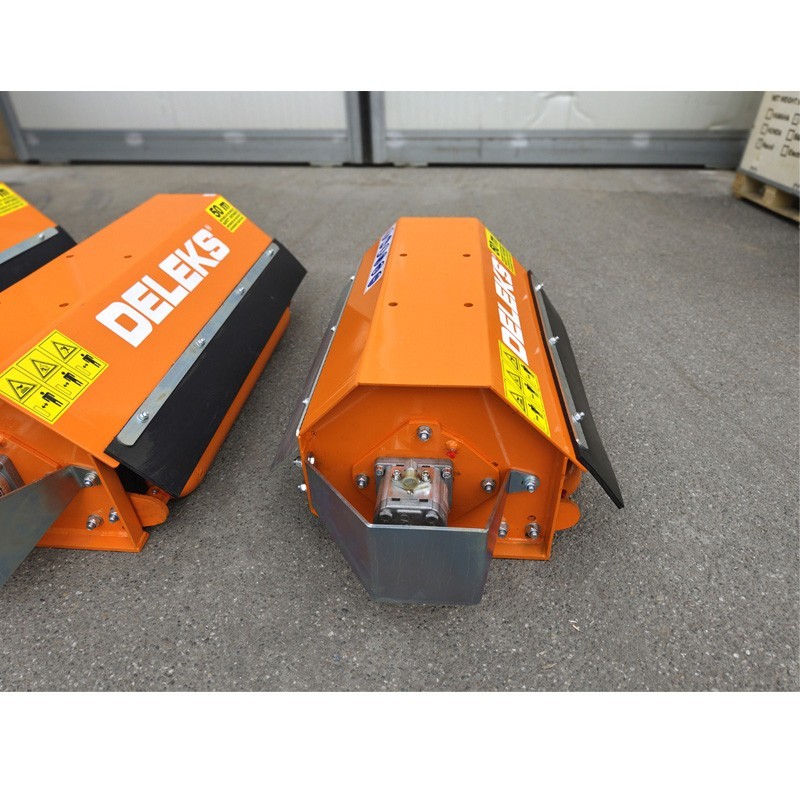

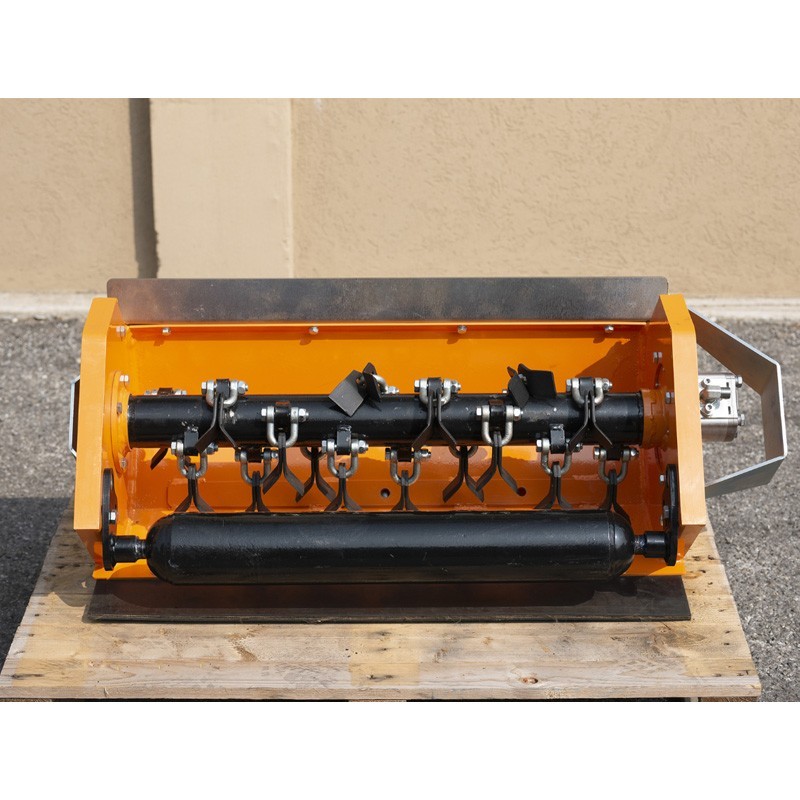

100cm brush cutter head with blades, for DELEKS mini excavator

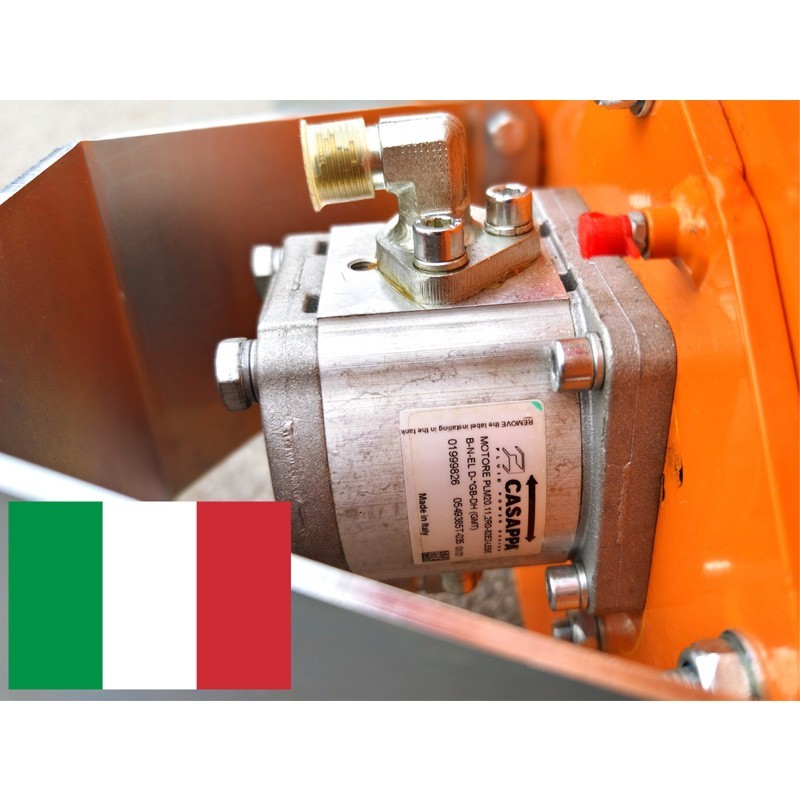

Shredder, 100cm blade mulcher for mini excavator - DELEKS® - For brambles, bushes, ditches. Hydraulic motor Made in Italy - 2-year warranty.

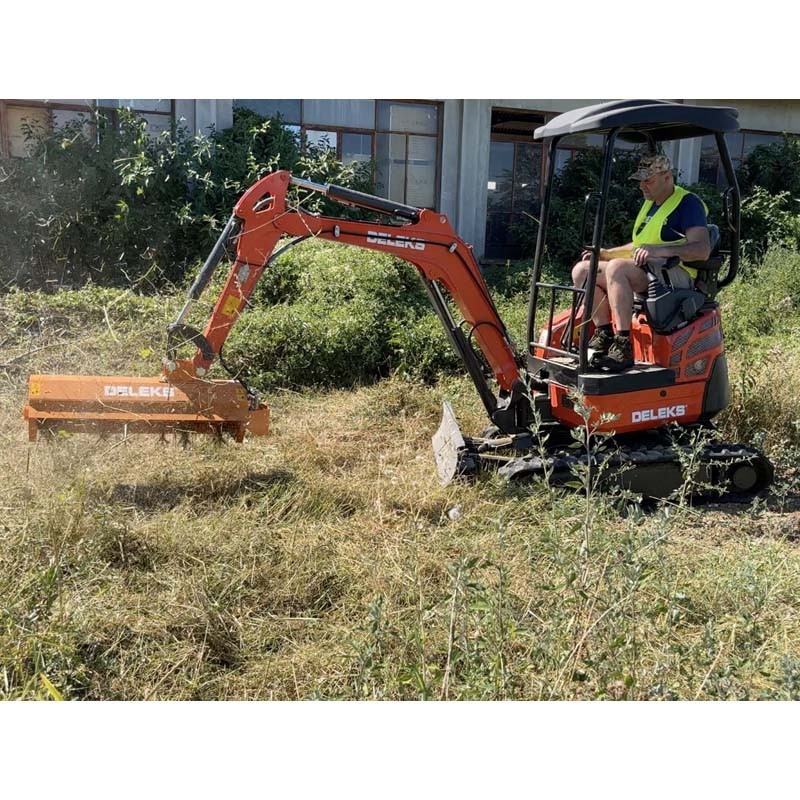

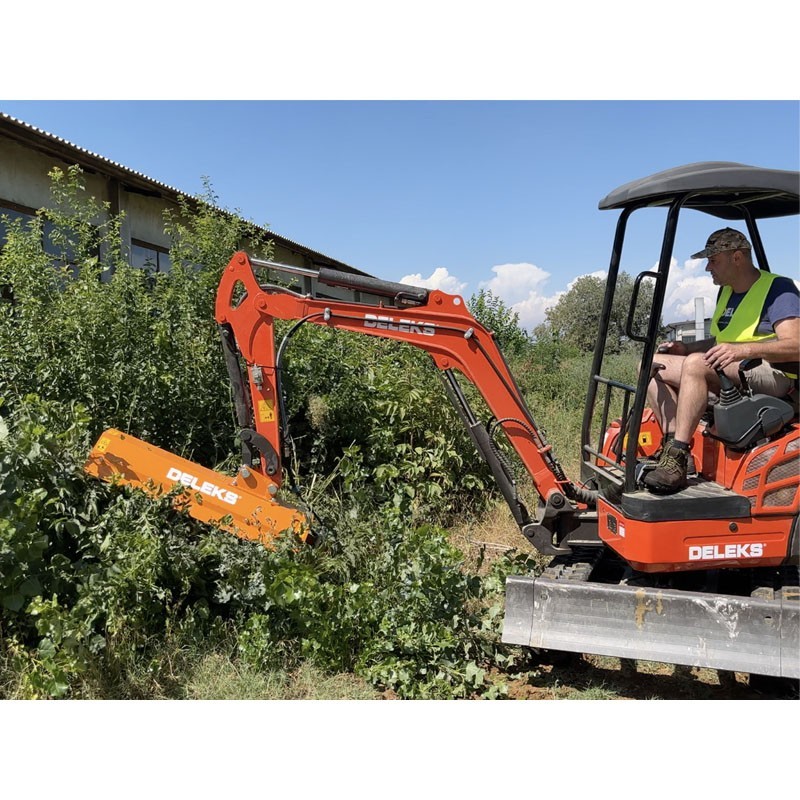

- Hydraulic brush cutter for mini excavator 0.8-1.8 tone. For brambles, bushes, ditches, banks, embankments, branches.
- Mini excavator brands: Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc.

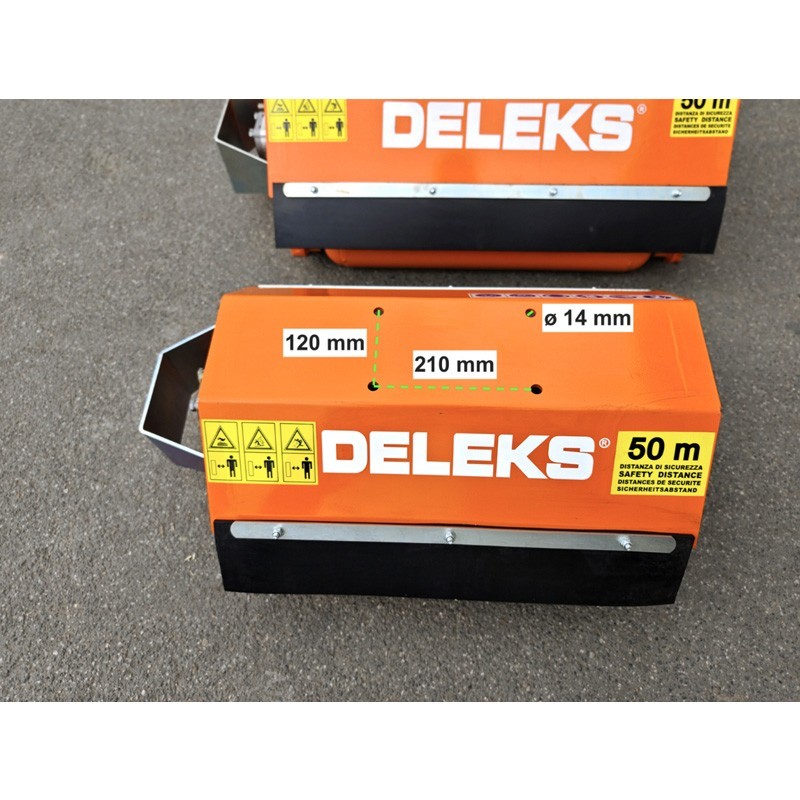

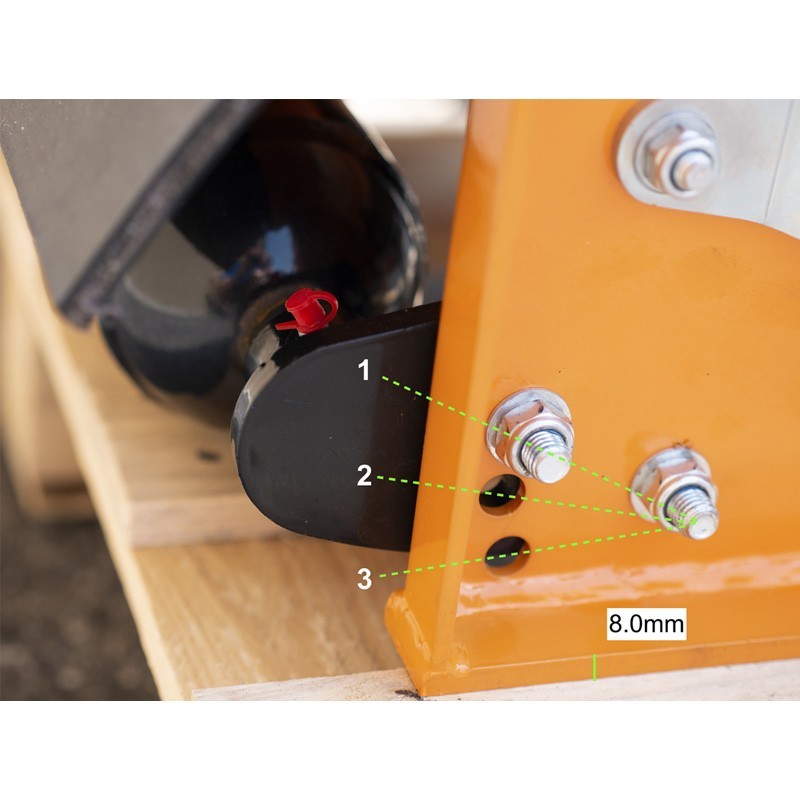

Hitch measurements: see images (alternatively, we can create a custom hitch based on a drawing, with additional production costs).
Machine operator requirements for operation:
a) it is preferable to have a double pump:
- 1 for the base of tracked
- 1 for the services (pump of at least 25/30 l/min)
b) The rotation of the blades is in both directions. (it is necessary to have the pedal with a double effect).
c) The pump needs a third pipe for drainage that discharges into the tank..
Documentation delivered with the machine:
Invoice or tax receipt
CE compliance
User manual
CE Certification and Risk Analysis conducted by E.C.O. Spa Faenza - Ravenna (Italy).
| Working width |
1000.0 mm |
| Total width |
1220.0 mm |
| Minimum/maximum cutting height |
20.0 - 80.0 mm |
| Weight |
93.0 kg |
| Height of the hood |
330.0 mm |
| Maximum cutting diameter |
20.0 mm |
| Thickness of the sheet |
4.0 mm |
| Transmission: rotor speed |
1500 rpm (revolutions per minute) |
| Rotor: diameter |
78.0 mm |
| Rotor: type of bearings and dimension |
GB276-6007 |
| Rotor: balancing |
Electronic |
| Rotor: blade thickness |
10.0 mm |

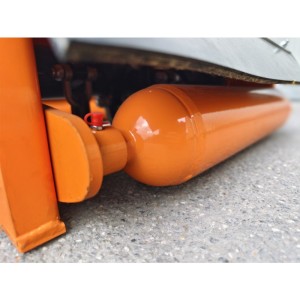

| Roll: diameter |
102.0 mm |
| Roll: sheet thickness |
4.0 mm |

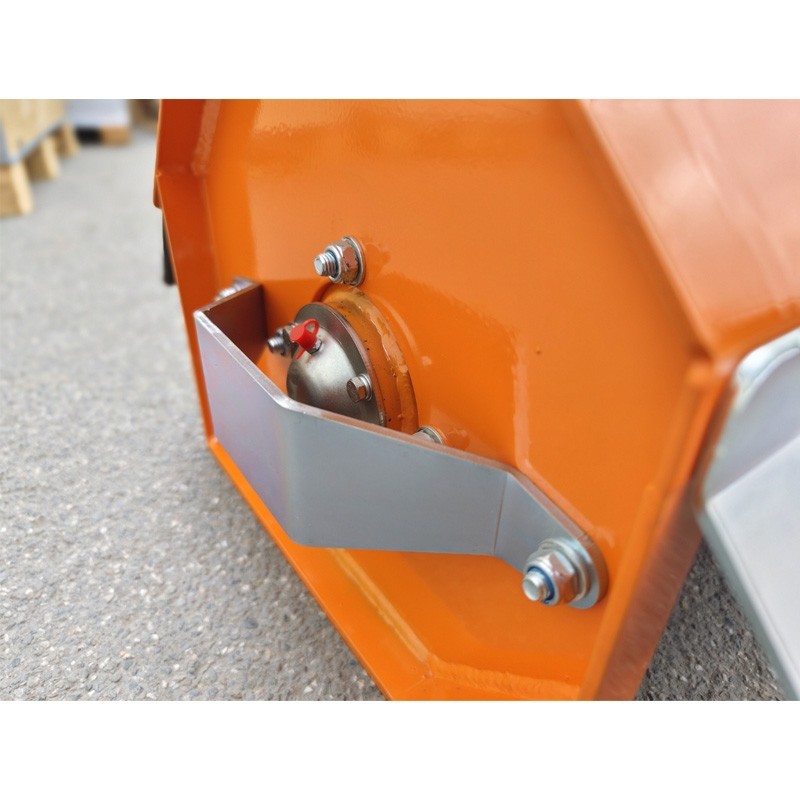

| Roll: type of bearings and dimension |
φ25 |
| Oil pressure min./max. |
120 - 150 bar |
| Optimal oil flow |
25 - 30 l/min |
| Length of the hood |
650.0 mm |

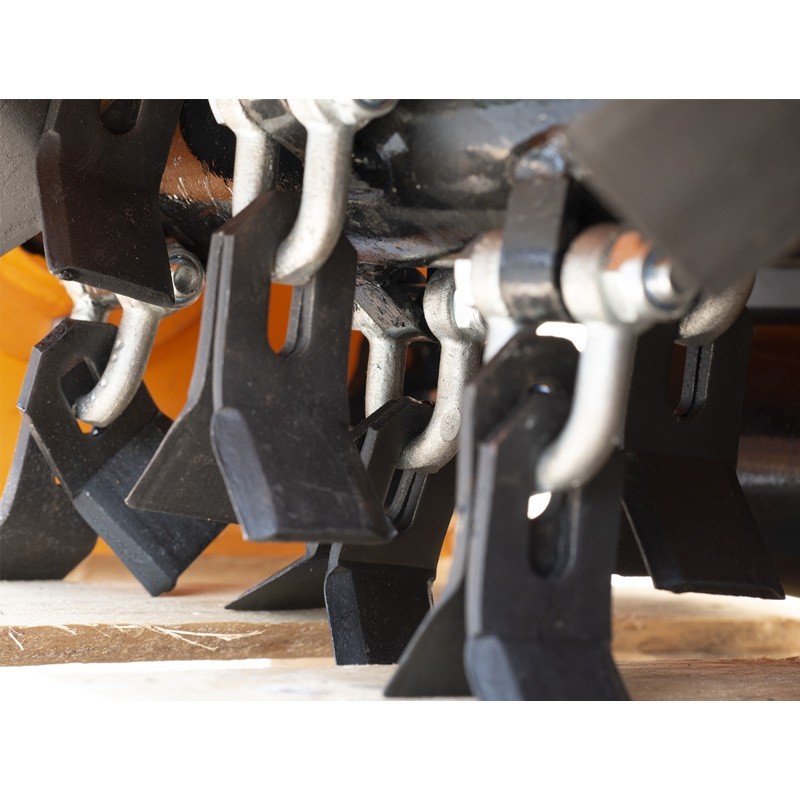

| Number of slats |
40 |
| Lamas: Weight |
130.0 g |
| Lamas: ø hole |
13.0 mm |
| Cucillos: base width |
50.0 mm |
| Cucillos: diagonal |
85.0 mm |
| Packaging dimension |
1220.0*600.0*500.0 mm |
