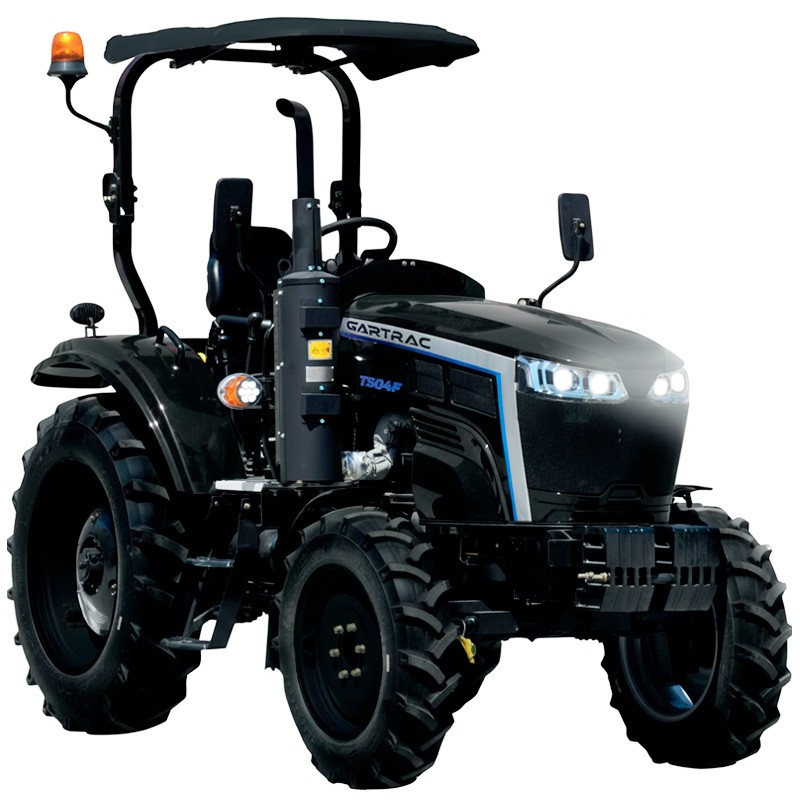

Gartrac T504F Tractor
The Garto approved Gartrac T504F Tractor is a 50 HP model designed to comply with Euro 5 emission standards, ensuring a more efficient and environmentally friendly engine. It mounts a 4-cylinder block with 2800 cc displacement and natural aspiration, delivering a power of 36.8 kW.
Its 50 L fuel tank and a robust electrical system with 120 Ah battery and 5.5 kW starter motor ensure a reliable start-up and sufficient autonomy for daily work on the farm. The transmission of this 4WD model features a 9-inch double dry clutch and a gearbox with 8 gears forward and 8 reverse, allowing a ground speed of up to 32.13 km/h.
It incorporates differential lock and hydrostatic steering to facilitate maneuvering in tight spaces, supported by a running gear system with 8.3 20 front tires and 12.4 28 rear tires. With a weight of 1,928 kg without implements, the tractor offers a stable base that can be reinforced with front and rear counterweights to optimize traction according to the implement used.
On the hydraulic and suspension side, the Gartrac T504F features a pump with a flow rate of 50 L min and a maximum pressure of 250 bar, which allows a lifting capacity of 880 kg on its Type 1 suspension. The 6-spline independent PTO offers speeds of 540 and 1,000 rpm to suit a wide variety of agricultural implements.
In addition, safety equipment includes a ROPS structure and sunroof, integrated into compact dimensions of 3,300 mm in length and 1,700 mm in width, facilitating work between rows and in narrow passages.
Technical specifications
| Engine |
| Model |
4L28V50 |
| No. of cylinders |
4 cylinders |
| Power |
50 HP - 36.8 kW |
| Intake system |
Natural aspiration |
| Fuel type |
Diesel fuel |
| Tank capacity |
50 L |
| Displacement |
2.800 cc |
| Emission standard |
Euro 5 |
| Generator |
Alternating current, 14 V, 750 W |
| Running-in system |
| Front wheel |
8.3 - 20 |
| Rear wheel |
12.4 - 28 |
| Weight |
| Without implements |
1.928 kg |
| Maximum front counterweight |
45 kg |
| Maximum rear counterweight |
44 kg |
| Hydraulic system |
| Maximum pressure |
250 bar |
| Steering |
Hydrostatic |
| Pump flow rate |
50 L/min |
| Safety |
| ROPS |
Yes |
| Sunroof |
Yes |
| Equipment and accessories |
| Fire extinguishers |
Optional |
| Transmission |
| Clutch |
Double dry type |
| Clutch size |
9" |
| Drive |
4WD |
| Gears |
8 + 8 |
| Differential lock |
Yes |
| Theoretical ground speed |
1.8 - 32.13 km/h |
| Dimensions |
| Length |
3.300 mm |
| Width |
1.700 mm |
| Height |
2.700 mm |
| Distance between axles |
1.900 mm |
| Front track |
1.220 mm |
| Rear track |
1.240 mm |
| Minimum ground clearance |
300 mm |
| Electronic equipment |
| Battery |
12 V, 120 Ah |
| Starter motor |
12 V, 5.5 kW |
| Electric horn |
12 V |
| Power socket |
Seven-pole plug |
| Instrument panel |
12 V, multifunction |
| Suspension system |
| Type |
Type 1 |
| Lift capacity |
880 kg |
| Power Take-Off PTO |
| Type |
Independent PTO |
| Splines |
6 |
| Speeds |
540 / 1.000 rpm |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If the goods cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
|
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
