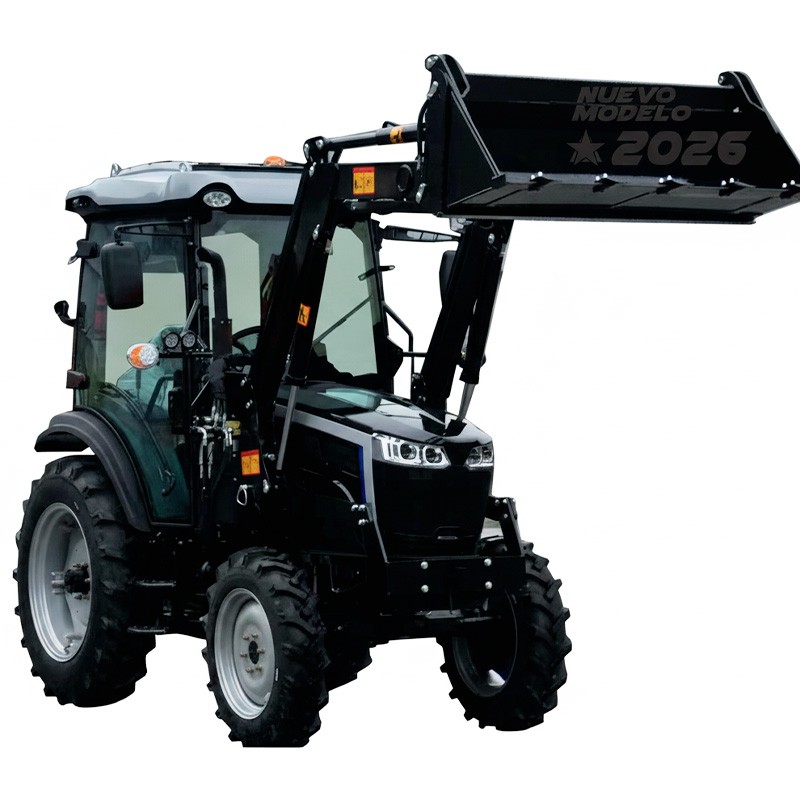

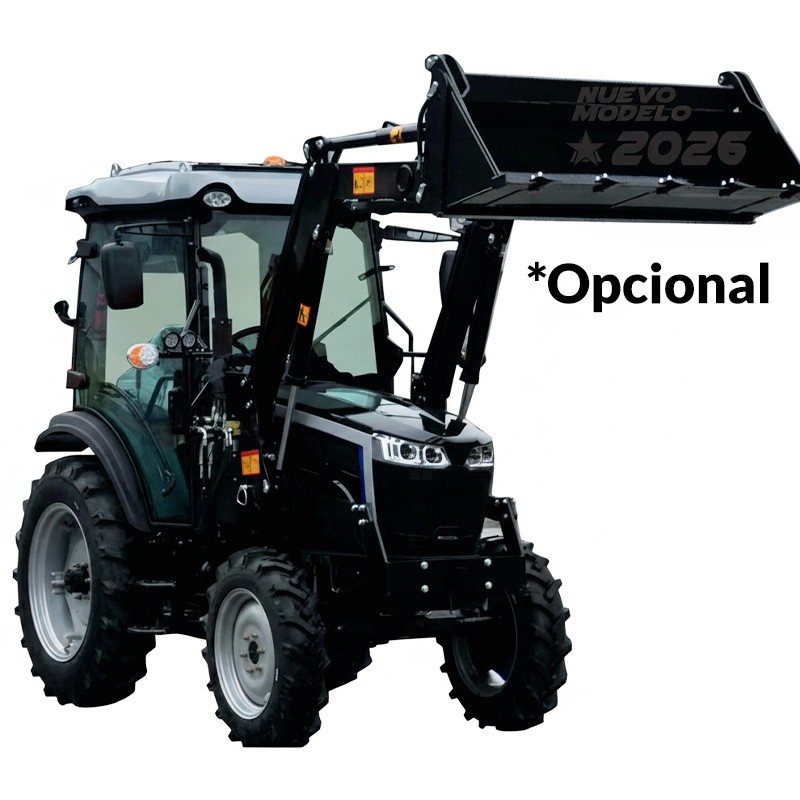

Gartrac T504C Tractor
The Garto Gartrac T504C tractor with approved cab is a very complete option for those looking for a compact and well-equipped tractor, with a clear focus on operator comfort. The cab makes the difference from the first moment, as it incorporates air conditioning, 360° camera, acoustic insulation, multimedia system, radio, skylights and front and rear windscreen wipers. In addition, there is a fire extinguisher and air gun, creating a much more comfortable, protected and practical workplace for long days at any time of the year.
On the mechanical side, the Garto Gartrac T504C is powered by a 4L28V50 4-cylinder, 2800 cc, 50 HP, 36.8 kW, diesel-powered, naturally aspirated engine, complying with Euro 5 standards. The 50 L tank offers a balanced autonomy for daily work and the electrical assembly with 14 V 750 W generator, 12 V 120 Ah battery and 12 V 5.5 kW starter motor provides reliable starting and continuous use.
The 8 forward and 8 reverse transmission with 9-inch double dry clutch, 4WD traction and differential lock allows the machine to adapt well to farm, crop and travel, with a theoretical ground speed from 1.8 to 32.13 km/h. The hydraulic system works with a maximum pressure of 250 bar and a pump flow of 50 L min, with hydrostatic steering for smoother maneuvering and a lifting capacity of 880 kg in type 1 suspension.
It also incorporates an independent 6-spline PTO with speeds of 540 and 1000 rpm, so it can move a wide variety of implements. Its dimensions of 3530 mm length, 1580 mm width and 2635 mm height, together with a weight of 2200 kg without implements, wheels 8.3 20 at the front and 12.4 28 at the rear, wheelbase of 1860 mm and ground clearance of 335 mm, make it a well-balanced cab tractor to work safely, comfortably and with good stability.
Technical specifications
| Engine |
| Model |
4L28V50 |
| No. of cylinders |
4 cylinders |
| Power |
50 HP - 36.8 kW |
| Intake system |
Natural aspiration |
| Fuel type |
Diesel fuel |
| Tank capacity |
50 L |
| Displacement |
2.800 cc |
| Emission standard |
Euro 5 |
| Generator |
Alternating current, 14 V, 750 W |
| Running-in system |
| Front wheel |
8.3 - 20 |
| Rear wheel |
12.4 - 28 |
| Weight |
| Without implements |
2.200 kg |
| Maximum front counterweight |
45 kg |
| Maximum rear counterweight |
44 kg |
| Hydraulic system |
| Maximum pressure |
250 bar |
| Steering |
Hydrostatic |
| Pump flow rate |
50 L/min |
| Cab equipment and accessories |
| Air conditioning |
Yes |
| 360° camera |
Yes |
| Acoustic insulation |
Yes |
| Fire extinguishers |
Yes |
| Air gun |
Yes |
| Front and rear windshield wipers |
Yes |
| Multimedia system and radio |
Yes |
| Skylights |
Yes |
| Transmission |
| Clutch |
Double dry type |
| Clutch size |
9" |
| Drive |
4WD |
| Gears |
8 + 8 |
| Differential lock |
Yes |
| Theoretical ground speed |
1.8 - 32.13 km/h |
| Dimensions |
| Length |
3.530 mm |
| Width |
1.580 mm |
| Height |
2.635 mm |
| Wheelbase |
1.860 mm |
| Front track |
1.235 mm |
| Rear track |
1.270 mm |
| Minimum ground clearance |
335 mm |
| Electronic equipment |
| Battery |
12 V, 120 Ah |
| Starter motor |
12 V, 5.5 kW |
| Electric horn |
12 V |
| Power socket |
Seven-pole plug |
| Instrument panel |
12 V, multifunction |
| Suspension and lift system |
| Suspension type |
Type 1 |
| Lift capacity |
880 kg |
| Power Take-Off (PTO) |
| Type |
Independent PTO |
| Splines |
6 |
| Speeds |
540 / 1.000 rpm |
| IMPORTANT NOTICE |
|
| It is mandatory for the customer to check oil and grease levels before start-up. If the goods cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
|
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
