Three-phase gasoline welding generator Ayerbe 255 KT CC 5200 W
Three-phase gasoline welding generator Ayerbe 255 KT CC 5200 W

Three-phase gasoline welding generator Ayerbe 255 KT CC 5200 W


  • 13 HP Kiotsu motor
  • Maximum power: 6.5 kVA - 3 kVA
  • Voltage: Three-phase
  • Weight: 105 Kg

Welding kit included

En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Direct current
icon Current
Current
Three-phase
icon Startup
Startup
Manual
icon Engine
Engine
Kiotsu
icon Engine model
Engine model
KT 420
icon Displacement
Displacement
420 cc
icon Power
Power
13 HP
icon Power rating
Power rating
4000 W
icon Maximum power
Maximum power
5200 W
icon Type of generator
Type of generator
With handle and wheels
icon Usable electrodes
Usable electrodes
4 mm
€1,464.46 excl. VAT
- 4%
€1,405.88 excl. VAT
€1,701.12 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Three-phase gasoline welding generator Ayerbe 255 KT CC 5200 W
€1,701.12
Qty

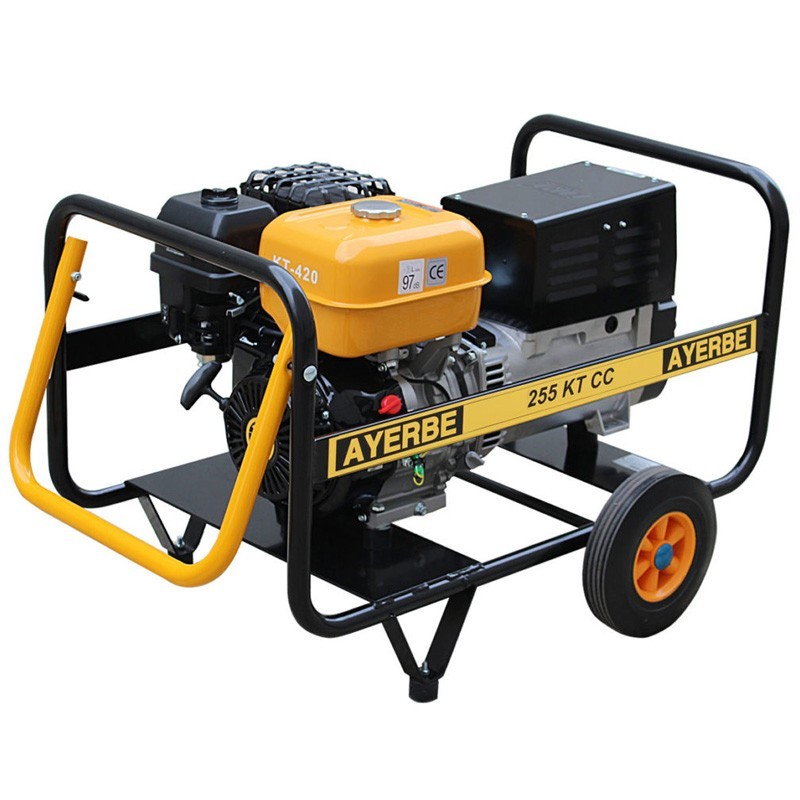

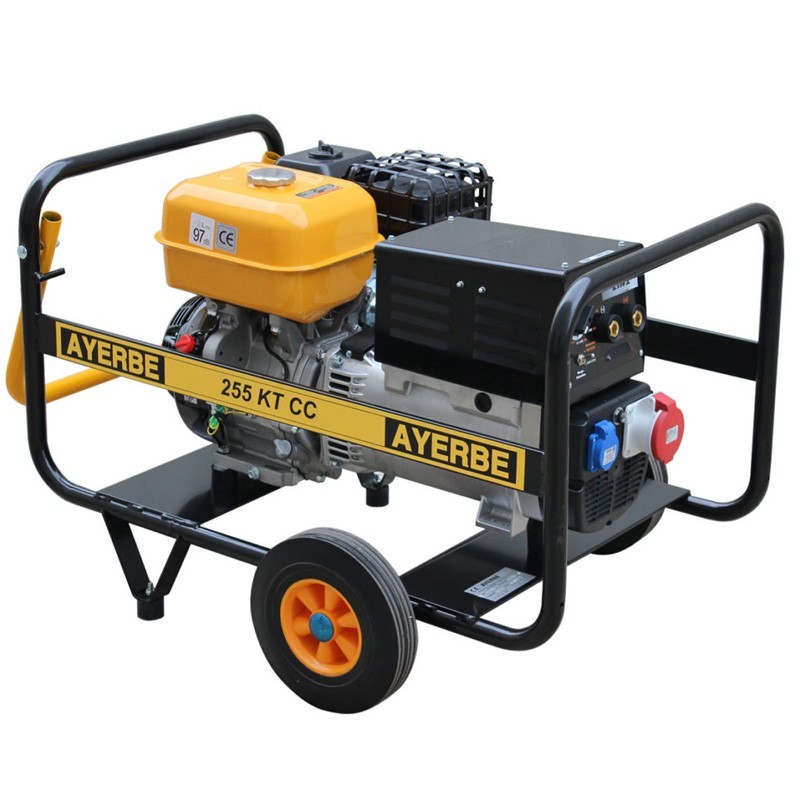

Three-phase motor welder Ayerbe 255 KT CC

The welding machine Ayerbe 255 KT CC is equipped with a Kiotsu gasoline engine model KT 420 with 13 horsepower and 420 cc displacement.

This engine together with its Linz alternator model E2W10 220 DC is capable of generating a maximum power of 6.5 kVA or 5200 W in three-phase mode.

The consumption of this engine to perform this task is 2.1 liters per hour and with the 6.5 liter tank leaves us a maximum autonomy of 3.3 hours of use.

In terms of weight, the three-phase welder Ayerbe 255 KT CC weighs 105 kilograms and has a handle and wheels for easy transport. It also includes a welding kit consisting of a brush and an electrode holder.

Technical specifications of Ayerbe 255 KT CC

Maximum power6.5 KVA - 3 KVA
Rated power5 KVA - 2.5 KVA
R.p.m.3.000 r.p.m.
Voltage / Frequency400 V 230 V. / 50 Hz
StartManual
Power factorCos phi 0,8
Noise level97 LwA / 74 LpA @ 7 m
With grounding clampElectrode holder and brush
Motor
BrandKIOTSU
ModelKT 420
Power13 HP
Displacement420 cc
Cooling systemAir
Engine oil typeSAE 20W40 / IPE grade CD, CF
IntakeNatural
R.P.M. of engine3.600 r.p.m.
Speed governorMechanics
FuelGasoline
Fuel consumption at 75%2.1 L/H
Oil capacity1,1 L
Starting systemManual
Alternator
BrandLINZ
ModelE2W10 220 DC
Normal welding speed 35180 Amp
Intensive welding rate 60%150 Amp
Max. electrode4 mm rutile and basic
Type of insulationClass H
Degree of mechanical protectionIP 23
Poles2
Voltage / Frequency400 & 230 V / 50 Hz
Type of coatingStandard (without impregnation)
Dimensions and Weight
Tank capacity6,5 l
Autonomy at 75%3,3 hours
Weight105 kg
Dimensions950 x 700 x 730 mm
Packing volume0,44 m³

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.
