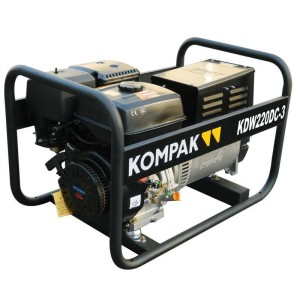

Gasoline welding machine Kompak KW220DC-3 three-phase 6500 W
Gasoline welding machine Kompak KW220DC-3 three-phase 6500 W
Gasoline welding machine Kompak KW220DC-3 three-phase 6500 W

Gasoline welding machine Kompak KW220DC-3 three-phase 6500 W


  • Starting : Electric
  • Displacement : 420 cc
  • Current : Single-phase
  • Welder type : MMA
  • Nominal power : 6500 W
  • Power Supply gasoline
  • Type of winding : Copper
  • Generator type : Fixed
  • No load voltage : 80 V
  • Control range : 40 - 220 A
  • Usable electrodes : 1 - 4 mm
En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Direct current
icon Current
Current
Three-phase
icon Typology Welder
Typology Welder
MMA
icon Startup
Startup
Manual
icon Displacement
Displacement
420 cc
icon Power
Power
15 HP
icon Power rating
Power rating
6500 W
icon Type of winding
Type of winding
Copper
icon Type of generator
Type of generator
Fixed
icon No-load voltage
No-load voltage
80 V
icon Regulating range
Regulating range
40 - 220 A
icon Usable electrodes
Usable electrodes
1 - 4 mm
€1,406.27 excl. VAT
- 4%
€1,350.02 excl. VAT
€1,633.52 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline welding machine Kompak KW220DC-3 three-phase 6500 W
€1,633.52
Qty

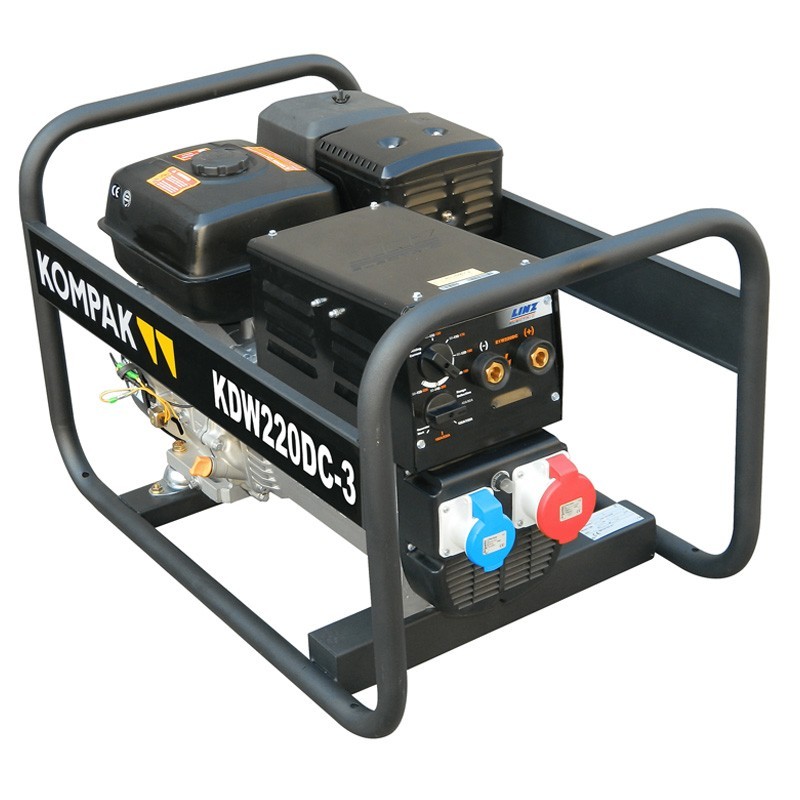

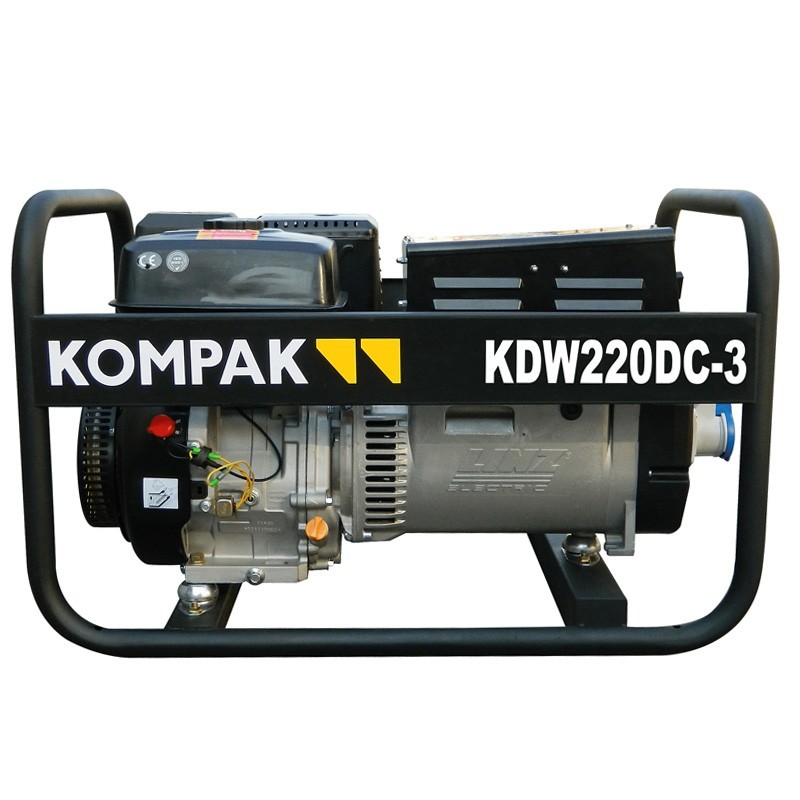

Gasoline welding motor welder Kompak KW220DC-3

The gasoline welding machine Kompak KW220DC-3 stands out for its Italian LINZ alternator, ensuring reliable and efficient performance. Its adjustable DC welding current allows a wide range of applications, with the capacity to use welding electrodes from 1 to 4 mm, including rutile, basic, cellulosic and stainless steel.

Equipped with a HYUNDAI 4-stroke engine, it offers features such as low oil level alarm with automatic engine shutdown, OHV overhead valves on gasoline engines and direct injection on diesel engines, ensuring reliable and long-lasting performance.

The manual start of the welder is simple and fast, facilitating its operation in various conditions. Its 32 mm steel chassis provides an optimal combination of lightness and strength, while heavy-duty silent blocks contribute to reduce vibrations and improve stability during welding.

With a power rating of 6.5 kVA and maximum current adjustable between 170 (60%) and 220 (36%), along with awelding voltage of 21-29 V, this machine is positioned as a versatile and robust tool for tackling various welding tasks effectively.

Features

Rated Power 6.5 kVA/3.0 kVA
Maximum current at 36-60% 170 (60%) + 220 (36%)
Welding voltage 21-29 V
Sockets 1xPCE5p + 1x16A
Alternator Linz (E2W10220MDC)
Electrode size 1-4 mm
Motor Hyundai
Model IC420
Type Gasoline
Displacement 420
Power 15 Hp
Starter Manual
Tank capacity 6,5 L
Noise level at 7 m. 75 dB
Dimensions 870x530x530 mm
Weight 82 Kg
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
The batteries included in some machines are a free gift, so they are exempt from warranty.
259673

Data sheet

Power Supply
Gasoline
Motor welder type
Direct current
Current
Three-phase
Typology Welder
MMA
Startup
Manual
Displacement
420 cc
Power
15 HP
Power rating
6500 W
Type of winding
Copper
Displacement (cc)
400 cc - 499 cc
Nominal power (W)
6000 W - 6999 W
Type of generator
Fixed
No-load voltage
80 V
Regulating range
40 - 220 A
Usable electrodes
1 - 4 mm

Specific References

MPN
KW220-DC3
New
