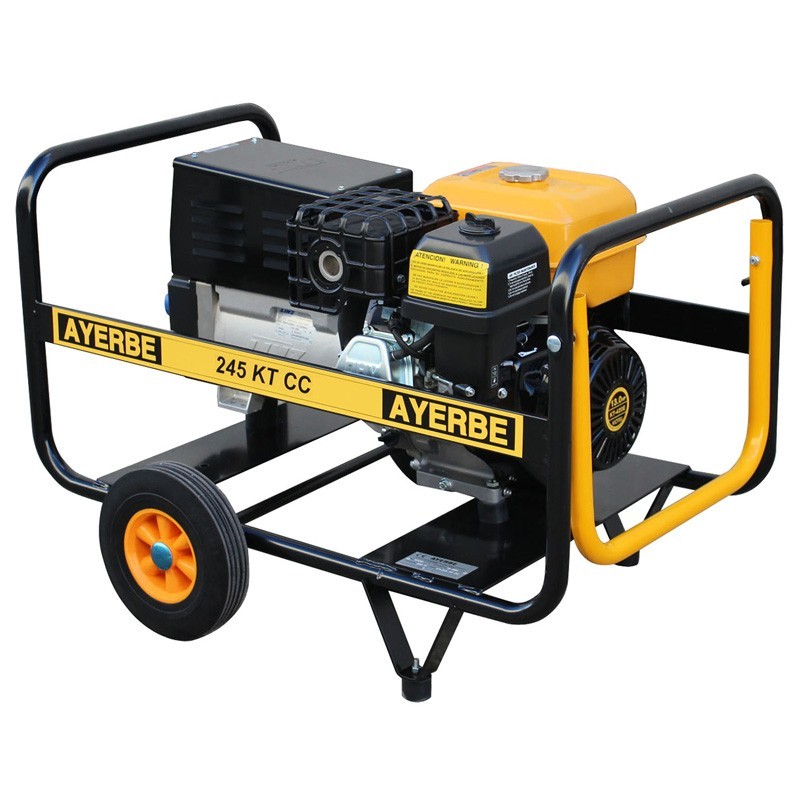

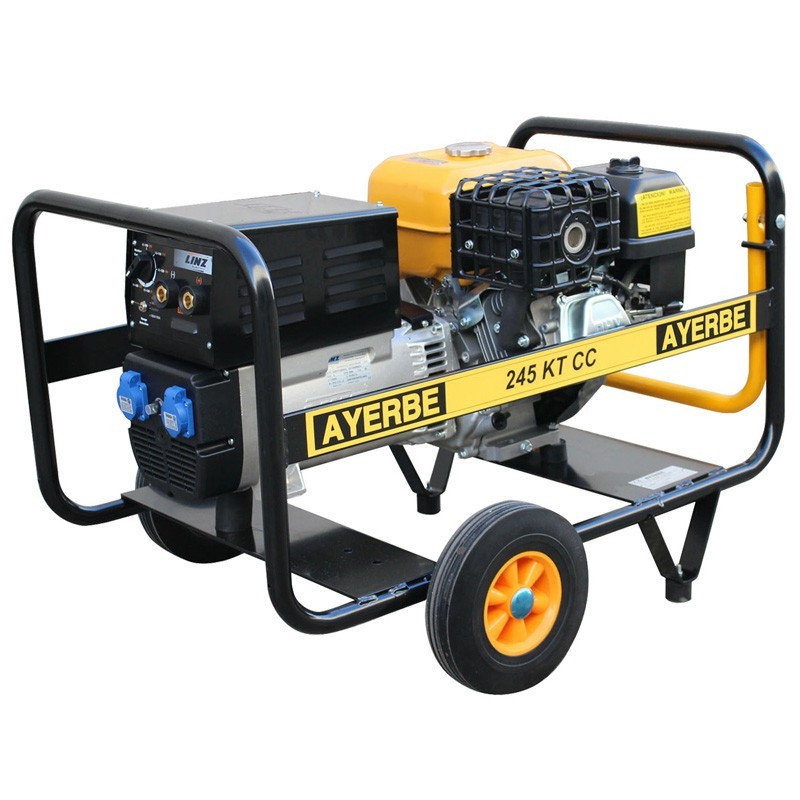

Gasoline welding generator Ayerbe 245 KT CC 3800 W
Gasoline welding generator Ayerbe 245 KT CC 3800 W

Gasoline welding machine Ayerbe 245 KT CC 3800 W

Rating:
(0)
  • Engine: Kiotsu KT 420
  • Displacementengine: 420 cc
  • Power: 13 HP
  • Maximum power: 3800 W

Welding kit included

En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Direct current
icon Current
Current
Single-phase
icon Startup
Startup
Manual
icon Engine
Engine
Kiotsu
icon Engine model
Engine model
KT 420
icon Displacement
Displacement
420 cc
icon Power
Power
13 HP
icon Power rating
Power rating
3200 W
icon Maximum power
Maximum power
3800 W
icon Type of generator
Type of generator
With handle and wheels
icon Usable electrodes
Usable electrodes
4 mm
€1,464.46 excl. VAT
- 4%
€1,405.88 excl. VAT
€1,701.12 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline welding machine Ayerbe 245 KT CC 3800 W
€1,701.12
Qty

DC motor welder Ayerbe 245 KT CC

The welding machine Ayerbe 245 KT CC is a DC motor welder equipped with a 13 HP Kiotsu gasoline engine capable of delivering up to 3800 watts of maximum power.

As for how to start the engine, this is done by using the pull cord, i.e. manual start. The machine comes standard with a welding kit consisting of an electrode holder and a brush.

The alternator that is integrated inside this gasoline welding machine is of the Linz brand and is capable of working with normal welding 35% up to 180 amps. The electrodes compatible with this machine are 4 mm rutile electrodes.

Finally mention its weight of 100 kg although it has a handle and transport wheels for better mobility of the welding machine.

Specifications

Maximum power 4,5 KVA - 3.800 W
Rated power 4 KVA - 3,200 W
R.p.m. 3.000 r.p.m.
Voltage / Frequency 230 V. / 50 Hz.
Start Manual
Power factor Cos phi 0,8
Noise level 97 LwA / 74 LpA @ 7 m
With grounding clamp Electrode holder and brush
Motor
Brand KIOTSU
Model KT 420
Power 13 HP
Displacement 420 cc
Cooling system Air
Engine oil type SAE 20W40 / IPE grade CD, CF
Intake Natural
R.P.M. of engine 3.600 r.p.m.
Speed governor Mechanics
Fuel Gasoline
Fuel consumption at 75% 2.1 L/H
Oil capacity 1,1 L
Starting system Manual
Alternator
Brand LINZ
Model E2W10 220 MDC
Normal welding speed 35 180 Amp
Intensive welding rate 60% 150 Amp
Max. electrode 4 mm rutile and basic
Type of insulation Class H
Degree of mechanical protection IP 23
Poles 2
Voltage / Frequency 230 / 50 Hz.
Type of coating Standard (without impregnation)
Dimensions and Weight
Tank capacity 6,5 l
Autonomy at 75% 3,3 hours
Weight 100 kg
Dimensions 950 x 700 x 730 mm
Packing volume 0,44 m³
