Gasoline Welding Machine Genergy Timanfaya S 6500 W
Gasoline Welding Machine Genergy Timanfaya S 6500 W
Gasoline Welding Generator Genergy Timanfaya S 6500 W 200 A
Gasoline Welding Generator Genergy Timanfaya S 6500 W 200 A
Gasoline Welding Generator Genergy Timanfaya S 6500 W 200 A
Gasoline Welding Generator Genergy Timanfaya S 6500 W 200 A
Gasoline Welding Generator Genergy Timanfaya S 6500 W 200 A
Gasoline Welding Generator Genergy Timanfaya S 6500 W 200 A
Gasoline Welding Generator Genergy Timanfaya S 6500 W 200 A
Gasoline Welding Generator Genergy Timanfaya S 6500 W 200 A

Gasoline Welding Generator Genergy Timanfaya S 6500 W 200 A

Rating:
(0)
  • Power supply : Gasoline
  • Rated power : 6000 W
  • Maximum power : 6500 W
  • Current : Single phase
  • Displacement : 459 cc
  • Stabilization system : SVR
  • Type of winding : Copper
  • Starting type : Manual
  • DC welding range : 60 - 200 A
  • Duty cycle 40ºC : 60%
  • Electrode diameter : 2.5 - 4 mm
En stock
icon Power Supply
Power Supply
Gasoline
icon Stabilization
Stabilization
SVR
icon Motor welder type
Motor welder type
Direct current
icon Current
Current
Single-phase
icon Startup
Startup
Manual
icon Displacement
Displacement
459 cc
icon Power rating
Power rating
6000 W
icon Maximum power
Maximum power
6500 W
icon Type of winding
Type of winding
Copper
€1,240.53 excl. VAT
- 4%
€1,190.91 excl. VAT
€1,441.00 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline Welding Generator Genergy Timanfaya S 6500 W 200 A
€1,441.00
Qty

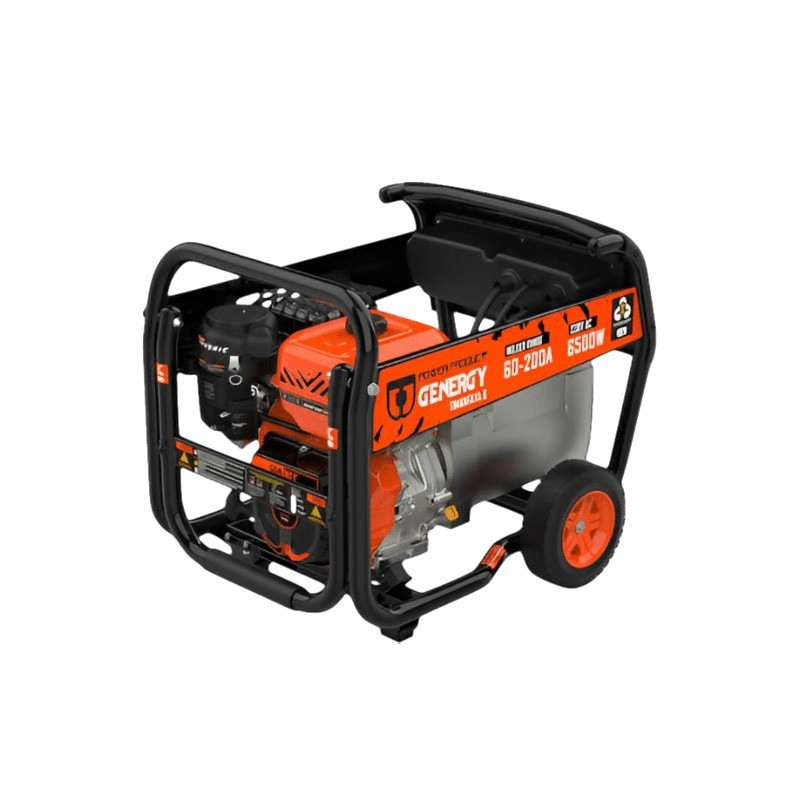

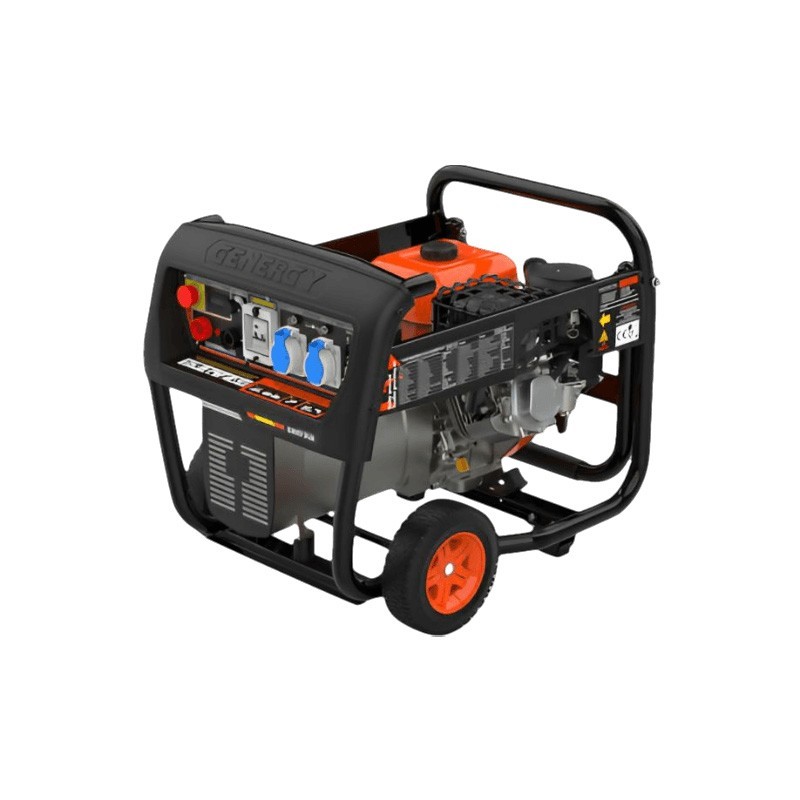

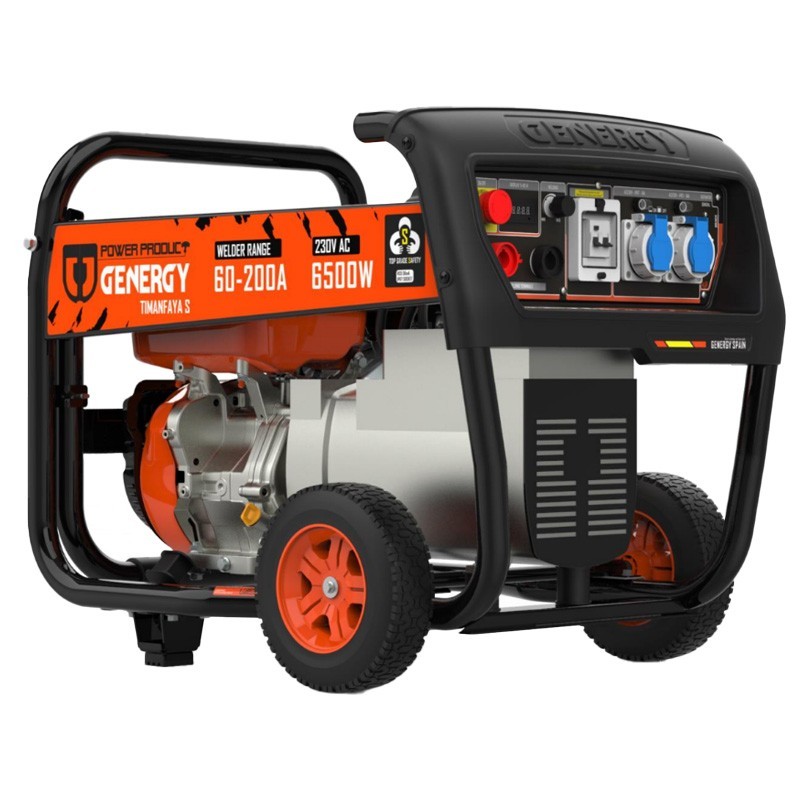

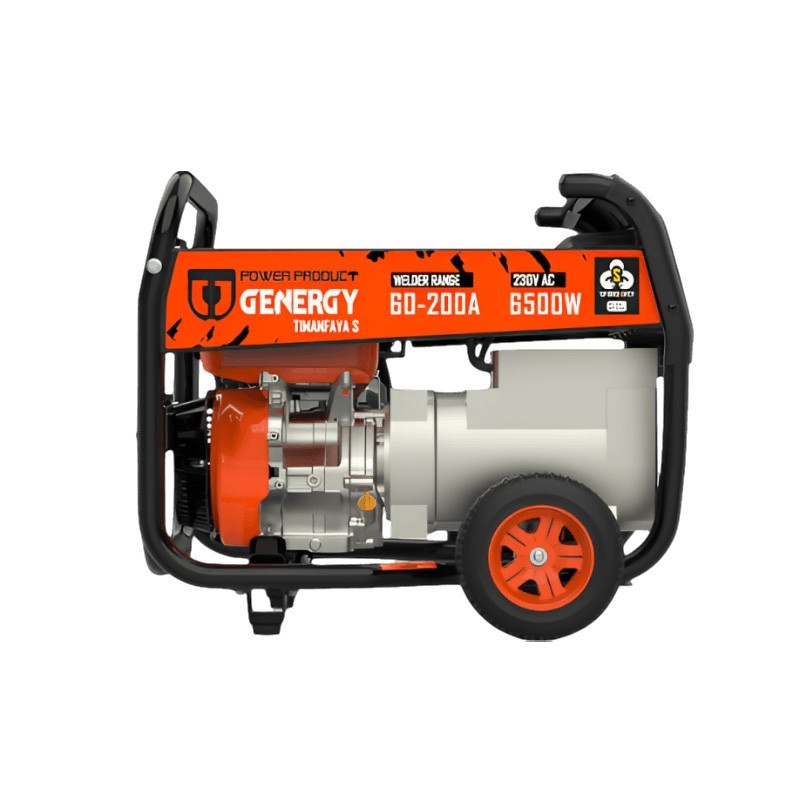

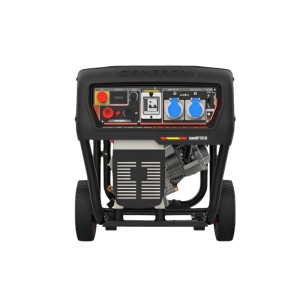

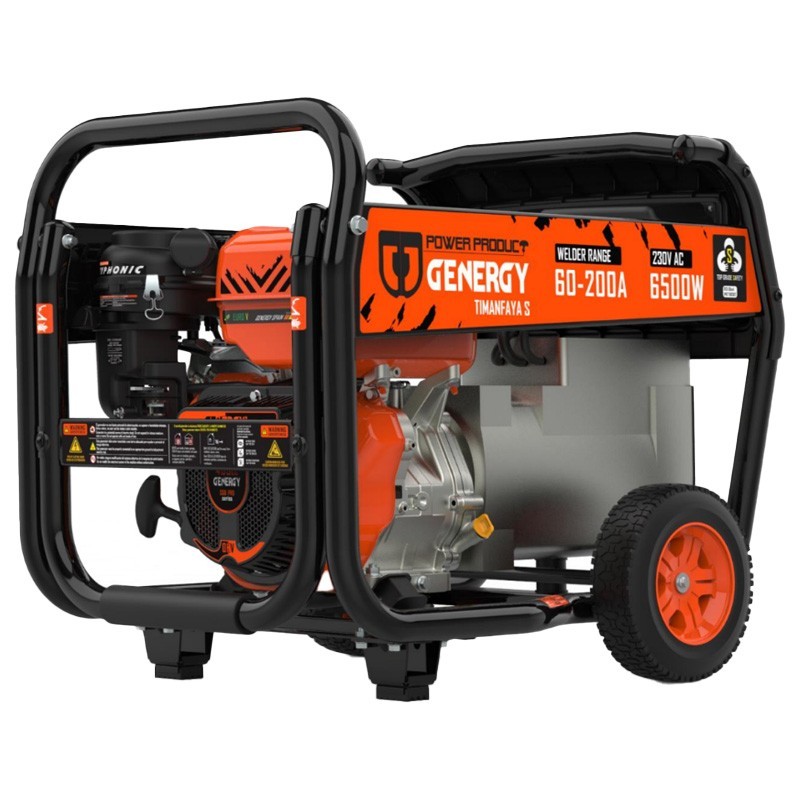

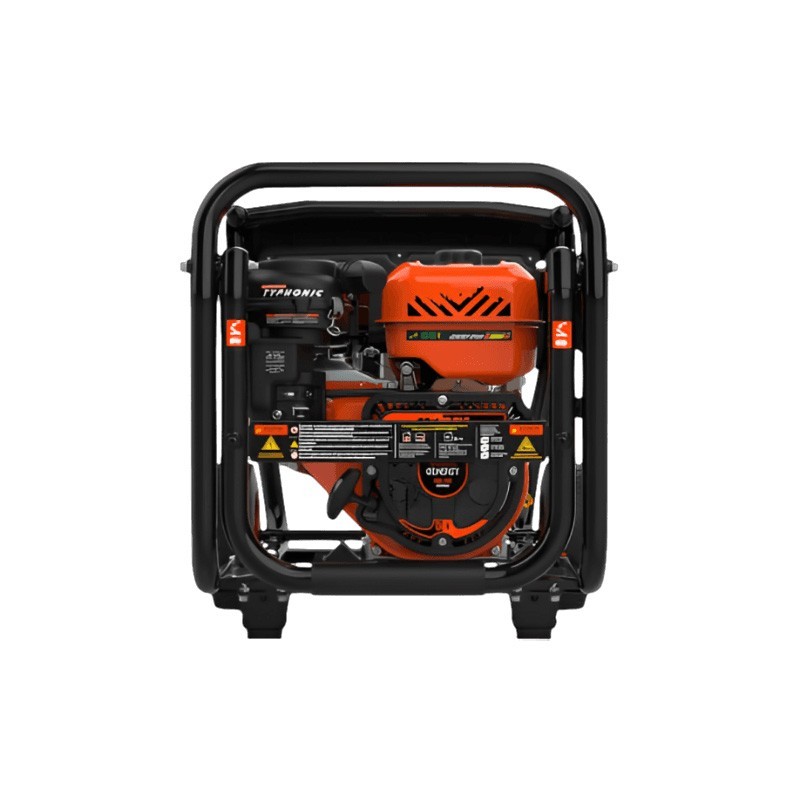

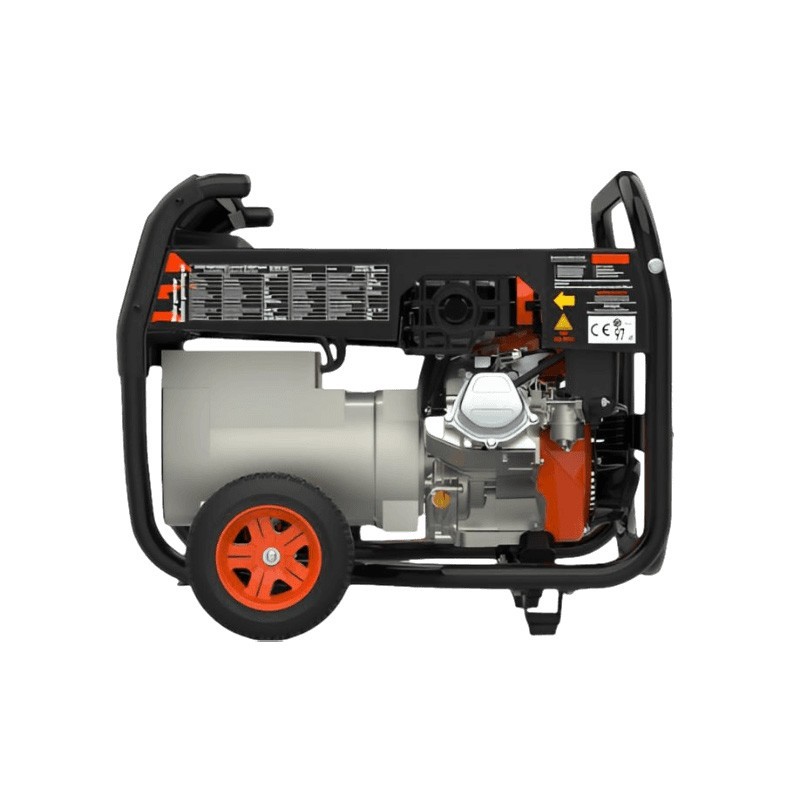

Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A

The Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A has a nominal power of 6000 W, a maximum power of 6500 W, and a DC welding range of 60-200A. With a voltage of 230 V it has a single-phase type current.

The motor welder supports electrode diameters from 2.5 to 4 mm, has dimensions of 814x623x690 mm, and an electronic stabilization system "SVR". It has a frequency of 50 Hz and is equipped with a copper coil.

The Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A with a 4-stroke OHV air-cooled gasoline engine, a capacity and oil grade of 1.1L - SAE10W40, and a weight of 98 kg, has a displacement of 459 cc.

Features

Stabilization system SVR" electronics
Voltage - Frequency 230V - 50Hz
Maximum Power 6500W
Nominal Power 6000W
DC welding range 60-200A
Duty Cycle 150A (100%) 200A (60%)
Electrode diameter 2.5-4mm
Power factor 0.8
Motor Model SGB460PRO
Displacement 459 cc
Engine type Gasoline, 4-stroke OHV air cooled
Average sound pressure level 7mts LpA (Idle-nominal) 68dB - 74dB
Guaranteed sound power level LwA 97dB
Starting type Manual
Fuel tank capacity 6 L
Consumption at 25-50-75% load 1.6 L/H - 2.3L/H - 3.4L/H
Autonomy 25-50-75% load 4.0H - 2.3H - 1.8H
Oil capacity and grade 1.1L - SAE10W40
Insulation level F
Class according to insulation quality A
Performance class G1
Standard ISO 8528-13:2016
Transport kit Integrated with 10" wheels
Dimensions 814x623x690mm
Weight 96kg
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.


Interesting links

258513

Data sheet

Power Supply
Gasoline
Stabilization
SVR
Motor welder type
Direct current
Current
Single-phase
Startup
Manual
Displacement
459 cc
Power rating
6000 W
Maximum power
6500 W
Type of winding
Copper
Displacement (cc)
400 cc - 499 cc
Nominal power (W)
6000 W - 6999 W
Maximum power (W)
6000 W - 6999 W
DC welding range
60 - 200 A
Duty cycle 40ºC
Electrode diameter (mm)
2.5 mm
3.2 mm
4 mm

Specific References

MPN
31225
New

✔️ Advantages of making purchases in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
