Welding generator Ayerbe 170 KT AC motor Kiotsu 4000 W
Welding generator Ayerbe 170 KT AC motor Kiotsu 4000 W

Welding generator Ayerbe 170 KT AC motor Kiotsu 4000 W

Rating:
(0)
  • Engine: Kiotsu KT 420
  • Maximum power: 4200 W
  • Voltage: Single phase
  • Weight: 85 Kg

Welding kit included

En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Alternating current
icon Current
Current
Single-phase
icon Startup
Startup
Manual
icon Engine
Engine
Kiotsu
icon Engine model
Engine model
KT 420
icon Displacement
Displacement
420 cc
icon Power
Power
13 HP
icon Engine type
Engine type
4 strokes
icon Power rating
Power rating
3200 W
icon Maximum power
Maximum power
4200 W
icon Type of generator
Type of generator
With handle and wheels
icon Usable electrodes
Usable electrodes
3.25 mm
€1,130.58 excl. VAT
- 6%
€1,062.75 excl. VAT
€1,285.92 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Welding generator Ayerbe 170 KT AC motor Kiotsu 4000 W
€1,285.92
Qty

Motor welder Ayerbe 170 KT AC

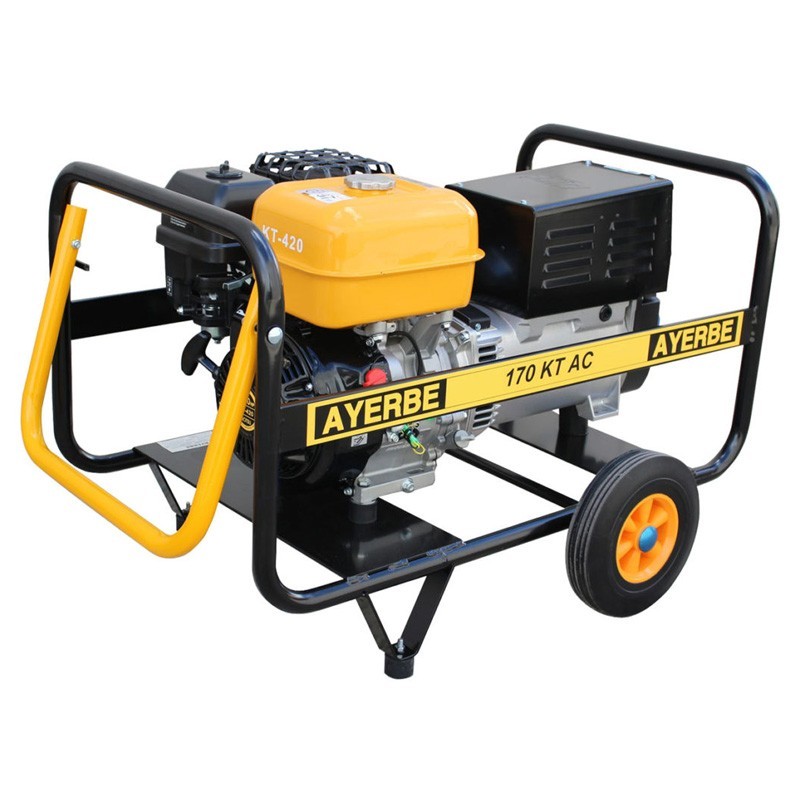

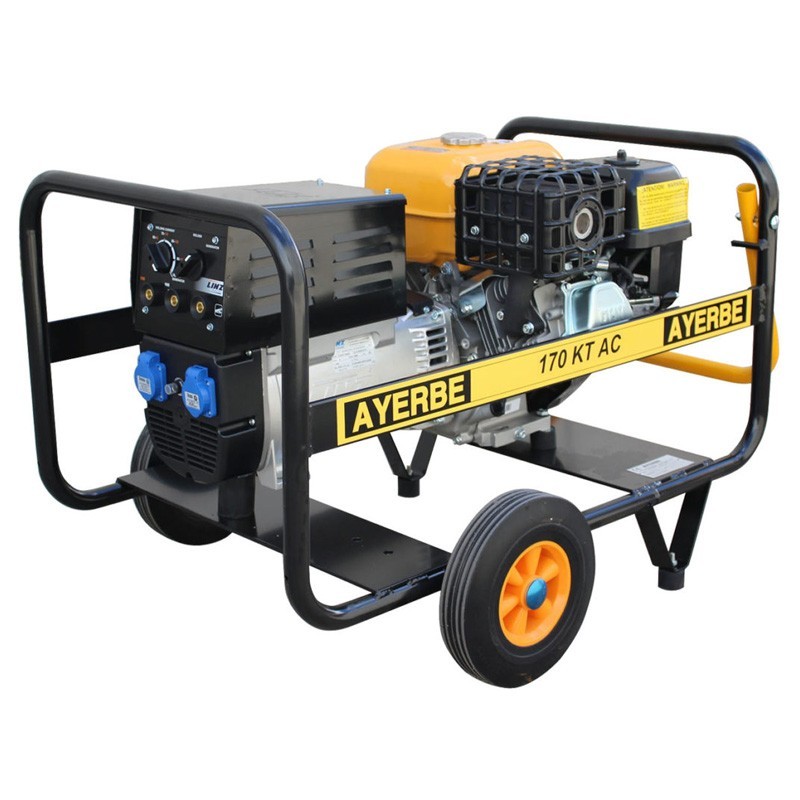

This time we have before us the gasoline welding machine Ayerbe 170 KT AC which, as its name suggests, has a gasoline engine of the brand Kiotsu model KT 420 that with its 13 HP of force is capable of generating 4200 W of maximum power.

In terms of fuel consumption we can say that it consumes 2.1 liters per hour and for a tank of 6.5 liters leaves us with a maximum duration of 3.3 hours of continuous use.

The welding motor is equipped with a LINZ alternator which, working in alternating current, is capable of performing a normal welding regime at 35% at 150 amperes and in intensive mode at 60% at 120 amperes.

Finally, the welding machine Ayerbe 170 KT AC is compatible with 3.25 mm rutile electrodes and comes standard with a welding kit including brush and electrode holder.

Technical specifications of the Ayerbe 170 KT AC

Maximum power 5 KVA - 4,200 W
Rated power 4 KVA - 3,200 W
R.p.m. 3.000 r.p.m.
Voltage / Frequency 230 V. / 50 Hz.
Start Manual
Power factor Cos phi 0,8
Noise level 97 LwA / 74 LpA @ 7 m
With grounding clamp Electrode holder and brush
Motor
Brand KIOTSU
Model KT 420
Power 13 HP
Displacement 420 cc
Cooling system Air
Engine oil type SAE 20W40 / IPE grade CD, CF
Intake Natural
R.P.M. of engine 3.600 r.p.m.
Speed governor Mechanics
Fuel Gasoline
Fuel consumption at 75% 2.1 L/H
Oil capacity 1,1 L
Starting system Manual
Alternator
Brand LINZ
Model E1 W10 150 AC
Normal welding speed 35 150 Amp
Intensive welding rate 60% 120 Amp
Max. electrode 3.25 mm rutile
Insulation type Class H
Degree of mechanical protection IP 23
Poles 2
Voltage / Frequency 230 / 50 Hz.
Type of coating Standard (without impregnation)
Dimensions and Weight
Tank capacity 6,5 l
Autonomy at 75% 3,3 hours
Weight 85 kg
Dimensions 950 x 625 x 746 mm
Packing volume 0,44 m³

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.
