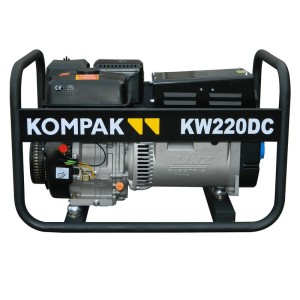

Gasoline welding machine Kompak KW220DC single-phase 5000 W
Gasoline welding machine Kompak KW220DC single-phase 5000 W
Gasoline welding machine Kompak KW220DC single-phase 5000 W

Gasoline welding machine Kompak KW220DC single-phase 5000 W

Rating:
(0)
  • Starting : Electric
  • Displacement : 420 cc
  • Current : Single-phase
  • Welder type : MMA
  • Nominal power : 5000 W
  • Power Supply gasoline
  • Type of winding : Copper
  • Generator type : Fixed
  • No load voltage : 80 V
  • Control range : 40 - 220 A
  • Usable electrodes : 1 - 4 mm
En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Direct current
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
MMA
icon Startup
Startup
Manual
icon Displacement
Displacement
420 cc
icon Power
Power
15 HP
icon Power rating
Power rating
5000 W
icon Type of winding
Type of winding
Copper
icon Type of generator
Type of generator
Fixed
icon No-load voltage
No-load voltage
80 V
icon Regulating range
Regulating range
40 - 220 A
icon Usable electrodes
Usable electrodes
1 - 4 mm
€1,375.38 excl. VAT
- 4%
€1,320.36 excl. VAT
€1,597.64 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline welding machine Kompak KW220DC single-phase 5000 W
€1,597.64
Qty

Gasoline welding machine Kompak KW220DC

The gasoline welding machine Kompak KW220DC incorporates a powerful HYUNDAI 4-stroke engine, equipped with a low oil level alarm that ensures safety by automatically stopping the engine.

This engine features OHV overhead valves, offering quick and easy manual starting, as well as low fuel consumption and low maintenance. With a heavy-duty 32 mm steel chassis and high-strength silent block, it provides durability without sacrificing the lightness necessary for mobility.

Equipped with Italian LINZ alternators, the KW220DC KW220DC Motor Welder Kompak allows for adjustable DC welding current, providing versatility in various jobs.

Its ability to handle welding electrodes from 1 to 4 mm, such as Rutile, Basic, Cellulosic and Inox, makes it a robust and adaptable option to meet welding needs in different environments and applications.

Features

Nominal Power 5.0 kVA
Max. current at 36-60% 170 (60%) + 220 (36%)
Welding voltage 21-29 V
Sockets 2 schuko 16A
Alternator Linz (E1W10MDC)
Electrode size 1-4 mm
Motor Hyundai
Model IC420
Type Gasoline
Displacement 420
Power 15 Hp
Starter Manual
Tank capacity 6,5 L
Noise level at 7 m. 75 dB
Dimensions 870x530x530 mm
Weight 82 Kg
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
The batteries included in some machines are a free gift, so they are exempt from warranty.
259012

Data sheet

Power Supply
Gasoline
Motor welder type
Direct current
Current
Single-phase
Typology Welder
MMA
Startup
Manual
Displacement
420 cc
Power
15 HP
Power rating
5000 W
Type of winding
Copper
Displacement (cc)
400 cc - 499 cc
Nominal power (W)
5000 W - 5999 W
Type of generator
Fixed
No-load voltage
80 V
Regulating range
40 - 220 A
Usable electrodes
1 - 4 mm

Specific References

MPN
KW220-DC
New

✔️ Advantages of making purchases in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
