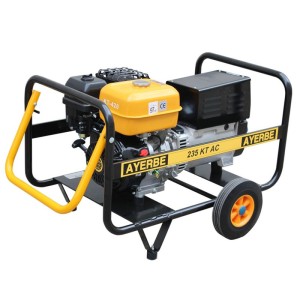

Gasoline welding generator Ayerbe AY 235 KT AC 5600 W
Gasoline welding generator Ayerbe AY 235 KT AC 5600 W

Gasoline welding machine Ayerbe AY 235 KT AC 5600 W


  • Engine: Kiotsu KT 420
  • Displacementengine: 420 cc
  • Maximum power: 5600 W
  • Manual start

Welding kit included

En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Alternating current
icon Current
Current
Single-phase
icon Startup
Startup
Manual
icon Engine
Engine
Kiotsu
icon Engine model
Engine model
KT 420
icon Displacement
Displacement
420 cc
icon Power
Power
13 HP
icon Power rating
Power rating
4800 W
icon Maximum power
Maximum power
5600 W
icon Type of generator
Type of generator
With handle and wheels
icon Usable electrodes
Usable electrodes
4 mm
€1,226.45 excl. VAT
- 4%
€1,177.39 excl. VAT
€1,424.64 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline welding machine Ayerbe AY 235 KT AC 5600 W
€1,424.64
Qty

Alternating current welding machine Ayerbe AY 235 KT AC

The alternating current welder Ayerbe AY 235 KT AC has a LINZ alternator model E1W10 200 AC that is capable of generating together with its powerful gasoline engine a maximum power of up to 5600 watts.

The aforementioned gasoline engine is a Kiotsu brand engine model KT 420 that has 13 horsepower and 420 cubic centimeters of displacement.

As for the electrodes it can support, these are 4 millimeters of rutile. The welder also includes a welding kit where we can see an electrode holder and a brush.

The consumption of this welder is 2.1 liters per hour giving us a maximum autonomy of 3.3 hours for its 6.5 liter tank. As for its weight, the machine weighs 100 kilograms but includes a handle and wheels for easy transport.

Technical data

Maximum power 7 KVA - 5,600 W
Nominal power 5 KVA - 4,800 W
R.p.m. 3.000 r.p.m.
Voltage / Frequency 230 V. / 50 Hz.
Start Manual
Power factor Cos phi 0,8
Noise level 97 LwA / 74 LpA @ 7 m
With grounding clamp Electrode holder and brush
Motor
Brand KIOTSU
Model KT 420
Power 13 HP
Displacement 420 cc
Cooling system Air
Engine oil type SAE 20W40 / IPE grade CD, CF
Intake Natural
R.P.M. of engine 3.600 r.p.m.
Speed governor Mechanics
Fuel Gasoline
Fuel consumption at 75% 2.1 L/H
Oil capacity 1,1 L
Starting system Manual
Alternator
Brand LINZ
Model E1W10 200 AC
Normal welding speed 35 180 Amp
Intensive welding rate 60% 150 Amp
Max. electrode 4 mm rutile
Type of insulation Class H
Degree of mechanical protection IP 23
Poles 2
Voltage / Frequency 230 / 50 Hz.
Type of coating Standard (without impregnation)
Dimensions and Weight
Tank capacity 6,5 l
Autonomy at 75% 3,3 hours
Weight 100 kg
Dimensions 950 x 700 x 730 mm
Packing volume 0,44 m³

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.

Interesting links

260612

Data sheet

Power Supply
Gasoline
Motor welder type
Alternating current
Current
Single-phase
Startup
Manual
Engine
Kiotsu
Engine model
KT 420
Displacement
420 cc
Power
13 HP
Power rating
4800 W
Maximum power
5600 W
Displacement (cc)
400 cc - 499 cc
Nominal power (W)
4000 W - 4999 W
Maximum power (W)
5000 W - 5999 W
Type of generator
With handle and wheels
Usable electrodes
4 mm

Specific References

EAN-13
8429459313301
MPN
5430330
