Gasoline welding machine Ayerbe AY 255 H AC Honda engine 3800 W
Gasoline welding machine Ayerbe AY 255 H AC Honda engine 3800 W

Gasoline welding machine Ayerbe AY 255 H CC Honda engine 3800 W

Rating:
(0)
  • Starting : Manual
  • Displacement engine : 390 cc
  • Engine : Honda
  • Current : Single-phase
  • Engine type : 4 stroke
  • Nominal power : 3.200 W
  • Maximum power : 3.800 W
  • Power Supply power : Gasoline
  • Power : 13 HP
  • Engine model : GX 390
  • Type of generator : With handle and wheels
  • Usable electrodes : 4 mm
En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Direct current
icon Current
Current
Three-phase
icon Startup
Startup
Manual
icon Engine
Engine
Honda
icon Engine model
Engine model
GX 390
icon Displacement
Displacement
390 cc
icon Power
Power
13 HP
icon Engine type
Engine type
4 strokes
icon Power rating
Power rating
4000 W
icon Maximum power
Maximum power
5200 W
icon Type of generator
Type of generator
With handle and wheels
icon Usable electrodes
Usable electrodes
4 mm
€1,714.05 excl. VAT
- 4%
€1,645.49 excl. VAT
€1,991.04 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline welding machine Ayerbe AY 255 H CC Honda engine 3800 W
€1,991.04
Qty

Gasoline welding machine Ayerbe AY 255 H CC Honda 3800 W engine

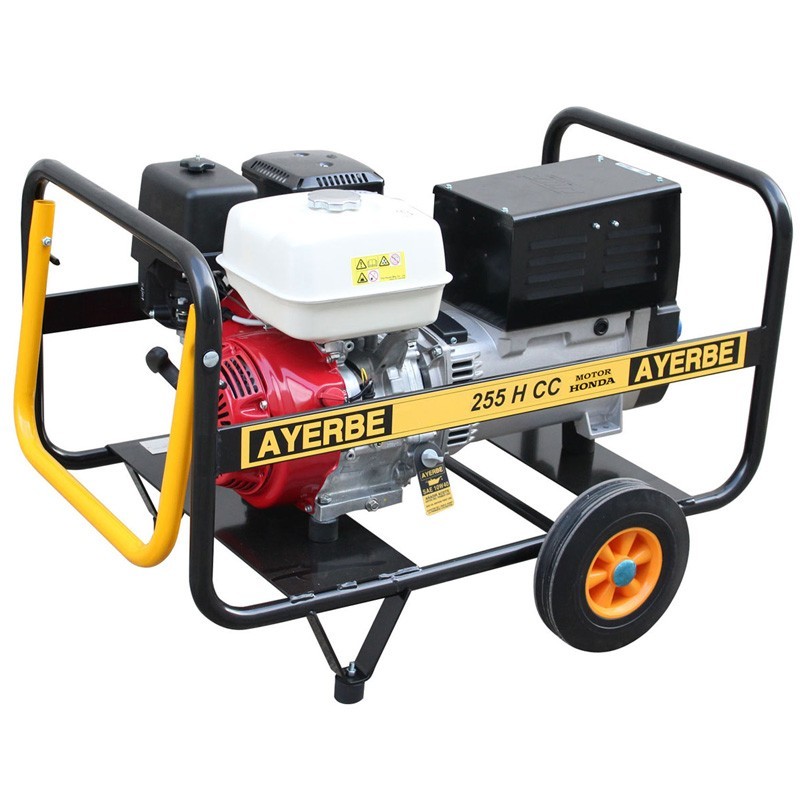

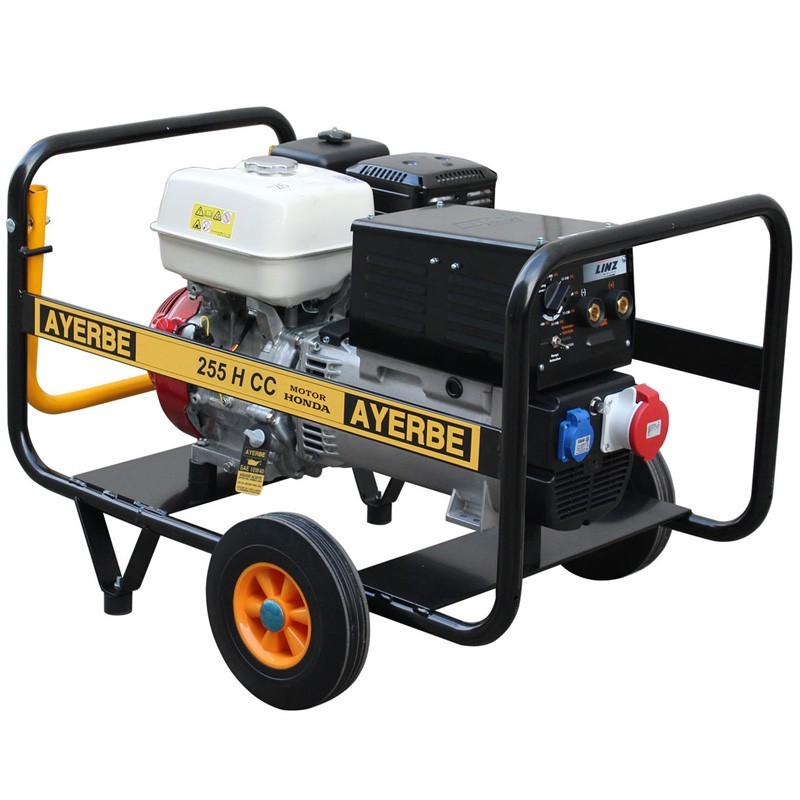

The gasoline welding machine Ayerbe AY 255 H CC is a powerful and versatile tool, equipped with a HONDA GX-390 engine and a LINZ E2W10 alternator. It offers a maximum power output of 6.5 KVA at 400 V and 3 KVA at 230 V, making it suitable for a wide range of welding applications.

Its efficient fuel consumption of 2.1 liters per hour and a 6.5 liter tank ensure extended run time, ideal for extensive work in remote locations.

With an electrode welding capacity of up to 4 mm and a welding current of 180 A at 30%, this power welder is capable of demanding jobs. Its compact design with a weight of 105 kg and a sound level of 97 dB makes it easy to transport and operate in different environments.

In addition, the manual start and included welding kit make it a complete and convenient solution for professionals who require a reliable power source and quality welding. With dimensions of 950 x 730 x 700 mm, it is a robust choice for welding needs in the field.

Technical Data

Maximum power 400 V 6.5 KVA - 5200 W
Rated power 400 V 5 KVA - 4000 W
Maximum power 230 V 3 KVA
Rated power 230 V 2,5 KVA
R.p.m. 3.000 r.p.m
Voltage / Frequency 400 & 230 V. / 50 Hz
Start Manual
Power factor Cos phi 0,8
Noise level 97 LwA / 74 LpA@7m
With grounding clamp Electrode holder and brush
Motor
Brand HONDA
Model GX 390
Power 13 HP
Displacement 390 cc
Cooling system Air
Engine oil type SAE 20W40 / IPE grade CD, CF
Aspiration Natural
R.P.M. engine oil 3.600 r.p.m.
Speed governor Mechanics
Fuel Gasoline
Fuel consumption at 75% 2.1 L/H
Oil capacity 1,1 L
Starting system Manual
Alternator
Brand LINZ
Model E2W10 220 DC
Normal welding speed 35 180 Amp
Intensive welding rate 60% 150 Amp
Maximum electrode 4 mm rutile and basic
Type of insulation Class H
IP protection IP 23
Poles 2
Voltage / Frequency 400 & 230 V / 50 Hz
Type of coating Standard (without impregnation)
Dimensions and Weight
Tank capacity 6,5 l
Autonomy at 75% 3 hours
Weight 105 kg
Dimensions 950 x 700 x 730 mm
Packing volume 0,44 m³
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.
