Gasoline welding generator Ayerbe 130 H AC 2800 W

Rating:
(0)
  • Engine: Honda GP-160 5,5 HP
  • Starter: Manual
  • Maximum power: 2800 W
  • Weight: 53 kg

Welding kit included

En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Alternating current
icon Current
Current
Single-phase
icon Startup
Startup
Manual
icon Engine
Engine
Honda
icon Engine model
Engine model
GP 160
icon Displacement
Displacement
162 cc
icon Power
Power
5.5 HP
icon Engine type
Engine type
4 strokes
icon Power rating
Power rating
2500 W
icon Maximum power
Maximum power
2800 W
icon Type of generator
Type of generator
With handle and wheels
icon Usable electrodes
Usable electrodes
3.25 mm
€899.17 excl. VAT
- 4%
€863.20 excl. VAT
€1,044.48 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline welding generator Ayerbe 130 H AC 2800 W
€1,044.48
Qty

Motorized welder Ayerbe 130 H AC

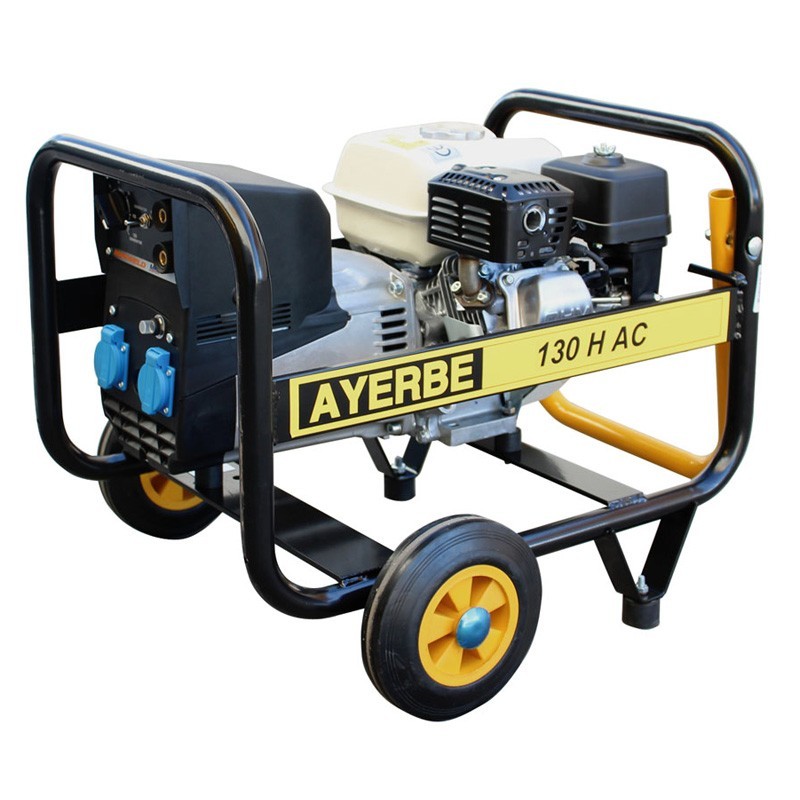

The welder Ayerbe 130 H AC is a motorized welder with a 5.5 HP engine of the prestigious Honda GP-160 model. This engine is capable of delivering 2800 watts of maximum power at 3000 revolutions per minute.

This welding machine accepts rutile electrodes of 3.25 millimeters and the protection it has is IP 23. Having this rating ensures basic protection against water.

The welding machine weighs 53 kilograms and has a handle and wheels for easy transport. As for its autonomy, we will get up to 3.3 hours with a tank of 3.6 liters and consumption of 1.1 liters per hour.

In addition to all this, the machine comes standard with the welding kit included. This kit also includes an electrode holder and a brush.

Technical characteristics

Maximum power 3,5 KVA - 2.800 W
Nominal power 3,2 KVA - 2.500 W
R.p.m. 3.000 r.p.m.
Voltage / Frequency 230 V. / 50 Hz.
Start Manual
Power factor Cos phi 0,8
Noise level 96 dB
With ground clamp Electrode holder and brush
Motor
Brand HONDA
Model GP 160
Power 5.5 HP
Displacement 162 cc
Cooling system Air
Engine oil type SAE 20W40 / IPE grade CD, CF
Aspiration Natural
R.P.M. of engine 3.600 r.p.m.
Speed governor Mechanics
Fuel Gasoline
Fuel consumption at 75% 1.1 L/H
Oil capacity 0,58 L
Starting system Manual
Alternator
Brand LINZ
Model SPW 10
Normal welding speed 35 120 Amp
Intensive welding rate 60% 100 Amp
Max. electrode 3.25 mm rutile
Type of insulation Class H
Degree of mechanical protection IP 23
Poles 2
Voltage / Frequency 230 / 50 Hz.
Type of coating Standard (without impregnation)
Dimensions and Weight
Tank capacity 3,6 l
Autonomy at 75% 3,3 hours
Weight 53 kg
Dimensions 650 x 530 x 470 mm
Packing volume 0,16 m³
