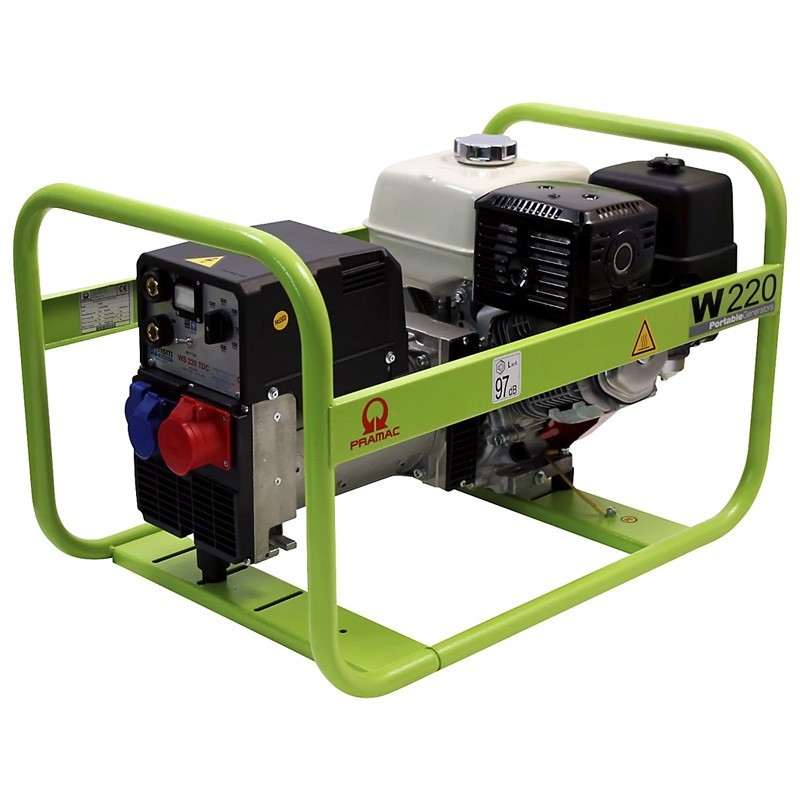

Three-phase gasoline welding generator Pramac W220 5500 W

Rating:
(0)
  • Starting : Manual
  • Displacement : 389 cc
  • Current : three-phase
  • Welder type : MMA
  • Nominal power : 4500 W
  • Fuel : Gasoline
  • Generator type : Fixed
  • No load voltage : 28.8 V
  • Adjustment range : 40 - 220 A
  • Usable electrodes : 5 mm
En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Direct current
icon Current
Current
Three-phase
icon Typology Welder
Typology Welder
MMA
icon Startup
Startup
Manual
icon Engine
Engine
Honda
icon Engine model
Engine model
GX390 Recoil
icon Displacement
Displacement
389 cc
icon Power rating
Power rating
4500 W
icon Maximum power
Maximum power
5500 W
icon Type of generator
Type of generator
Fixed
icon No-load voltage
No-load voltage
28.8 V
icon Regulating range
Regulating range
40 - 220 A
icon Usable electrodes
Usable electrodes
5 mm
icon Country of manufacture
Country of manufacture
Italy
€1,782.36 excl. VAT
- 4%
€1,711.07 excl. VAT
€2,070.39 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Three-phase gasoline welding generator Pramac W220 5500 W
€2,070.39
Qty

Three-phase gasoline welding machine Pramac W220 5500 W

The Pramac W220 is a powerful three-phase gasoline welder designed for a wide variety of welding applications. With an impressive welding current ranging from 40 to 220 amps, this machine is capable of handling welding projects of varying magnitude.

The welding voltage ranges from 21.6V to 28.8V, ensuring reliable and accurate performance. This power welder is equipped with a 389 cc Honda GX390 Recoil engine and air-cooling system.

It offers a maximum three-phase power of 5500W, making it a reliable power source for your welding needs. In addition, its manual start system and 6.1-liter fuel tank capacity ensure an autonomy of up to 2.8 hours at 75% load, which is essential for prolonged work in remote locations.

The rugged design of the Pramac W220 welder comes complete with IP23 electrical protection and IP44 plug protection, ensuring safe operation even in challenging environments. With its compact dimensions of 875 x 620 x 600 mm and a weight of 80 kg, this welding gun is portable and easy to transport.

Features

Welding parameters
Welding intensity 40-220 A
Welding voltage min 21.6 V
Welding voltage max 28.8 V
Welding duty at 60% 170 A
Max. electrode diameter
Rutile 5 mm
Basic 5 mm
Cellulose 5 mm
Power
Voltage 400/230 V
Frequency 50 Hz
Power factor 0.8 / 0.9 cos ϕ
Maximum three-phase power 5500 W
Nominal three-phase power 4500 W
Maximum single-phase power 2400 W
Single-phase rated power 2100 W
Motor specifications
Engine brand Honda
Model GX390 Recoil
Version 50 Hz
Cooling System Air
Displacement 389 cc
Aspiration Natural
Speed regulator Mechanical
Prime gross power PRP 6600 W
Maximum power 7700 W
Oil capacity 1.1 L
Fuel Gasoline
Specific fuel consumption at 75% PRP 313 g/kWh
Starting system Manual
Consumption
Consumption at 75% load 2.2 l/h
Fuel tank capacity 6.1 L
Autonomy at 75% load 2.8 h
Noise level
Guaranteed sound level (LWA) 97 dBA
Sound pressure at 7m 72 dBA
Dimensions
Dry weight 875 x 620 x 600 mm
Dimensions 80 Kg
Sockets
SCHUKO 230V 16A IP54 1
2P+T CEE 230V 16A IP44 1
3P+T CEE 400V 16A 1
Alternator and sockets protection
Electrical protection IP 23
Sockets protection IP 44
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.
259078

Data sheet

Power Supply
Gasoline
Motor welder type
Direct current
Current
Three-phase
Typology Welder
MMA
Startup
Manual
Engine
Honda
Engine model
GX390 Recoil
Displacement
389 cc
Power rating
4500 W
Maximum power
5500 W
Displacement (cc)
300 cc - 399 cc
Nominal power (W)
4000 W - 4999 W
Maximum power (W)
5000 W - 5999 W
Type of generator
Fixed
No-load voltage
28.8 V
Regulating range
40 - 220 A
Usable electrodes
5 mm
Country of manufacture
Italy
