Single-phase gasoline welding generator Ayerbe 170 AC 4200 W
Single-phase gasoline welding generator Ayerbe 170 AC 4200 W

Single-phase gasoline welding generator Ayerbe 170 AC 4200 W

Rating:
(0)
  • Maximum power: 4200 W
  • Engine: Honda GX 270
  • Tank: 5.5 liters
  • Weight: 75 Kg

Welding kit included

En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Alternating current
icon Current
Current
Single-phase
icon Startup
Startup
Manual
icon Engine
Engine
Honda
icon Engine model
Engine model
GX 270
icon Displacement
Displacement
272 cc
icon Power
Power
9 HP
icon Engine type
Engine type
4 strokes
icon Power rating
Power rating
3200 W
icon Maximum power
Maximum power
4200 W
icon Type of generator
Type of generator
With handle and wheels
icon Usable electrodes
Usable electrodes
3.25 mm
€1,380.99 excl. VAT
- 4%
€1,325.75 excl. VAT
€1,604.16 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Single-phase gasoline welding generator Ayerbe 170 AC 4200 W
€1,604.16
Qty

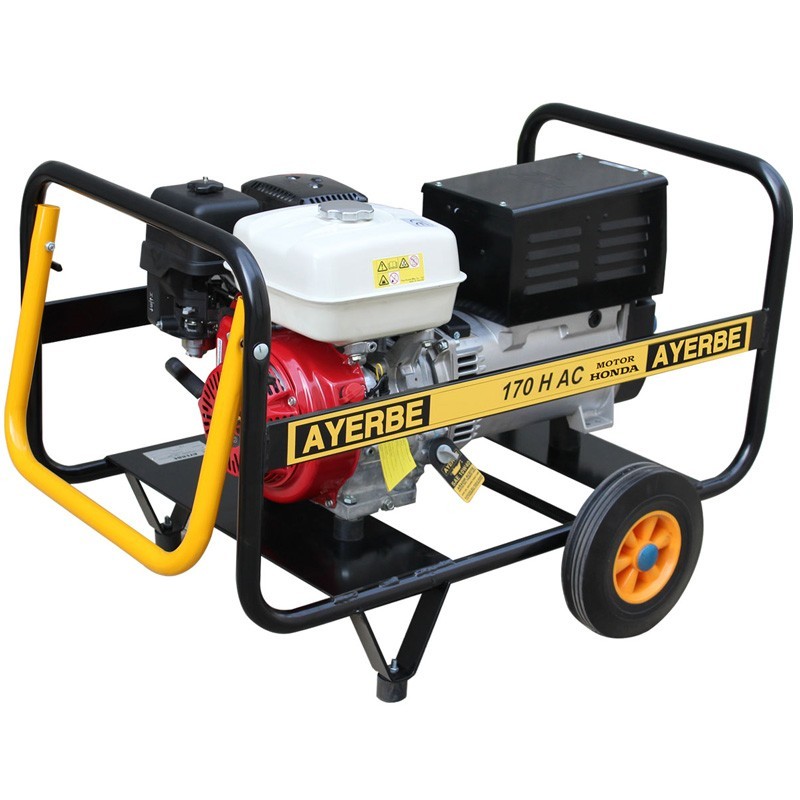

Gasoline Welding Machine Ayerbe 170 AC

The gasoline welder Ayerbe 170 AC has a Honda GX270 gasoline engine of 9 horsepower capable of generating a maximum power of 4200 watts.

This power is generated by running the engine at 3000 revolutions per minute and the engine start mode is manual. The voltage at which this motor welder works is 230 V or what is the same single-phase.

As for its consumption we can say that it is quite committed and it consumes only 1.8 liters per hour and this added to the tank of 5.5 liters gives us an approximate autonomy of 3 hours of continuous use.

The weight of this welder is 75 kg and it is worth mentioning that it comes with a welding kit containing an electrode holder and a brush.

Technical data

Maximum power 5 KVA - 4,200 W
Nominal power 4 KVA - 3,200 W
R.p.m. 3.000 r.p.m.
Voltage / Frequency 230 V. / 50 Hz.
Start Manual
Power factor Cos phi 0,8
Noise level 97 LwA / 74 LpA @ 7 m
With grounding clamp Electrode holder and brush
Motor
Brand HONDA
Model GX 270
Power 9 HP
Displacement 272 cc
Cooling system Air
Engine oil type SAE 20W40 / IPE grade CD, CF
Intake Natural
R.P.M. of engine 3.600 r.p.m.
Speed governor Mechanics
Fuel Gasoline
Fuel consumption at 75% 1.8 L/H
Oil capacity 1,1 L
Starting system Manual
Alternator
Brand LINZ
Model E1 W 10 150 AC
Normal welding speed 35 150 Amp
Intensive welding rate 60% 120 Amp
Max. electrode 3.25 mm rutile and basic
Type of insulation Class H
Degree of mechanical protection IP 23
Poles 2
Voltage / Frequency 230 / 50 Hz.
Type of coating Standard (without impregnation)
Dimensions and Weight
Tank capacity 5,5 l
Autonomy at 75% 3 hours
Weight 75 kg
Dimensions 950 x 625 x 746 mm
Packing volume 0,44 m³

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.
