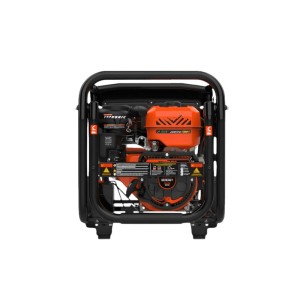

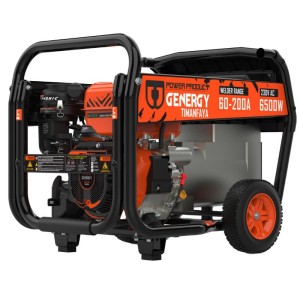

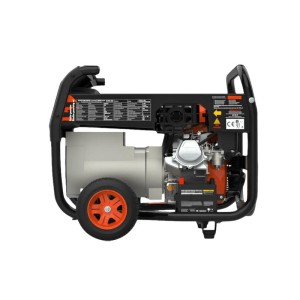

Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A
Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A
Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A
Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A
Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A
Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A
Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A
Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A
Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A

Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A

Rating:
(0)
  • Power supply : Gasoline
  • Rated power : 6000 W
  • Maximum power : 6500 W
  • Current : Single phase
  • Displacement : 459 cc
  • Stabilization system : SVR
  • Type of winding : Copper
  • Type of starting : Electric and Manual
  • DC welding range : 60 - 200 A
  • Duty cycle 40ºC : 60%
  • Electrode diameter : 2.5 - 4 mm
En stock
icon Power Supply
Power Supply
Gasoline
icon Stabilization
Stabilization
SVR
icon Motor welder type
Motor welder type
Direct current
icon Current
Current
Single-phase
icon Startup
Startup
Manual and Electric
icon Displacement
Displacement
459 cc
icon Power rating
Power rating
6000 W
icon Maximum power
Maximum power
6500 W
icon Type of winding
Type of winding
Copper
€1,286.89 excl. VAT
- 6%
€1,209.68 excl. VAT
€1,463.71 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A
€1,463.71
Qty

Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A

The Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A is equipped with a copper coil, it admits electrode diameters from 2.5 to 4 mm. It has dimensions of 814x623x690 mm and has an electronic stabilization system "SVR".

The machine has a 4-stroke OHV air-cooled gasoline engine, an oil capacity and grade of 1.1L - SAE10W40, and a weight of 98 kg. Its displacement is 459 cc, and voltage is 230 V.

The Gasoline Welding Machine Genergy Timanfaya 6500 W 200 A with a frequency of 50 Hz, a nominal power of 6000 W, and a maximum power of 6500 W, has a single-phase current. Its DC welding range is 60-200A.

Features

Stabilization system SVR" electronics
Voltage - Frequency 230V - 50Hz
Maximum Power 6500W
Nominal Power 6000W
DC welding range 60-200A
Duty Cycle 150A (100%) 200A (60%)
Electrode diameter 2.5-4mm
Power factor 0.8
Motor Model SGB460PRO
Displacement 459 cc
Engine type Gasoline, 4-stroke OHV air-cooled
Average sound pressure level 7mts LpA (Idle-nominal) 68dB - 74dB
Guaranteed sound power level LwA 97dB
Starting type Electric and Manual
Fuel tank capacity 6 L
Consumption at 25-50-75% load 1.6 L/H - 2.3L/H - 3.4L/H
Autonomy 25-50-75% load 4.0H - 2.3H - 1.8H
Oil capacity and grade 1.1L - SAE10W40
Insulation level F
Class according to insulation quality A
Performance class G1
Standard ISO 8528-13:2016
Transport kit Integrated with 10" wheels
Dimensions 814x623x690mm
Weight 98kg
