Gasoline welding machine Ayerbe AY 235 H AC 5600 W
Gasoline welding machine Ayerbe AY 235 H AC 5600 W

Gasoline welding machine Ayerbe AY 235 H AC 5600 W


  • Starting : Manual
  • Displacement : 390 cc
  • Engine : Honda
  • Current : Single-phase
  • Engine type : 4 stroke
  • Rated power : 4800 W
  • Maximum power : 5600 W
  • Fuel : Gasoline
  • Power : 13 HP
  • Engine model : GX 390
  • Type of generator : With handle and wheels
  • Usable electrodes : 4 mm
En stock
icon Power Supply
Power Supply
Gasoline
icon Motor welder type
Motor welder type
Alternating current
icon Current
Current
Single-phase
icon Startup
Startup
Manual
icon Engine
Engine
Honda
icon Engine model
Engine model
GX 390
icon Displacement
Displacement
390 cc
icon Power
Power
13 HP
icon Engine type
Engine type
4 times
icon Power rating
Power rating
4800 W
icon Maximum power
Maximum power
5600 W
icon Type of generator
Type of generator
With handle and wheels
icon Usable electrodes
Usable electrodes
4 mm
€1,464.46 excl. VAT
- 4%
€1,405.88 excl. VAT
€1,701.12 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gasoline welding machine Ayerbe AY 235 H AC 5600 W
€1,701.12
Qty

Gasoline welding machine Ayerbe AY 235 H AC 5600 W

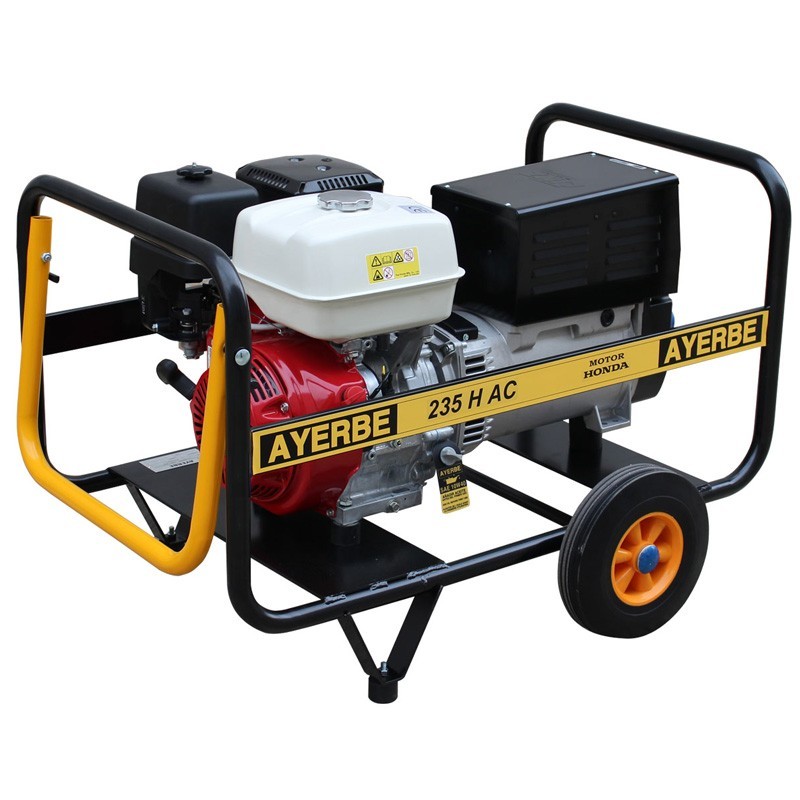

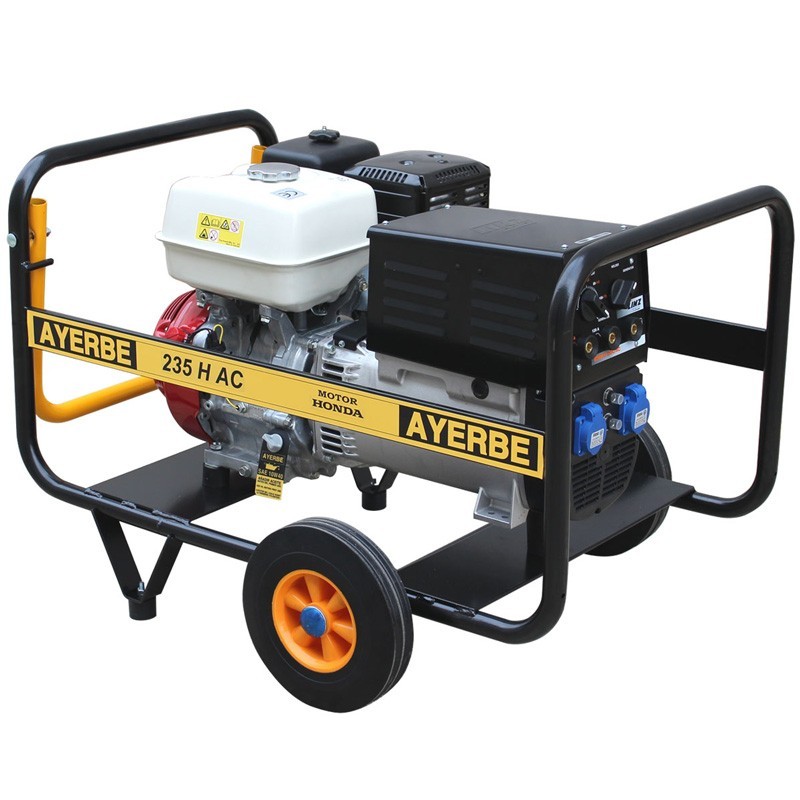

The gasoline welding machine Ayerbe AY 235 H AC is a powerful and versatile tool that offers a maximum power of 7 KVA, making it ideal for a wide range of welding applications. Equipped with a 13 HP HONDA GX 390 engine with a displacement of 390 cc, this machine delivers exceptional performance. In addition, its air-cooling system and a mechanical speed regulator ensure reliable operation.

With a sound level of 97 LwA / 74 LpA at a distance of 7 meters, this welding machine is relatively quiet for its power. The LINZ E1W 10 200 AC alternator ensures efficient welding, with a normal welding rate of 35% at 180 Amp and an intensive welding rate of 60% at 150 Amp.

Its compact design with dimensions of 950 x 625 x 746 mm and a weight of 85 kg makes it easy to transport and use in different workplaces. With a 6.5 liter tank, it offers an autonomy of 3 hours at 75% load, making it a reliable and durable tool for welding projects.

Technical Data

Maximum power 7 KVA - 5,600 W
Rated power 6 KVA - 4,800 W
R.p.m. 3.000 r.p.m
Voltage / Frequency 230 V. / 50 Hz
Start Manual
Power factor Cos phi 0,8
Noise level 97 LwA / 74 LpA@7m
With grounding clamp Electrode holder and brush
Motor
Brand HONDA
Model GX 390
Power 13 HP
Displacement 390 cc
Cooling system Air
Engine oil type SAE 20W40 / IPE grade CD, CF
Aspiration Natural
R.P.M. engine oil 3.600 r.p.m.
Speed governor Mechanics
Fuel Gasoline
Fuel consumption at 75% 2.1 L/H
Oil capacity 1,1 L
Starting system Manual
Alternator
Brand LINZ
Model E1W 10 200 AC
Normal welding speed 35 180 Amp
Intensive welding rate 60% 150 Amp
Maximum electrode 4 mm rutile
Type of insulation Class H
IP protection IP 23
Poles 2
Voltage / Frequency 230 V / 50 Hz
Type of coating Standard (without impregnation)
Dimensions and Weight
Tank capacity 6,5 l
Autonomy at 75% 3 hours
Weight 85 kg
Dimensions 950 x 625 x 746 mm
Packing volume 0,44 m³
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.
