Front shovel for tractors Hanwo
- Front shovel for tractors Hanwo
- Non-binding image
€4,978.79 VAT incl.

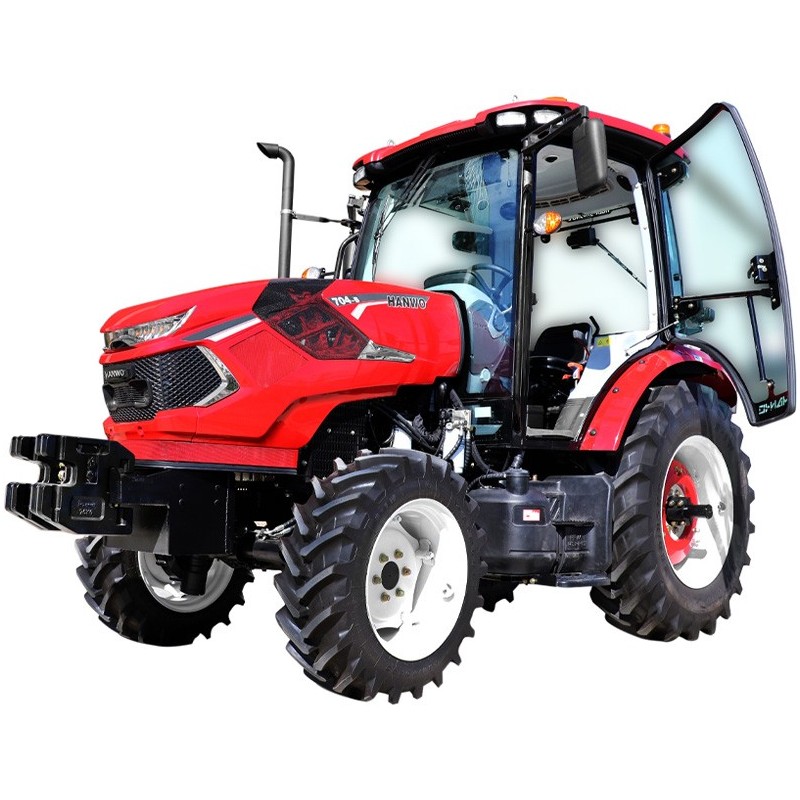

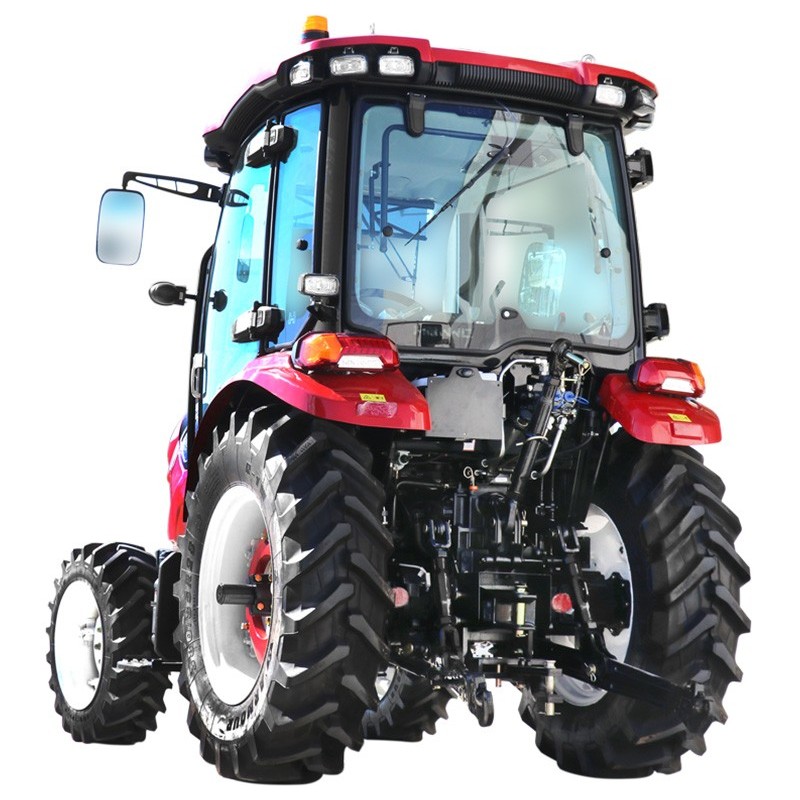

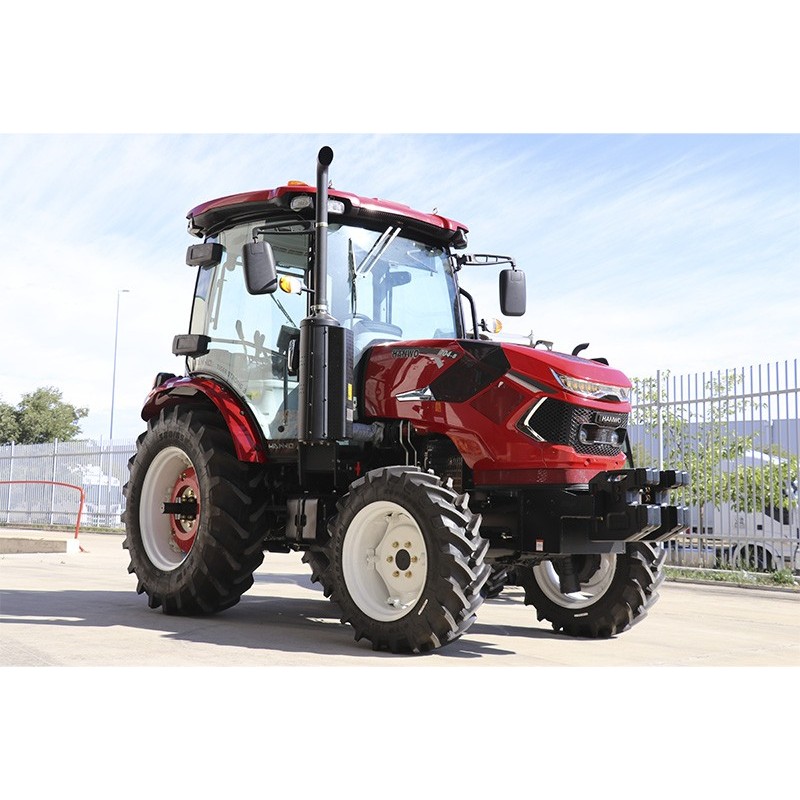

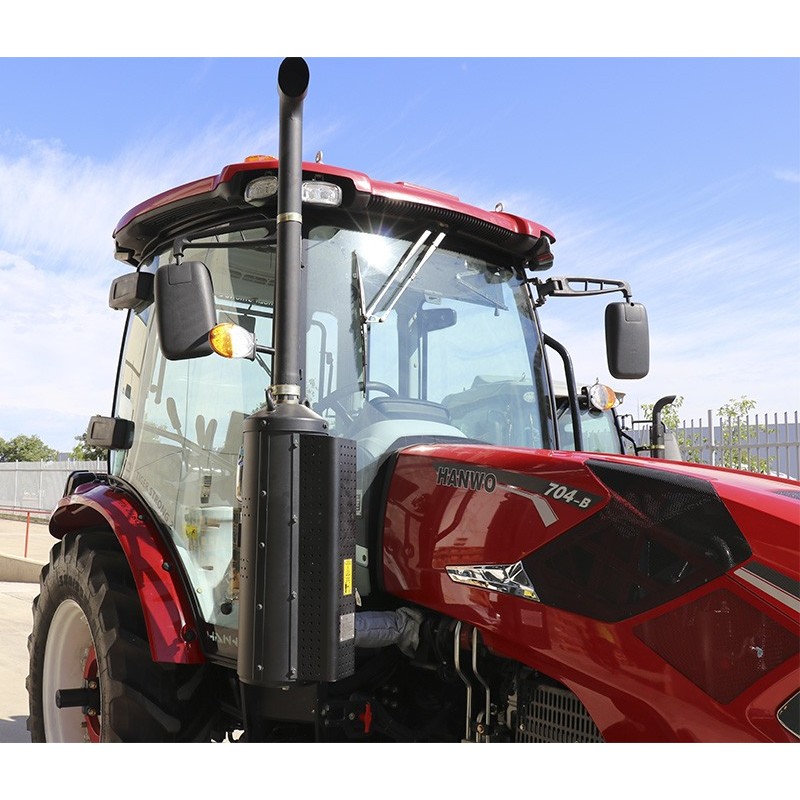

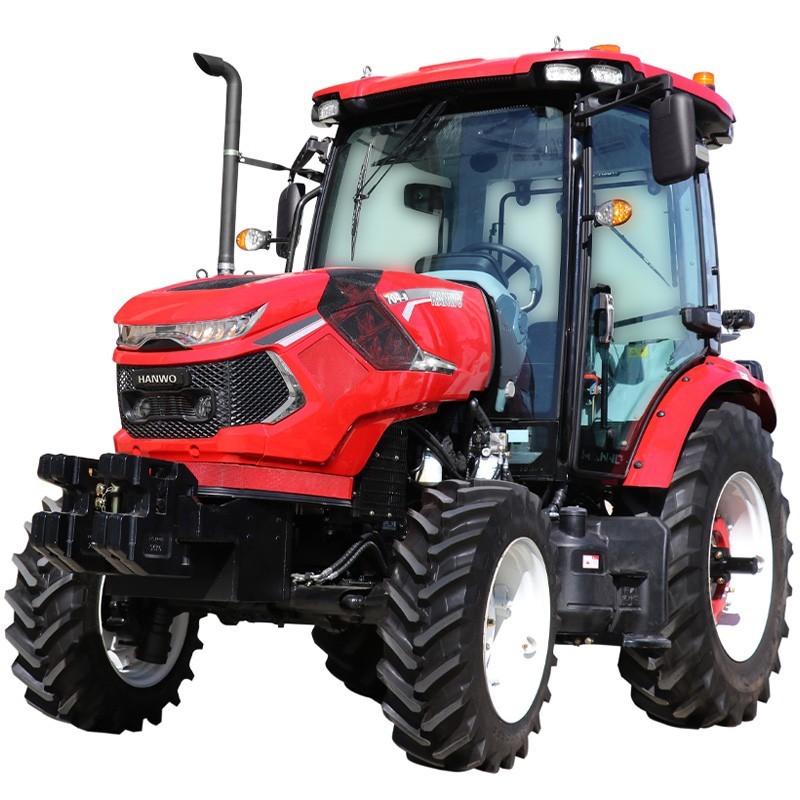

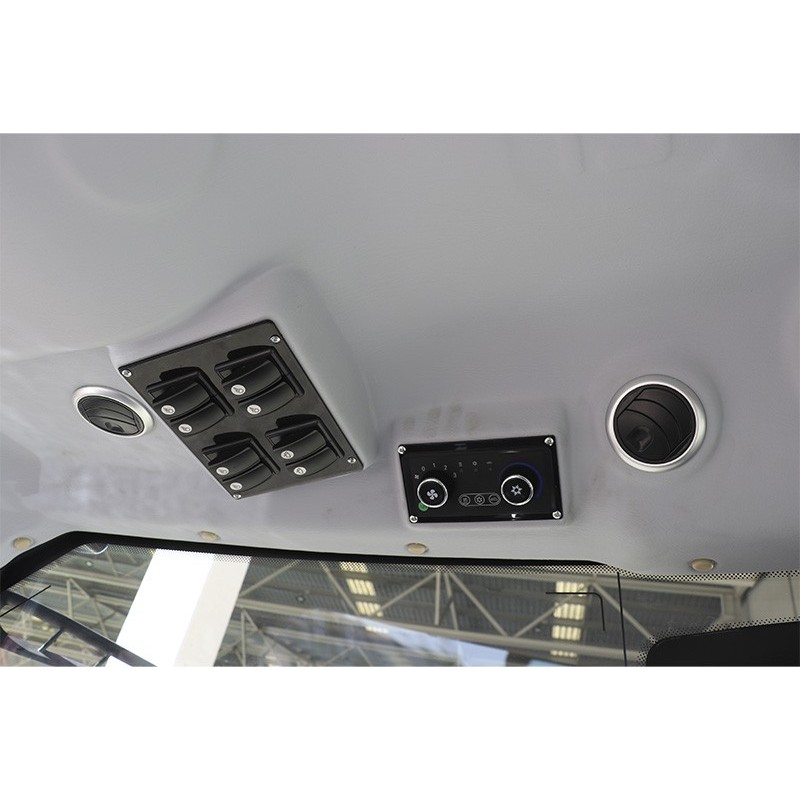

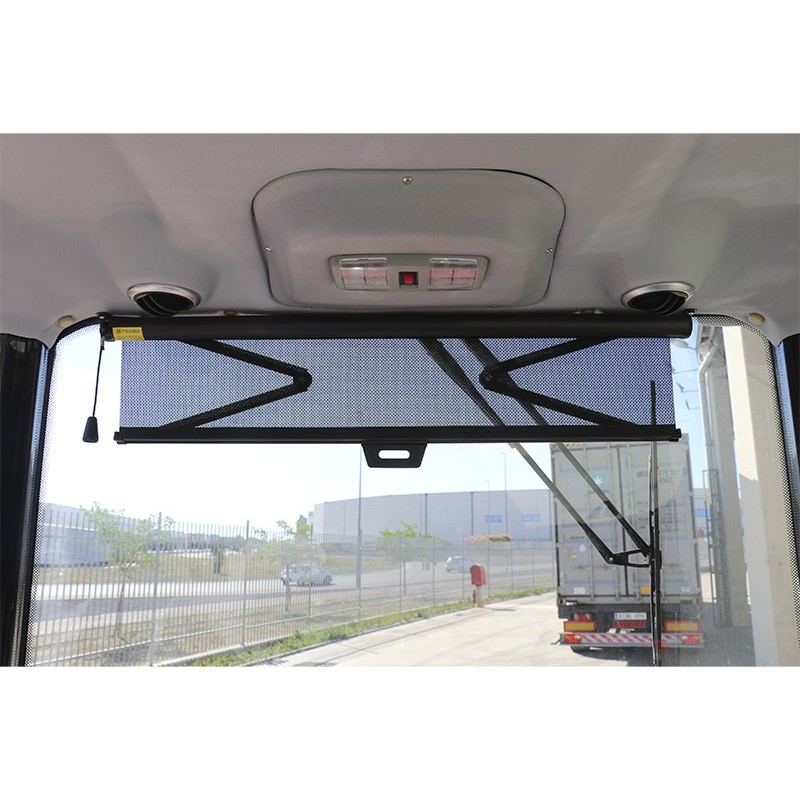

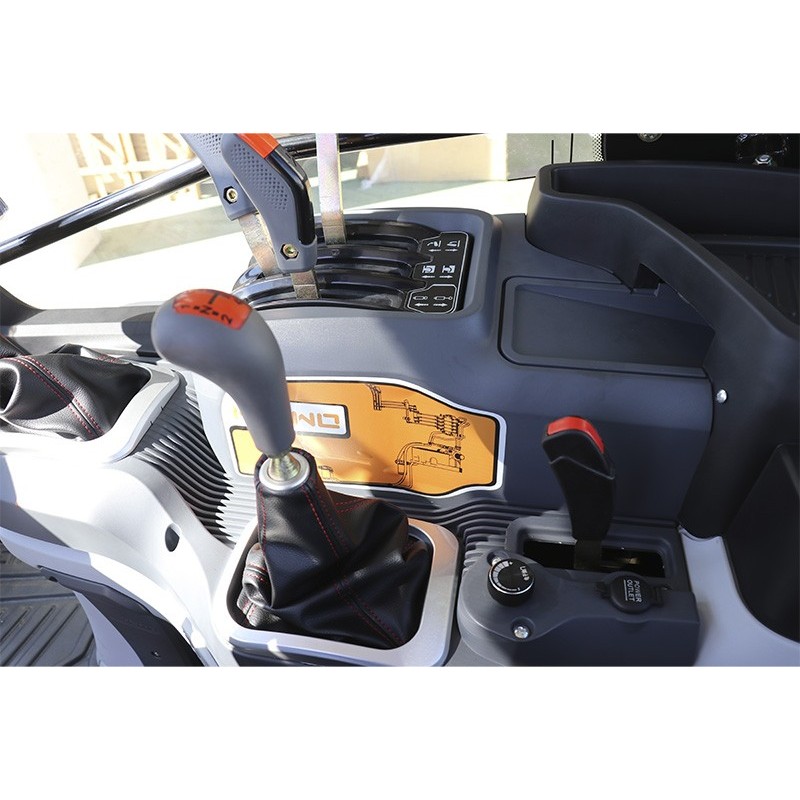

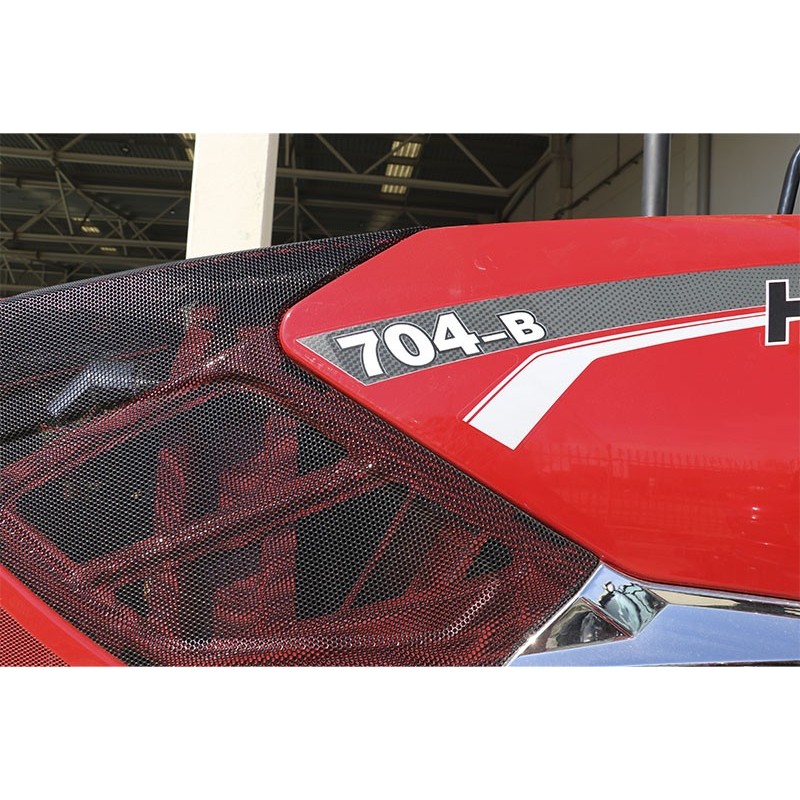

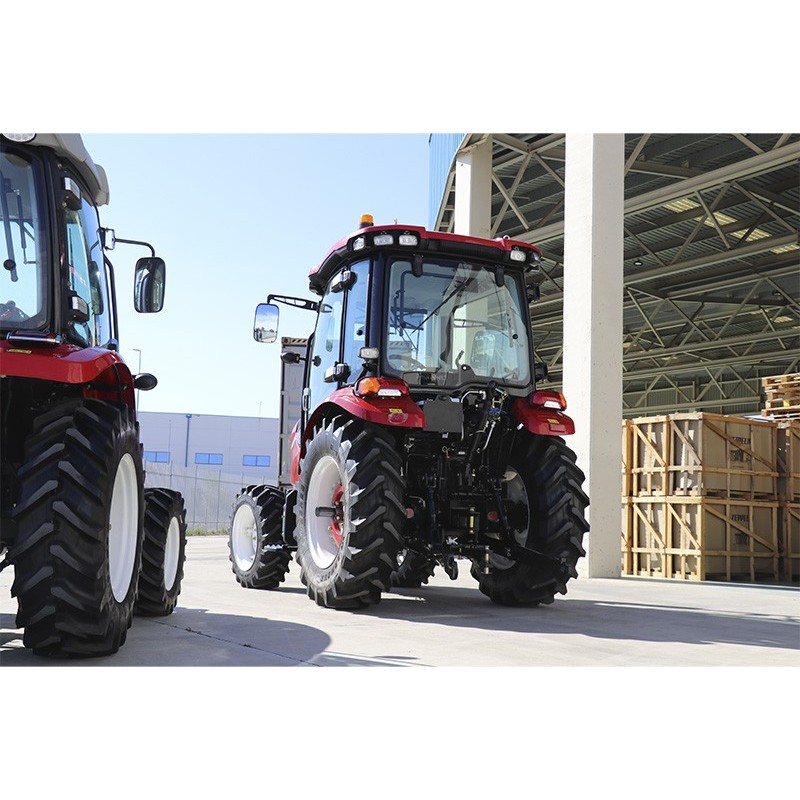

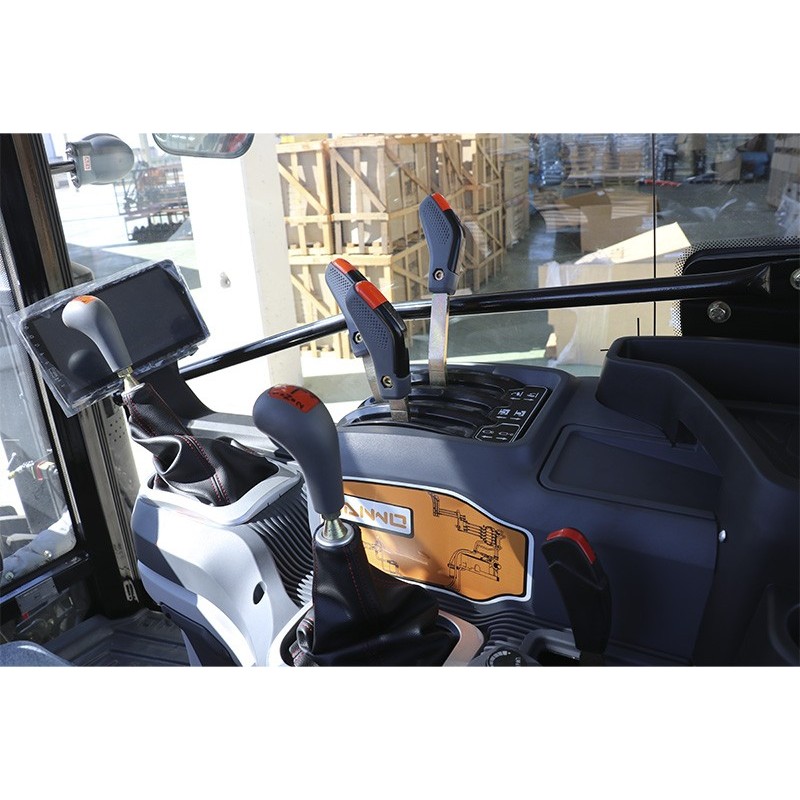

The Tractor Hanwo 704C is a robust and efficient agricultural machine, ideal for demanding work in the field. Equipped with an enclosed cab and air conditioning, it offers operator comfort in all weather conditions.

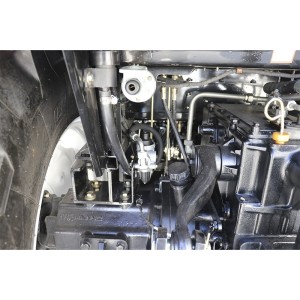

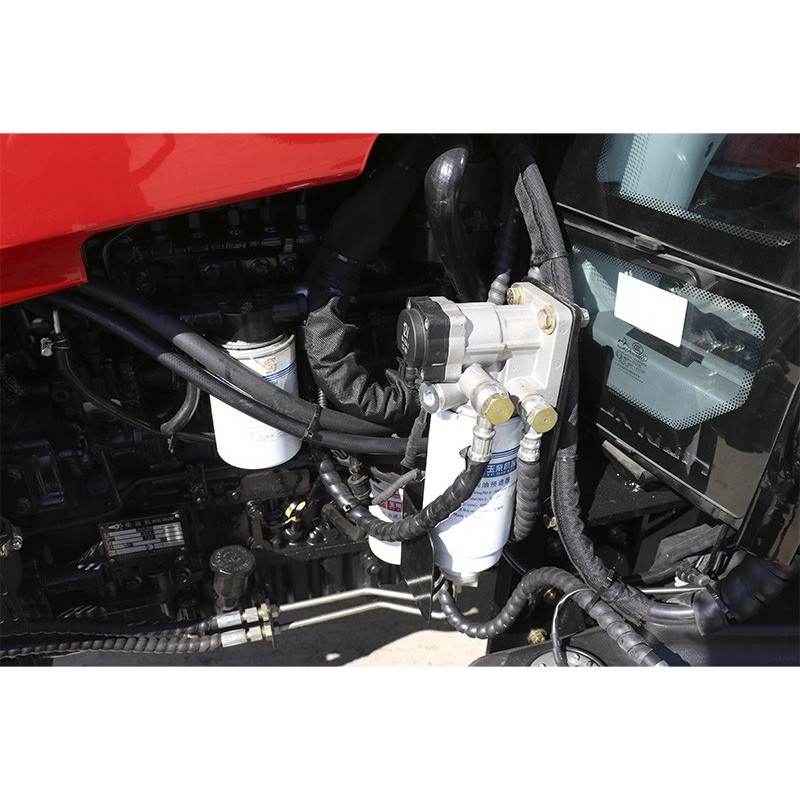

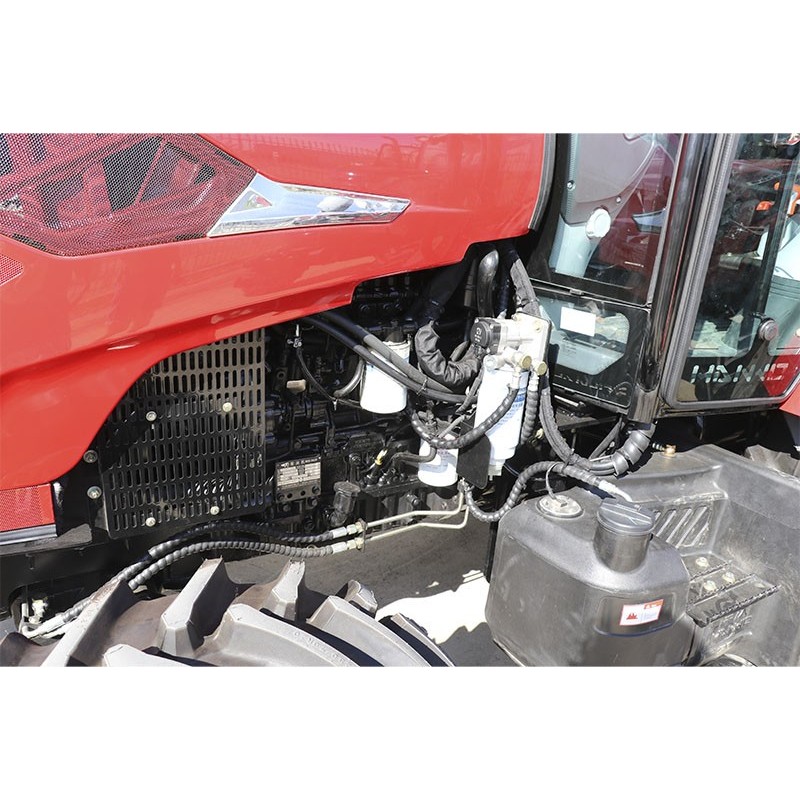

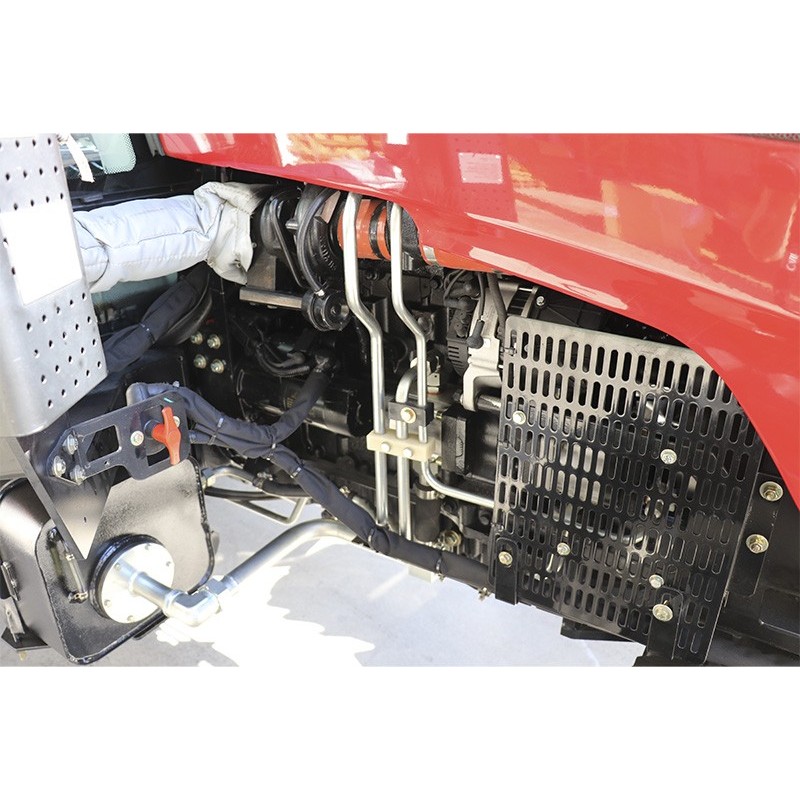

Its 75 HP YCF3075-S581 EURO V engine ensures optimum performance, with direct injection and turbocharging for greater fuel efficiency. Its 12-speed forward and 12-speed reverse mechanical transmission, together with its 4WD system, give it great versatility in difficult terrain.
In addition, its 45 L/min hydraulic system and two-speed PTO (540/1000 RPM) allow operating implements with precision and power. With a height of 2781 mm and a weight of 3360 kg, this tractor stands out for its stability and maneuverability in various agricultural tasks.
Engine | |
---|---|
Model | YCF3075-S581 EURO V |
Type | 4-stroke in-line, supercharged, direct injection |
Bore x stroke | 78×86 mm |
Power rating / max. | 55.8 kW / 75 HP |
RPM speed (nominal/max.) | 2200 rpm |
Dimensions | |
Overall length | 4206 mm |
Width | 1782 mm |
Height (with cabin) | 2781 mm |
Wheel base | 2050 mm |
Minimum ground clearance | 360 mm |
Front tread | 1220 mm |
Rear band | 1420 mm |
Weight | 3360 kg |
Transmission | |
Clutch | 11 inch, dual stage, independent control |
Front tires | 280/70R20 |

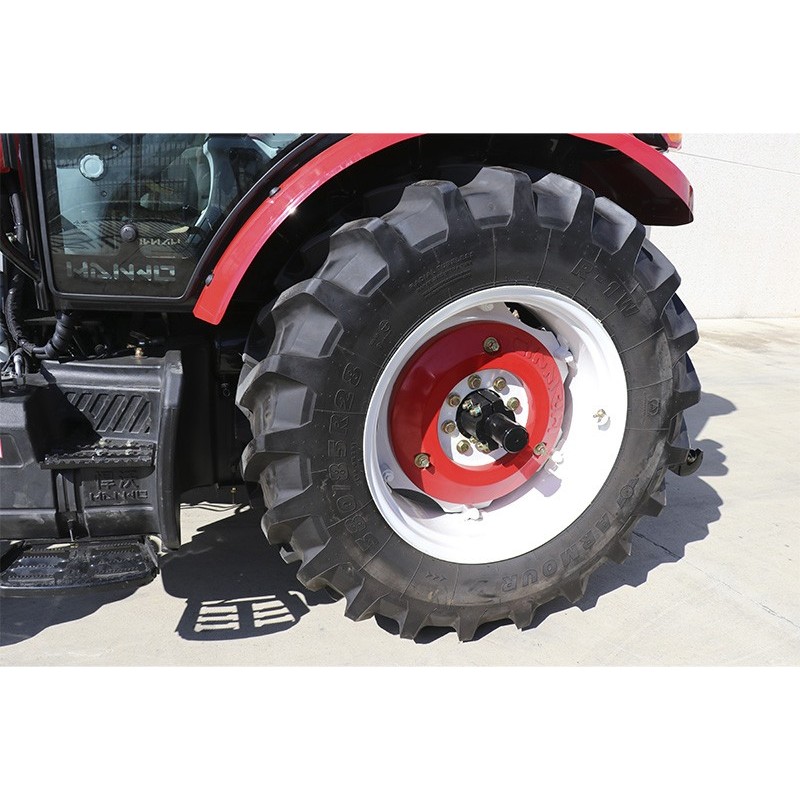

Rear tires | 380/85R28 |

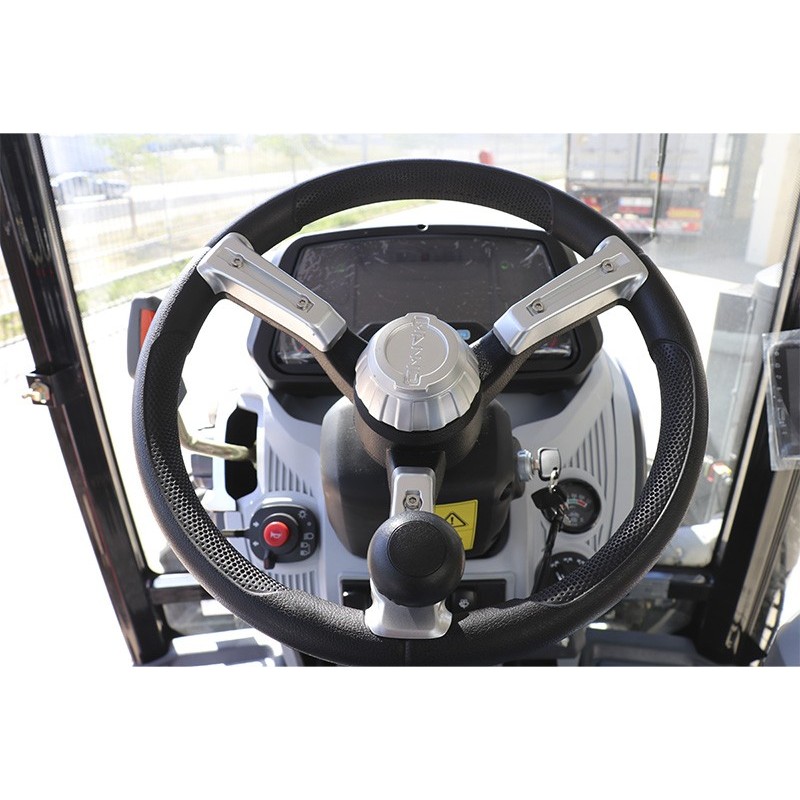

Steering | Hydraulic |
Transmission | Two-axle mechanical gearbox, 12 front + 12 rear |

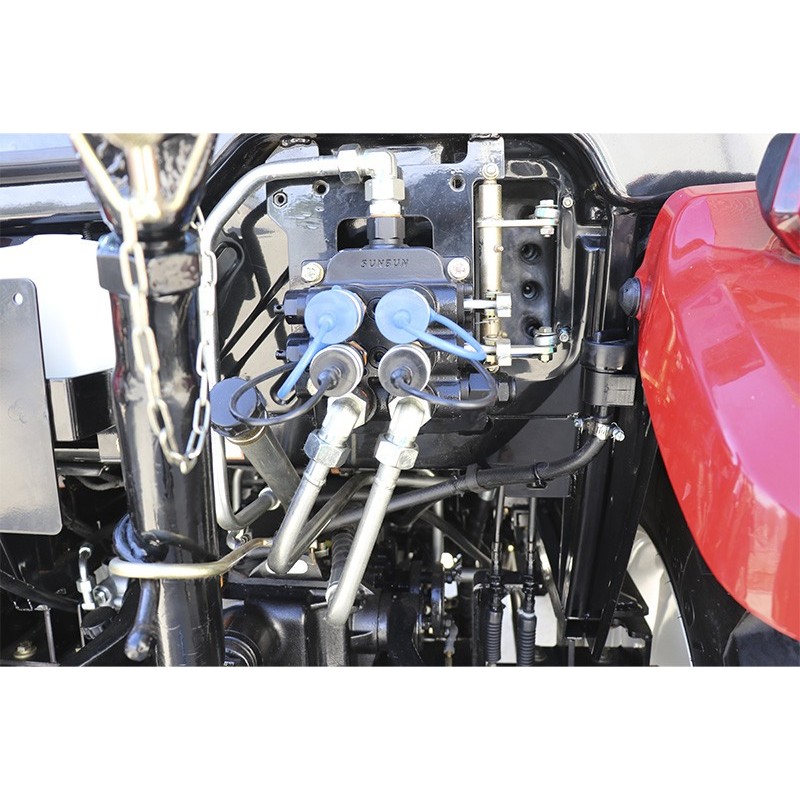

Hydraulic flow | 45 L/min |

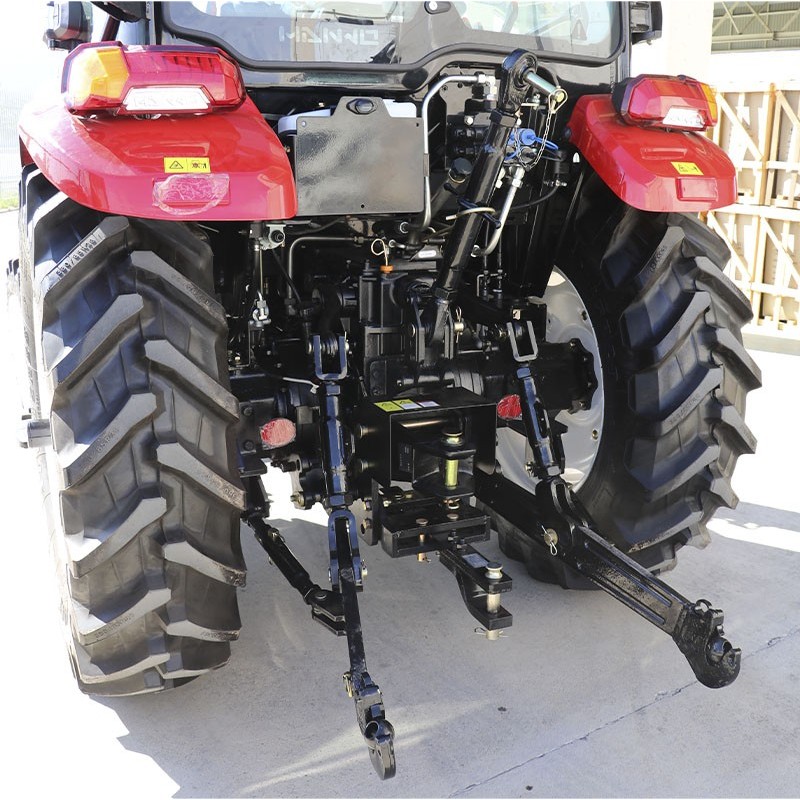

Hydraulic control system | Integral force and position control |

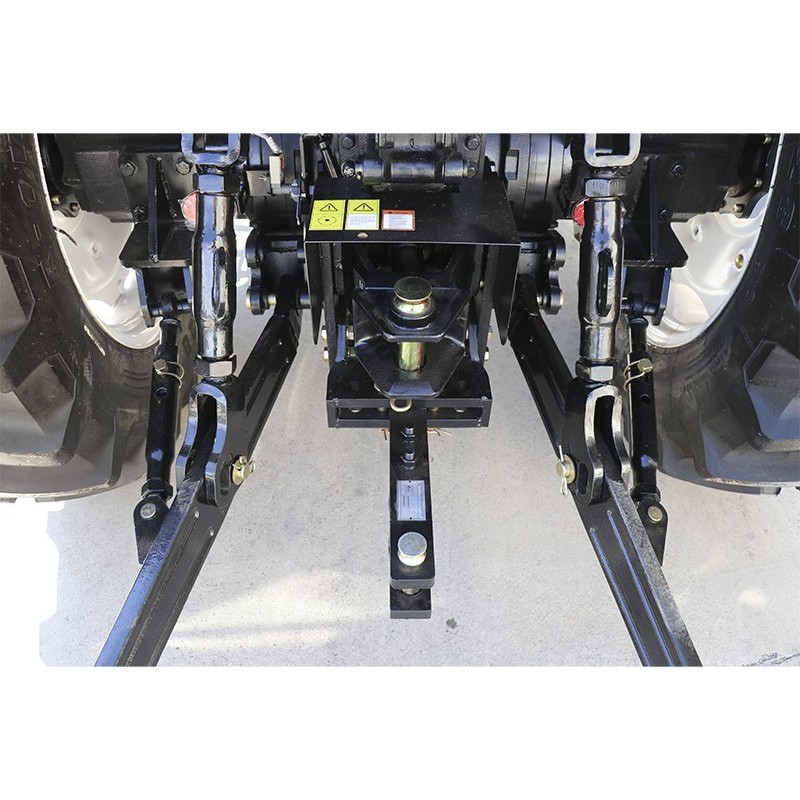

Rear control | Two groups |

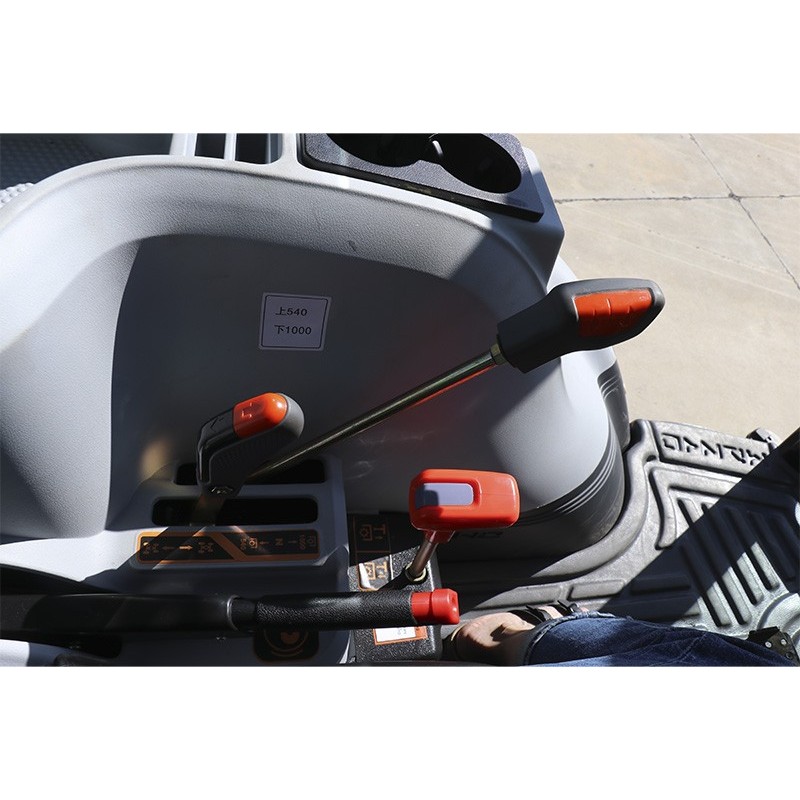

PTO power | 540 / 1000 |
Drive | 4×4 (4WD) |
Maximum speed | 1.64 - 29.97 km/h |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
