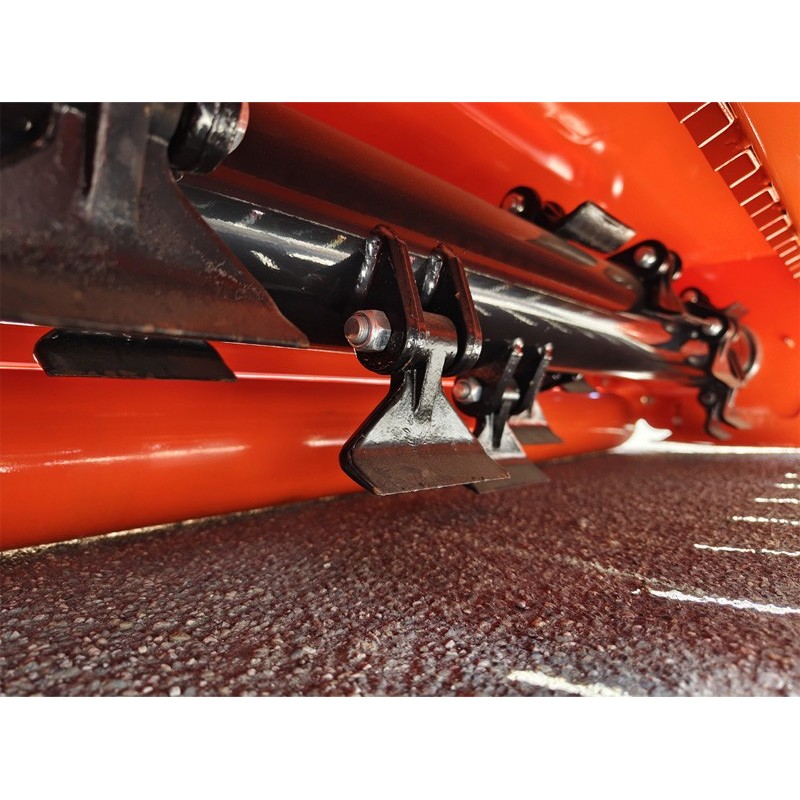

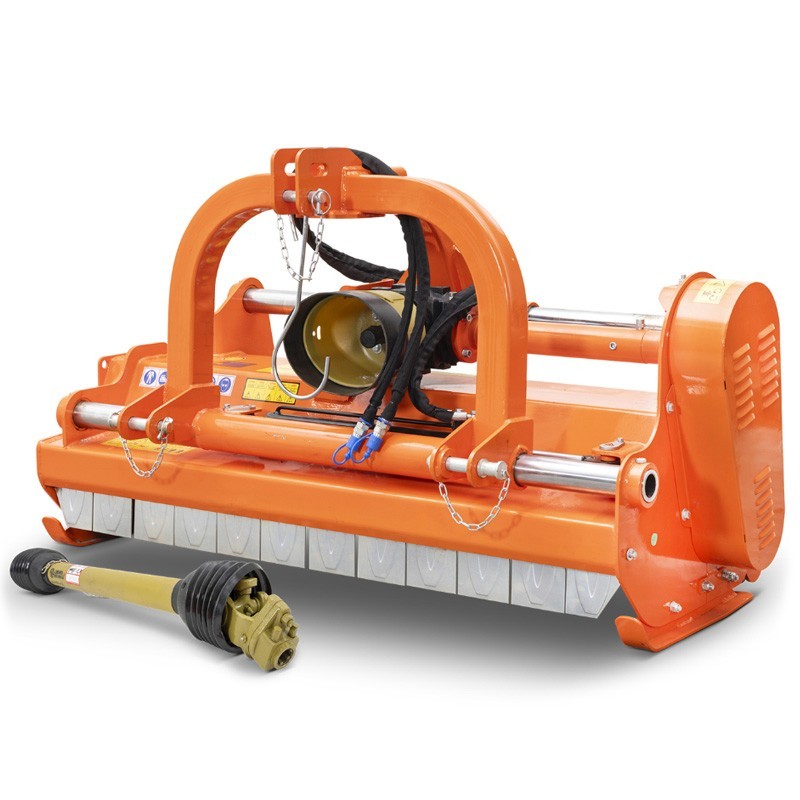

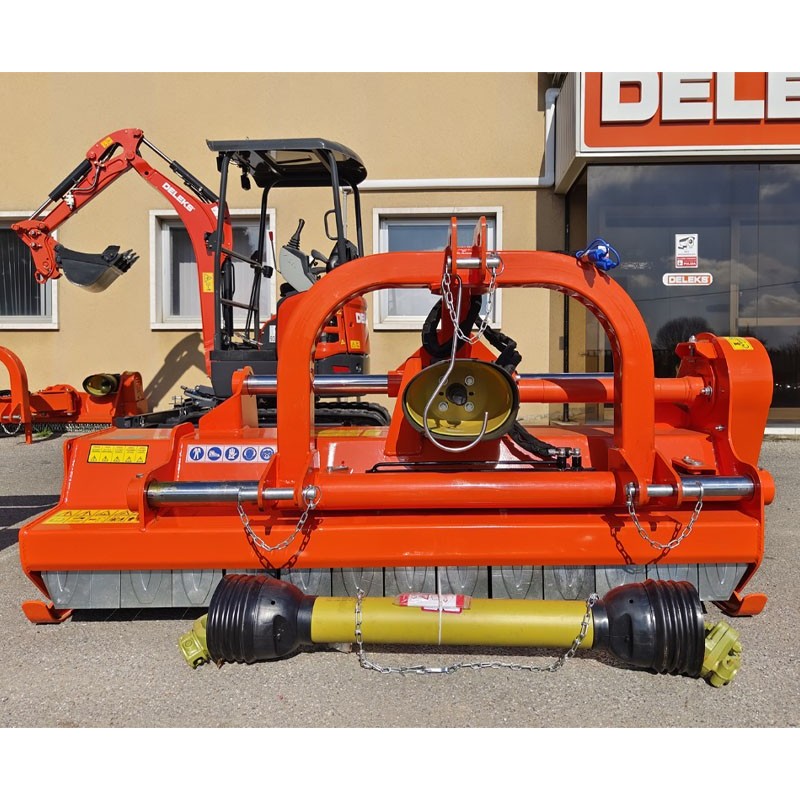

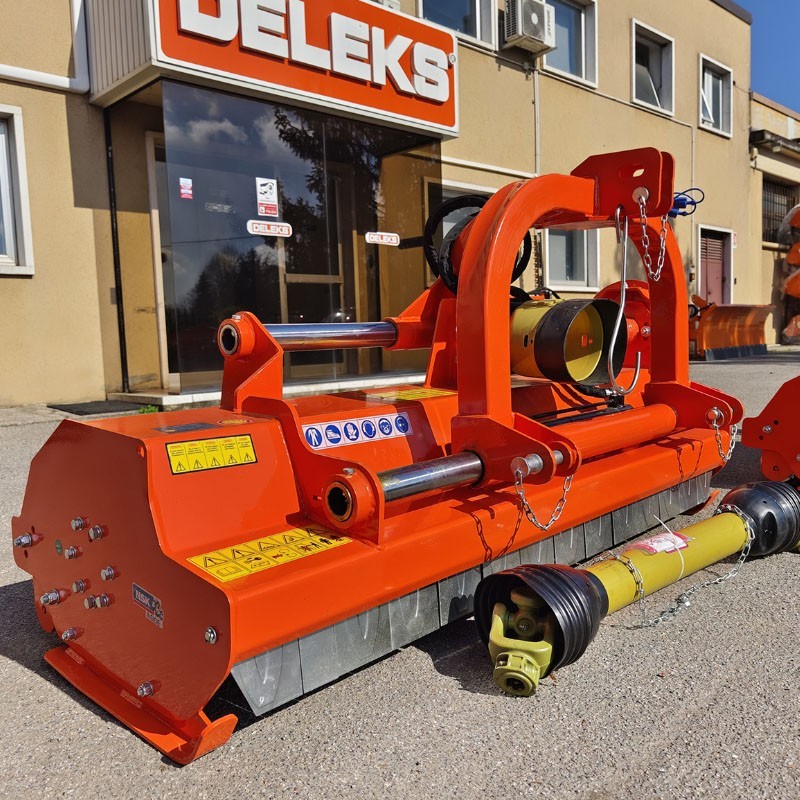

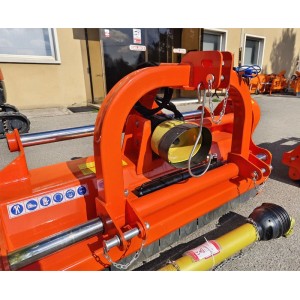

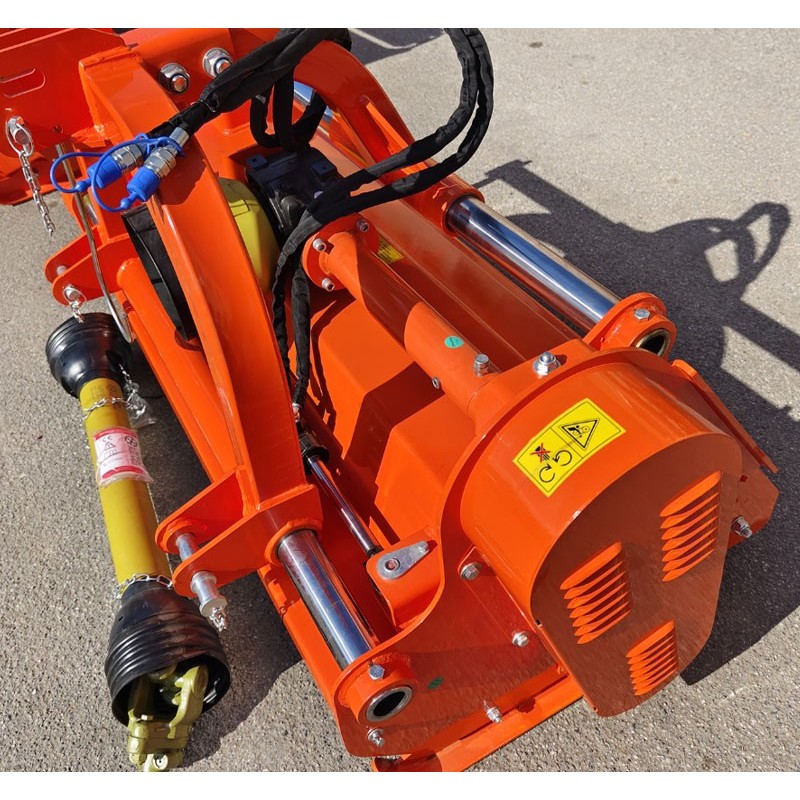

The DELEKS CERVO heavy-duty mulcher is designed for demanding jobs in grounds, field and ditch maintenance. Equipped with forged hammers, it is capable of shredding dense vegetation and branches up to 5 cm in diameter, offering efficient performance in professional environments.

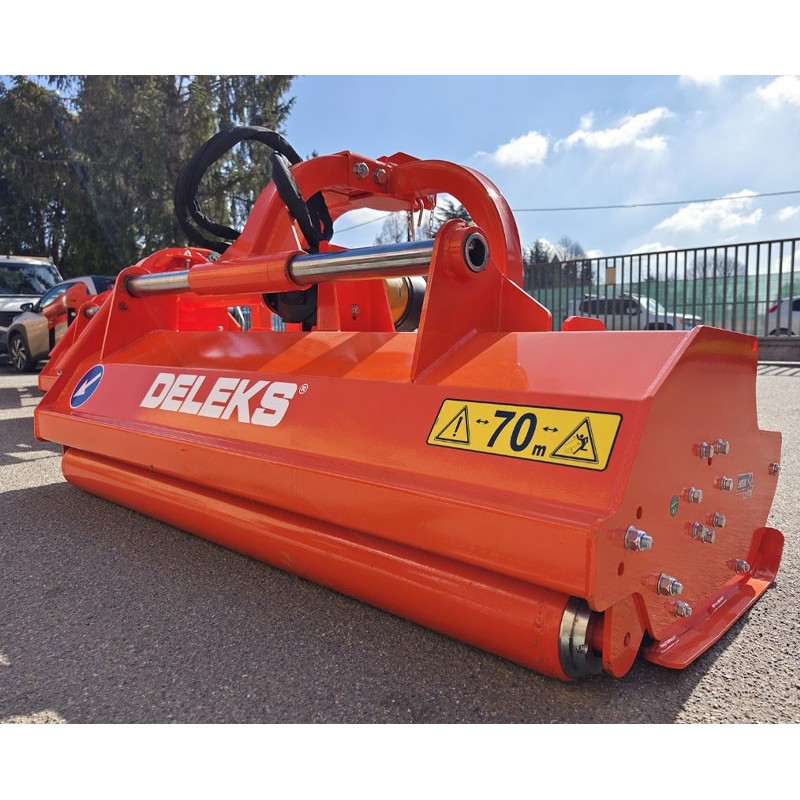

Its electronically balanced rotor ensures smooth and stable operation even in continuous use. Hydraulic offset, adjustable side skids and a 152 mm rear roller facilitate uniform work on different terrains.
Available in 160 and 180 cm working widthversions, it is compatible with tractors from 50 to 100 hp with 3-point hitch. Its sturdy structure, freewheel transmission box and 4 reinforced belts ensure durability and reliability every day.

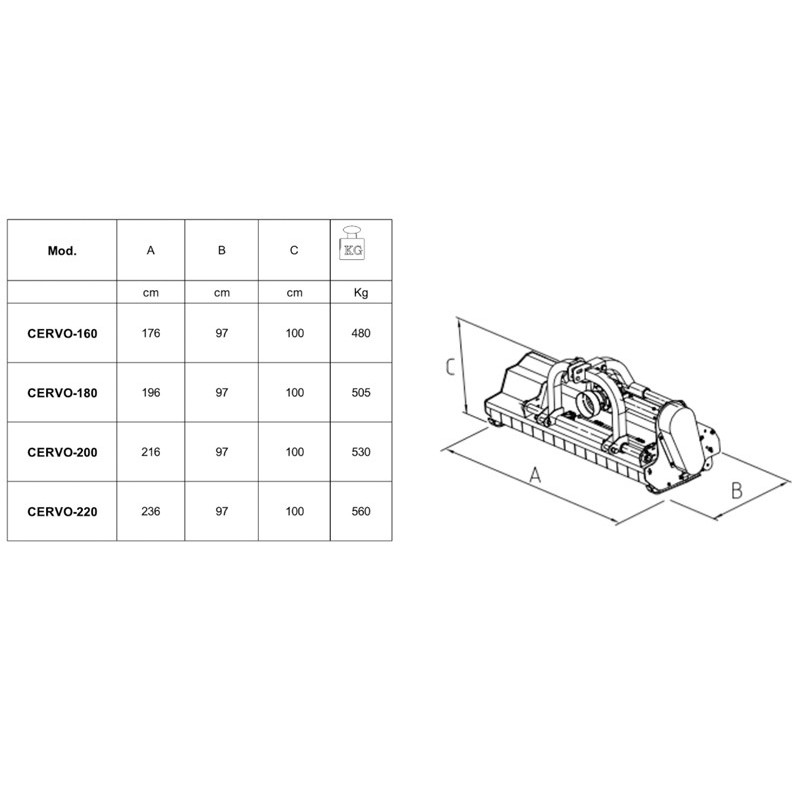

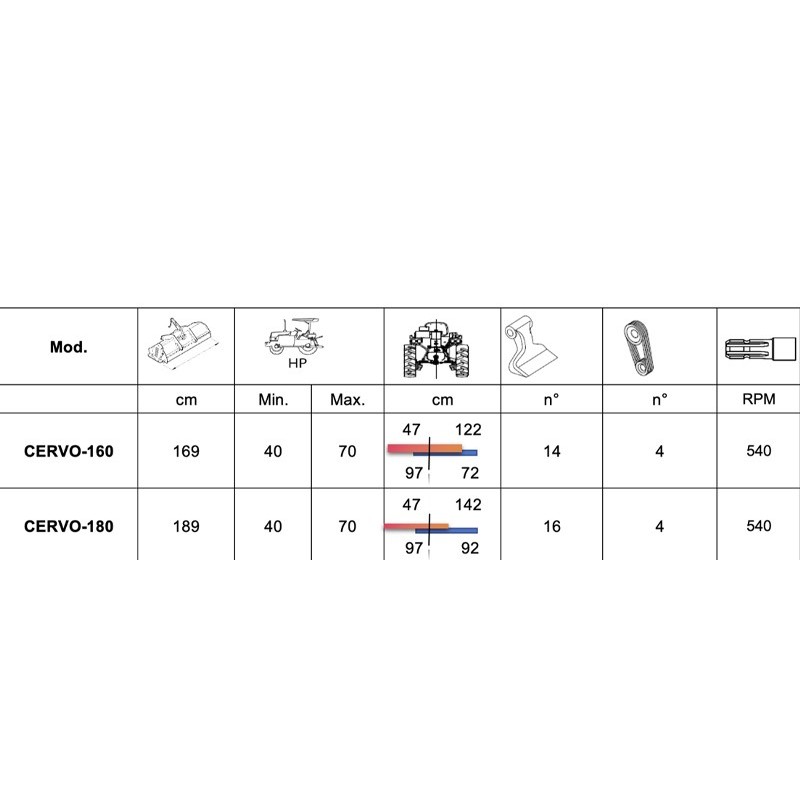

Specification | CERVO 160 | CERVO 180 |
Working width | 1600 mm | 1800 mm |
Total width | 1750 mm | 1950 mm |
Cutting height min/max | 10 - 75 mm | 5 - 55 mm |
Weight | 480 kg | 505 kg |
Total height | 1050 mm | |
Tractor power | 50 - 100 hp | 60 - 100 hp |
3-point hitch | Cat. 2 (ø 25-28 mm) | |
Transmission box position | 750 mm left / 850 mm right | 800 mm left / 1000 mm right |
Hood height | 500 mm | |
Distance between lower points | 740 - 890 mm | |
Number of hammers | 14 | 16 |
Max. cutting diameter | 40 - 50 mm | |
Total length | 1030 mm | |
Ground to drive spacing | 550 mm | |
Plate thickness | 5 mm | |
Plate thickness (sides) | 8 mm | |

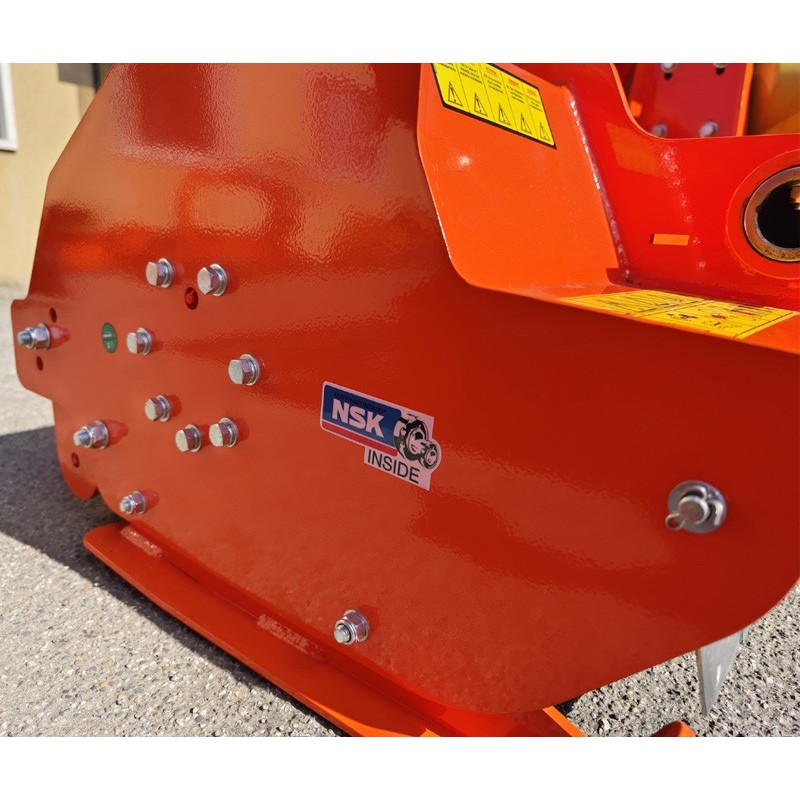

Skid thickness | 6 mm | |
Transmission type | V-belts | |

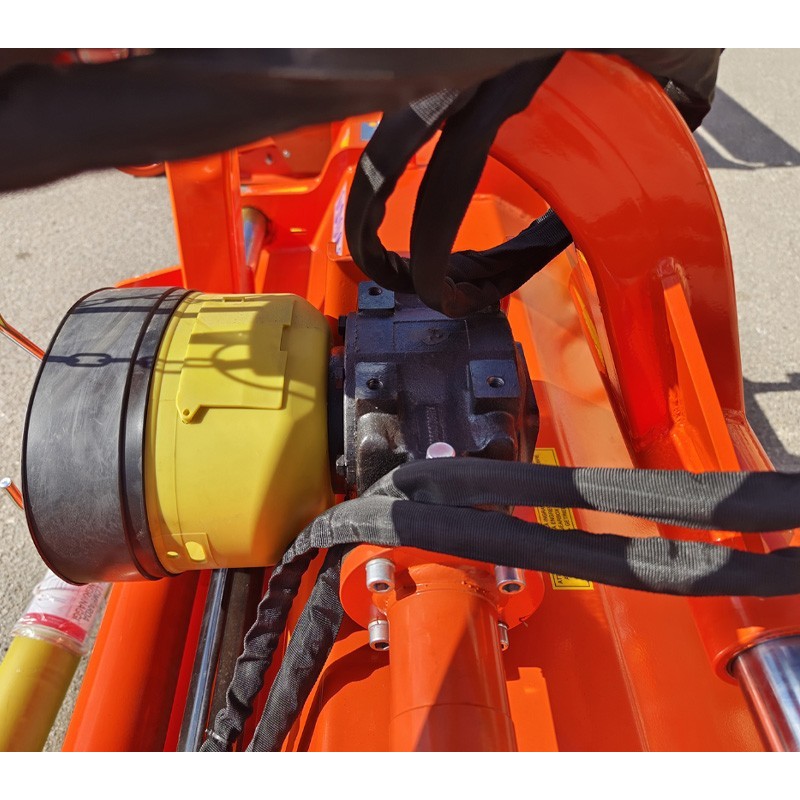

Transmission: Gearbox | JCCT - Warranty 3 years | |
Transmission: PTO | 540 r/min | |
Transmission: rotation direction | Schedule | |
Transmission: freewheel | √ | |
Rotor speed | 2140 rpm | |
Gearbox oil | Yes / SAE 120 - ISO 72925 | |
Number of belts | 4 | |
Belt dimensions | 17x1270 | |
Rotor: diameter | 152 mm | 127 mm |
Rotor: bearings and dimension | 40x90 | |
Rotor: balancing | Electronic | |
Rotor: blade thickness | 8 mm | |
Hammers: weight | 1100 g | |
Hammers: Bore Ø | 16 mm | |
Hammers: base width | 140 mm | |
Hammers: head width | 40 mm | |
Hammers: diagonal | 97 mm | |

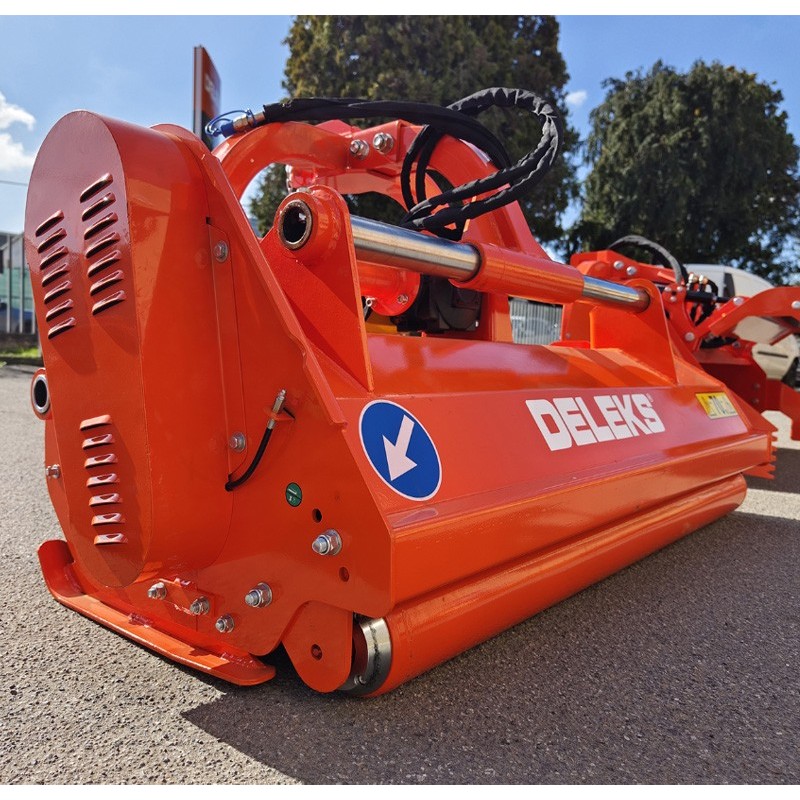

Roll: diameter | 152 mm | |
Roll: sheet thickness | 6 mm | |
Roll: bearings and dimension | 90x40 mm - GB276-6308 | |
Cardan shaft | CE 8x1200 mm + bolt | |
Hood length | 1000 mm | |

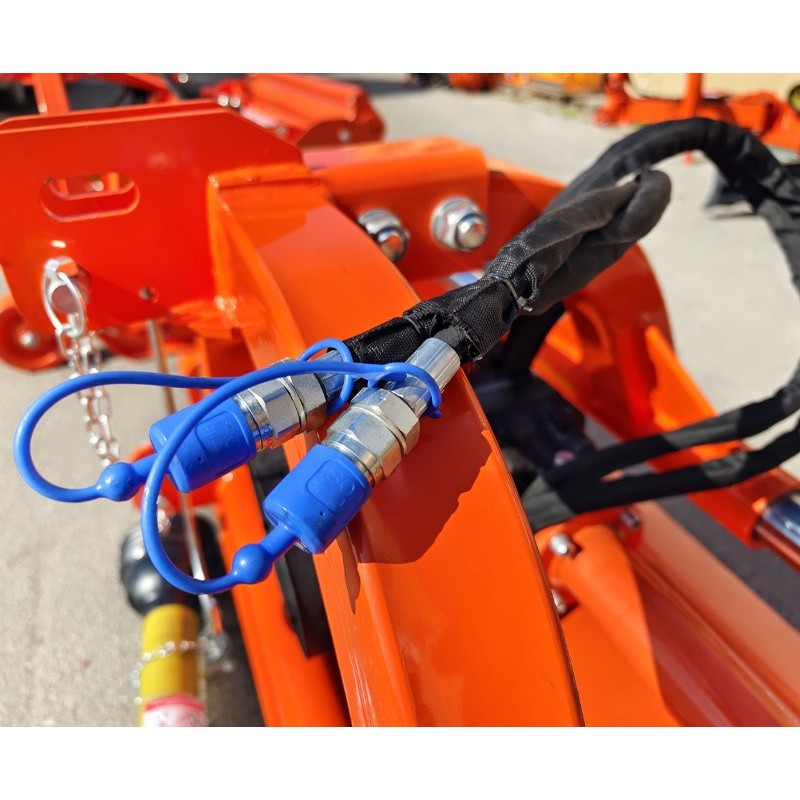

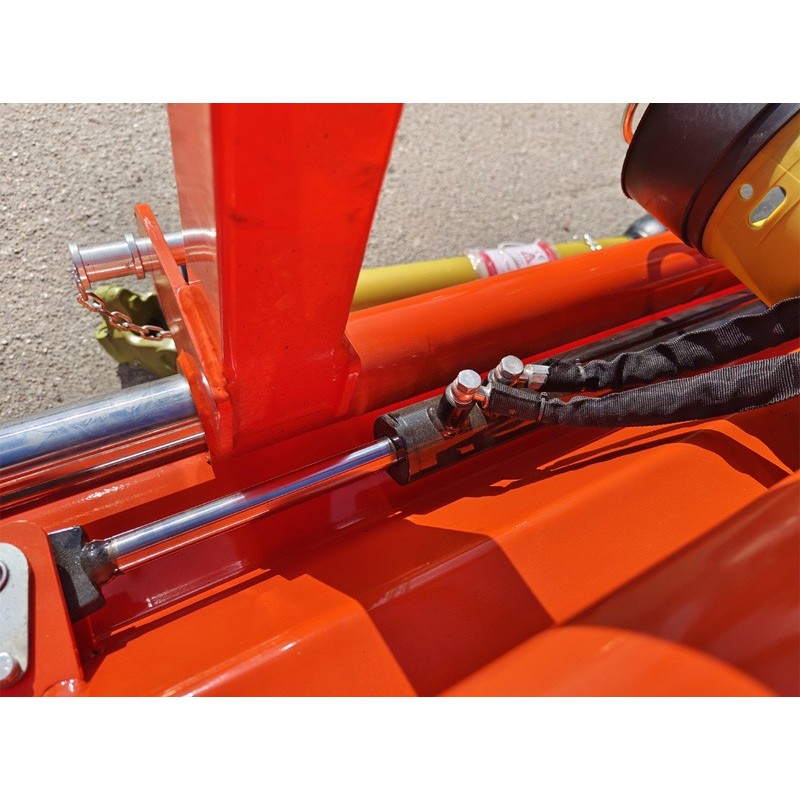

Horizontal displacement | 400 mm hydraulic | |
Packing dimensions | 175 x 105 x 105 cm | 195 x 105 x 105 x 105 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
