  • Working width 1795 - 2195 mm
  • 540 RPM
  • Power 80 - 130 HP
  • Hammers 16 - 24

CARDAN SHAFT INCLUDED

Deleks products take about 15 to 25 days.
En stock
icon Shredder type
Shredder type
Shredder with side arm
icon Type of cut
Type of cut
Hammers
icon Working width PTO
Working width PTO
180 - 220 cm
icon Tractor power
Tractor power
80 - 120 HP
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Pantograph displacement
icon Displacement
Displacement
Hydraulic
icon Robustness
Robustness
Heavy
icon Number of hammers
Number of hammers
16 - 24
icon Country of manufacture
Country of manufacture
Italy
icon Weight
Weight
750 - 815 kg
€3,790.98 excl. VAT
- 2%
€3,715.16 excl. VAT
€4,495.34 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Hammer crusher for tractor DELEKS DRAGON
€4,495.34
Select
Qty

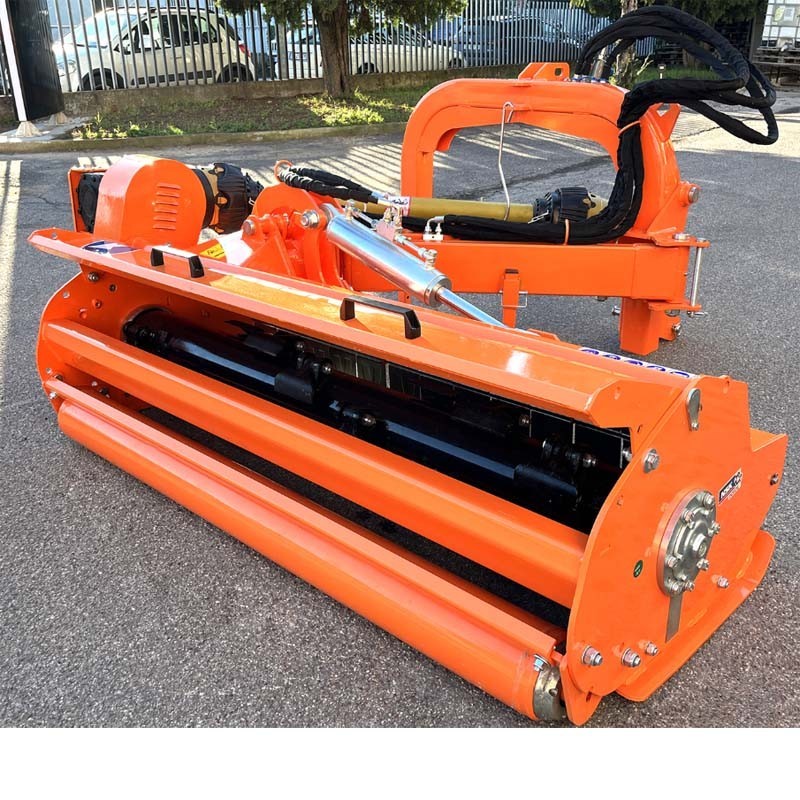

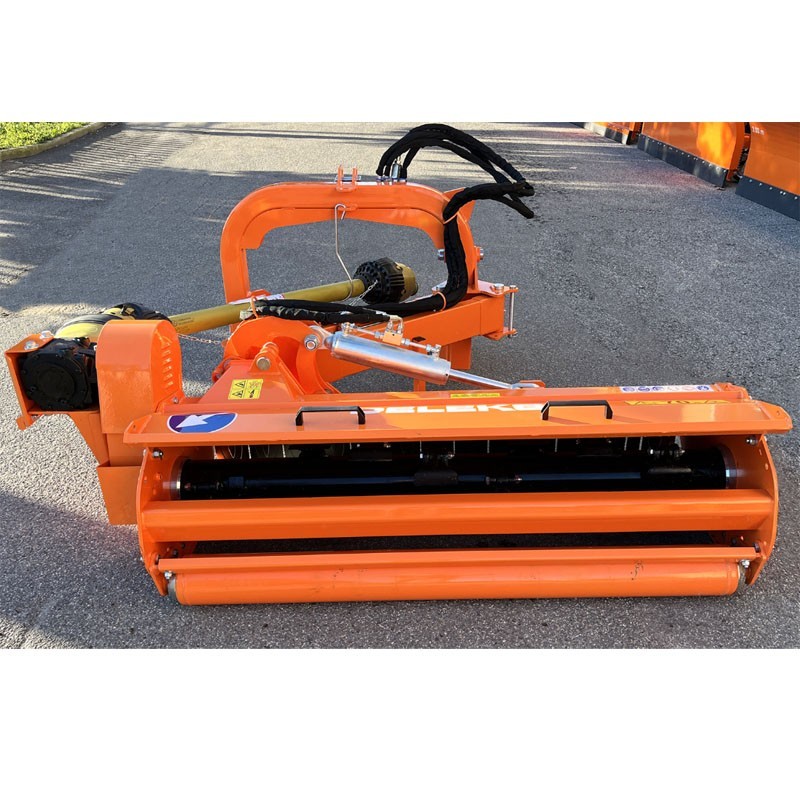

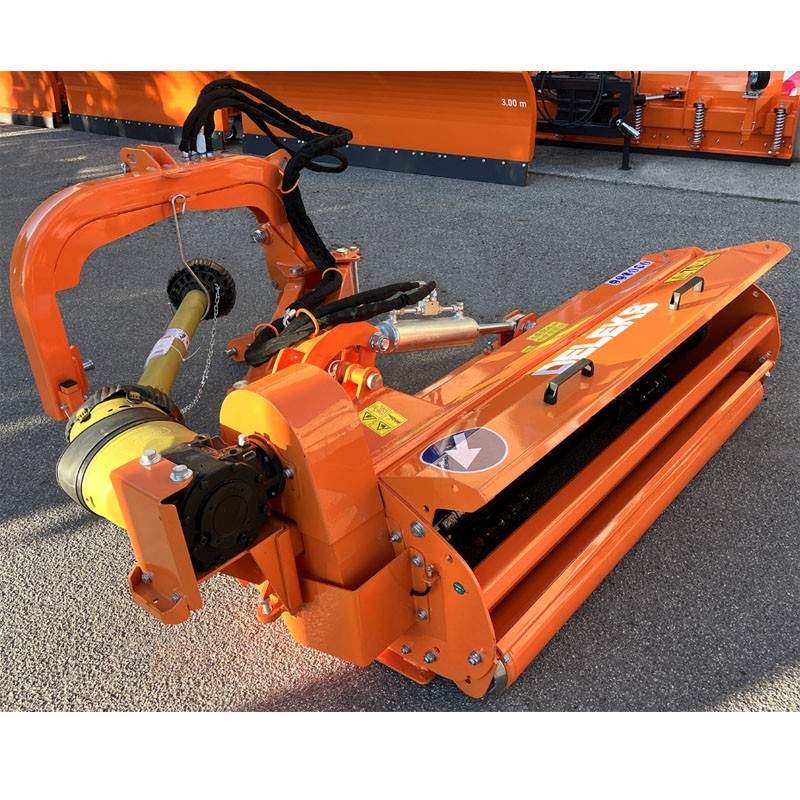

Hammer crusher for tractor DELEKS DRAGON

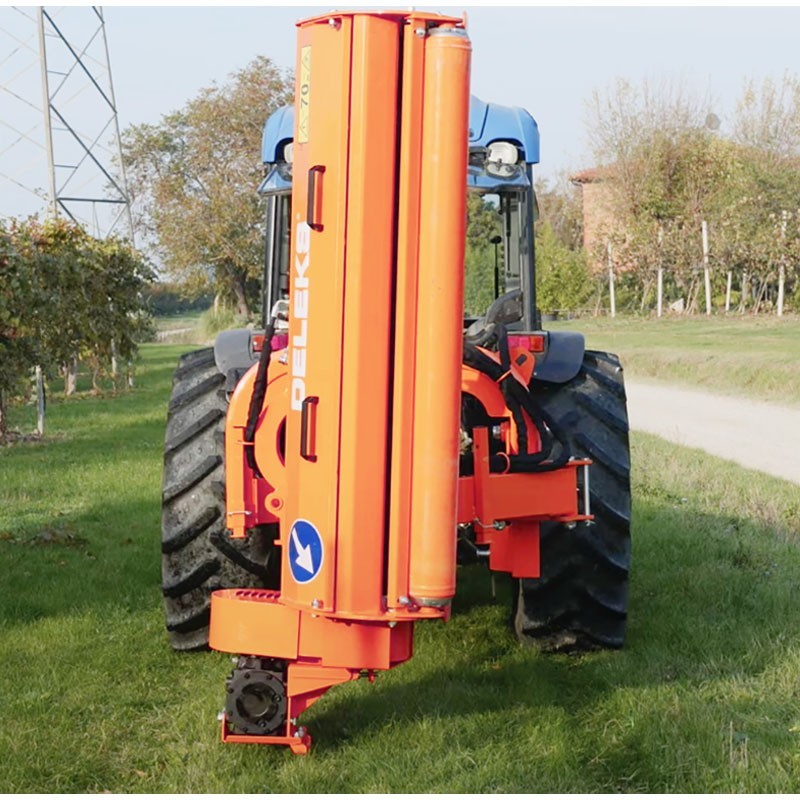

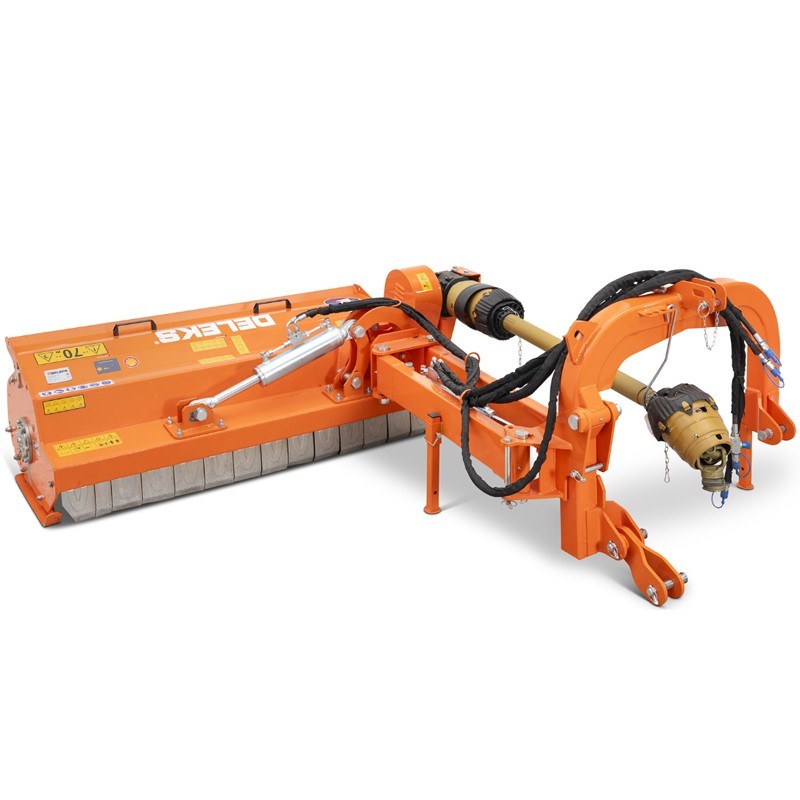

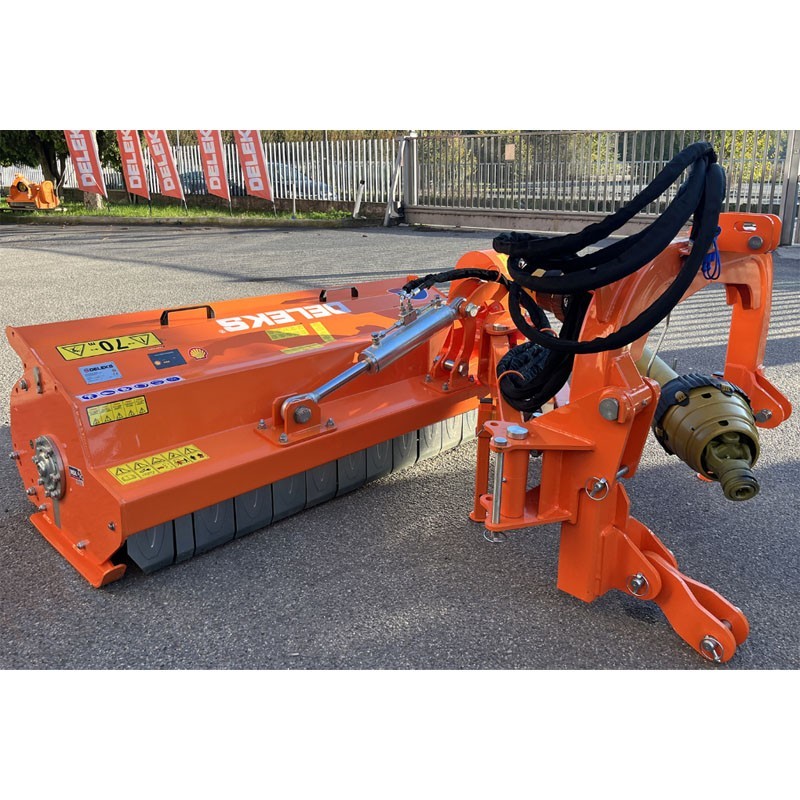

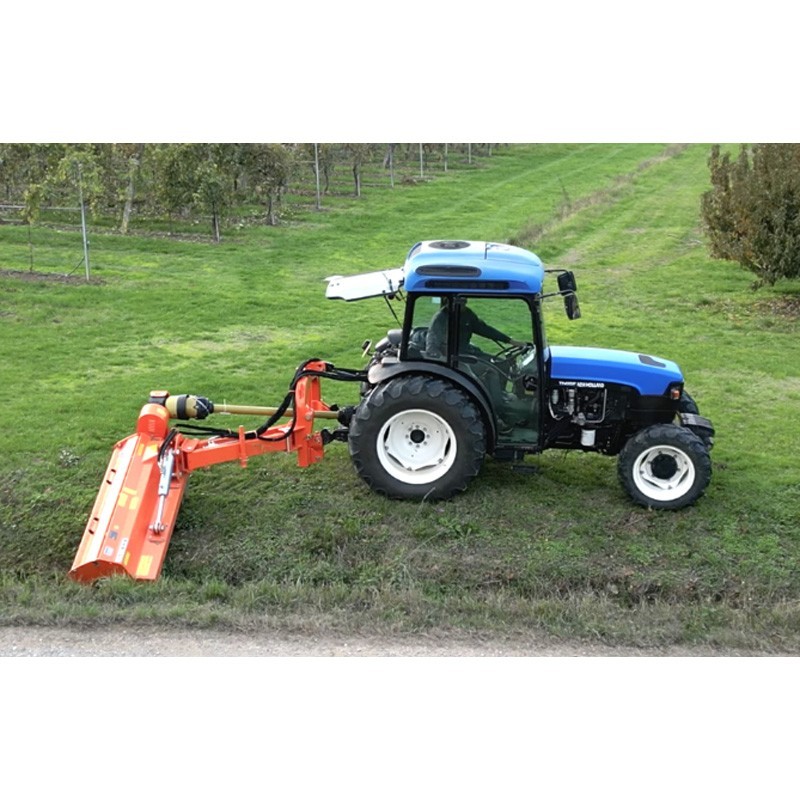

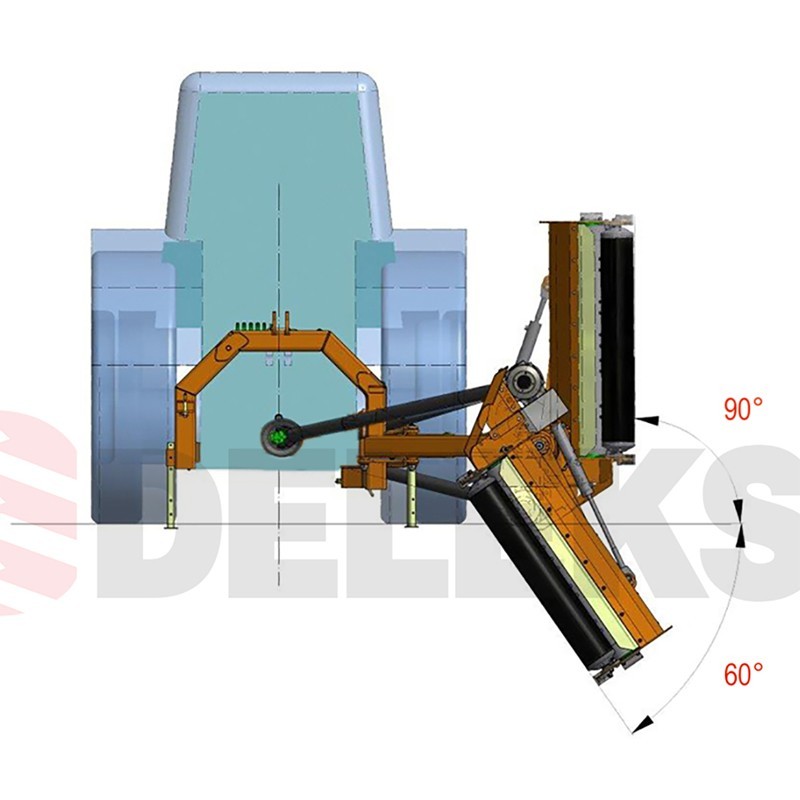

The DELEKS DRAGON tractor hammer crusherIt is designed for professionals, specializing in the trimming of grass, brambles, and pruning up to 4 - 5 cm in diameter. This model can be tilted to more than 90 degrees and less than 60 degrees, to clear the edges of a pond, for example.

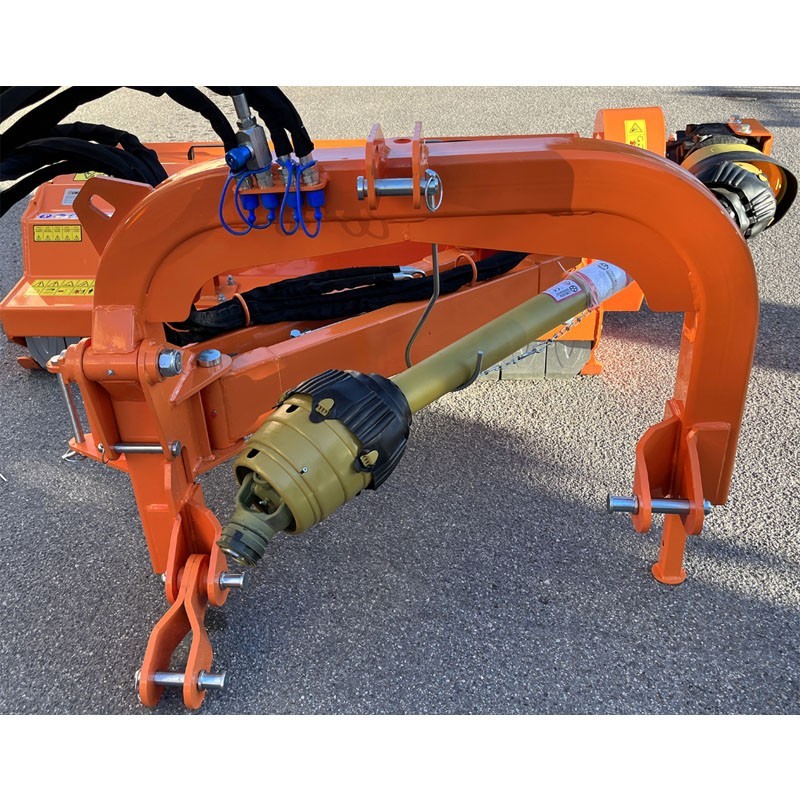

This brush cutter works for tractors that have with power ranging from 80 to 130 HP, it features a category 2 three-point hitch with a Hydraulic displacement and a 180 cm wide-angle gimbal CE.

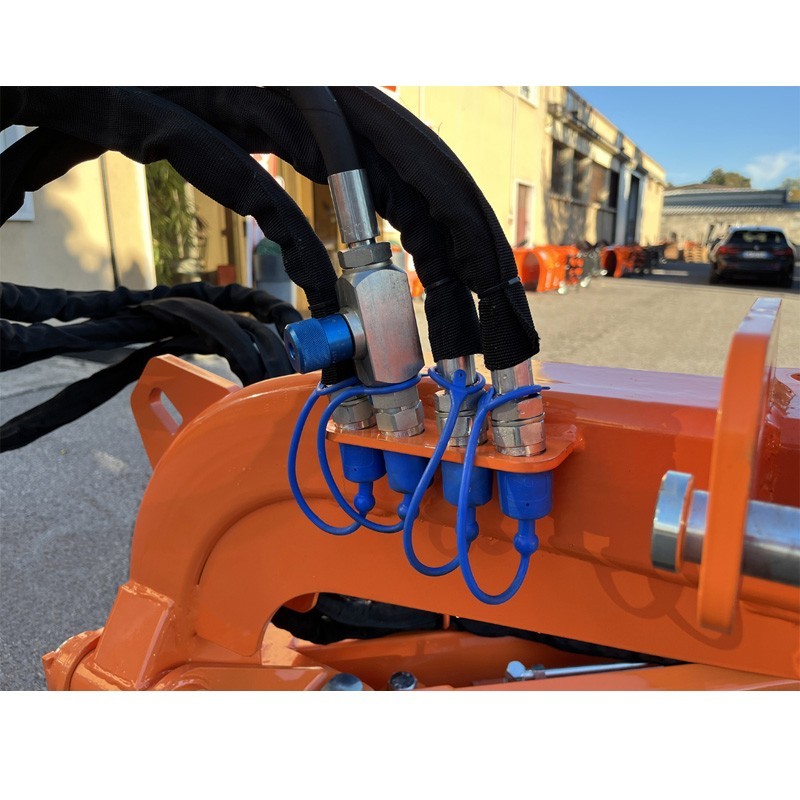

The brush cutter it has some hydraulic pistons larger size in addition to having a lock valve, it has a double casing, an oil flow control valve, and some bearings of NSK brand rotor facts in Japan.

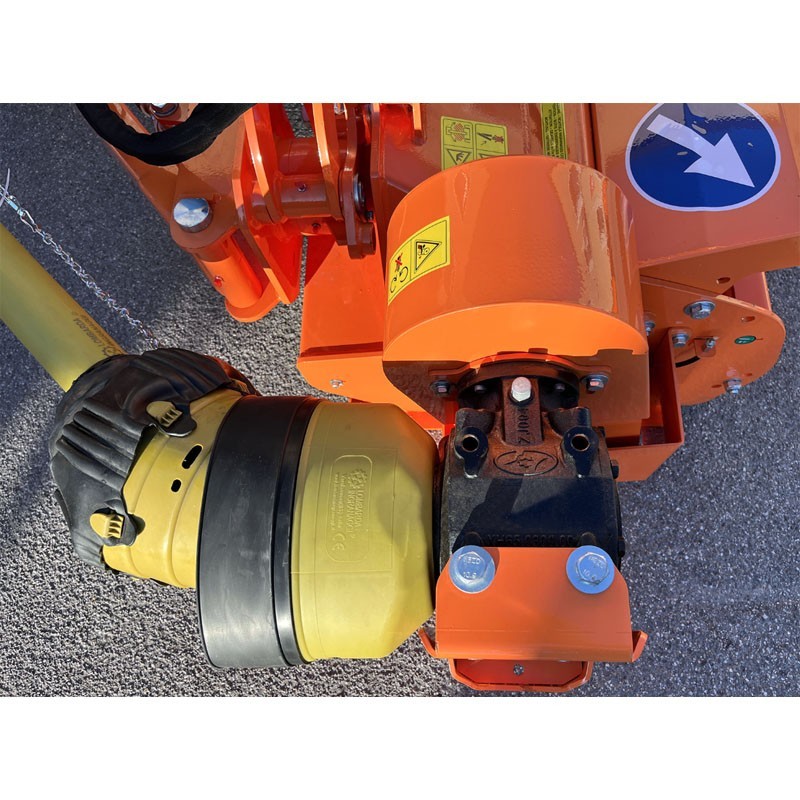

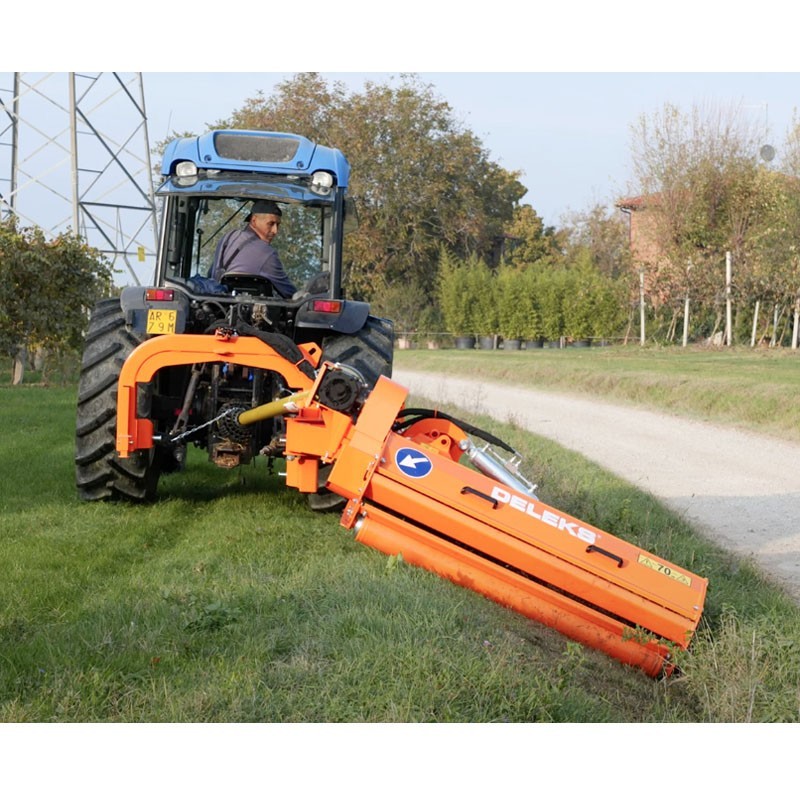

Your transmission box is out of the chassis. To maximize its lateral movement, this box contains 540 rpm with a freewheel. Its design is heavy and robust for better professional use. This brush cutter can work horizontally on the tractor's axis and laterally for orchards.

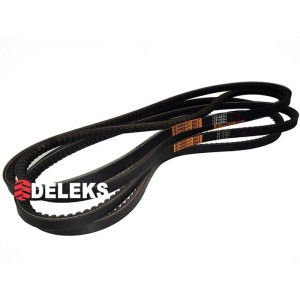

Has 5 high-strength straps to which their tension can be adjusted from the outside, and a rear roller of 152 mm and adjustable side skates.

Characteristics

Model DRAGON 180 DRAGON 200 DRAGON 220
Working width 1795.0 mm 1995.0 mm 2195.0 mm

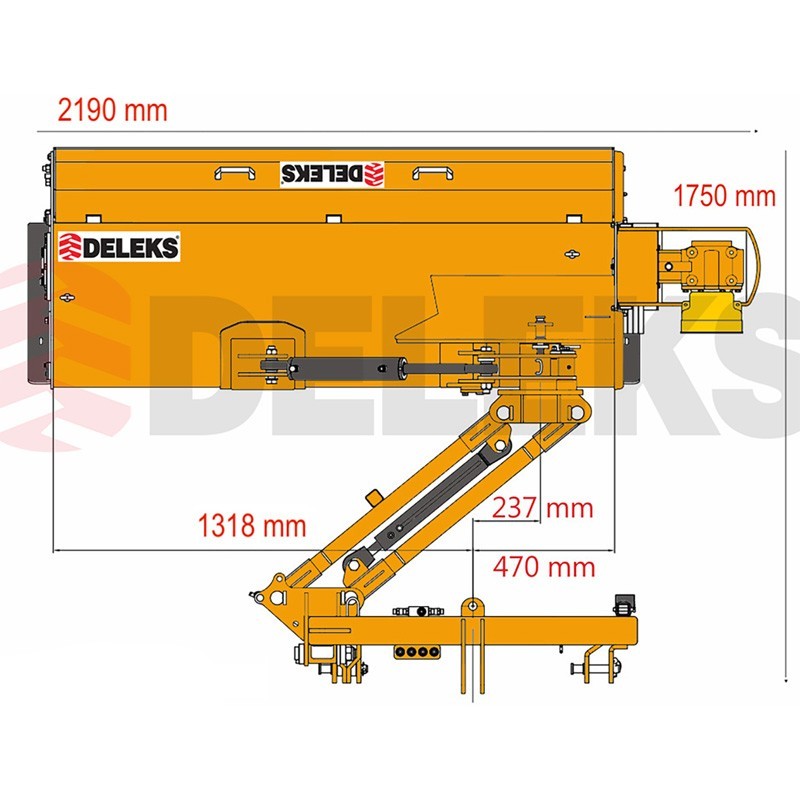

Total width 2190.0 mm 2390.0 mm 2590.0 mm
Tractor power 80 - 130 HP 90 - 130 HP 90 - 130 HP
Weight 750.0 kg 780.0 kg 815.0 kg
Number of hammers 16 18 20
Type of transmission Correas V Correas V Correas V
Minimum/maximum cutting height 35.0 - 95.0 mm
Total height 1150.0 mm
3-point hitch Cat. 2 (ø 25.0-28.0 mm)
Position of the transmission box External
Height of the hood 470.0 mm
Distance between the lower points 840.0 - 970.0 mm
Maximum cutting diameter 40.0-50.0 mm
Total length 1750.0 mm (closed)
Space between the ground and the transmission box 650.0 mm
Sheet thickness 5.0 mm + reinforcements
Thickness of the sheet on the sides 10.0 mm
Thickness of the skates 8.0 mm

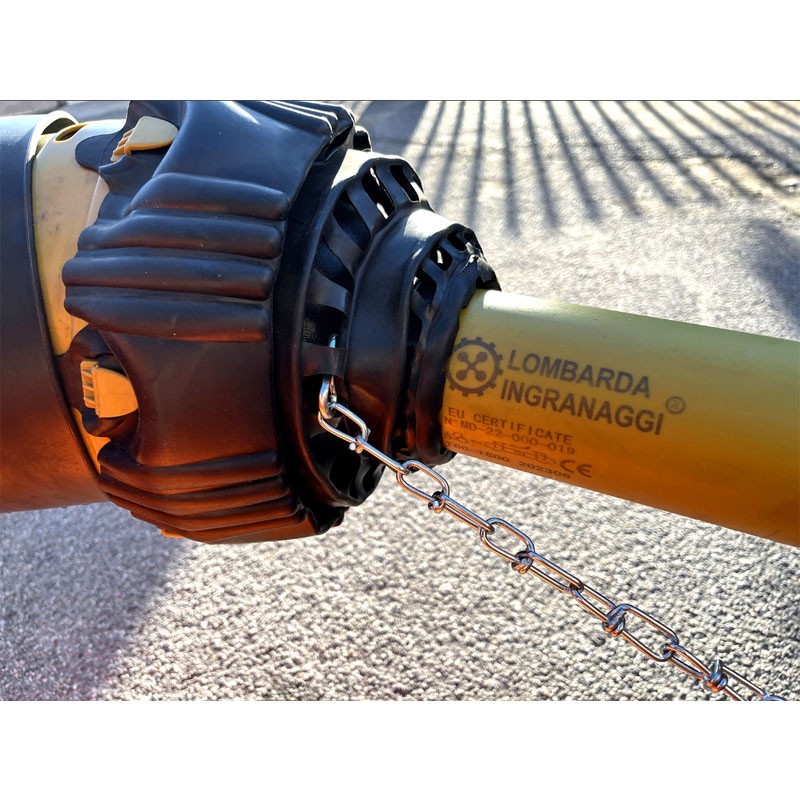

Transmission: Gearbox Lombarda Ingranaggi Srl (3-year warranty)
Transmission: PTO 540 rpm (revolutions per minute)
Transmission: direction of rotation Schedule
Transmission: freewheel
Transmission: rotor speed 2134 rpm
Transmission: gearbox oil Yes / SAE 120 - ISO 72925
Transmission: number of cores 5
Transmission: diameter of the upper pulley 220.0 mm
Transmission: diameter of the lower pulley 165.0 mm
Broadcast: Dimensions of the Koreas 17x1300
Rotor: diameter 168.0 mm
Rotor: type of bearings and dimension NSK 22309
Rotor: balancing Electronic
Rotor: blade thickness 8.0 mm
Hammers: weight 1100.0 g
Hammers: ø hole 16.0 mm
Hammers: base width 140.0 mm
Hammers: head width 40.0 mm
Hammers: diagonal 97.0 mm
Roll: diameter 152.0 mm
Roll: sheet thickness 6.0 mm
Roll: type of bearings and dimension 90x40 mm - GB276-6308

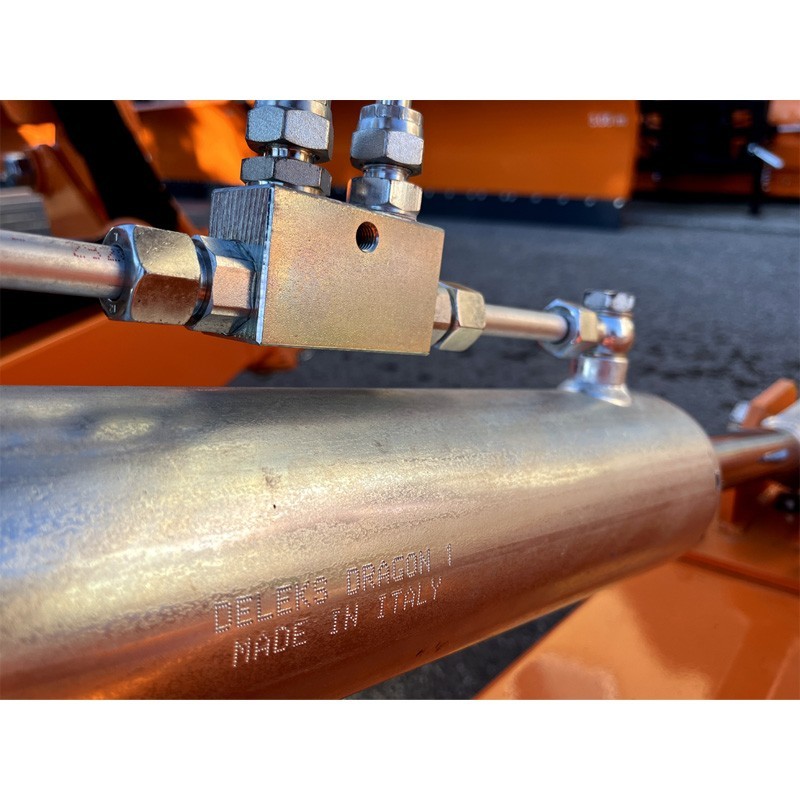

ø Hydraulic Cylinder A 80.0-35.0 mm
ø Hydraulic Cylinder B 60.0-30.0 mm
Minimum/maximum oil pressure 120 - 150 bar
Optimal oil flow 18 - 22 l/min
Hydraulic tubes WP 400 Bar, 1/2" Agri Standard
Cardan CE 6x1000 mm
Length of the hood 770.0 mm
Packaging dimension 220 x 100 x 100 cm 240 x 100 x 100 cm 260 x 100 x 100 cm
IMPORTANT NOTICE
Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam.
