Centauro Huesca SUPER reinforced hammermill shredder
The Centauro Huesca SUPER is the ideal machine for intensive work in fruit orchards, vineyards and olive groves, designed to offer unmatched strength and durability. With a super reinforced 10 mm chassis and a reinforced free-wheel unit, this model is designed for efficient shredding of pruning debris and dense vegetation.

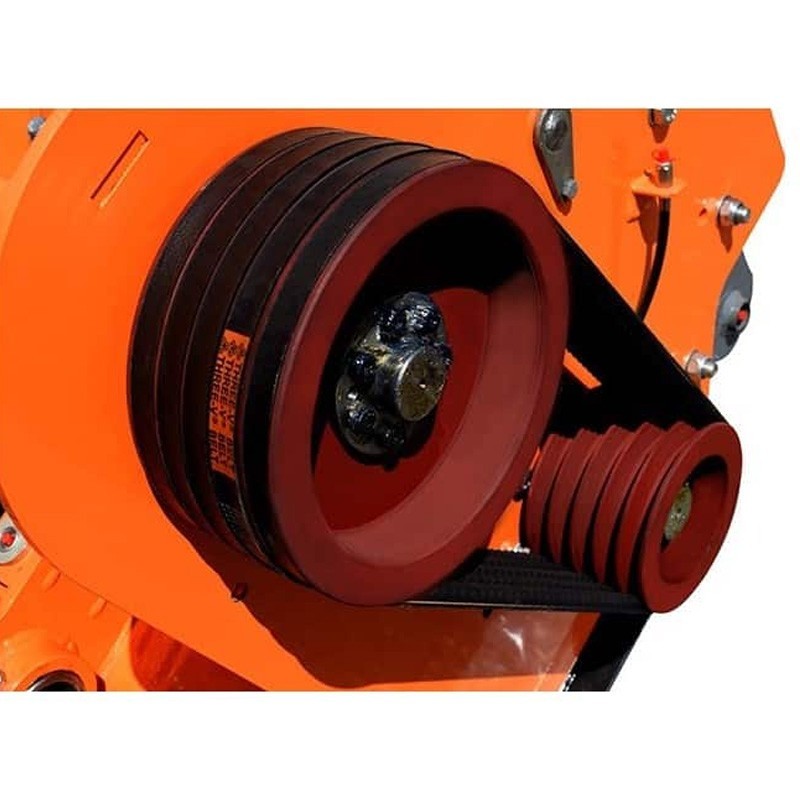

Available in working widths from 1990 mm to 2390 mm, this shredder stands out for its robust construction and its ability to work on demanding terrain. The Huesca SUPER 20, SUPER 22 and SUPER 24 models include 5 high quality belts and a rotor diameter of 152 mm, providing uniform and powerful shredding.

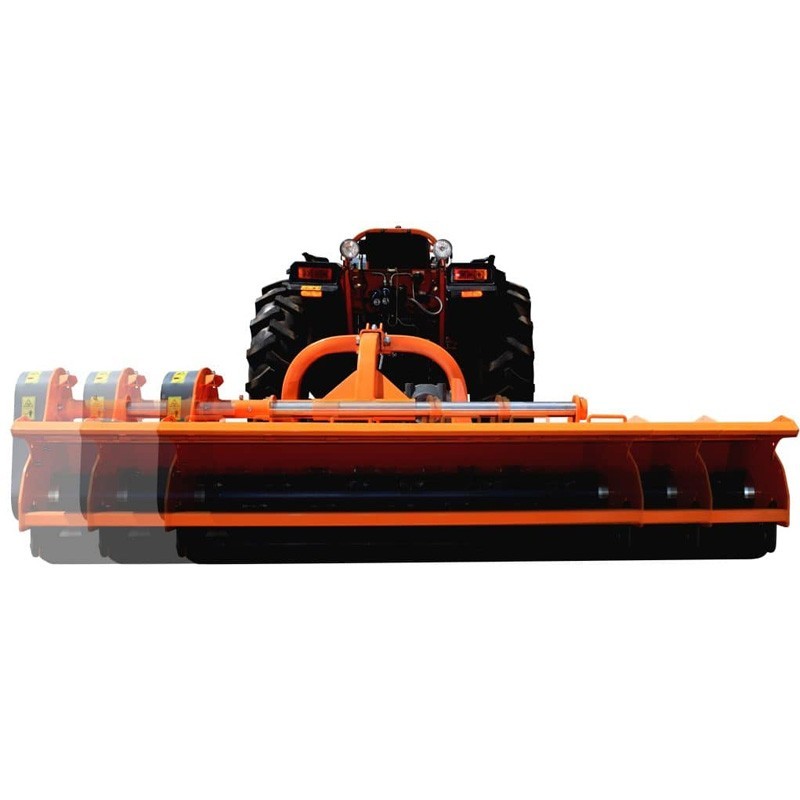

The machine's structure is reinforced with 7 to 8 mm sheet metal and a 10 mm thick rotor support, ensuring strength and durability in heavy-duty applications. In addition, the shredder has a 500 mm offset, allowing better access to hard-to-reach areas.
With a weight ranging from 610 kg to 686 kg and dimensions up to 90 x 255 x 100 cm, the Centauro Huesca SUPER requires a power of 70 to 140 HP and operates with a PTO of 540 rpm. This shredder includes cardan shaft and pins, ensuring that it is ready to work right out of the box. Its robust design and efficiency make it the perfect choice for professionals looking for quality and performance in agricultural grounds maintenance.
Features
| Model |
Huesca SUPER 20 |
Huesca SUPER 22 |
Huesca SUPER 24 |
| Working width |
1990 mm |
2190 mm |
2390 mm |
| Weight |
610 kg |
646 kg |
686 kg |
| Belts |
5 |
5 |
5 |
| Hammers |
20 |
24 |
24 |
| Rotor diameter |
152 |
152 |
152 |
| Power requirement |
70-120 hp |
80-130 hp |
80-140 hp |
| PTO (rpm) |
540 |
540 |
540 |
| Dimensions (cm) |
90 x 215 x 100 |
90 x 235 x 100 |
90 x 255 x 100 |
| Displacement |
500 mm |
500 mm |
500 mm |
| Connection |
Rear |
Rear |
Rear |
Specifications
- Super reinforced chassis (10 mm)
- 5 top quality belts
- Optimal for fruit orchards, vineyards, olive groves, etc.
- Reinforced group with free wheel.
- Designed for shredding
- 7 to 8 mm plate with rotor support 10 mm thick
- Cardan shaft and bolts included.
| IMPORTANT NOTICES |
|
| It is compulsory for the customer to check oil and grease levels before starting the machine. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
