GARTO TTRP-G2 Reversible Pruning Shredder TTRP-G2 150-200 cm
GARTO TTRP-G2 Reversible Pruning Shredder TTRP-G2 150-200 cm

GARTO TTRP-G2 Reversible Pruning Shredder TTRP-G2 150-200 cm


  • Weight : 1290 - 1480 Kg
  • Power requirement : 100 - 120 hp
  • Working width PTO : 150 - 200 cm
En stock
icon Shredder type
Shredder type
Reversible shredder
icon Type of cut
Type of cut
Triple Y-blade
icon Cutting width
Cutting width
150 - 200 cm
icon Tractor power
Tractor power
100 - 120 hp
icon Cardan shaft
Cardan shaft
Including
icon Type of coupling
Type of coupling
Fixed hitch
icon Robustness
Robustness
Medium-Heavy
icon Num. Triple Y-blade
Num. Triple Y-blade
32 - 44
icon Weight
Weight
1290 - 1480 Kg
€8,342.60 excl. VAT
- 13%
€7,258.06 excl. VAT
€8,782.26 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


GARTO TTRP-G2 Reversible Pruning Shredder TTRP-G2 150-200 cm
€8,782.26
Select
Qty

GARTO TTRP-G2 Pruning Shredder 150-200 cm

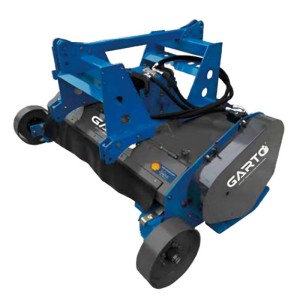

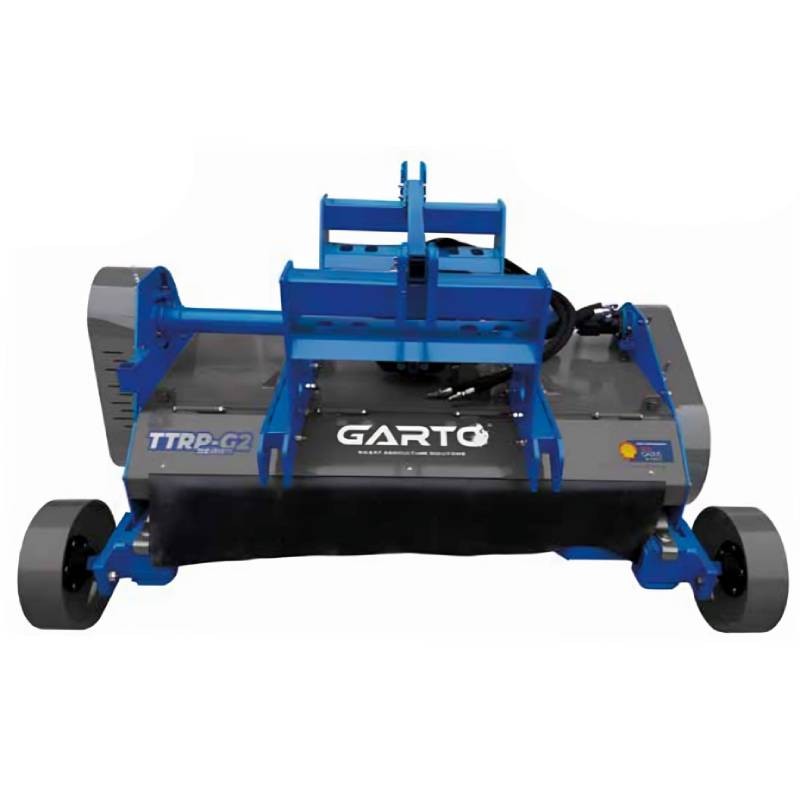

The GARTO TTRP-G2 is a robust and efficient reversible shredder, designed to shred prunings with high performance. Its design allows for reversing the direction of rotation, which facilitates more convenient blade maintenance and greater versatility in the field.

The 3-point linkage and reinforced 6-belt transmission ensure that the tractor's power is optimally transferred to the rotor, even in the most demanding jobs.

This machine stands out for its power Supply capacity thanks to the two hydraulic drums, which manage the flow of branches to the interchangeable hammer system.

The rear roller and side skids allow precise working height adjustment, protecting the equipment and optimizing the finish in the field. It is the ultimate tool for farmers who require a deep and fast cleaning of their fields.

There are different models of the TTRP-G2 series, with working widths from 150 to 200 cm, to adapt to the needs of each farm and the power of your tractor.

Technical Specifications

Model TTRP-G2 160 TTRP-G2 160 TTRP-G2 160
Weight 1290 kg 1395 kg 1480 kg
Working width 150 cm 180 cm 200 cm
Dimensions 1970 x 1470 x 1270 mm 2270 x 1470 x 1270 mm 2470 x 1470 x 1270 mm
No. of belts 6 6 6
No. of straight blades 16 18 22
No. of curved blades 16 18 22
PTO speed 540 rpm 540 rpm 540 rpm
Power requirement 100 x 120 hp 100 x 120 hp 100 x 120 hp
Drums of power Supply 2 hydraulic 2 hydraulic 2 hydraulics
Hydraulic flow rate 30 x 40 L/min 30 x 40 L/min 30 x 40 L/min
Cardan shaft included Yes Yes Yes

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If the goods cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
This tractor shredder includes a hammer cutting system. You also have the option of ordering a blade system by calling our customer service department.
262704

Data sheet

Shredder type
Reversible shredder
Type of cut
Triple Y-blade
Cutting width
150 - 200 cm
Tractor power
100 - 120 hp
Cardan shaft
Including
Type of coupling
Fixed hitch
Robustness
Medium-Heavy
Working width (cm)
150 - 159 cm
180 - 189 cm
200 - 209 cm
Num. Triple Y-blade
32 - 44
Weight
1290 - 1480 Kg

Specific References

mpn
TTRP-G2 150
