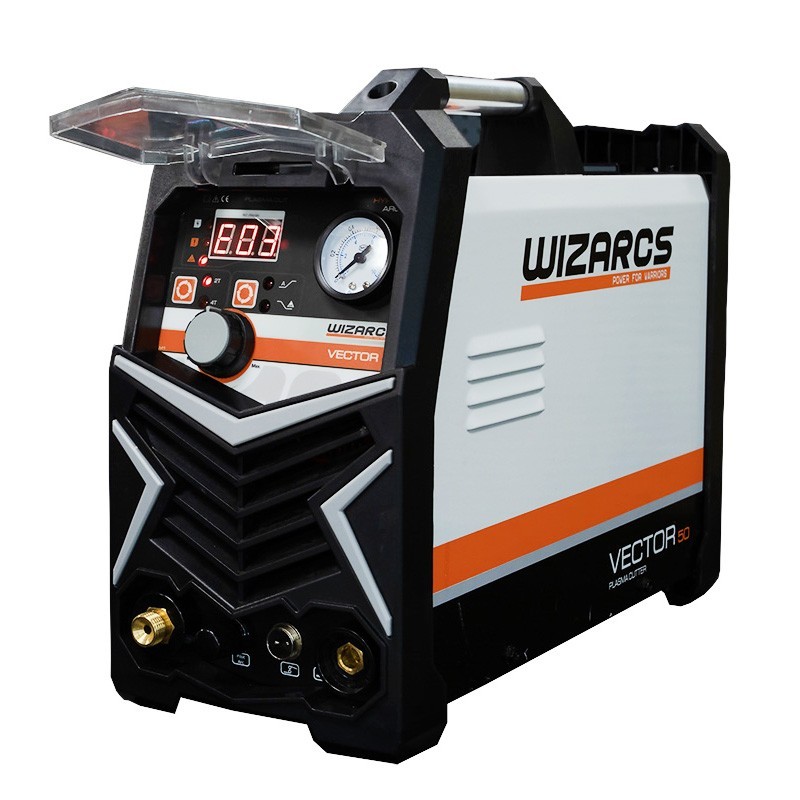

Plasma cutting machine Wizarcs VECTOR 50 20 mm
Plasma cutting machine Wizarcs VECTOR 50 20 mm

Plasma cutting machine Wizarcs VECTOR 50 20 mm

Rating:
(0)
  • Current : Dual Voltage
  • Weight : 7 Kg
  • Digital panel : Yes
  • No load voltage : 450 V
  • Regulation range : 25 - 45 A
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
Multiprocess
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
450 V
icon Service 40ºC
Service 40ºC
50 %
icon Regulating range
Regulating range
25 - 50 A
icon TIG type
TIG type
TIG lift
icon Weight
Weight
7.5 Kg
€525.82 excl. VAT
- 4%
€504.78 excl. VAT
€610.79 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Plasma cutting machine Wizarcs VECTOR 50 20 mm
€610.79
Qty

Plasma cutting machine Wizarcs VECTOR 50 20 mm

The Wizarcs VECTOR 50 plasma cutter with an amperage range from 10 to 45A, offers efficient cutting power, allowing cuts up to 20mm thick, with 12mm recommended for optimal results.

Its design integrates a UNI-COMMAND LED display that provides clear, easy-to-read information, along with a large, soft-touch knob for precise control.

The dinse 35-50 connectors ensure a robust and stable connection, while its extensions up to 10 meters allow for wide mobility in the work area, using cables of suitable gauge (AWG8 for output and AWG2 for input).

Features

Soldador inverter Wizarcs

Recommended cutting capacity of 12mm, maximum 20mm.

 Puede conectarse a Generadores

Can be connected to Generators.
HYPER-ARC

HYPER-ARC, with HOT START, ARC FORCE and ANTI-STICK.

 Pantalla LCD de alto contraste.

High contrast LCD display.

Technical data

Connection 230V-50/60 Hz +/- 10%
Amperage range 25-50 A
Duty Cycle 50% at 40ºC
No-load voltage (OCV - U0) 450V
Modes MIG MAG/MMA/TIG LIFT
TIG Type Lift ARC
Cutting capacity Max 20mm 12mm recommended
Connectors Connectors 9mm
iP IP21S
Display type LCD / UNI-Command
Knob Soft touch
Connectable to Generators 7.0 Kw-220V
Extensions (Output) Up to 10m - AWG8
Extensions (Input) Up to 10m - AWG2
Weight 7,5 Kg
259390

Data sheet

Current
Single-phase
Typology Welder
Multiprocess
Panel
digital
No-load voltage
450 V
Service 40ºC
50 %
Regulating range
25 - 50 A
TIG type
TIG lift
Weight
7.5 Kg

Specific References

EAN-13
7503034761266
New
