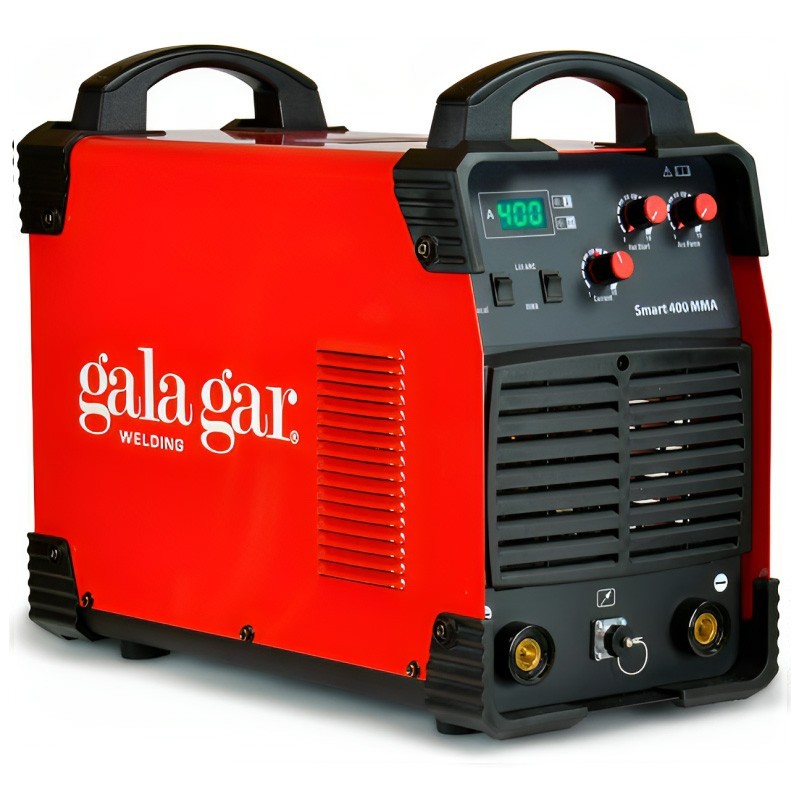

Inverter welder Gala gar Smart 400 MMA 72 V


  • Current : Single phase
  • Type of Welder : MMA / TIG
  • Weight : 19 Kg
  • Digital panel : Yes
  • No load voltage : 72 V
  • Service 40ºC : 60 %
  • Regulation range : 30 - 400 A
  • TIG type : TIG lift
En stock
icon Current
Current
Three-phase
icon Typology Welder
Typology Welder
MMA / TIG
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
72 V
icon Service 40ºC
Service 40ºC
60 %
icon Regulating range
Regulating range
30 - 400 A
icon Usable electrodes
Usable electrodes
Max. 6 mm
icon TIG type
TIG type
TIG lift
icon Weight
Weight
19 Kg
€1,764.88 excl. VAT
- 4%
€1,694.28 excl. VAT
€2,050.08 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter welder Gala gar Smart 400 MMA 72 V
€2,050.08
Qty

Inverter welder Gala gar Smart 400 MMA 72 V

The Gala Gar Smart 400 MMA inverter welder with features such as adjustable Hot Start ignition control and the ability to adjust arc force via Arc Force provides precise and stable welding in a variety of conditions.

Its built-in remote control makes it easy to operate, while voltage fluctuation compensation ensures consistent results.

With processes ranging from MMA to TIG DC Lift, and the ability to work with a wide range of electrodes, from rutile to special, this welder adapts to the specific needs of metalworking, shipyards, maintenance, craft industry, body shop, machine shop, body shop, body shop, construction, electrical and repair work.

In addition, its VRD safety system controls the starting voltage, ensuring a safer environment during operation. Its digital display provides an intuitive interface for precise control and easy access to key information during operation

Accessories

  • 35/50 connector with ground.
  • Electrode holder clamp.
  • Remote control with 10m cable.

Technical data sheet

Power supply voltage U1 (50/60 Hz) 3 Ph. 400 V
Effective input current I1eff 22 A
Maximum power 20 KVA
Effective power 15.2 KVA
No-load voltage (U2o) 72 V
Continuous regulation range MMA (I2min - I2max) 30 - 400 A
Maximum welding current I2max 400 A / 60 %
Remote control Standard
Weight 19 Kg
Dimensions 330 x 441 x 618 mm

Interesting links

259425

Data sheet

Current
Three-phase
Typology Welder
MMA / TIG
Panel
digital
No-load voltage
72 V
Service 40ºC
60 %
Regulating range
30 - 400 A
Usable electrodes
Max. 6 mm
TIG type
TIG lift
Weight
19 Kg

Specific References

MPN
22300400E
New
