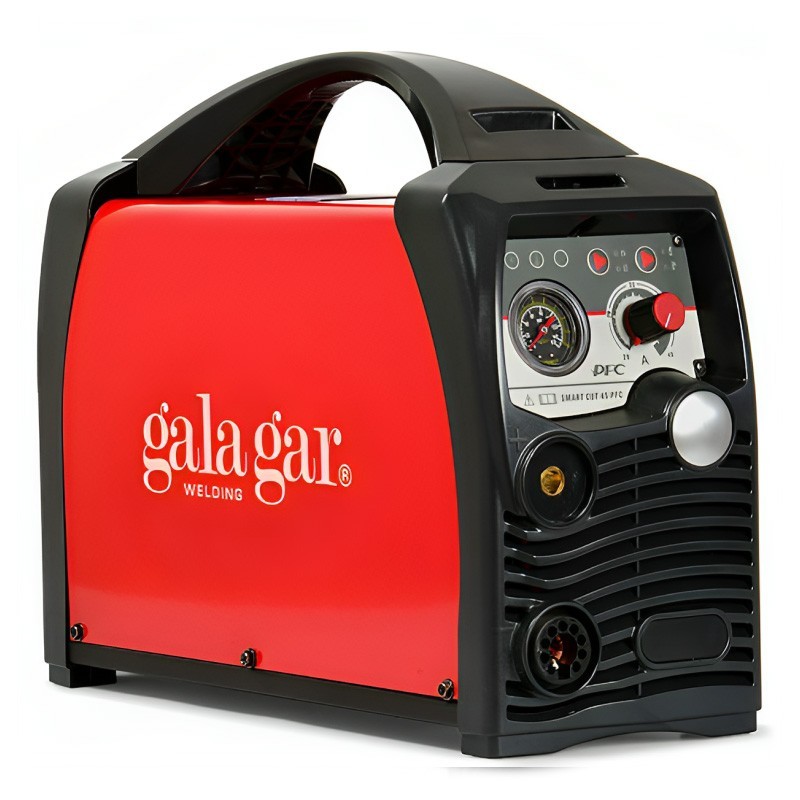

Inverter welder Plasma Gala gar Smart CUT 45 PFC 45 A

Rating:
(0)
  • Current : Three-phase
  • Welder Type : Plasma
  • Weight : 10 Kg
  • Service 40ºC : 35 %
  • Regulation range : 20 - 45 A
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
PLASMA
icon No-load voltage
No-load voltage
73 V
icon Service 40ºC
Service 40ºC
35 %
icon Regulating range
Regulating range
20 - 45 A
icon ✔️
✔️
Aluminum welding
icon Weight
Weight
10 Kg
€1,061.45 excl. VAT
- 4%
€1,019.00 excl. VAT
€1,232.99 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter welder Plasma Gala gar Smart CUT 45 PFC 45 A
€1,232.99
Qty

Plasma Inverter Welder Gala gar Smart CUT 45 PFC

The Plasma inverter welder Gala gar Smart CUT 45 PFC is a versatile tool designed for a wide range of materials, from mild steel to aluminum and copper. With its HF-FREE plasma cutting capability, it offers efficient performance and low power consumption, making it an energy-efficient choice.

Its electronic stepless regulation from 20 to 45 amps allows precise adaptation to different material thicknesses, offering a maximum cutting thickness of up to 15 mm in steel. This device incorporates an automatic HF-free ignition torch, which guarantees a start-up without electromagnetic disturbances.

In addition, its "Back Stricking" ignition system extends the life of the consumables, ensuring optimum durability. With its grating cutting capability and 2T/4T pulse mode with integrated safety system, it offers both versatility and precise control during the cutting process.

Accessories

  • PT-40 6 m torch.
  • Gas tube.
  • Grounding cable.

Technical data

Supply voltage (50/60 Hz) 1 Ph 230V ± 10 %
Maximum primary current 23 A
Effective primary current 12 A
Maximum absorbed power 5.3 Kva
Effective input power 2.8 Kva
Power factor 0.99
Efficiency 85 %
Maximum cutting steel thickness 12 mm
Maximum cutting / separating steel thickness 15-20 mm
Cutting current regulation range I2 20 ÷ 45 A
Maximum cutting current 45 A / 35%
Rated breaking current (ED=100%) 27 A /100%
Working pressure 4.5-5.5 bar
Minimum air flow required 170 L/min
Mechanical protection degree IP 21
Weight 10 Kg
Dimensions 165 x 439 x 328 mm
Cutting thickness
Type of cut Steel Aluminum
Gap 15 mm 10 mm
Quality 12 mm 8 mm
Technical 8 mm 5 mm

Links of interest

259438

Data sheet

Current
Single-phase
Typology Welder
PLASMA
No-load voltage
73 V
Service 40ºC
35 %
Regulating range
20 - 45 A
✔️
Aluminum welding
Weight
10 Kg

Specific References

MPN
2230045PFC
New

✔️ Advantages of making purchases in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
