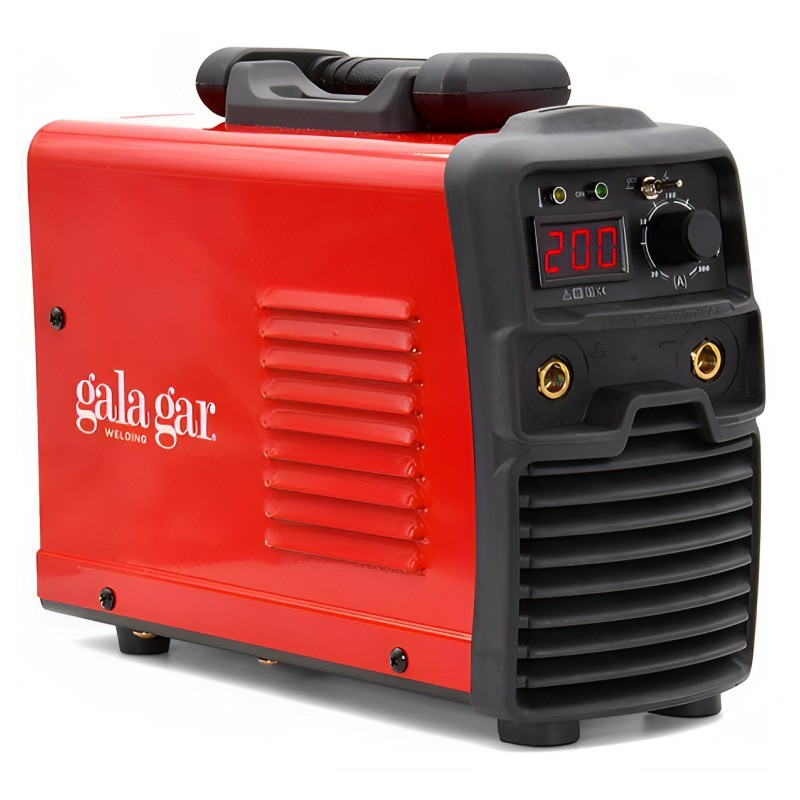

Inverter welder Gala gar Smart 200 MMA 200 A
The inverter welder Gala gar Smart 200 MMA is a powerful tool with a surprisingly light weight of 4.7 kg and a compact size, which makes it extremely handy.
Its high-performance MMA welding capability allows it to work with electrodes up to Ø 4.0 mm, including normal E.6013 and basic E-7018 electrodes. Equipped with advanced functions such as Hot Start, Arc Force and Antisticking, it guarantees efficient and quality welding.
In addition to its MMA capability, this welder offers the versatility of the DC Lift-Arc TIG process with manual valve torch, making it an ideal choice for a wide range of applications, from metalworking to maintenance and repair work.
Its digital display of set welding current and 16/25 mm welding connectors facilitate precise control and safe connection in a variety of work environments.
Compatible with a variety of electrodes, including rutile, basic, stainless and specialty, this inverter welder stands out for its versatility and reliable performance in multiple industrial and work scenarios.
Accessories

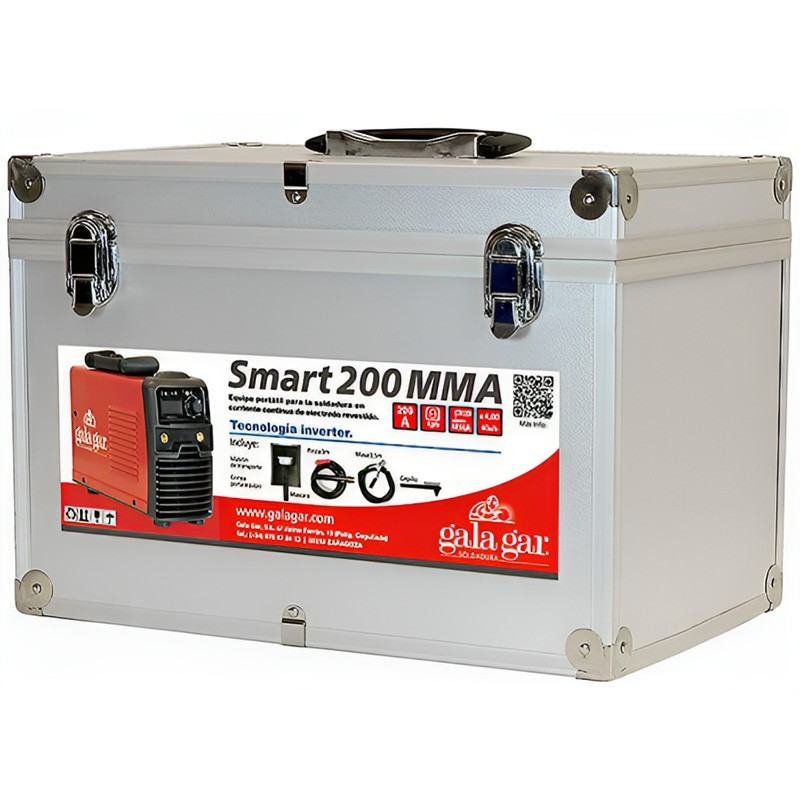

- Carrying case.
- Ground clamp cable.
- Electrode holder clamp with cable.
- Hand mask.
- Carrying strap.
- Metal brush with pickaxe.
Technical data sheet
| Supply voltage (U1-I 50/60 Hz) |
1Ph 230V ± 10% |
| Effective power (S1max eff) |
9.2 KVA |
| Maximum effective current (I1max eff) |
42 A |
| No-load voltage (U2o) |
65 V |
| Continuous regulation range MMA (I2min - I2max) |
10 - 200 A |
| Maximum coated electrode diameter |
4.0 mm |
| Duty cycle factor (I2 max ; tc=5' ; Tamb=40ºC) |
200 A / 35% |
| Degree of mechanical protection IP |
IP 21 |
| Thermal protection degree |
F (155 ºC) |
| Weight |
4.7 Kg |
| Dimensions |
237 x 300 x 400 mm |
