Welder Hyundai MMA-160P direct current 10 - 160 A
Welder Hyundai MMA-160P direct current 10 - 160 A
Welder Hyundai MMA-160P direct current 10 - 160 A
Welder Hyundai MMA-160P direct current 10 - 160 A
Welder Hyundai MMA-160P direct current 10 - 160 A
Welder Hyundai MMA-160P direct current 10 - 160 A
Welder Hyundai MMA-160P direct current 10 - 160 A
Welder Hyundai MMA-160P direct current 10 - 160 A

Welder Hyundai MMA-160P direct current 10 - 160 A


  • Nominal input voltage : 1P AC 230V, 50Hz
  • Power absorbed : 6,7 kVA
  • Rated current : 29 A
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
MMA
icon No-load voltage
No-load voltage
67 V
icon Service 40ºC
Service 40ºC
60 %
icon Regulating range
Regulating range
10 - 160 A
icon Usable electrodes
Usable electrodes
1.6 - 4 mm
icon Weight
Weight
6.5 Kg
€252.50 excl. VAT
- 4%
€242.40 excl. VAT
€293.30 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Welder Hyundai MMA-160P direct current 10 - 160 A
€293.30
Qty

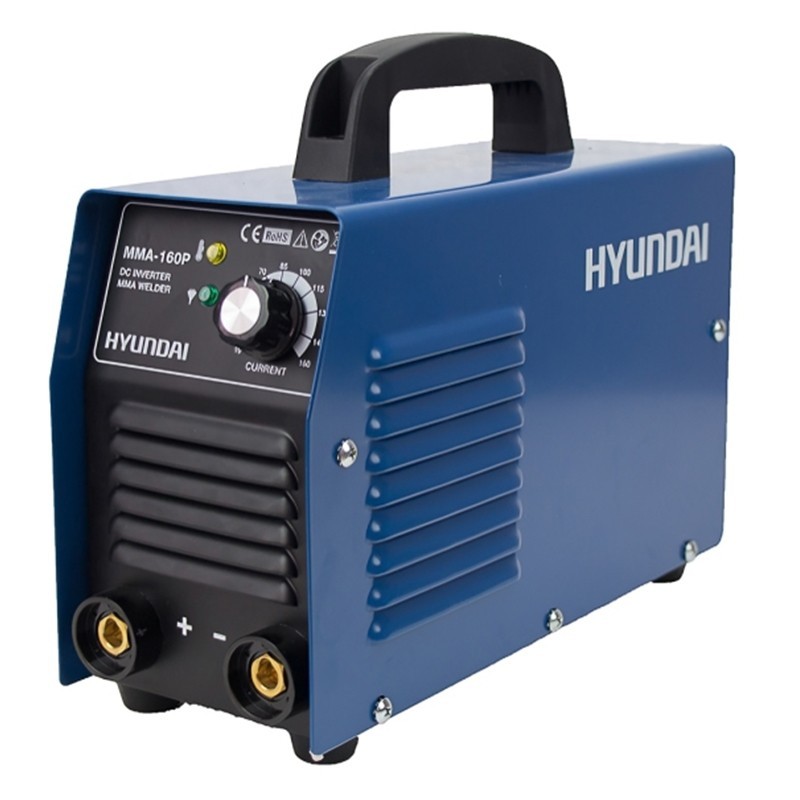

Inverter Welder Hyundai MMA-160P

The welder Hyundai MMA-160P is a welding tool that stands out for its efficiency and versatility. With a nominal input voltage of 230V AC and a power consumption of 6.7 kVA, it offers a rated current of 29 A, providing an output of up to 160 A at 26.4 V.

Its output current range of 10 to 160 A makes it ideal for a wide range of welding applications, from delicate work to more demanding tasks. Equipped with IGBT Inverter technology and innovative features such as Hot ARC start, Anti-stick and integrated ARC force, this welder guarantees a smooth and stable start, along with trouble-free operation.

With a high utilization factor of 60%, it maximizes energy efficiency, allowing prolonged use without compromising performance. In addition, with its three PCB boards, it ensures a robust and durable construction, offering reliability in every welding job.

Accessories

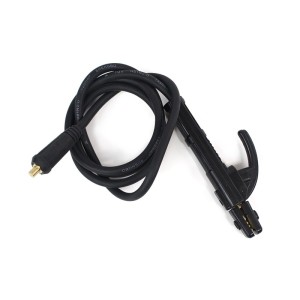

  • Electrode holder with 2 m cable.

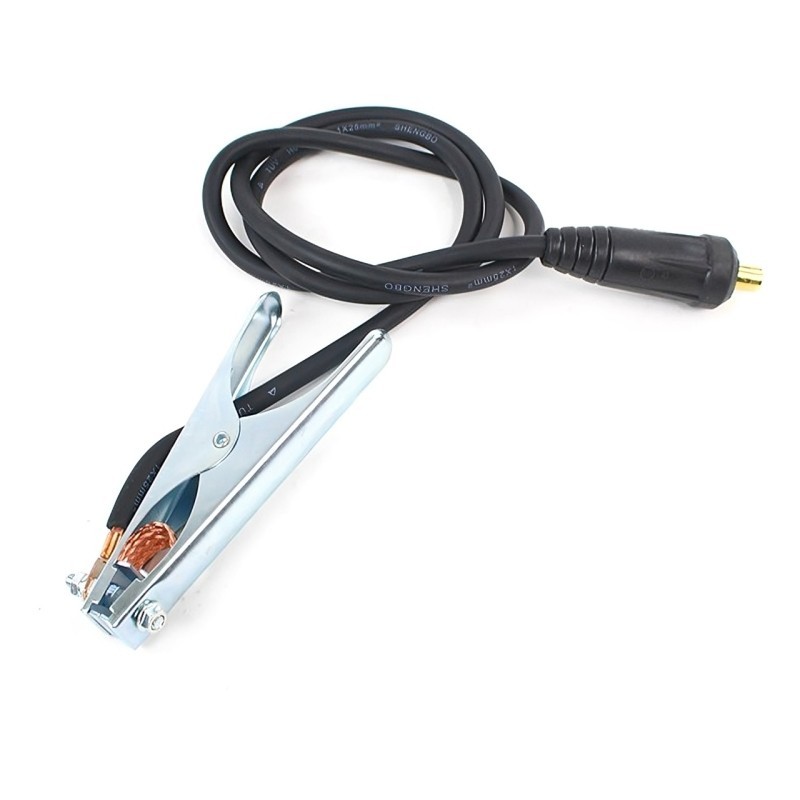

  • Clamp with 1.5 m cable.
  • Simple mask.
  • Hammer and brush.

Technical data sheet

Nominal input voltage 1P AC 230V, 50Hz
Absorbed Power 6,7 kVA
Rated current 29 A
Output Current and Voltage 160 A / 26.4 V
Output Current Range 10-160 A
No-load voltage 67 V
Utilization factor 60 %
Electrodes from 1.6 to 4 mm
Efficiency 85 %
Power factor 0,7
Protection Class IP21S
Insulation Class F
Net / gross weight 6,5 / 7,5 Kg
Dimensions 360 x 245 x 310 mm
260804

Data sheet

Current
Single-phase
Typology Welder
MMA
No-load voltage
67 V
Service 40ºC
60 %
Regulating range
10 - 160 A
Usable electrodes
1.6 - 4 mm
Weight
6.5 Kg

Specific References

EAN-13
8809429749154
MPN
HY-MMA-160P
New
