Inverter welder Solter Core 160s
Inverter welder Solter Core 160s

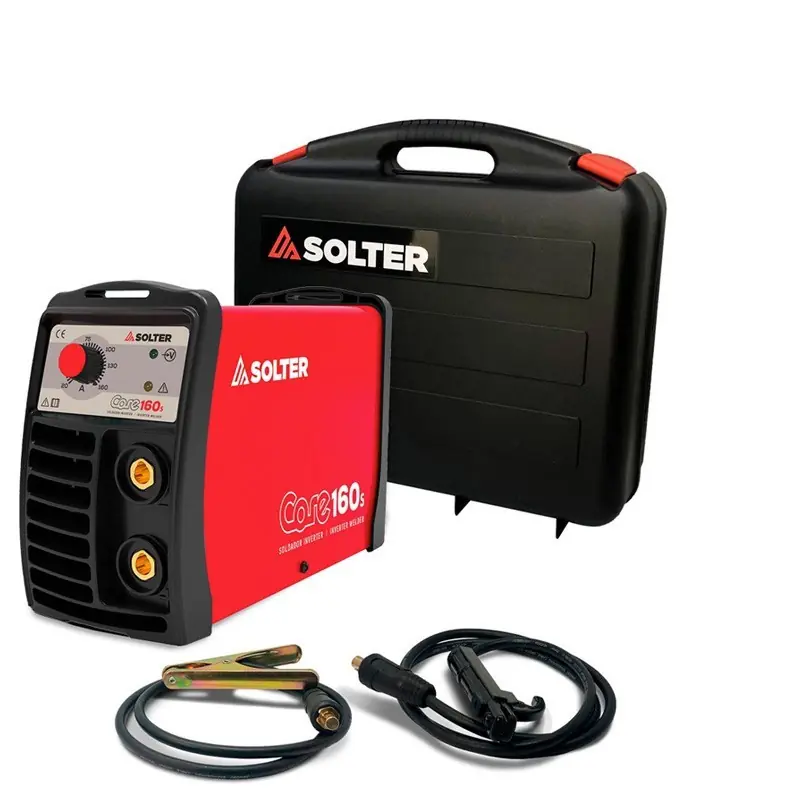

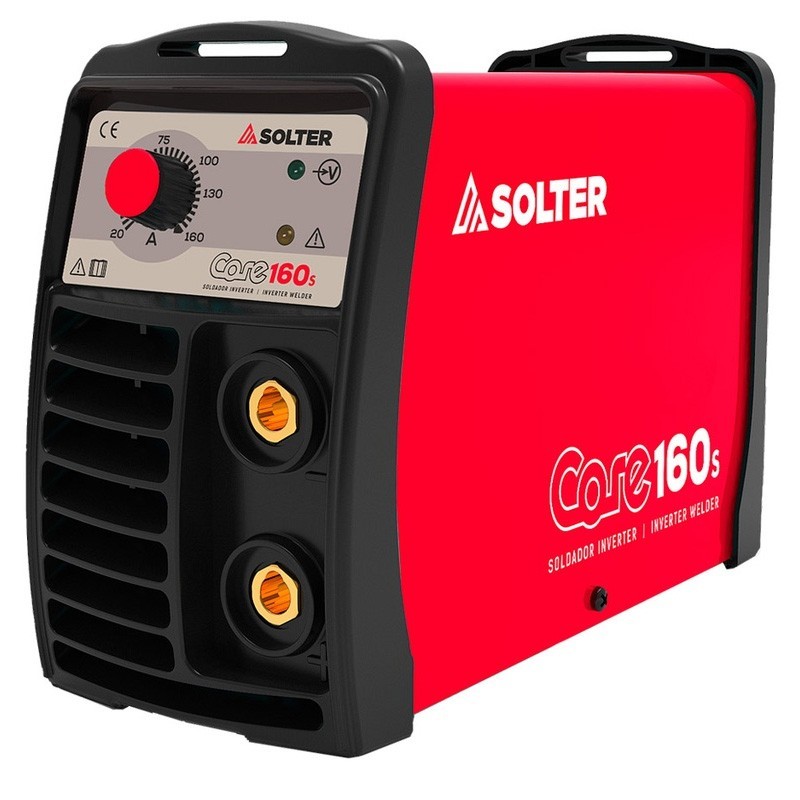

MMA inverter welder Solter Core 160s

Rating:
(0)
  • Maximum current: 160 A
  • Usable MMA electrodes: 1,6 - 3,25 mm
  • No-load voltage: 50 V
  • Weight: 2,8 Kg
En stock
Current
Single-phase
Typology Welder
MMA / TIG
No-load voltage
50 V
Service 40ºC
35 %
Regulating range
20 - 160 A
Usable electrodes
1.6 - 3.25 mm
Weight
2.8 Kg
€162.26 excl. VAT
- 4%
€155.77 excl. VAT
€188.48 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Let me know if the price drops
close

Price Drop Notice


Request a quote
close

Request a quote


MMA inverter welder Solter Core 160s
€188.48
Qty

Inverter MMA welder Solter Core 160s

The inverter MMA welder Solter Core 160s has the new Nanocrystaline technology that allows to make more powerful and smaller equipment. In addition, this machine is very light since the weight of this inverter welder is only 2.8 kg

The MMA welder Solter Core 160s allows welding with MMA electrodes as well as with TIG electrodes. This gives us greater versatility when using the machine. The power consumption of this Solter Core 160s is minimal thanks to its high energy efficiency.

Finally, the Core 160s inverter welder is equipped with Arc-Force and Hot-Start devices. These devices help us to weld more efficiently.

Solter the Core 160s is known for providing excellent quality machines at a very competitive price. The Core 160s is no exception as it has an unbeatable price-performance ratio.

Highlights of the Solter Core 160s

  • New"Nanocrystaline" technology, smaller, more powerful and lighter
  • Ease of use thanks to INVERTER technology supplying DC direct current.
  • Minimal power consumption due to high energy efficiency.
  • Connectable to generators with a wide range of operating voltages.
  • Equipped with Arc-Force and Hot-Start devices.
  • TIG welding possible.

MMA inverter MMA welder technical data Solter Core 160s

Adjustment range 20 - 160 A
Intensity at 60% (100%) at 40ºC 130 A (115A)
Maximum current 160 A
Efficiency 40ºC 35%
Usable electrodes MMA 1,6 - 3,25 mm
Usable electrodes TIG 1.0 - 2.4 mm
Connection 230 V - 1Ph
Operating range 190 - 265 V
Fuse 16 A
Imax 30 A
Ieff 17,7 A
Maximum absorbed power 6.9 kVA
No load voltage 50 V
Dimensions 315 x 102 x 176 mm
Protection rating IP21S
Standards EN-60974-1. EN-60974-10
Control panel SOLTER
Weight 2,8 Kg
Ventilation Forced
Technologies
  • Hot-Start
  • Generator OK
  • Anti STICK
  • Arc Force
259001

Data sheet

Current
Single-phase
Typology Welder
MMA / TIG
No-load voltage
50 V
Service 40ºC
35 %
Regulating range
20 - 160 A
Usable electrodes
1.6 - 3.25 mm
Weight
2.8 Kg
